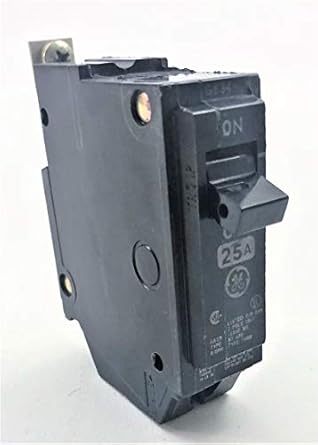

GE THQB1125 Circuit Breaker - 1P 25 Amp 120/240Vac — main product image
GE THQB1125 Circuit Breaker - 1P 25 Amp 120/240Vac
GE THQB1125 Circuit Breaker - 1P 25 Amp 120/240Vac
GE THQB1125 Circuit Breaker - 1P 25 Amp 120/240Vac
GE THQB1125 Circuit Breaker - 1P 25 Amp 120/240Vac
GE

GE THQB1125 Circuit Breaker - 1P 25 Amp 120/240Vac

★★★★★5.0 (1 reviews)

A 25-amp bolt-on breaker with 10 KAIC interrupting capacity for dependable overcurrent protection in demanding panels.

$25.37*
✓ In Stock on Amazon.com
View on Amazon

*Price sourced from Amazon.com. Last updated:Jul 20, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The GE THQB1125 is a single-pole bolt-on circuit breaker rated at 25 amps for use in 120/240Vac electrical systems. Its bolt-on mounting style creates a mechanically secure connection inside the load center, reducing the risk of loosening under vibration or thermal cycling compared to plug-in alternatives. With a 10,000 AIC interrupting capacity at both 120V and 240V, this breaker can safely clear significant fault currents, making it suitable for both residential branch circuits and light commercial distribution panels.

The THQB1125 carries HACR certification for heating, air conditioning, and refrigeration circuits, as well as an SWD rating that qualifies it for switching duty applications where the breaker may be used as a regular on/off switch. Its fixed long-time and instantaneous trip elements provide dependable overcurrent and short-circuit protection without requiring manual adjustment. At just one inch wide per pole, it conserves valuable panel space while delivering the robust protection expected from the GE Q-Line series.

Key Features

ROBUST CIRCUIT BREAKER – This ABB Q-Line 25A single-pole circuit breaker ensures superior electrical safety with a high interrupting capacity of 10 KAIC at both 120 and 240V, ideal for a wide range of power distribution needs.

BOLT-ON INSTALLATION FOR SECURE FIT – Designed for bolt-on mounting, the THQB1125 circuit breaker provides a secure and stable connection in load centers, minimizing the risk of disconnection under load and ensuring consistent performance.

HIGHLY VERSATILE WITH STANDARD RATINGS – Suitable for both 120 Vac and 120/240 Vac systems, this circuit breaker is perfect for residential or commercial setups needing dependable overcurrent protection.

COMPACT SIZE WITH FIXED TRIP SETTINGS – This miniature breaker features a space-saving design at just 1-inch width per pole and is equipped with fixed long-time and instantaneous trip functions for straightforward and reliable operation.

HACR AND SWD RATED FOR SPECIAL APPLICATIONS – Certified for Heating, Air Conditioning, and Refrigeration systems and suitable for Switching Duty applications, enhancing its functionality across diverse electrical setups.

Specifications

Brand
General Electric (GE)
Model
THQB1125
Type
Bolt-On Circuit Breaker
Poles
1
Amperage
25 Amp
Voltage
120/240 Vac
Interrupting Rating
10 KAIC
Width Per Pole
1 inch
Trip Type
Fixed (Long-Time and Instantaneous)
Certifications
HACR, SWD Rated

Frequently Asked Questions

This is a bolt-on circuit breaker designed for GE/ABB load centers that accept THQB-series breakers. It is not compatible with plug-in or snap-in style panels.
The THQB1125 has a 10,000 AIC (10 KAIC) interrupting rating at both 120V and 240V, meaning it can safely interrupt fault currents up to that level.
Yes, it carries an HACR rating, which certifies it for use with heating, air conditioning, and refrigeration circuits.
As a single-pole miniature breaker, it occupies one inch of panel space, fitting into a single breaker slot.
No, the THQB1125 uses fixed long-time and instantaneous trip settings. It is not an adjustable-trip breaker.
