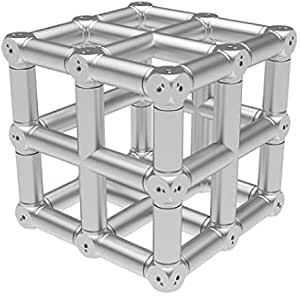

Global Truss DT46-UJB 6-Way Junction Block
Versatile Connection for Professional Truss SystemsThe Global Truss DT46 Style Straight Truss Segment provides a robust and versatile connection point for your truss system. Featuring a 6-way universal junction block, this segment is designed for durability and ease of use. Type: 6 Way Universa...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Versatile Connection for Professional Truss Systems
The Global Truss DT46 Style Straight Truss Segment provides a robust and versatile connection point for your truss system. Featuring a 6-way universal junction block, this segment is designed for durability and ease of use.
- Type: 6 Way Universal Junction Block
- Overall Width: 15 3/4" (400mm)
- Outer Diameter Tubing: 2" (50mm)
- Diagonal Bracing: 1" (25.4mm)
- Wall Thickness: 0.12" (3mm)
Key Features
DT46-UJB 6 Way Universal Junction Block
2 Sides of Connection Hardware Included
15 3/4" (400mm) Overall Width
2" (50mm) Outer Diameter Tubing
1" (25.4mm) Diagonal Bracing / 0.12" (3mm) Wall Thickness
Specifications
Model
DT46-UJB
Type
6 Way Universal Junction Block
Connection Hardware
2 Sides Included
Overall Width
15 3/4" (400mm)
Outer Diameter Tubing
2" (50mm)
Diagonal Bracing
1" (25.4mm)
Wall Thickness
0.12" (3mm)
Pros & Cons
👍 Pros
- Offers a 6-way universal junction block, providing versatile connection possibilities for truss systems.
- Comes with connection hardware included for two sides, simplifying initial setup.
- Features a substantial 2" (50mm) outer diameter tubing, indicating robust construction.
- Utilizes 1" (25.4mm) diagonal bracing, contributing to the structural integrity of the truss assembly.
- Constructed with a 0.12" (3mm) wall thickness, suggesting durability for professional applications.
👎 Cons
- The 15 3/4" (400mm) overall width might be a specific dimension to consider for precise truss layouts.
- Only two sides of connection hardware are explicitly included, potentially requiring additional purchases for a full 6-way connection.
- Requires specific knowledge of truss systems for proper and safe installation.
- The junction block is a specialized component, not a complete truss system on its own.
- The weight of the junction block is not provided, which could be a factor for transport and assembly planning.
Frequently Asked Questions
What is the primary purpose of the Global Truss DT46-UJB?
The Global Truss DT46-UJB is a 6-way universal junction block designed to connect multiple sections of trussing at various angles.
Does this junction block come with all the necessary connection hardware?
It includes connection hardware for two sides, so additional hardware may be needed depending on how many of the six connections are utilized.
What is the outer diameter of the tubing for this junction block?
The outer diameter of the tubing on this junction block is 2 inches (50mm).
What is the overall width of the DT46-UJB?
The overall width of this universal junction block is 15 3/4 inches (400mm).
Is this suitable for heavy-duty applications?
With 2-inch outer diameter tubing, 1-inch diagonal bracing, and 0.12-inch wall thickness, it is designed for robust professional truss applications.
Can this junction block be used with any type of truss?
This is a "Universal Junction Block," but compatibility with specific truss systems should be verified based on tubing dimensions and connection type.
What is the material thickness of the truss components?
The wall thickness of the components is 0.12 inches (3mm), indicating a strong and durable construction.
