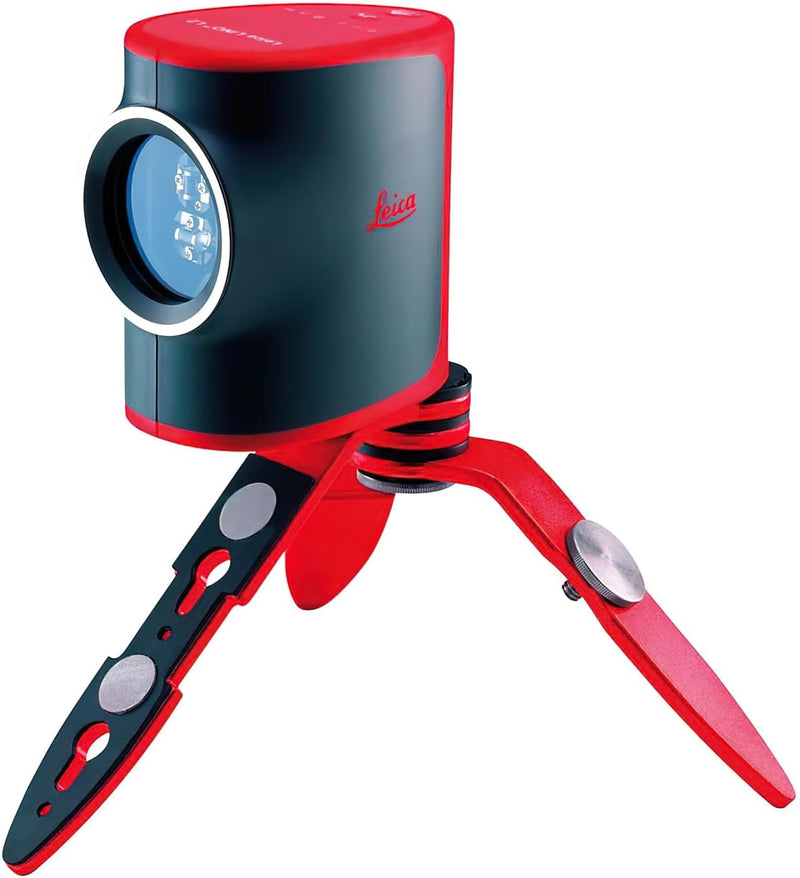

Leica 757225 LINO L2 Self-Leveling Cross Line Laser — main product image
Leica 757225 LINO L2 Self-Leveling Cross Line Laser
Leica 757225 LINO L2 Self-Leveling Cross Line Laser
Leica 757225 LINO L2 Self-Leveling Cross Line Laser
Leica 757225 LINO L2 Self-Leveling Cross Line Laser
Leica 757225 LINO L2 Self-Leveling Cross Line Laser
Leica 757225 LINO L2 Self-Leveling Cross Line Laser
Leica

Leica 757225 LINO L2 Self-Leveling Cross Line Laser

IP54

Project precise crossing horizontal and vertical laser lines up to 45 feet with self-leveling accuracy and rugged IP54-rated protection.

View price on Amazon
Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Leica LINO L2 Self-Leveling Cross Line Laser is engineered for tradespeople, contractors, and DIY users who need fast, reliable alignment references. It projects bright red horizontal and vertical laser lines that cross at a precise 90° angle, making it ideal for tasks like cabinet installation, tile layout, electrical fixture placement, and partition wall alignment. The self-leveling pendulum compensates automatically for surfaces off-level by up to ±4°, and if the unit is tilted beyond that range, the blinking laser alerts the user immediately — eliminating the risk of working to an inaccurate reference line.

Built to withstand the demands of job-site use, the L2 carries an IP54 rating that guards against dust infiltration and water splashes. The Pendulum Lock feature adds versatility by allowing the self-leveling mechanism to be disabled, enabling angled line projection for stairways, ramps, or any task requiring a non-level reference. With accuracy rated at ±1mm at 5 meters and a working range of up to 45 feet, the LINO L2 covers the vast majority of interior alignment scenarios with the precision and build quality that the Leica name is known for.

Key Features

This unit contains a Class II Laser with 1mW output

Projects bright red crossing horizontal and vertical lines up to 45ft

IP54 rated dust-proof and splash-protected

Exact 90° angle: Alignment work, such as marking 90° angles, is performed at the touch of a button.

Self-Leveling Feature lets you know your line is out of level by blinking

Pendulum Lock feature to manually switch off the self-levelling so the laser line can be projected at any angle

Specifications

Brand
Leica
Model
757225 (LINO L2)
Laser Class
Class II, 1mW output
Laser Color
Red
Projection
Crossing horizontal and vertical lines
Range
Up to 45 feet
Self-Leveling Range
±4°
Accuracy
±1mm at 5 meters
Protection Rating
IP54 (dust-proof and splash-protected)
Special Features
Pendulum Lock for manual angle projection

Frequently Asked Questions

The L2 projects bright red crossing horizontal and vertical lines at distances up to 45 feet (approximately 15 meters), suitable for most interior alignment tasks.
The self-leveling function automatically compensates for surfaces that are off-level by up to ±4°. If the tilt exceeds that range, the laser lines will blink to alert you that manual adjustment is needed.
Yes. The Pendulum Lock feature disables the self-leveling mechanism, allowing you to project laser lines at any desired angle for tasks like marking stair stringers or angled layouts.
IP54 means the unit is protected against dust ingress and splashing water from any direction, making it suitable for use on active construction sites where conditions are less than clean.
The LINO L2 uses a Class II laser with 1mW output, which is considered safe for normal use as long as you avoid staring directly into the beam for extended periods.
