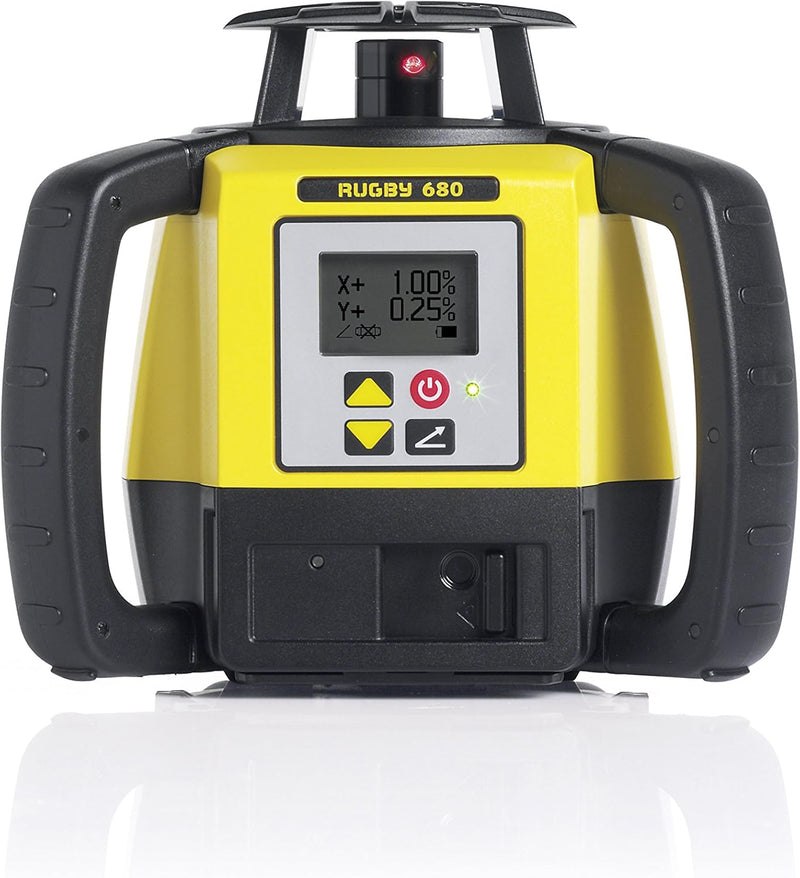

Leica R680 Rugby 680 Dual Axis Laser Level — main product image
Leica R680 Rugby 680 Dual Axis Laser Level
Leica R680 Rugby 680 Dual Axis Laser Level
Leica R680 Rugby 680 Dual Axis Laser Level
Leica R680 Rugby 680 Dual Axis Laser Level
Leica R680 Rugby 680 Dual Axis Laser Level
Leica

Leica R680 Rugby 680 Dual Axis Laser Level

IP67

Leica Rugby 680 dual-axis self-leveling laser delivers 2,600 ft range and IP67 ruggedness for demanding construction sites.

View price on Amazon
Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Leica Rugby 680 is a professional-grade dual-axis self-leveling rotary laser built for construction, grading, and surveying applications where precision and durability are non-negotiable. At the touch of a button, operators can dial in grade on both axes up to 8%, making it an efficient tool for drainage work, road grading, foundation leveling, and other tasks that require controlled slope. With a working range of 2,600 feet using the included Rod Eye 140 Classic receiver and accuracy of ±1/16 inch at 100 feet, it comfortably covers large commercial and residential job sites.

What sets the Rugby 680 apart in the field is its combination of ruggedness and intelligent features. The IP67 protection class means the unit is fully sealed against dust and can survive temporary immersion in water—a critical advantage on muddy, rain-soaked construction sites. The Smart Slope function continuously monitors environmental conditions including time and temperature changes, automatically compensating to maintain calibration accuracy throughout an entire workday without manual intervention. Powered by D-cell alkaline batteries providing up to 60 hours of operation, and shipped with a receiver, battery holder, batteries, and protective case, the Rugby 680 is designed to go straight from the box to the job site.

Key Features

This unit contains a Class II Laser with 1mW output

Self Leveling or Dial In Dual Axis Grade to 8% with the Touch of a Button

Range 2,600ft, Accuracy 1/16" at 100ft

Includes Rod Eye 140 Classic Receiver, D-Cell Alkaline Battery Holder and Batteries, Case

Smart Slope Function Continuously Monitors Time and Temperature Changes to Ensure Performance Over the Course of the Day

Suited for Outdoor Conditions with IP67 Protection Class for Dust and Water Protection

Specifications

Brand
Leica
Model
Rugby 680 (R680)
Laser Class
Class II (1 mW output)
Leveling
Self-Leveling
Grade
Dual Axis, up to 8%
Range
2,600 ft (with Rod Eye 140 Receiver)
Accuracy
±1/16 in at 100 ft
Protection Rating
IP67 (dust and water)
Battery
D-Cell Alkaline
Battery Life
60 hours
Smart Slope
Yes (automatic time/temperature compensation)
Included Accessories
Rod Eye 140 Classic Receiver, D-Cell Alkaline Battery Holder, Batteries, Carrying Case

Frequently Asked Questions

Yes, the Rugby 680 features dual-axis dial-in grade capability up to 8% with a simple button press, making it well-suited for grading, drainage, and slope work.
It has a working range of 2,600 feet when used with the included Rod Eye 140 receiver, and accuracy of ±1/16 inch at 100 feet.
Yes, it carries an IP67 protection rating, meaning it is fully dust-tight and can withstand temporary submersion in water, making it highly durable in harsh outdoor conditions.
The package includes the Rugby 680 laser, Rod Eye 140 Classic Receiver, D-Cell alkaline battery holder with batteries, and a carrying case.
No, the Smart Slope function continuously monitors time and temperature changes and automatically adjusts to maintain accuracy over the course of the workday.
