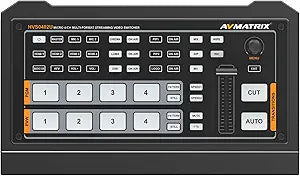

Lilliput HVS0402U AVMATRIX Micro HDMI Live Streaming Switcher — main product image

Lilliput HVS0402U AVMATRIX Micro HDMI Live Streaming Switcher

Lilliput

Lilliput HVS0402U AVMATRIX Micro HDMI Live Streaming Switcher

Name: Lilliput HVS0402U AVMATRIX Micro HDMI Live Streaming Switcher
Brand: Lilliput
SKU: HVS0402U

★★★★★5.0 (1 reviews)

USB-C

Compact 4-channel HDMI live streaming switcher with T-Bar control, chroma key, PIP, and multiview monitoring.

$549.00*

✓ In Stock on Amazon.com

View on Amazon

*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The AVMATRIX HVS0402U is a compact, metal-bodied 4-channel HDMI video switcher designed for live streaming, event production, and presentation environments. It accepts four HDMI inputs with automatic format detection, eliminating the need to manually match resolutions across sources. The switcher provides two HDMI outputs that can be configured as program (PGM), multiview, clean PGM, preview (PVW), or auxiliary feeds routed from any of the four inputs. A USB 2.0 Type-C port enables direct streaming to a computer, allowing the unit to function as both a switcher and a capture device for streaming software.

Where the HVS0402U stands out from simpler switchers is its professional feature set. The physical T-Bar allows operators to manually control transition speed, complemented by AUTO and CUT buttons and a selection of transition effects including nine wipe patterns, mix, dip, freeze, and fade to black. Keying capabilities include both chroma key and luma key for background removal, two independent picture-in-picture layers with adjustable size and positioning, downstream keying, and logo overlay imported from a USB flash drive. Two 3.5mm stereo audio inputs provide microphone or line-level audio mixing, while a DB-15 tally port supports external tally light systems. The multiview output displays all four inputs alongside program, preview, and status information on a single monitor, giving operators full visual awareness during a live production.

Key Features

HVS0402U is a 4-channel HDMI multi-format video Switcher with compact metal case design. It supports various functions including video switching, audio mixing, PGM/ multiview/ Aux out, different transition effects, Luma Key Chroma Key, DSK, LOGO, PIP/ POP, media library, pattern and color generator, etc.

Inputs support multi-format, PGM output can be scaled, compatible with a variety of equipment. The unit supports stream performances and presentations on PC through the USB-C port. User can also customize different settings and import or export the configuration quickly for various scenarios. It’s a powerful and professional video switcher for your choices

CHROMA KEY LUMA KEY CHROMA

Enable the Chroma Key LUMA: Enable the Chroma Key PIP1/PIP2: Enable two group of Picture in Picture. Size and position can be set via Menu. LOGO: Add logo bin from USB flash disk, enable the logo overlay ON AIR: make the corresponding Chroma/Luma/PIP/Logo on air

T-Bar Switch the PVW and PGM through T-Bar

. MULTIVIEW The switcher has two HDMI outputs (PGM/Multiview). The two HDMI ports are both the AUX out that user can define it as output of HDMI 1/ HDMI 2/ HDMI 3/ HDMI 4/ PGM/ Clean PGM/ PVW/ Color Bar/ Multiview (Refers to Part 6). Connecting the HDMI Multiview out to an additional monitor, user will get the multiview image. In the Multiview there are windows of PVW, PGM, HDMI 1, HDMI 2, HDMI 3, HDMI4 and Status/Menu page. See below image.

Specifications

Video Inputs

4x HDMI Type-A (auto-detected)

Video Outputs

1x HDMI Type-A PGM, 1x HDMI Type-A Multiview

Streaming Output

1x USB 2.0 Type-C

Audio Inputs

2x MIC/Line level (3.5mm stereo)

Control Port

1x LAN (RJ-45)

Media Library

1x USB Type-A (image import and firmware upgrade)

Tally Port

1x DB-15

Power Input

DC 12V

Transitions

T-Bar, AUTO, CUT

Effects

Wipe (9x2 patterns), Mix, Dip, Pattern, Still (freeze), Mute, FTB

Keying

Chroma Key, Luma Key, DSK, Logo Overlay

Layouts

PIP/POP (2 layers), 2 Multiview styles (6 windows + status)

Pros & Cons

👍 Pros

Four auto-detecting HDMI inputs handle multiple source formats without manual configuration
Built-in T-Bar provides tactile, manual control over transition speed and timing
USB-C output enables direct streaming to a PC without a separate capture card
Multiview output displays all four inputs plus PGM and PVW on a single monitor
Compact metal case design is durable and well-suited for portable production setups

👎 Cons

USB 2.0 Type-C streaming output may limit output resolution and frame rate compared to USB 3.0
Only supports HDMI inputs — no SDI connectivity for broadcast-standard equipment
Two HDMI outputs must be shared between program, multiview, and auxiliary routing
LAN control port requires network configuration rather than offering simple serial or USB control
No built-in recording capability — requires external recording or streaming software

Frequently Asked Questions

How many HDMI inputs and outputs does the HVS0402U have?

It has four HDMI inputs (auto-detected format) and two HDMI outputs — one for program (PGM) and one for multiview monitoring. It also has a USB-C output for streaming directly to a PC.

Can I use the HVS0402U to stream directly to a computer?

Yes, it includes a USB 2.0 Type-C output that allows you to feed the program output to a PC for live streaming through software like OBS.

Does this switcher support picture-in-picture?

Yes, it supports two independent PIP/POP layers with adjustable size and position, allowing you to overlay source windows on your program output.

What keying capabilities does the HVS0402U offer?

It supports both chroma key and luma key, as well as downstream key (DSK) and logo overlay from a USB flash drive.

How is switching controlled on this unit?

You can switch between sources using the physical T-Bar for manual transitions, or use AUTO and CUT buttons. Transition effects include wipe patterns, mix, dip, and more.
