Manfrotto

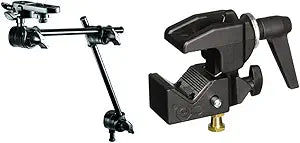

Manfrotto 196B-2/143BKT/035RL Articulated Arm & Super Clamp Kit, Black
★★★★★
Position your camera exactly where the shot demands — Manfrotto's articulated arm and Super Clamp kit locks in precise angles no standard mount can reach.
$121.90*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features
Product 1: Swiveling arm; each section is separately locked. Length: 23.6".
Product 1: Comes with removable 143BKT Camera Bracket.
Product 1: 2 Section, 5/8" spigot.
Product 1: Bottom attachment: 5/8 spigot with 1/4" thread (compatible with Superclamp).
Product 2: Clamps securely to many items
Product 2: Built in Socket allows use of a wide variety of attachments
Product 2: Black finish to reduce reflection
Product 2: Rugged Construction
Specifications
Arm Sections
2
Maximum Arm Length
23.82 in (605 mm)
Tube Diameter
13 mm
Arm Load Capacity (Max Extension)
3.31 lbs (1.5 kg)
Arm Weight
1.17 lbs
Arm Bottom Attachment
16 mm spigot with 1/4" thread
Arm Material
Aluminum
Arm Color
Black
Super Clamp Attachment Type
16 mm hexagonal + M5 & 1/4" threads
Super Clamp Range (Min Tube)
0.51 in (13 mm)
Super Clamp Range (Max Tube)
2.17 in (55 mm)
Super Clamp Load Capacity
33.07 lbs (15 kg)
Super Clamp Weight
0.9 lbs (0.41 kg)
Super Clamp Material
Aluminum
Included Accessories
143BKT Camera Bracket
Pros & Cons
👍 Pros
- Two independently locking sections let you reach compound angles — over obstacles, around corners, or directly overhead — that a fixed arm can't access on a real set.
- The removable 143BKT camera bracket includes both a 16mm spigot and a 1/4" thread, so it fits a wide range of camera bodies and small accessories without adapters.
- The 035RL Super Clamp's 33 lb load rating means the clamp itself will never be the weak point — you can trust it on truss, scaffolding, or a heavy light stand without second-guessing.
- At 23.6" extended, the arm gives you meaningful reach away from the clamp point, opening up creative placement options in tight studio spaces.
- All-aluminum construction keeps the kit light enough (combined ~2 lbs) to carry in a location bag without adding real bulk.
👎 Cons
- The 3.31 lb arm load limit rules out heavier DSLR-plus-lens combinations — plan your payload carefully before committing to this for camera mounting rather than accessory mounting.
- The locking collars require a deliberate tighten after each repositioning; in fast-paced setups it's easy to move on before one section is fully locked, leading to drift under load.
- The 143BKT camera bracket provides a fixed attachment point with no pan or tilt adjustment — you'll need a ball head or tilt plate if you want fine camera angle control at the end of the arm.
- At full extension with a camera attached, the arm can introduce slight vibration during longer exposures unless the Super Clamp is mounted to something genuinely rigid.
Frequently Asked Questions
What surfaces or structures can the 035RL Super Clamp attach to?
The Super Clamp grips round tubes from 0.51" to 2.17" in diameter, so it works on light stands, truss sections, scaffolding, table edges, and most studio rigs. The built-in 16mm socket and M5/1/4" threads give you multiple attachment options once it's fixed in place.
How much weight can the 196B-2 arm safely support?
At full extension the arm is rated to 3.31 lbs — enough for a mirrorless body with a small lens, an on-camera monitor, or a speedlight. The 035RL Super Clamp itself handles up to 33 lbs, so the arm's load limit is the constraining factor in this kit.
Can I attach a ball head or other accessory instead of the included camera bracket?
Yes. The arm terminates in a 5/8" spigot with a 1/4" thread, which is the Manfrotto standard interface. You can swap the 143BKT camera bracket for a ball head, flash bracket, or any accessory that accepts a 5/8" spigot or 1/4"-20 thread.
How do I lock each section of the arm independently?
Each of the two sections has its own locking collar. You position the first section, lock it, then swing and lock the second — this lets you dial in compound angles that a single-pivot arm simply can't achieve without losing your framing.
Is this kit suitable for overhead or inverted camera positions?
Yes, provided the total payload stays under 3.31 lbs. The independent locking sections hold their position reliably when inverted, which makes this kit popular for flat-lay product shots and macro setups clamped to a table edge.
