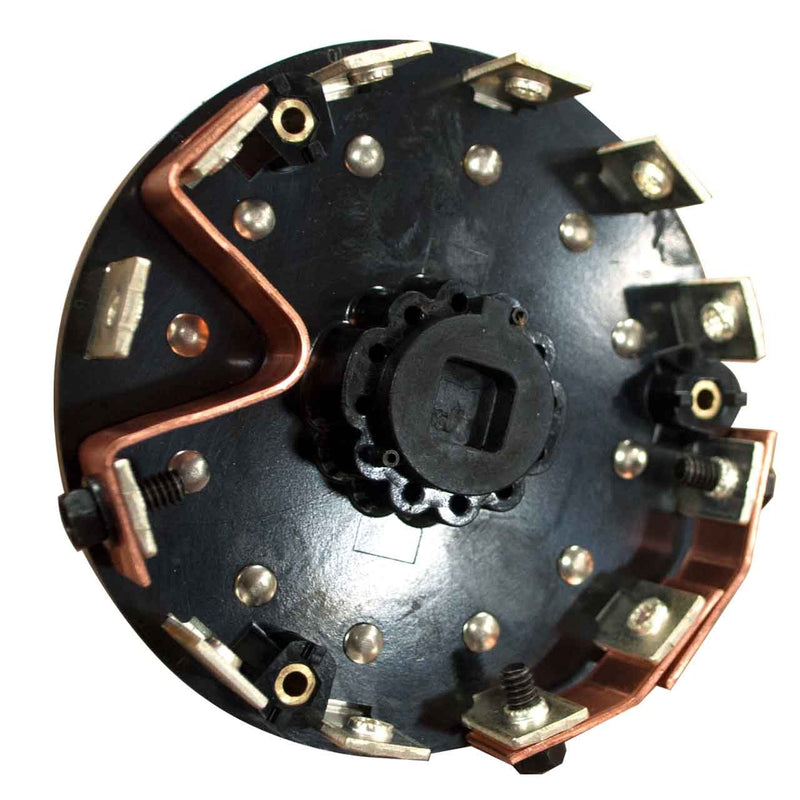

Miller 249235 Switch, Selector 5 Position w/Jumpers — main product image
Miller 249235 Switch, Selector 5 Position w/Jumpers
Miller 249235 Switch, Selector 5 Position w/Jumpers
Miller 249235 Switch, Selector 5 Position w/Jumpers
Miller 249235 Switch, Selector 5 Position w/Jumpers
Miller

Miller 249235 Switch, Selector 5 Position w/Jumpers

Miller 249235 five-position selector switch with IP54 protection and included jumpers for reliable equipment control.

$323.99*
✓ In Stock on Amazon.com
View on Amazon

*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Miller 249235 is a five-position selector switch engineered as a replacement component for Miller welding and industrial equipment. It provides operators with tactile, touch-controlled position selection across five discrete settings, enabling precise control over equipment functions. The switch operates in a parallel circuit configuration and connects via through-hole terminals, making it a direct solder-in replacement in compatible control panels.

Built to withstand the demands of workshop and industrial settings, the switch carries an IP54 international protection rating, guarding against limited dust penetration and water splashes from any direction. Jumpers are included in the package, simplifying the installation process by providing the necessary wiring connections alongside the switch itself. The X-10 connectivity protocol support and durable construction make this a reliable long-term replacement part for maintaining equipment uptime.

Key Features

Sold on Amazon

Specifications

Brand
Miller
Model
249235
Number of Positions
5
Control Method
Touch
Circuit Type
Parallel
Terminal
Through Hole
Connectivity Protocol
X-10
IP Rating
IP54
Unit Count
1

Pros & Cons

👍 Pros

  • Five positions provide versatile selection across multiple circuit settings
  • IP54 rating protects against dust and water splash in workshop environments
  • Included jumpers reduce the need for additional parts during installation
  • Through-hole terminals allow straightforward soldering and secure wiring connections
  • Genuine Miller part ensures compatibility with Miller equipment

👎 Cons

  • Designed as a specific replacement part with limited cross-brand compatibility
  • Through-hole mounting requires soldering rather than plug-and-play installation
  • Single-unit packaging means no spares included if additional switches are needed
  • Limited documentation may require familiarity with your equipment's wiring schematic

Frequently Asked Questions

The Miller 249235 features five selectable positions, allowing you to choose between multiple circuit settings or operational modes.
Yes, jumpers are included with the switch, so you have the wiring connections needed for installation without purchasing them separately.
It carries an IP54 rating, meaning it is protected against limited dust ingress and water splashes from any direction — suitable for workshop and industrial environments.
The switch uses through-hole terminal connections for mounting and wiring into your equipment's control panel.
Yes, the 249235 is a genuine Miller part designed for use in Miller welding equipment and compatible systems.
