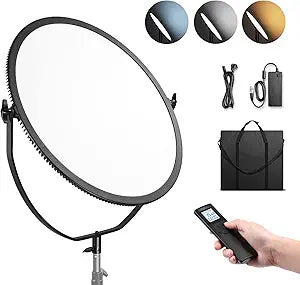

Neewer 10100868 NL-500ARC 24" LED Round Panel Light

★★★★★4.3 (23 reviews)
120W

Deliver soft, even illumination with Neewer's 24-inch 120W bi-color LED round panel featuring 2.4G remote and DMX control.

$229.99*
Check availability

*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Neewer NL-500ARC is a 24-inch round LED panel that uses edge-lit technology to produce soft, diffused illumination well-suited to portrait photography, product shoots, weddings, and video production. With 234 cool white and 234 warm white LEDs arranged behind the panel surface, it delivers a maximum output of 10,000 lux at half a meter and supports a bi-color range from 2500K to 8500K — wide enough to match virtually any ambient lighting condition or creative intent. Dimming is continuously adjustable from 1% to 100%, and an onboard LCD panel displays real-time color temperature and brightness readings for quick, precise adjustments.

Control options extend well beyond the onboard interface. The included 2.4G wireless remote provides on/off, dimming, and color temperature control at distances up to 164 feet in open conditions, which is useful when the light is mounted overhead or in hard-to-reach positions. For multi-light setups or stage productions, a DMX interface allows integration with standard DMX consoles. The aluminum shell incorporates ventilation channels to manage heat during extended use, and the dual power design — AC adapter for studio work plus a rear V-mount plate for battery operation — means the NL-500ARC transitions readily between indoor and outdoor environments. A carrying bag is included for transport and storage.

Key Features

【Edge-Lit LED Round Light】 Employing edge-lit LED technology, 120W NL-500ARC is a slim, bright (maximum illumination: 10000lux/0.5m and 3000lux/1m), and soft round light panel for portraits, weddings, children photography, product photography, and vlogs. Vents around the aluminum shell improve heat dissipation and protect the light against overheating

【Adjustable Lighting & LCD Panel】 Equipped with 234 cool white and 234 warm white LEDs, this round light boasts bright light output, 1% ~ 100% dimming, and 2500K ~ 8500K variable color temperature. High CRI 97+ and TLCI 97+ ensure faithful color rendition. An LCD panel clearly shows readings for ease of adjustment

【2.4G Remote & DMX Control】 Sync the round light with the 2.4G remote by setting them to the same channel, then use the remote control to turn the lights on and off, change the color temperature, and adjust brightness. Remote works within a 164' (50m) open range. A DMX stage lighting control interface is compatible with most DMX consoles

【Dual Power Supply Design】 Connect the light to a wall outlet via the AC adapter for indoor use, or the V mounting plate on the back lets you use one V mount battery or two NP-F batteries (an F2-BP converter is required) as a power source for outdoor photography. Note: V mount battery, NP-F batteries, and F2-BP converter are not included

【Package Contents】 1 x 24" 120W LED Round Light, 1 x 2.4G Wireless Remote Control (2 x AAA Battery Not Included), 1 x Power Adapter, 1 x Power Cable, 1 x Carrying Bag

Specifications

Power
120W
Panel Size
24 inches (round)
LED Count
234 Cool White + 234 Warm White (468 total)
Color Temperature
2500K–8500K
Dimming Range
1%–100%
Illumination
10,000 lux at 0.5m / 3,000 lux at 1m
CRI
97+
TLCI
97+
Remote Control
2.4G Wireless (164 ft / 50m range)
DMX
Compatible with DMX consoles
Power Supply
AC Adapter (included); V-Mount or NP-F battery (not included)
Included
LED Panel, 2.4G Remote, Power Adapter, Power Cable, Carrying Bag

Pros & Cons

👍 Pros

  • Edge-lit LED design produces soft, even light output across the full 24-inch round panel
  • Wide bi-color range of 2500K–8500K with smooth 1–100% dimming
  • CRI 97+ and TLCI 97+ deliver excellent color accuracy for critical photo and video work
  • Dual control via 2.4G wireless remote and DMX interface offers flexible operation
  • Dual power options — AC adapter for studio use and V-mount or NP-F battery support for location work

👎 Cons

  • V-mount battery, NP-F batteries, and F2-BP converter are all sold separately, increasing total cost for portable use
  • At 120W the panel draws significant power, which can drain batteries relatively quickly on location
  • Large 24-inch diameter may be cumbersome to position in tight shooting spaces
  • Remote control requires two AAA batteries which are not included

Frequently Asked Questions

The light is adjustable from 2500K to 8500K, covering a wide range from warm tungsten tones to cool daylight and beyond.
It produces a maximum illumination of 10,000 lux at 0.5 meters and 3,000 lux at 1 meter.
Yes. The rear V-mount plate accepts one V-mount battery, or you can use two NP-F batteries with a separately purchased F2-BP converter. Note that batteries and the converter are not included.
It includes a 2.4G wireless remote with a 164-foot open range for brightness, color temperature, and on/off control. It also has a DMX interface for integration with DMX consoles.
The NL-500ARC achieves CRI 97+ and TLCI 97+, ensuring highly accurate and faithful color rendition for photo and video work.
