Neewer
Neewer 10102269 Pro Video Tripod Fluid Head
★★★★★
3.1lb22lb

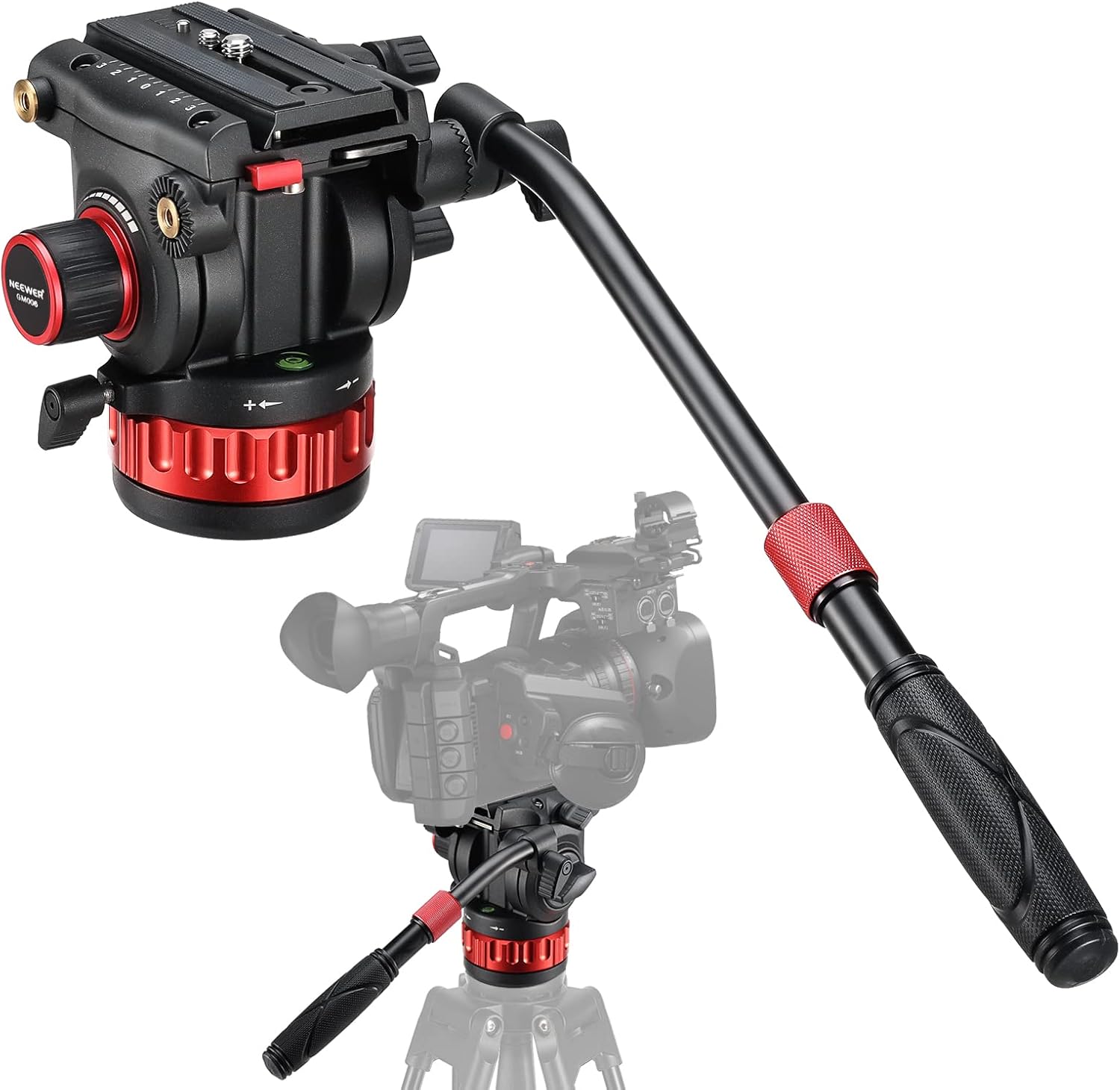

Neewer Pro Fluid Head delivers stepless pan and tilt damping with 22 lb capacity in an all-metal, 3.1 lb compact design.
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features

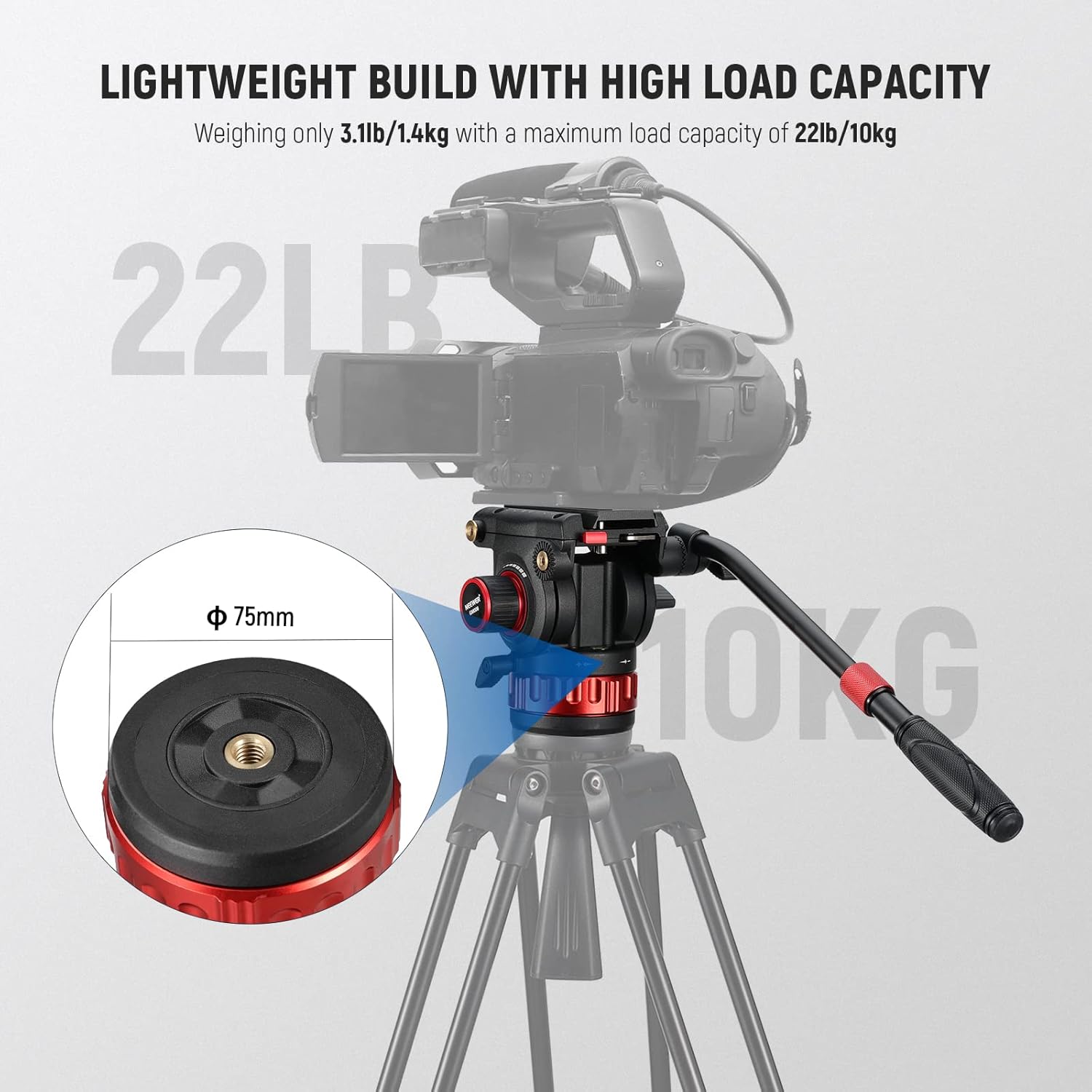

【Professional Heavy Duty Yet Compact Drag Head】 Made of premium aluminum alloy and weighing only 3.1lb/1.4kg, this heavy duty fluid head is exceptionally robust and can withstand harsh outdoor environments, and offer a maximum load capacity of 22lb/10kg for a firm grip on your heavy camera. The ⌀75mm flat base with a 3/8" threaded hole can be attached to a tripod, monopod, or camera slider, and a built in magnetic L shaped hex key to secure your camera without extra tools

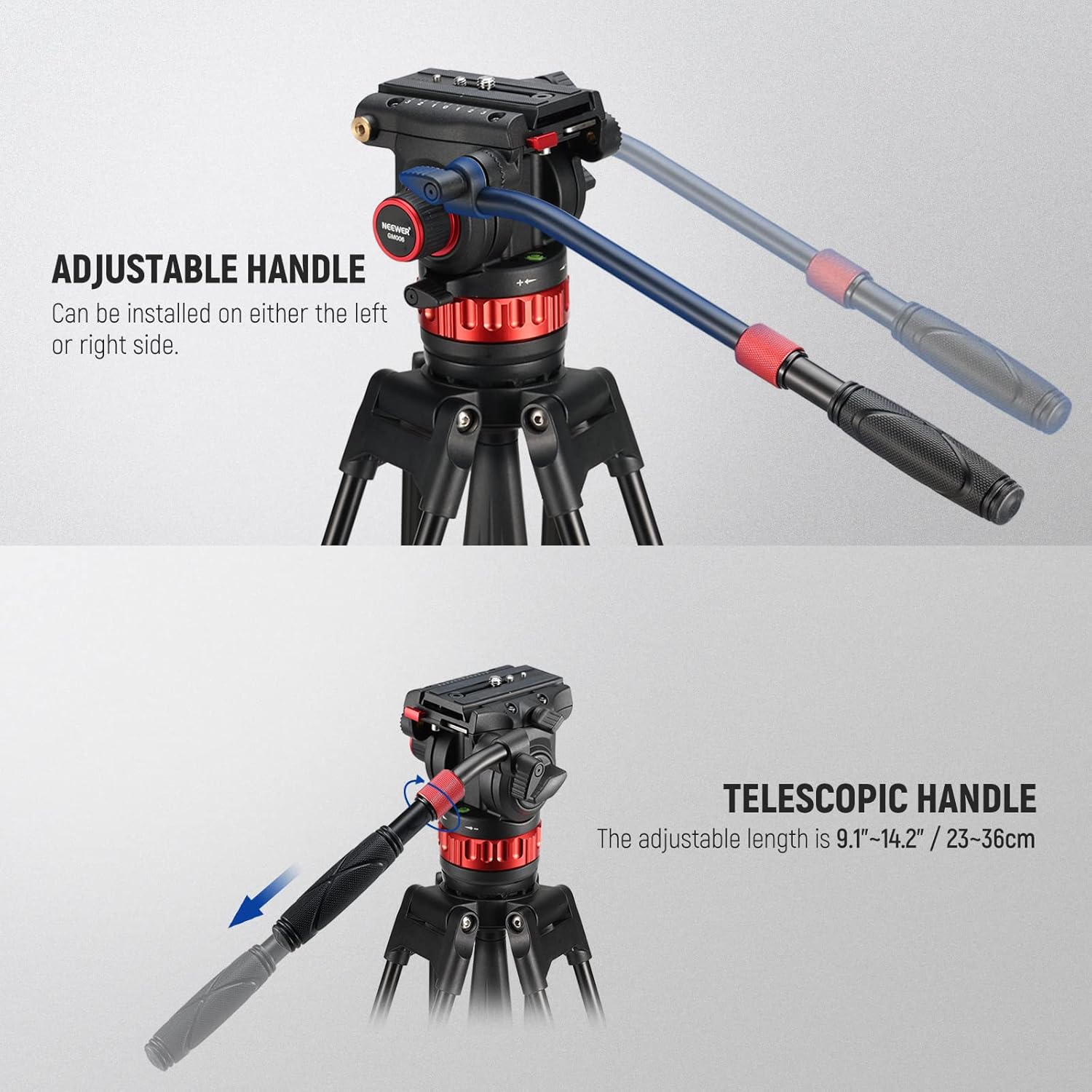

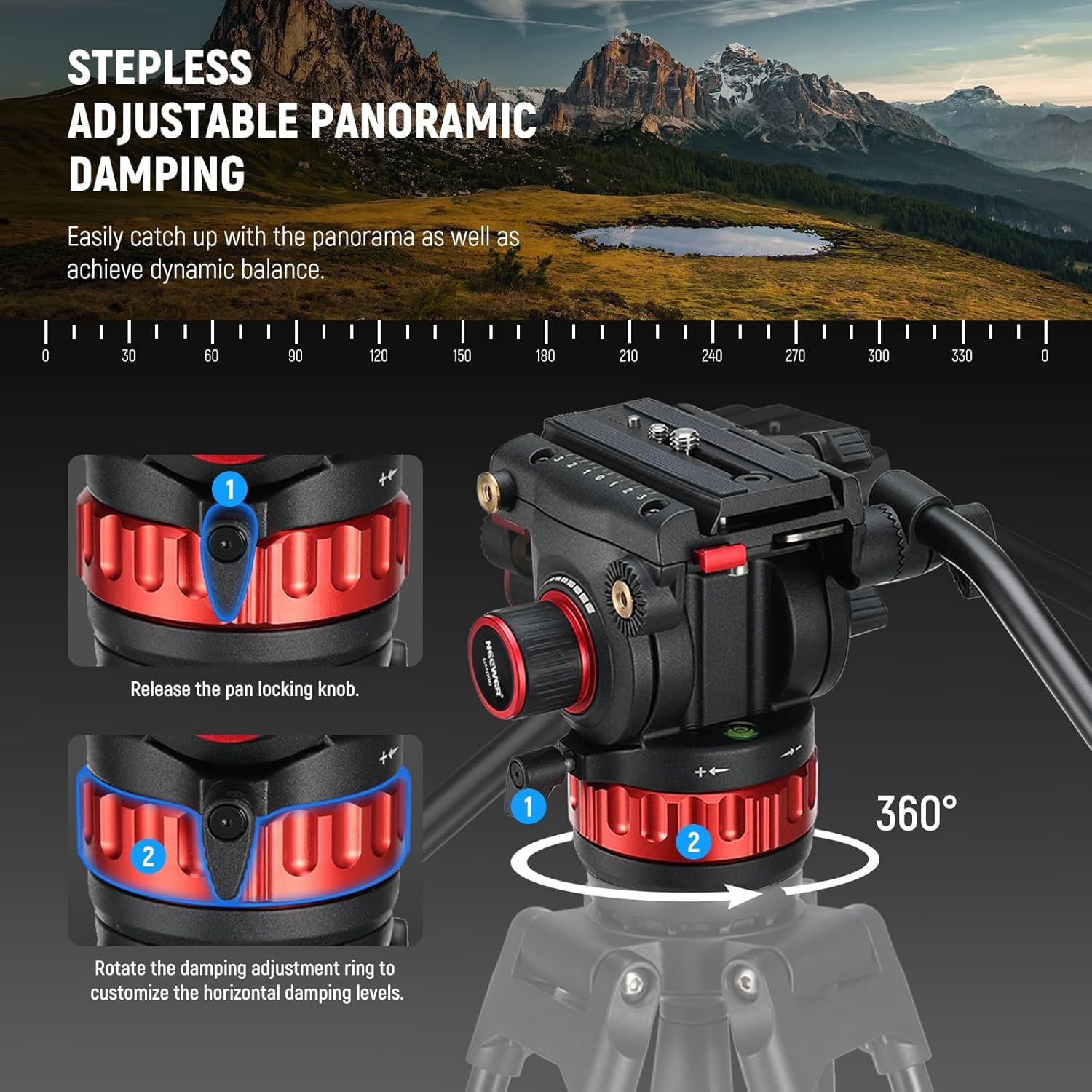

【Stepless Adjustable Panoramic Damping】 An upgraded adjustable horizontal damping system achieves more accurate and smooth 360° panoramic image shooting. Rotate the bottom ring to change the fluid damping to easily track every image on a constant horizon in any situation. The detachable handle can be mounted on either side for single handed operation and a convenient bubble level to always help check the horizontal alignment

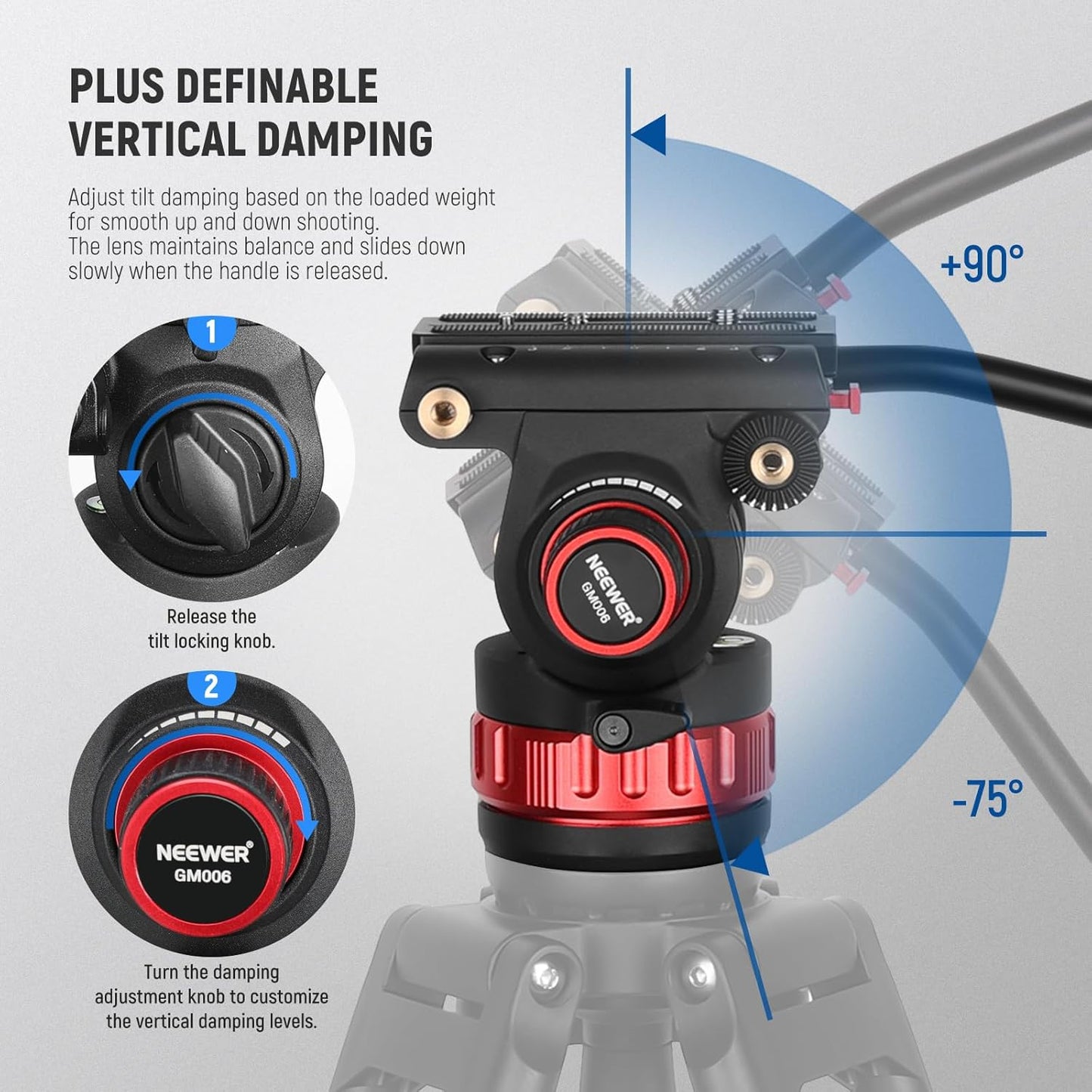

【Plus Definable Vertical Tilt Damping】 Use the side knob to adjust the appropriate damping according to the weight of the loaded equipment, and easily achieve +90°/-75° up and down shooting motion. Even if the handle is released, the lens will not drop suddenly, but slide down slowly, always maintaining a dynamic balance. Whether it is low angle, overhead or vertical, you can get stunning photography and videography works

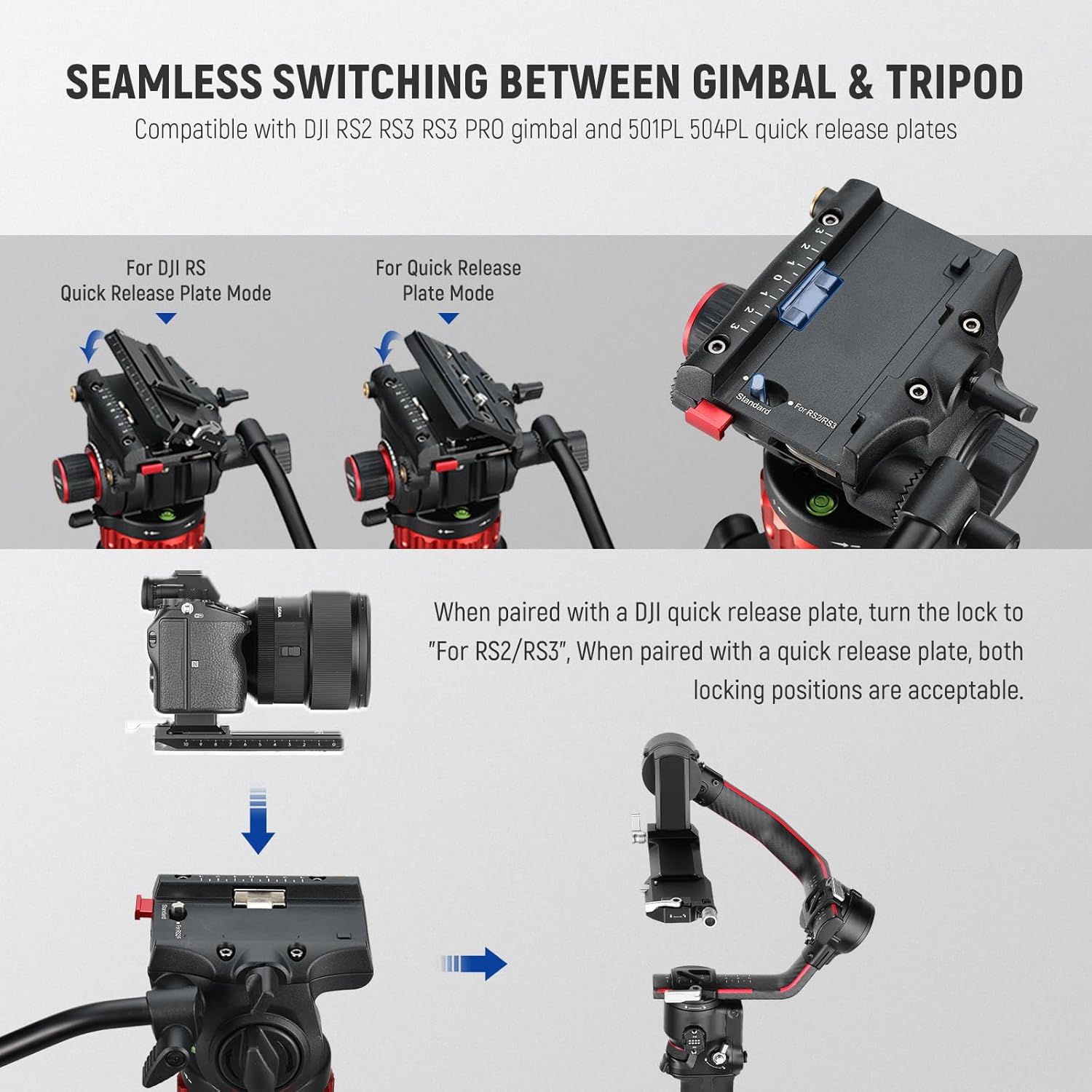

【Quick & Easy Switching Modes】 The fluid head has two QR modes, compatible with DJI RS2 RS3 RS3 PRO gimbal and 501PL 504PL quick release plates respectively. Compared to the traditional slide in structure, you can press the quick release plate directly from the top of the fluid head and lock it in 1s, as well as quickly release the plate via the release button, more efficient and convenient to switch between tripod and gimbal shooting

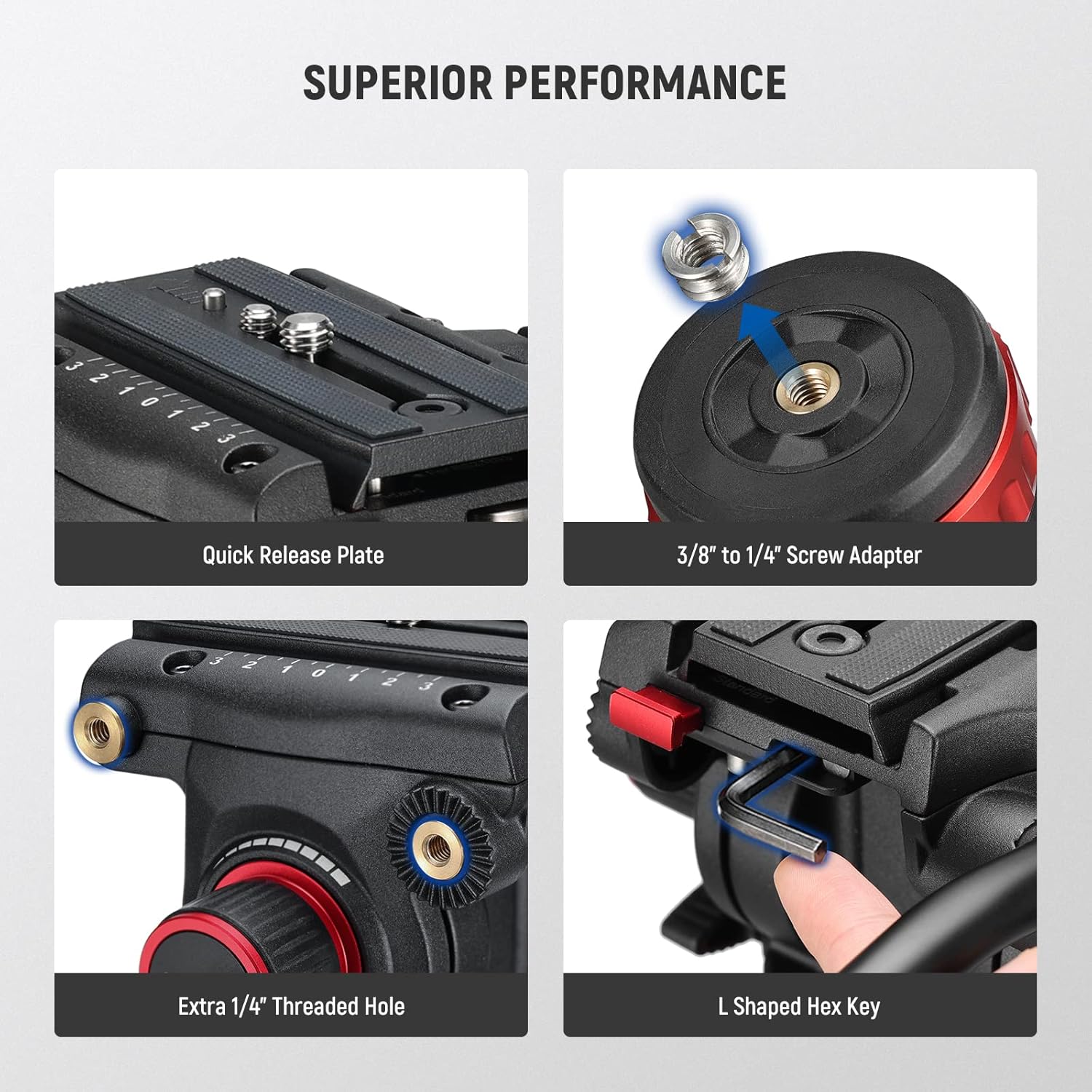

【Multiple Mounting Threads】 The 1/4" and 3/8" top screws on the quick release plate are compatible with DSLR cameras, digital cameras, mirrorless cameras, camcorders, and telescopes. Compatible with Sony Canon Nikon and other DSLR cameras. An extra 1/4" side screw hole attaches microphones, monitors, or LED lights to further build your photography rig

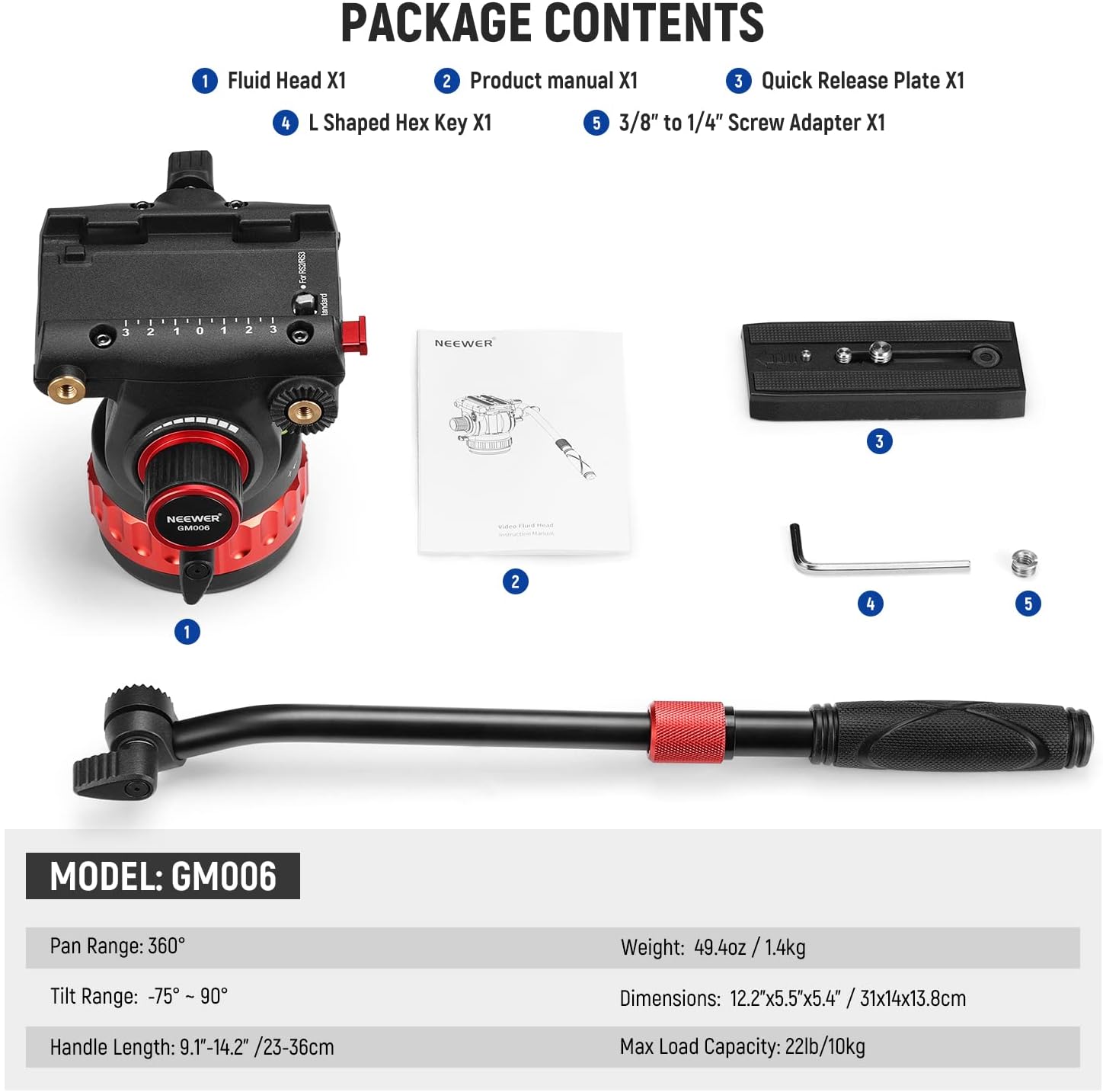

Specifications
Brand
Neewer
Model
GM006 (10102269)
Material
Aluminum alloy
Weight
3.1 lb / 1.4 kg
Maximum Load Capacity
22 lb / 10 kg
Base Diameter
75mm flat base
Base Mounting Thread
3/8"
Pan Range
360°
Tilt Range
+90° / -75°
Pan Damping
Stepless adjustable
Tilt Damping
Stepless adjustable
Quick Release Compatibility
DJI RS2, RS3, RS3 PRO; 501PL, 504PL
Top Plate Screws
1/4" and 3/8"
Side Accessory Mount
1/4" screw hole
Bubble Level
Yes
Handle
Detachable, mounts on either side
Pros & Cons
👍 Pros
- Stepless adjustable damping on both pan and tilt axes allows precise customization for different camera weights
- Dual quick release compatibility with DJI RS gimbal plates and 501PL/504PL plates speeds up workflow transitions
- All-aluminum alloy construction provides durability at only 3.1 lb, keeping the setup portable
- Built-in magnetic hex key eliminates the need to carry separate tools for securing the camera plate
- Detachable handle mounts on either side, accommodating both left- and right-handed operators
👎 Cons
- The 75mm flat base lacks a bowl mount adapter, limiting compatibility with bowl-style tripods without an additional adapter
- At 22 lb max capacity, heavier cinema camera rigs with large cine lenses may exceed the rated load
- No counterbalance spring system means tilt resistance relies solely on fluid damping rather than true counterbalance
- The included quick release plate lacks an Arca-Swiss dovetail, requiring users in that ecosystem to swap plates
Frequently Asked Questions
What quick release plates are compatible with this fluid head?
The Neewer GM006 supports two QR modes — it is compatible with DJI RS2, RS3, and RS3 PRO gimbal plates as well as standard 501PL and 504PL quick release plates, letting you press the plate in from the top and lock it in about one second.
How much weight can this fluid head support?
The maximum load capacity is 22 lb (10 kg), which accommodates most DSLR and mirrorless camera setups including those with attached lenses, monitors, or microphones.
Can I adjust the pan and tilt damping independently?
Yes. The bottom ring controls stepless horizontal panoramic damping for smooth 360° panning, while a separate side knob adjusts vertical tilt damping independently, so you can fine-tune each axis to match your camera's weight and your shooting style.
What is the base size and mounting thread?
The fluid head has a 75mm flat base with a 3/8" threaded hole, allowing it to mount on tripods, monopods, or camera sliders that accept that standard thread size.
Will the camera drop if I release the handle during a tilt?
No. The fluid damping system is designed so that when you release the handle, the lens slides down slowly rather than dropping suddenly, maintaining dynamic balance throughout the tilt range of +90° to -75°.
