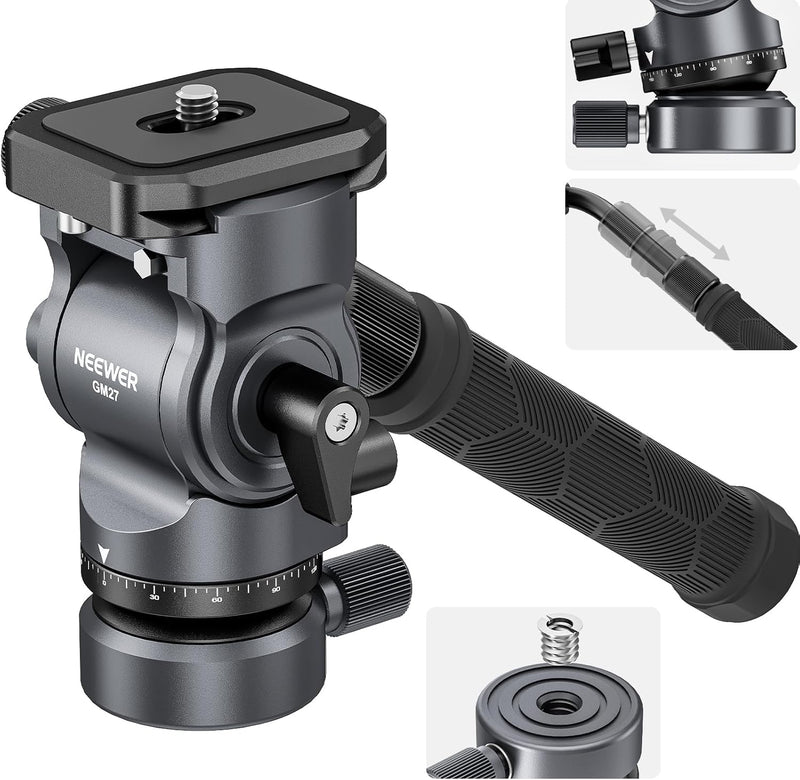

Neewer 10102636 Tripod Fluid Head Leveling Base GM27 — main product image
Neewer 10102636 Tripod Fluid Head Leveling Base GM27
Neewer 10102636 Tripod Fluid Head Leveling Base GM27
Neewer 10102636 Tripod Fluid Head Leveling Base GM27
Neewer 10102636 Tripod Fluid Head Leveling Base GM27
Neewer 10102636 Tripod Fluid Head Leveling Base GM27
Neewer 10102636 Tripod Fluid Head Leveling Base GM27
Neewer

Neewer 10102636 Tripod Fluid Head Leveling Base GM27

★★★★★4.6 (237 reviews)

Compact aluminum fluid head with leveling base, 360° pan, Arca Swiss quick-release plate, and 8.8 lb load capacity at just 13 oz.

$54.49*
Check availability

*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Neewer GM27 Tripod Fluid Head with Leveling Base packs professional-oriented features into a remarkably compact and lightweight package. Standing just 3.66 inches tall and weighing 13 ounces, it is built from aluminum alloy and supports loads up to 8.8 lb (4 kg). The integrated leveling bowl is the standout feature — it allows ±10° of adjustment so you can quickly level your camera on uneven ground without fussing with individual tripod legs, confirmed at a glance by the built-in bubble level. The fluid head provides 360° panning on a scaled base and tilts from -55° to +90°, covering the range needed for landscape panoramas, video pans, and steep angle shots.

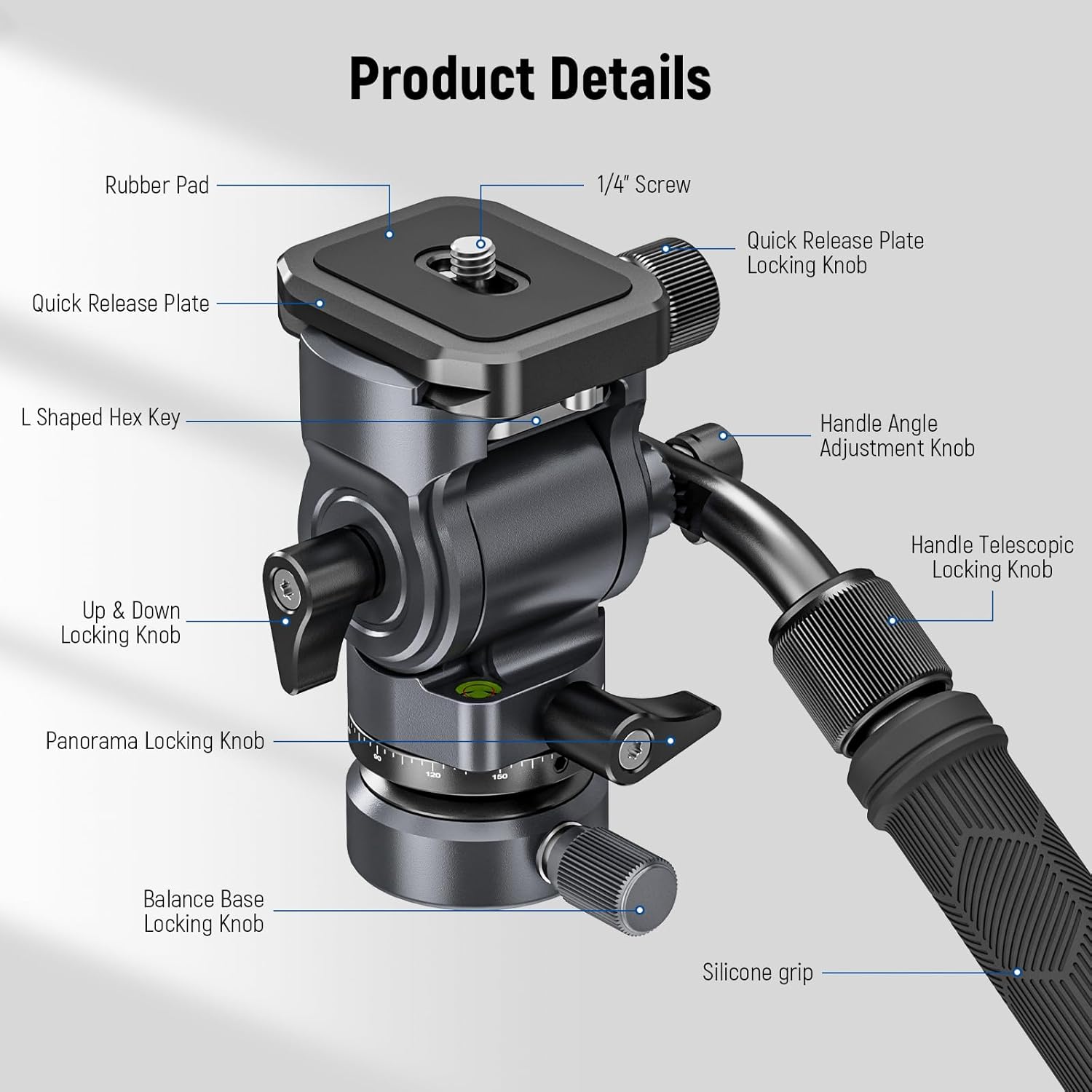

A two-section telescopic handle extends from 5.7 to 9.5 inches and can be mounted on either side of the head via a hand-tightened knob, making it comfortable for both left- and right-handed operators. The included Arca Type quick-release plate attaches to your camera via a standard 1/4-inch screw, and the clamp accepts other Arca Swiss compatible plates for fast transitions between handheld and tripod shooting. With 3/8-inch and 1/4-inch threads on the bottom, the GM27 mounts easily on tripods, sliders, jibs, and other support gear, making it a versatile and travel-friendly option for content creators working with mirrorless cameras and compact video rigs.

Key Features

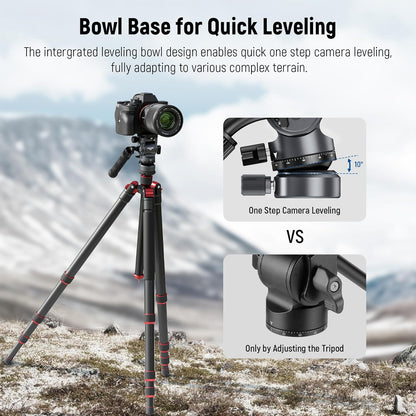

【Ball Base for Quick Leveling】The integrated leveling bowl allows precise one step adjustment of lens orientation within +10°/-10° angles for quick leveling of your camera on a variety of uneven terrain surfaces. Also includes a bubble level for easier double checking

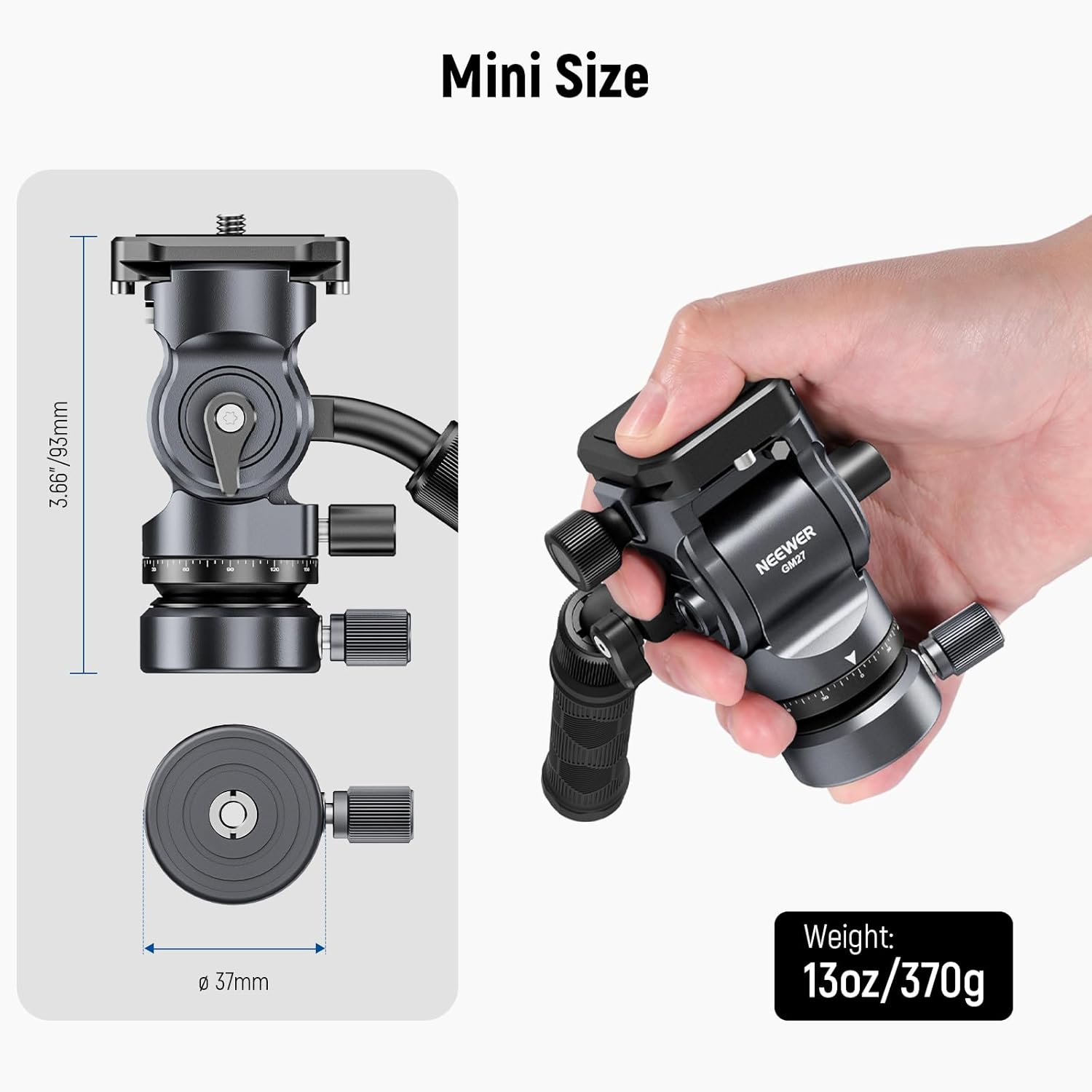

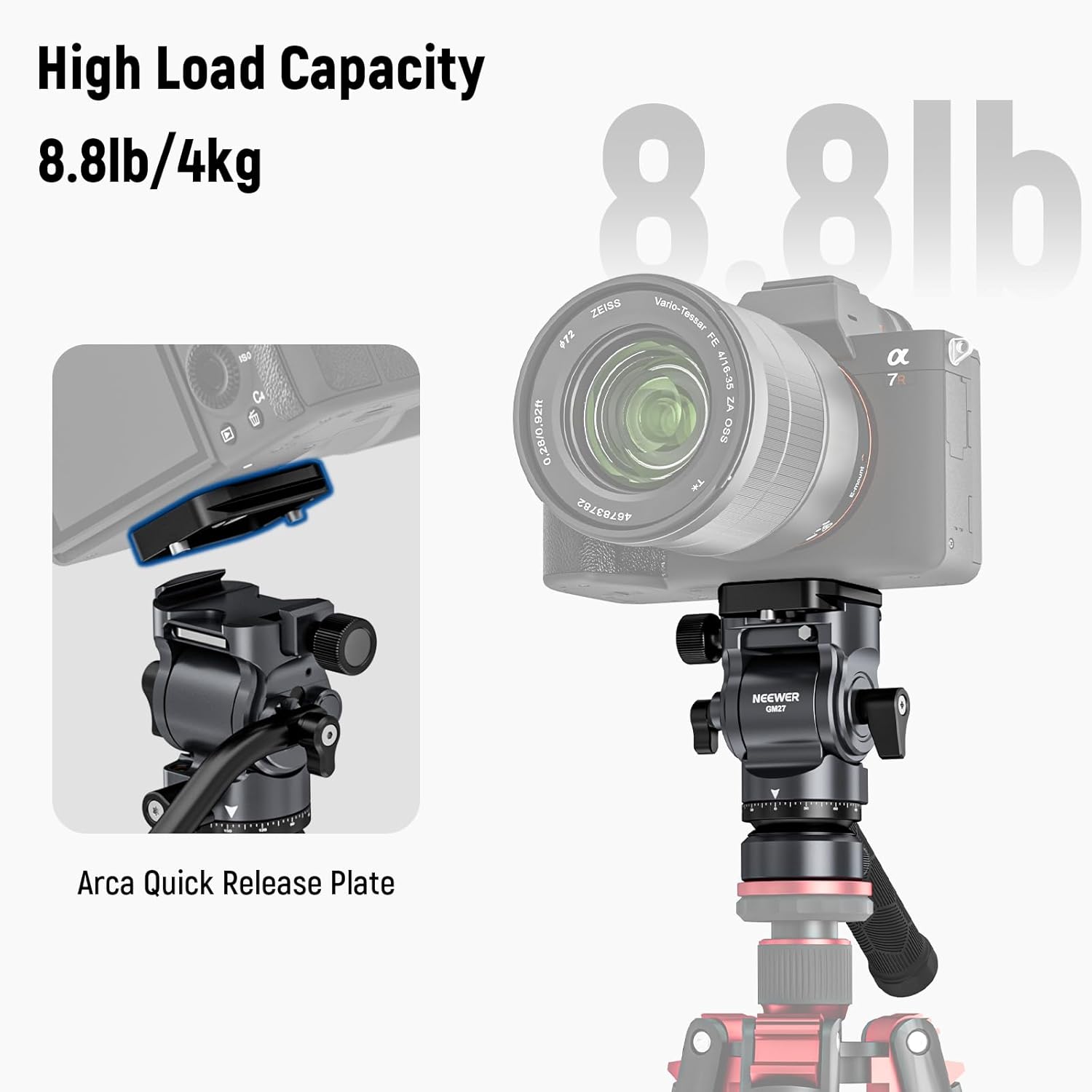

【Mini Size Yet Mighty Load】 Standing 3.66"/93mm high with a 37mm diameter mounting base and weighing only 13oz/370g, this travel friendly tripod head features a rugged aluminum alloy build that can support a maximum load of 8.8lb/4kg, ideal for vlogs, landscape photography, live streaming, portraits, and more

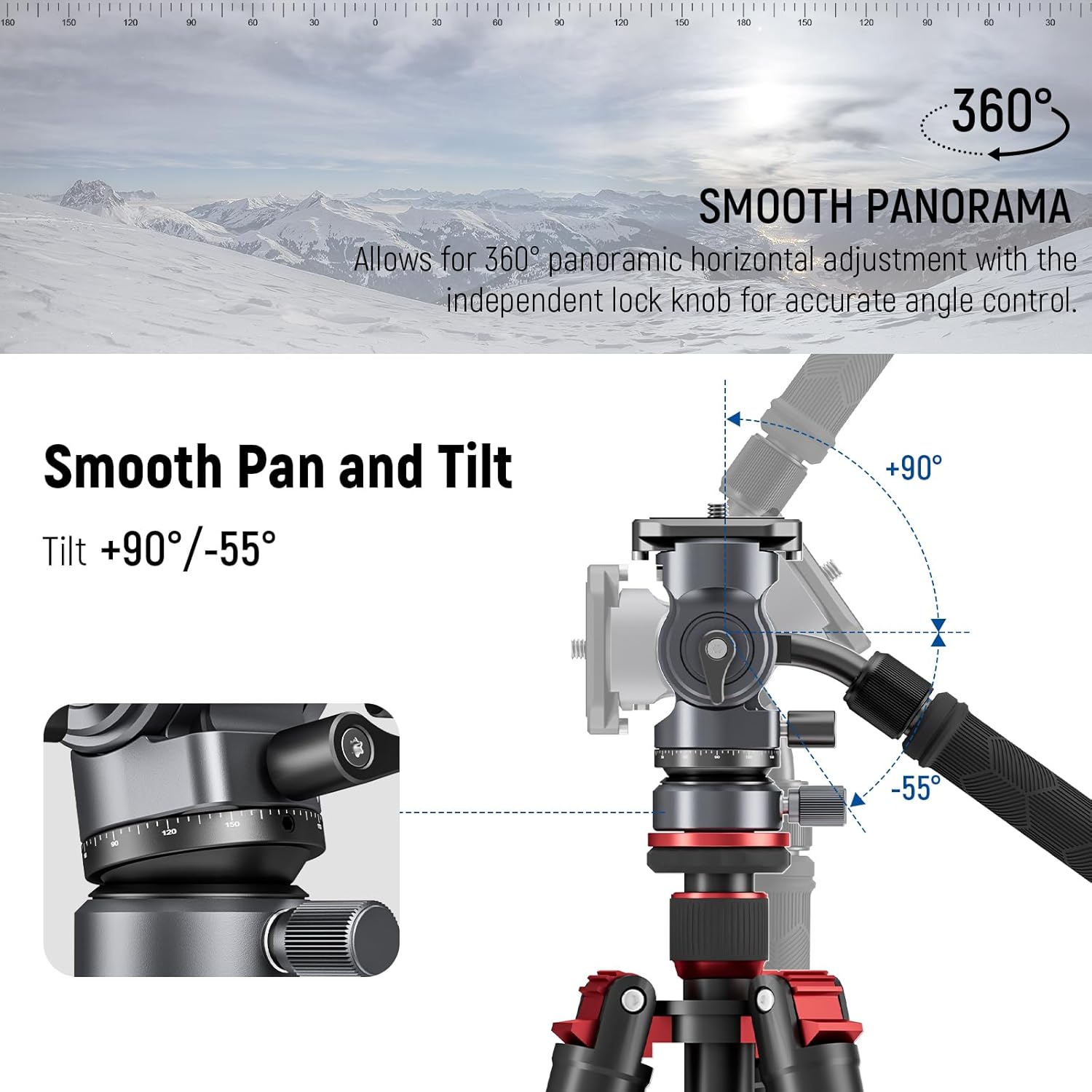

【360° Pan & -55°/+90° Tilt】 The fluid head provides smooth movements, a scaled pan base, and fixed friction damping. You can rotate the head at 360° or tilt it from -55° to 90° with the handle grip for a panorama shoot or video recording, perfect for multiple angles photography

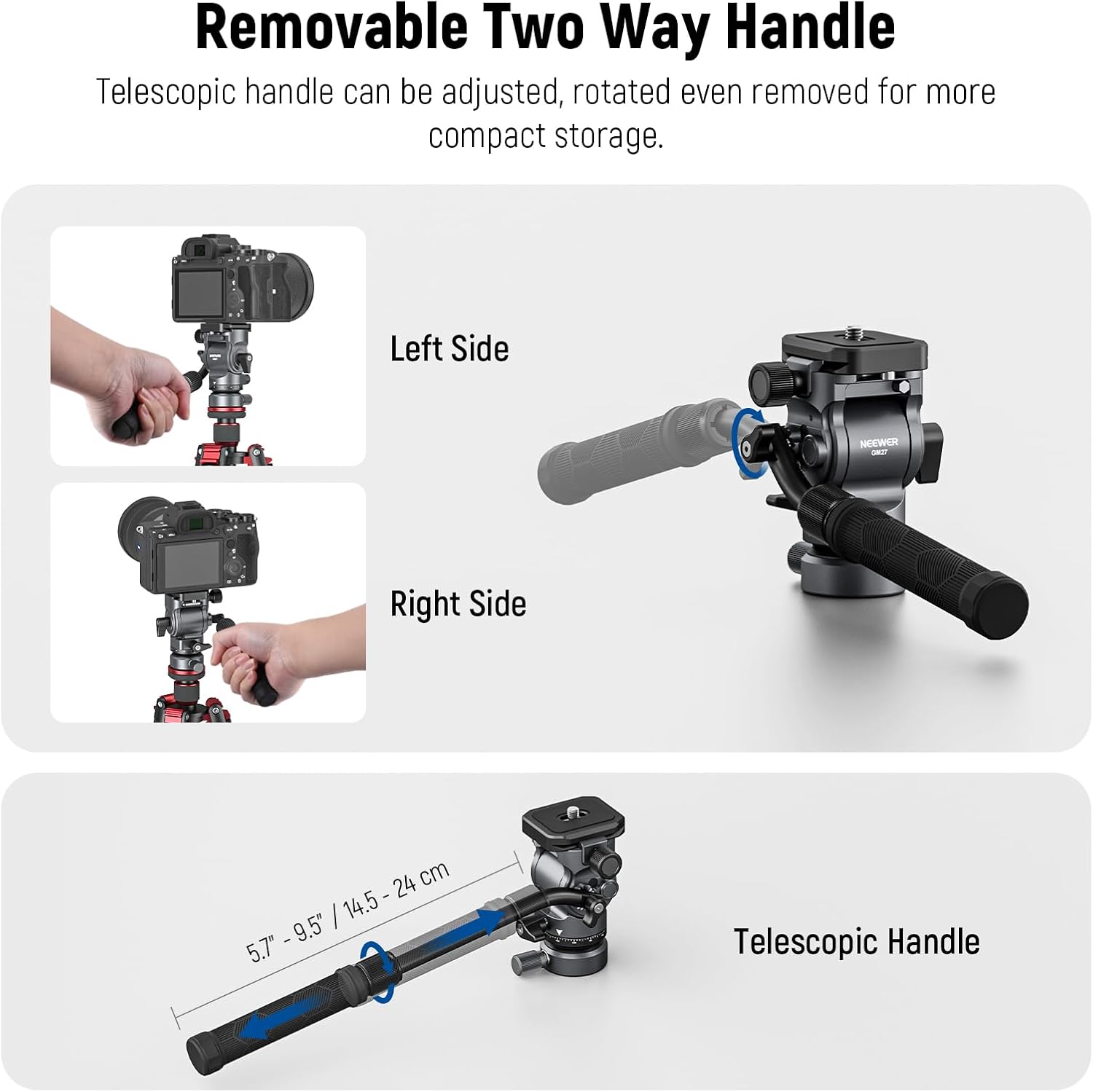

【Detachable Telescopic Handle】 The telescopic handle with 2 sections can be extended to an ideal length from 14.5cm/5.7" to 24cm/9.5" for comfortable and convenient operation. Use the hand tighten locking knob to install the handle on either side of the fluid head for left or right handed use

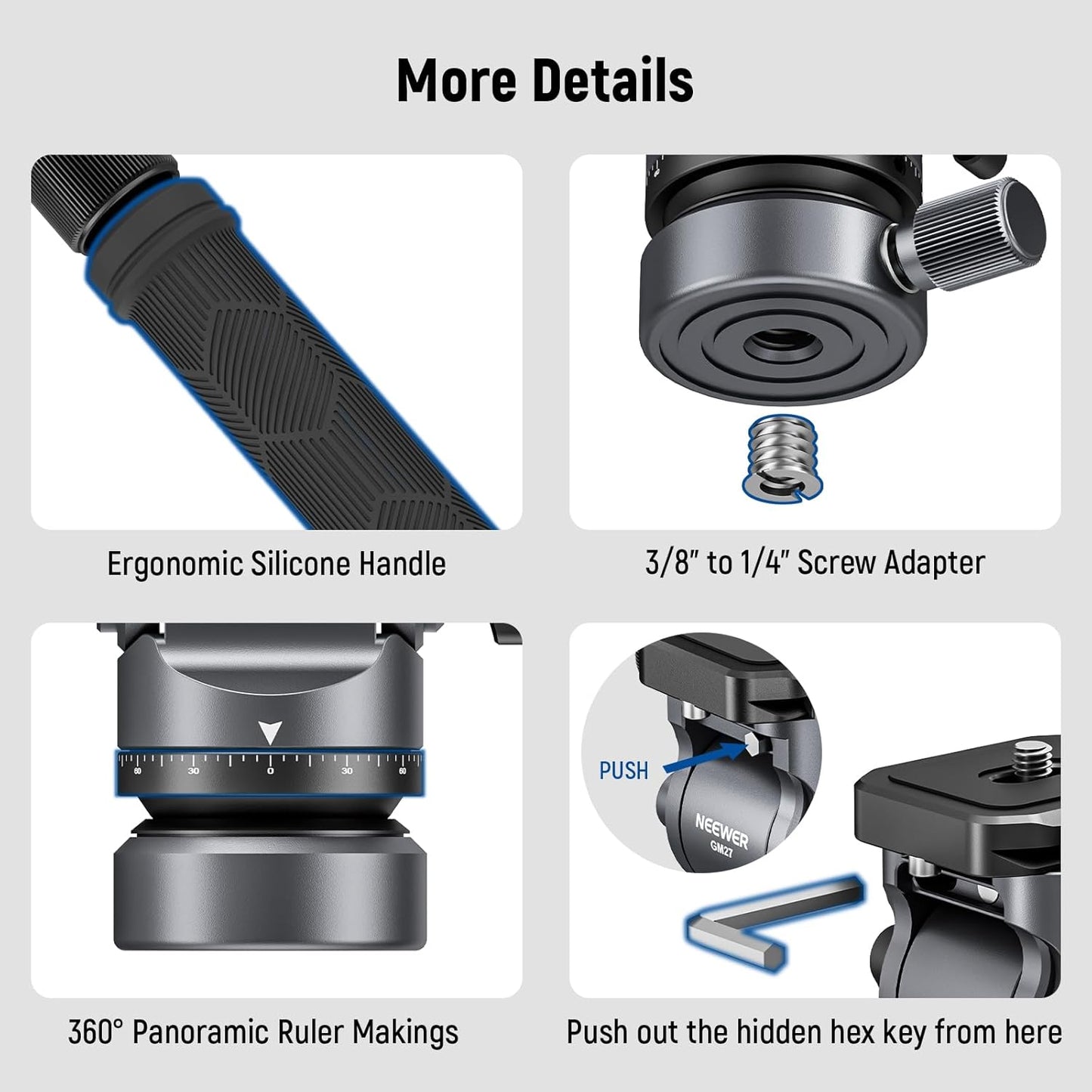

【Standard 1/4" Arca Type QR Plate】 Compatible with the Arca Swiss QR system, you can mount the plate to the camera with the top 1/4" screw, and then slide the camera into the fluid head to quickly switch between handheld and tripod shooting. The 3/8" 1/4" threads on the bottom support mounting on various tripods, sliders, and more

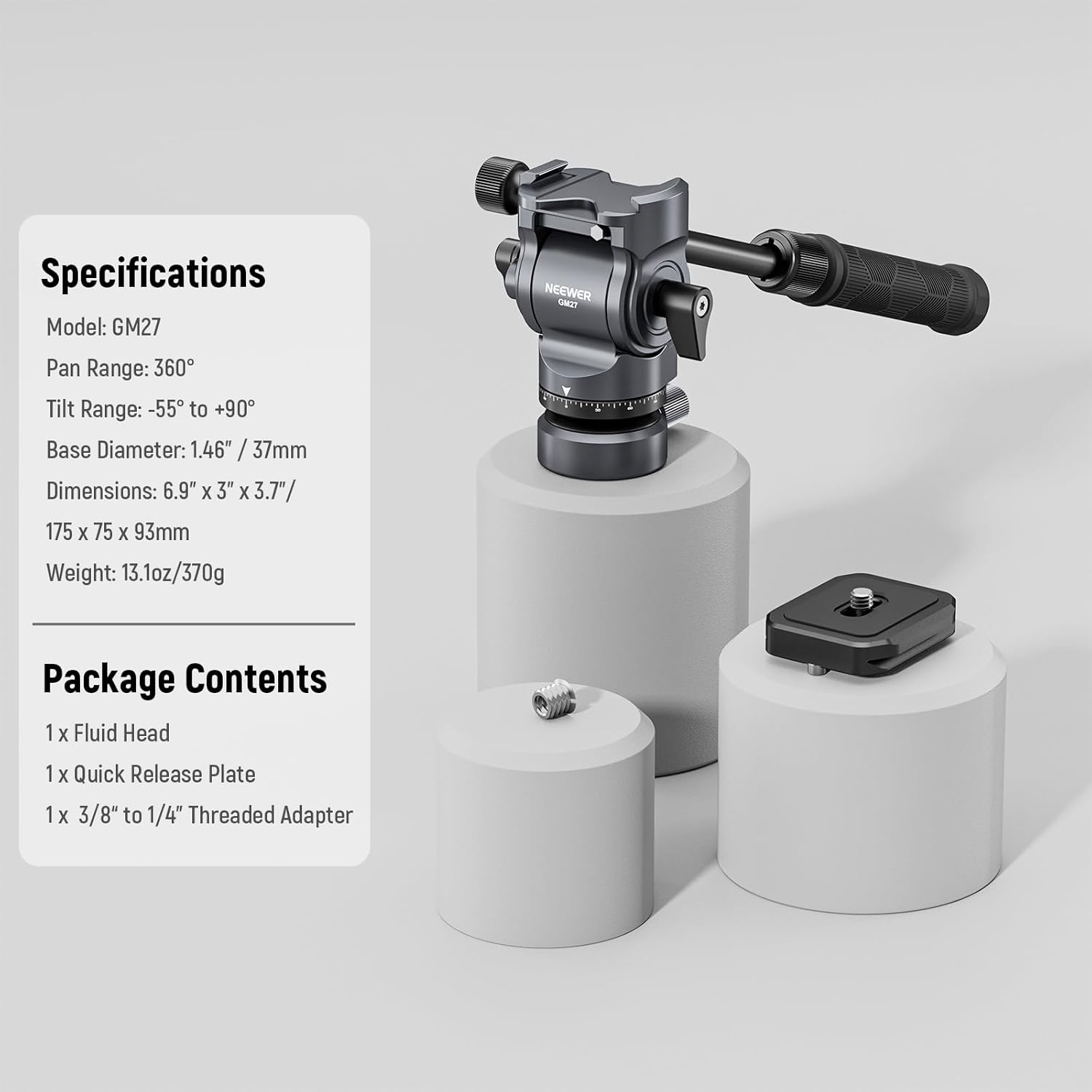

Specifications

Brand
Neewer
Model
10102636 (GM27)
Material
Aluminum Alloy
Maximum Load
8.8 lb / 4 kg
Leveling Base Range
±10° (37mm diameter)
Pan Range
360°
Tilt Range
-55° to +90°
Handle Length
5.7" to 9.5" (telescopic)
Quick Release Plate
Arca Swiss Type (1/4" screw)
Mounting Threads
1/4" and 3/8"
Dimensions
8.07 x 3.66 x 2.56 inches
Weight
13.8 oz / 370 g
Color
Grey

Pros & Cons

👍 Pros

  • Integrated ±10° leveling base eliminates the need for a separate leveling half-ball on uneven surfaces
  • Weighs only 13 oz with an 8.8 lb load capacity, making it highly travel-friendly
  • Telescopic handle extends from 5.7 to 9.5 inches and mounts on either side for left- or right-handed use
  • Arca Swiss compatible quick-release plate allows fast camera attachment and removal
  • Both 3/8-inch and 1/4-inch base threads provide broad tripod and accessory compatibility

👎 Cons

  • Fixed friction damping offers no adjustable drag control for fine-tuning resistance to suit different camera weights
  • ±10° leveling range may not be sufficient on severely uneven terrain
  • 8.8 lb maximum load limits use with heavier cinema cameras or long telephoto lenses
  • The compact size provides less leverage for very slow, controlled pan movements compared to full-size fluid heads

Frequently Asked Questions

The integrated leveling bowl lets you quickly level the camera within ±10° on uneven ground without adjusting individual tripod legs, and includes a bubble level for visual confirmation.
Yes, it includes a standard 1/4-inch Arca Type quick-release plate, and the clamp accepts other Arca Swiss compatible plates for fast camera mounting and removal.
Yes, the telescopic handle can be installed on either side of the fluid head using a hand-tightened locking knob, accommodating both left- and right-handed operation.
The base has both 3/8-inch and 1/4-inch threads, making it compatible with a wide range of tripods, sliders, and other support equipment.
It supports a maximum load of 8.8 lb (4 kg), suitable for compact video cameras, mirrorless cameras, and DSLRs with moderate-sized lenses.
