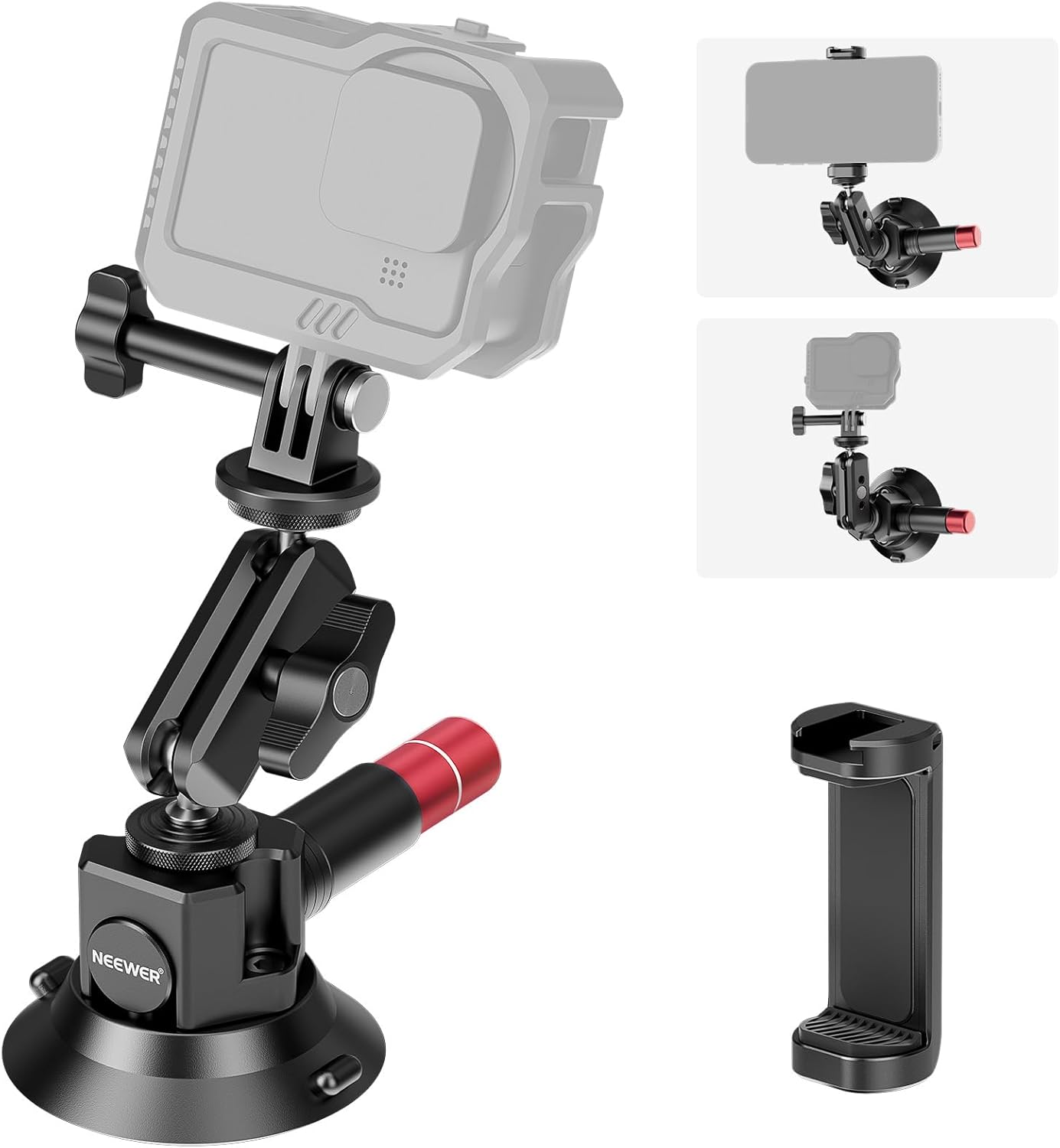

Neewer 10104421 Suction Cup Camera Mount with Magic Arm — main product image

Neewer 10104421 Suction Cup Camera Mount with Magic Arm

Neewer

Neewer 10104421 Suction Cup Camera Mount with Magic Arm

Name: Neewer 10104421 Suction Cup Camera Mount with Magic Arm
Brand: Neewer
SKU: 10104421

4.4lb44lb26.5lb

Lock your camera to any smooth surface and shoot from angles impossible with a tripod — the Neewer suction cup mount gives action and mirrorless cameras a powerful, portable grip.

$32.99*

✓ In Stock on Amazon.com

View on Amazon

*Price sourced from Amazon.com. Last updated:Oct 25, 2026.Price and availability are subject to change — details.

Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Neewer Suction Cup Camera Mount is built for the shots that a tripod can't reach — windshield-mounted driving footage, side-window perspectives, bonnet views, or any creative angle that requires sticking a camera to a surface rather than setting it on one. The 3-inch pump-activated vacuum cup achieves the holding force needed for camera work on smooth surfaces including glass, tile, metal, and sealed painted panels. The dual ball head magic arm connecting the suction base to the camera mount introduces two independent articulation points, which means you can frame from almost any angle and lock both joints independently for the kind of precise, repeatable setup that matters when you're capturing moving footage and can't reshoot easily.

Construction in aluminum alloy keeps the rig rigid under vibration and resistant to the outdoor exposure that action camera work demands. The silicone rubber cup cleans with water when contaminated — a practical detail, since a clean cup is the foundation of a reliable seal. The included action camera adapter covers GoPro, DJI Osmo Action, and Insta360 systems; the phone holder extends utility to smartphone capture; and the 1/4" and 3/8" thread system with ARRI holes means the mount speaks the language of the broader rigging accessory ecosystem. The 80 km/h speed ceiling is a genuine engineering constraint, not a legal hedge — at highway speeds, the load dynamics on the cup exceed what the seal geometry is designed to hold. Within that envelope, on a clean surface, this mount is a capable and versatile rigging tool for action, automotive, and creative POV work.

Key Features

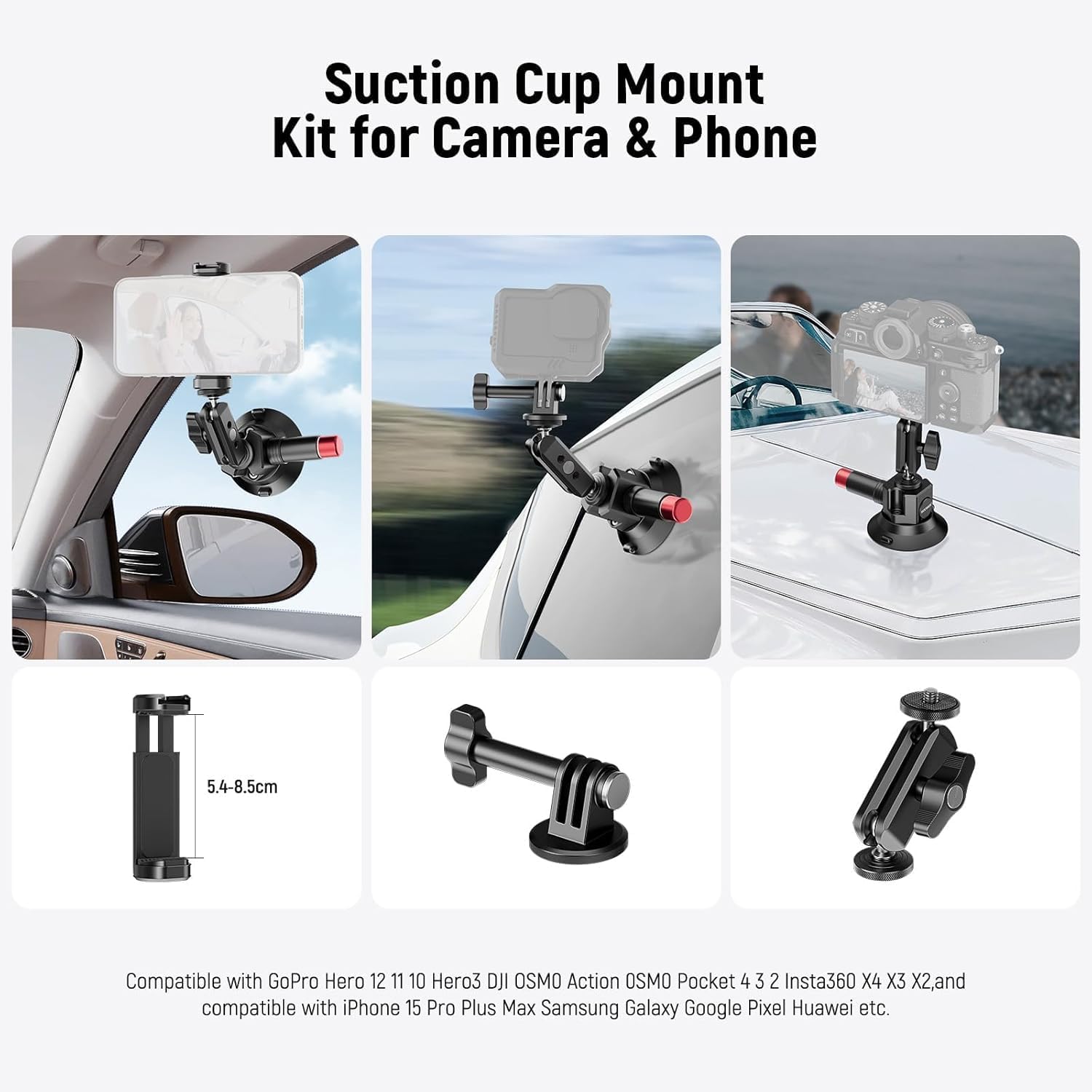

【Suction Cup Mount Kit】 This 3" pump activated vacuum suction cup sticks to most surfaces, and rotates your action camera (adapter included) or phone (phone holder included) at 360°, compatible with GoPro Hero 13 go pro 12 11 Black DJI Osmo 360 Pocket 4P 4 3 Xtra Muse Action 3 4 5 Pro 6 Xtra Edge Pro Insta360 Luna Ultra Ace Pro 2 Insta 360 X5 X4 X3 iPhone 17 16 15 Pro Max Samsung Galaxy S26 S25 S24 Google Pixel One Plus, etc. Note: Use at speeds below 80 km/h to prevent accidental drops

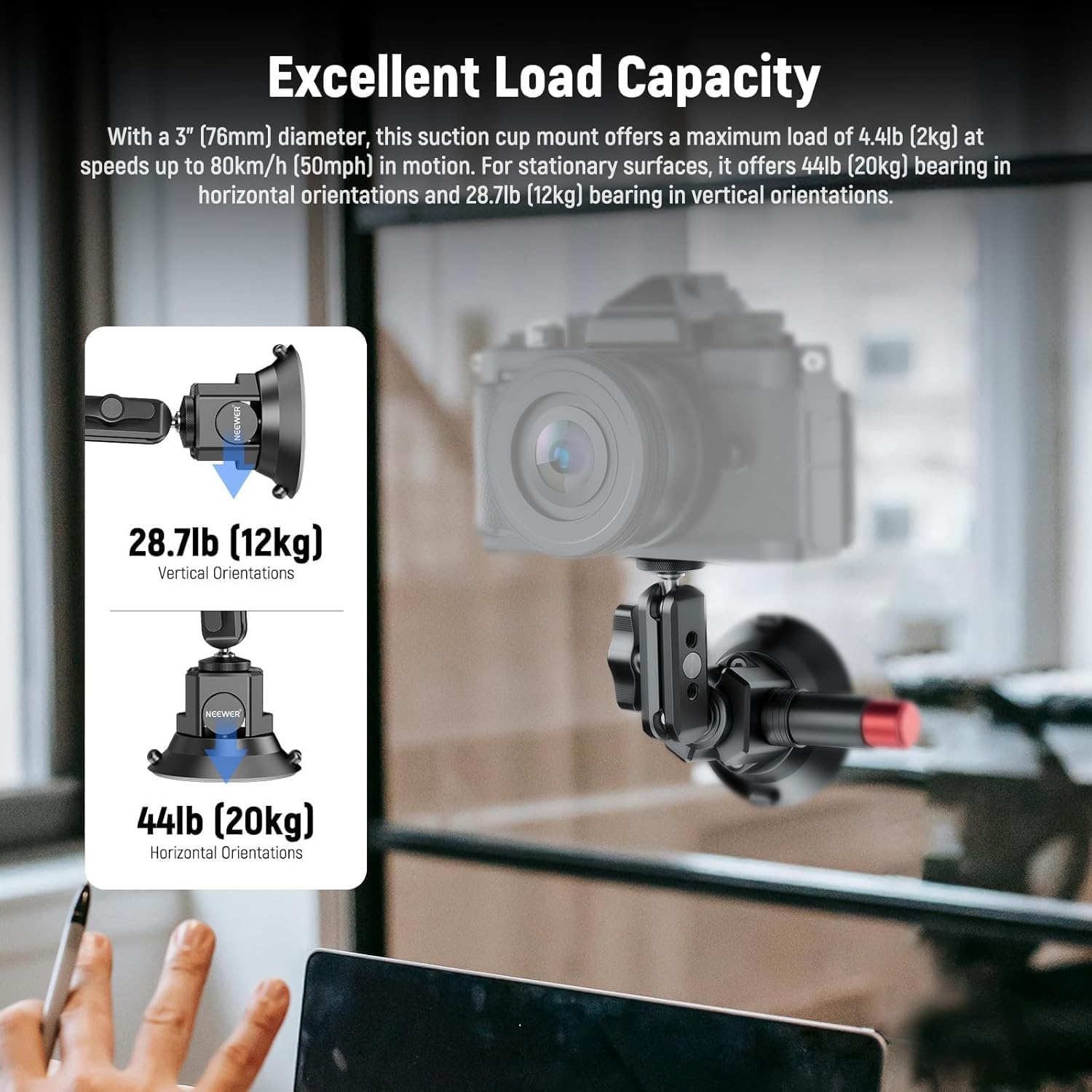

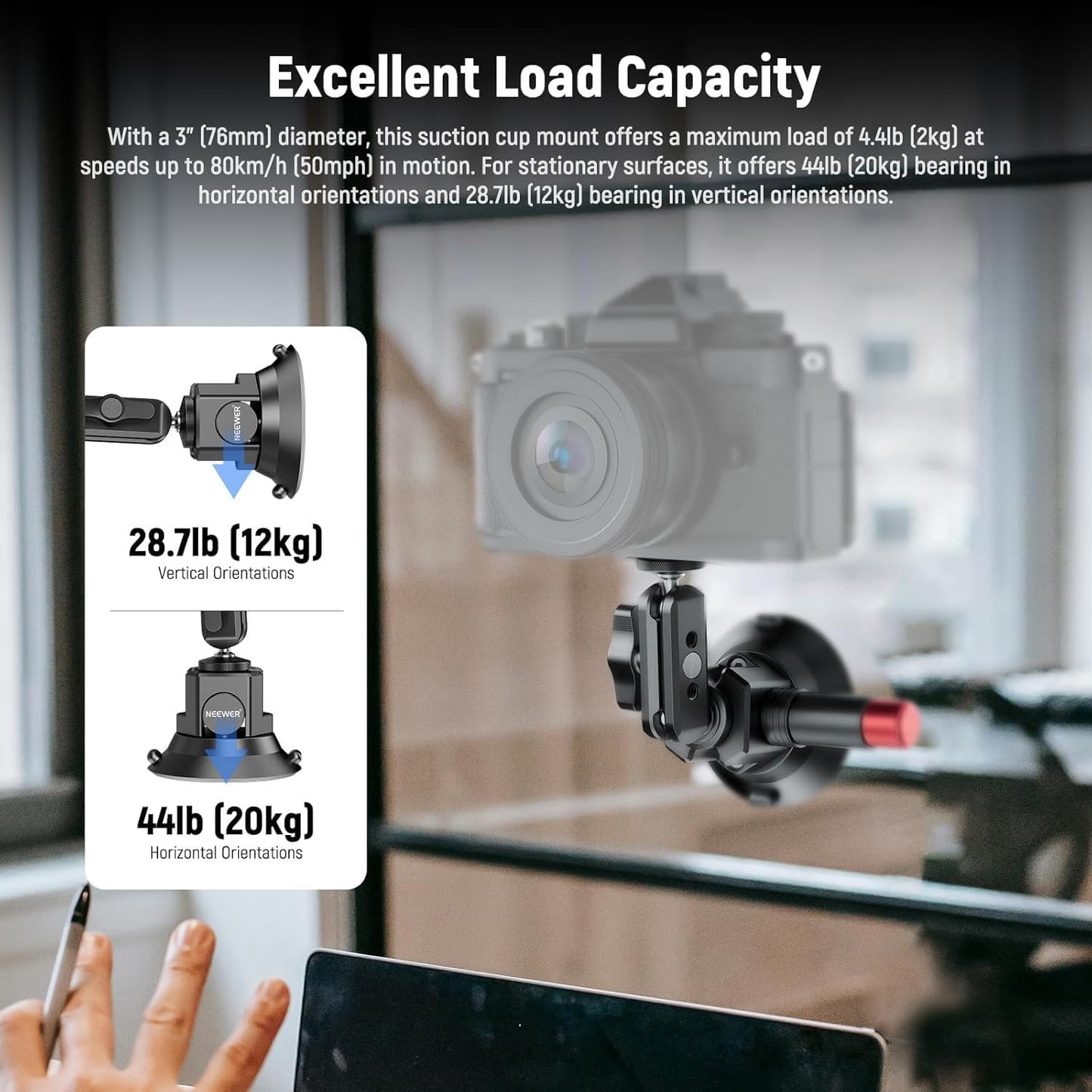

【Excellent Load Capacity】 This camera suction mount stand compatible with gopro insta360 action cameras is applicable to smooth, flat, and nonporous surfaces, including glass window, car windshield inside outside dash, ceramic tile, wood desk, metal board, and more. With a 3" (76mm) diameter, it offers a maximum load of 4.4lb (2kg) at speeds up to 80km/h (50mph) in motion. For stationary, it offers 44lb (20kg) bearing in horizontal orientations and 26.5lb (12kg) bearing in vertical orientations

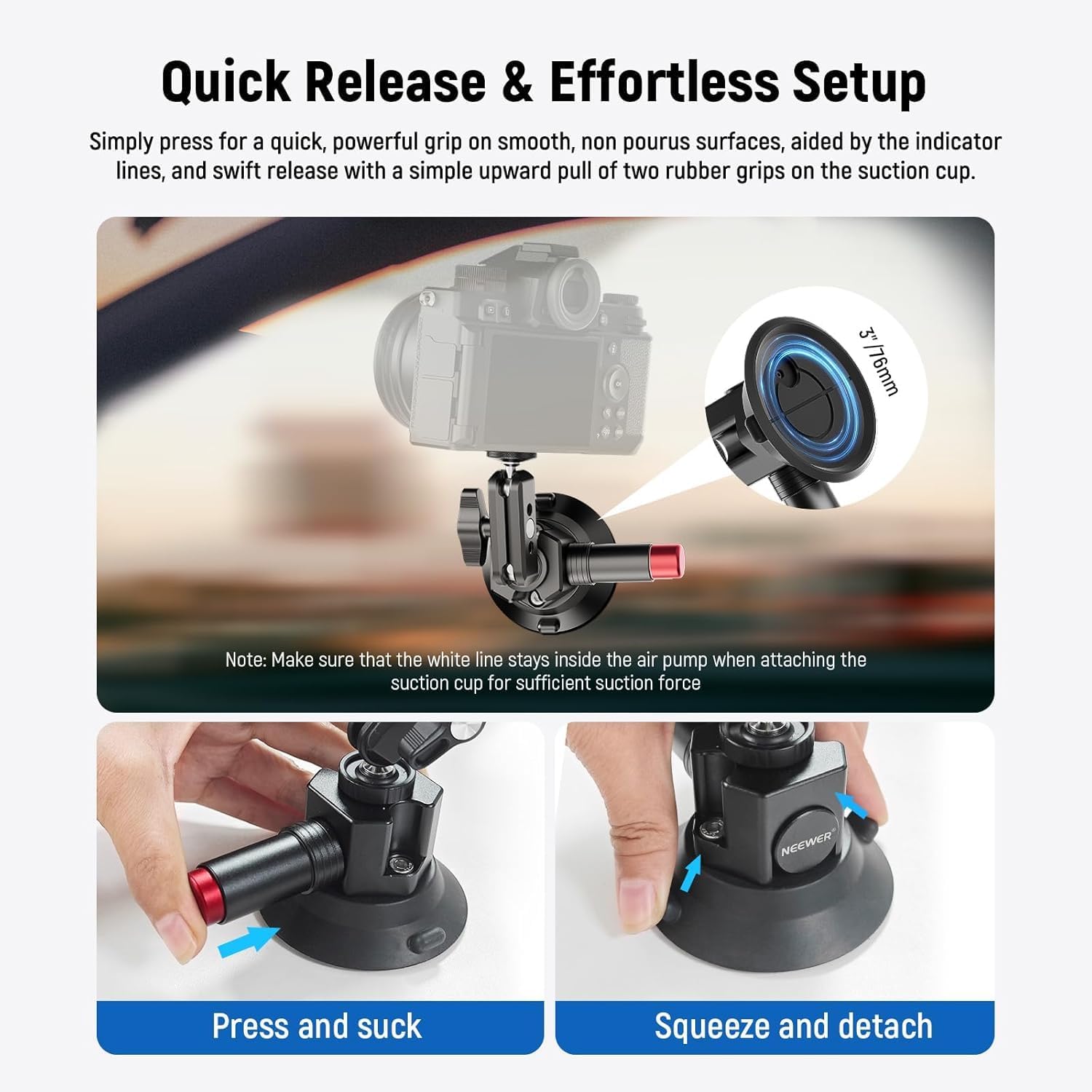

【Quick Release & Effortless Setup】 Simply press for quick, powerful grips on the surfaces, aided by the indicator lines, and swift release with a simple upward pull of two rubber grips on the suction cup. Note: Make sure that the white line stays inside the air pump when attaching the suction cup for sufficient suction force

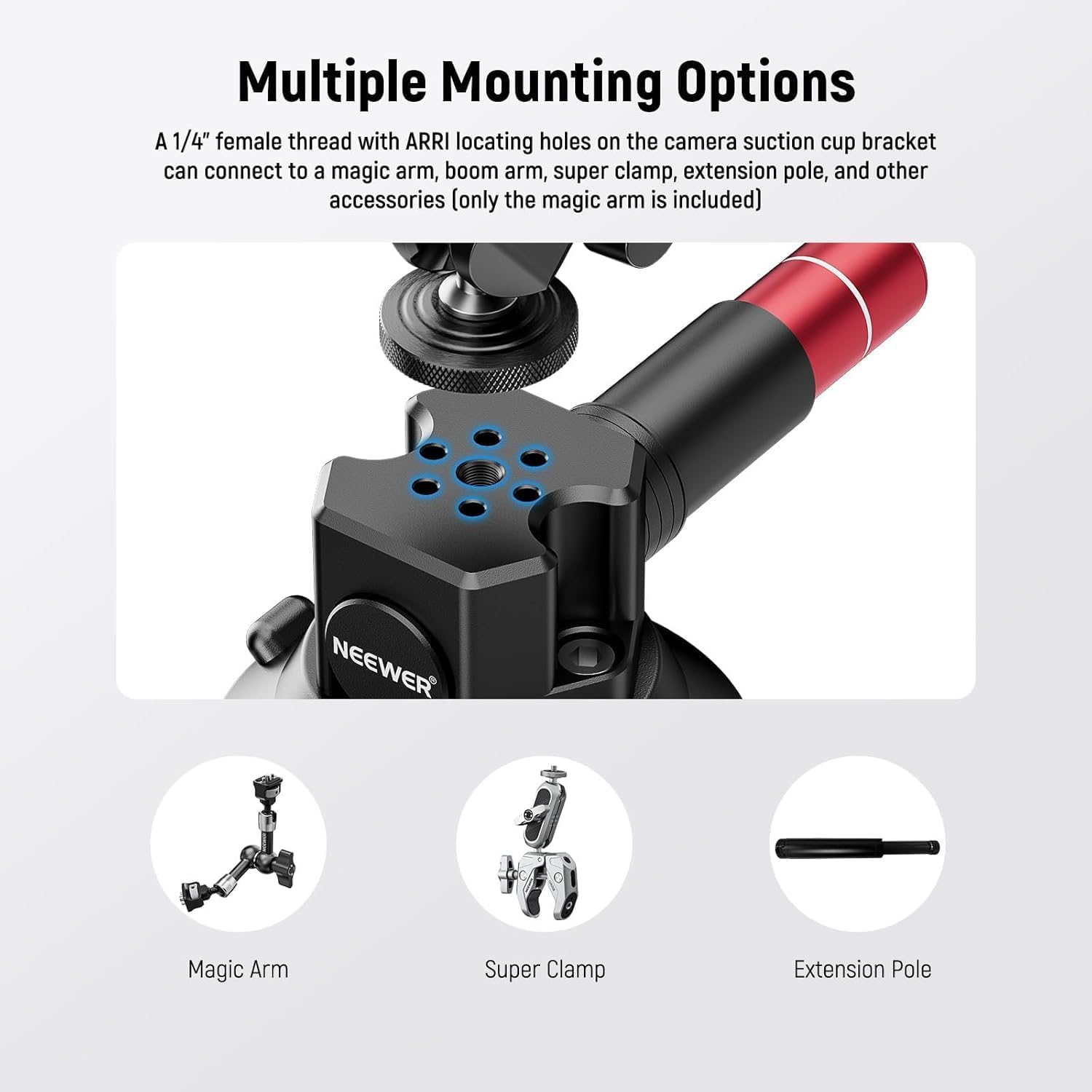

【Multiple Mounting Options】 1/4" and 3/8" female threads with ARRI locating holes on the camera suction cup bracket can connect to a magic arm, boom arm, super clamp, extension pole, and other accessories (only the magic arm is included), compatible with Ulanzi compatible with Smallrig accessories. The top 1/4" screws on the articulating magic arm are for mirrorless vlog cameras, camcorders, action camera adapters, phone holders, and more (the action camera adapter and phone holder are included)

【Premium Construction】 Crafted with rigid and corrosion resistant aluminum alloy, the suction cup camera mount can withstand uncertain outdoor environments. The silicone rubber cup is easy to clean with water

Specifications

Brand

Neewer

Model Number

10104421

Suction Cup Diameter

3" (76mm)

Magic Arm Feature

Dual ball head, 360° rotation

Max Load (Motion < 80km/h)

4.4lb (2kg)

Max Load (Stationary Horizontal)

44lb (20kg)

Max Load (Stationary Vertical)

26.5lb (12kg)

Mounting Surface Compatibility

Smooth, flat, nonporous (glass window, car windshield, ceramic tile, wood desk, metal board)

Connectivity - Suction Cup Bracket

1/4" female threads, 3/8" female threads, ARRI locating holes

Connectivity - Magic Arm Top

1/4" screws

Material

Rigid, corrosion-resistant aluminum alloy

Suction Cup Material

Silicone rubber

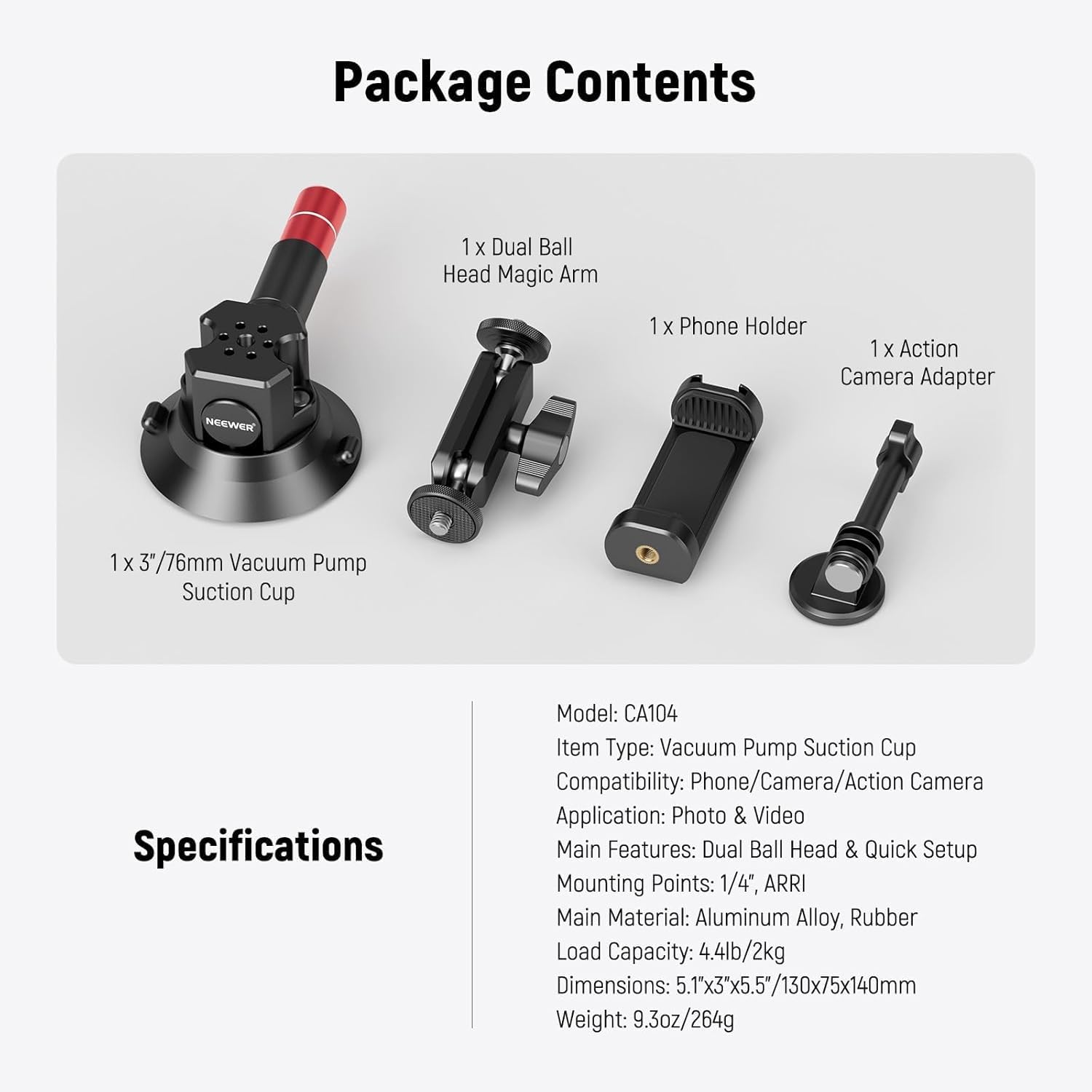

Included Accessories

Action camera adapter, Phone holder, Magic arm

Max Speed Recommendation

Below 80 km/h (50mph)

Frequently Asked Questions

How do I verify the suction cup has achieved a safe seal before driving or mounting a camera?

The Neewer mount includes indicator lines on the suction cup — when attached correctly, the white line must remain inside the air pump. After pressing the pump to create vacuum, verify the indicator is in position and attempt a firm tug test on the mount before attaching your camera. Always re-check the seal before moving.

What surfaces will this mount NOT adhere to reliably?

The suction cup requires smooth, flat, non-porous surfaces for reliable adhesion — textured paint, rough concrete, fabric, and uneven body panels will not hold a seal. Dusty or dirty surfaces also compromise adhesion; clean the mounting area with a dry cloth before attaching.

What is the realistic load limit for mounting a mirrorless camera in a moving vehicle?

Neewer rates this mount at 4.4 lbs (2 kg) at speeds up to 80 km/h (50 mph) in motion. That covers most compact mirrorless cameras with a kit lens. Heavy DSLR bodies with large lenses will approach or exceed this limit — use with compact cameras and lightweight lenses for in-motion vehicle mounting.

How do I release the suction cup without damaging the surface or losing the seal mid-shoot?

Two rubber pull grips on the suction cup allow swift release by pulling upward — this breaks the vacuum seal deliberately and safely. Do not attempt to pry the cup from the edge, as this can damage paint or scratch glass surfaces.

Is this mount compatible with SmallRig and Ulanzi accessories?

Yes — the mount includes 1/4" and 3/8" female threads with ARRI locating holes, which are compatible with SmallRig and Ulanzi magic arms, extension poles, and super clamps. Only the magic arm is included in the box; additional accessories require separate purchase.

Strengths & Trade-offs

👍 Pros

The 3-inch pump suction cup achieves a strong, confident seal on car windshields, windows, and tile surfaces — the physical hold inspires confidence when mounting a camera for vehicle-based shots.

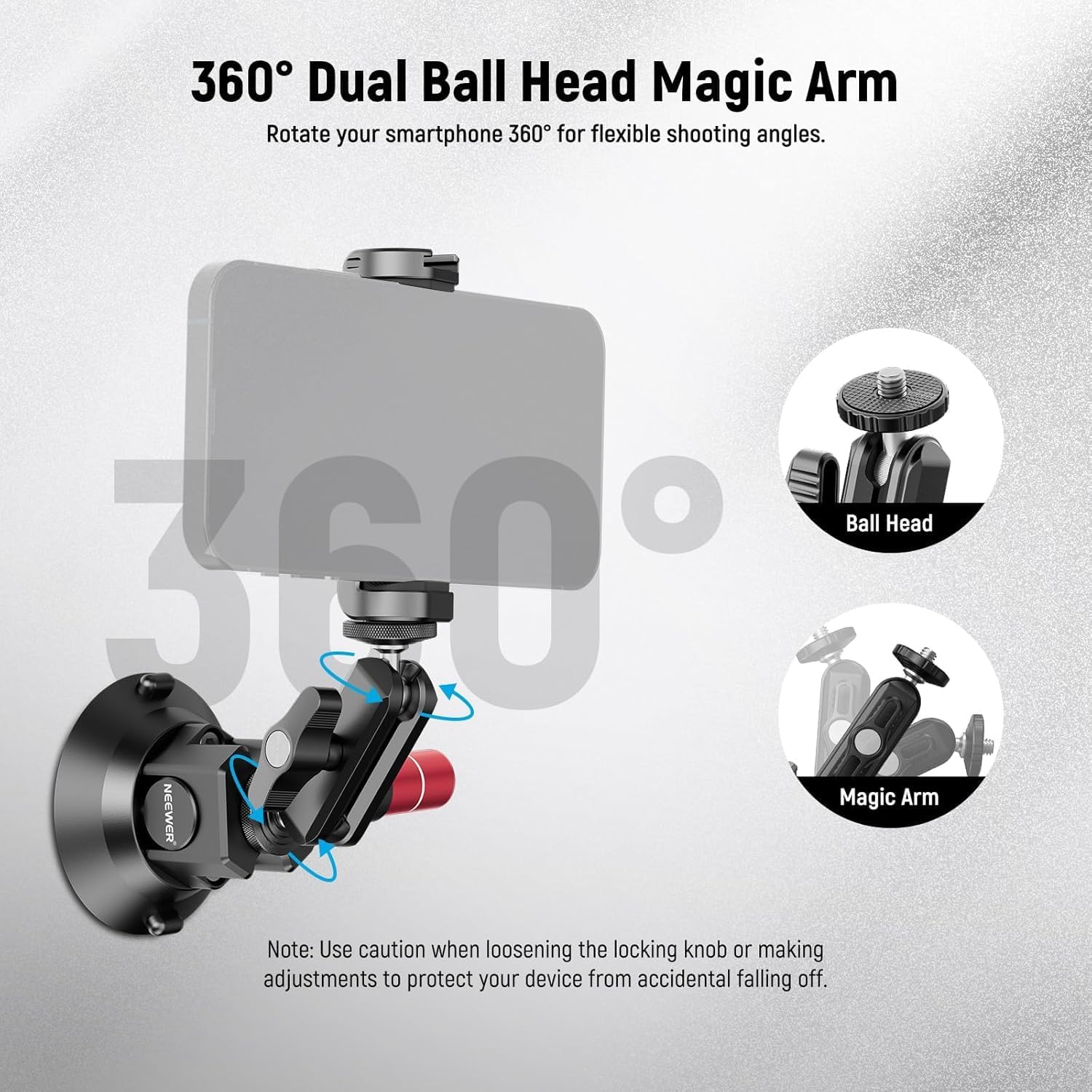

Dual ball head articulation on the magic arm lets you dial in precise camera angles and lock them firmly, giving you creative framing control that a fixed-position mount can't match.
1/4" and 3/8" threads with ARRI holes open up a wide accessory ecosystem — SmallRig, Ulanzi, and standard rigging components connect without adapters.
Includes both an action camera adapter and a phone holder, making it a multi-device mount that works across your entire capture kit without additional purchases.
Aluminum alloy construction resists corrosion and handles outdoor exposure without the flex and degradation of plastic-bodied alternatives.

👎 Cons

The 80 km/h (50 mph) speed limit for safe in-motion use is a firm constraint — this is not a highway driving mount, and exceeding that speed puts your camera at real risk of a drop.
Adhesion is entirely surface-dependent: textured paint, matte automotive finishes, and any non-smooth surface will prevent a reliable seal, limiting mounting locations on some vehicles.
The magic arm's lock knobs require two-handed tightening to fully secure at both ball joints — loosening under vibration is possible if either knob isn't cranked completely.
No carrying case or protective bag is included, so the suction cup's silicone base is vulnerable to contamination in a gear bag — a dirty cup won't seal reliably.
For stationary overhead or inverted mounting, the 12 kg vertical load rating is conservative for heavier mirrorless setups with external monitors or accessories attached.
