Neewer 10104467 Super Clamp 6" Extension Arm

Name: Neewer 10104467 Super Clamp 6" Extension Arm
Brand: Neewer
SKU: 10104467

★★★★★4.7 (123 reviews)

22.5oz33lb

Neewer Super Clamp with 6" extension arm holds up to 33 lbs of gear on pipes, desks, and poles with quick-release convenience.

$48.46*

✓ In Stock on Amazon.com

View on Amazon

*Price sourced from Amazon.com. Last updated:Jul 15, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

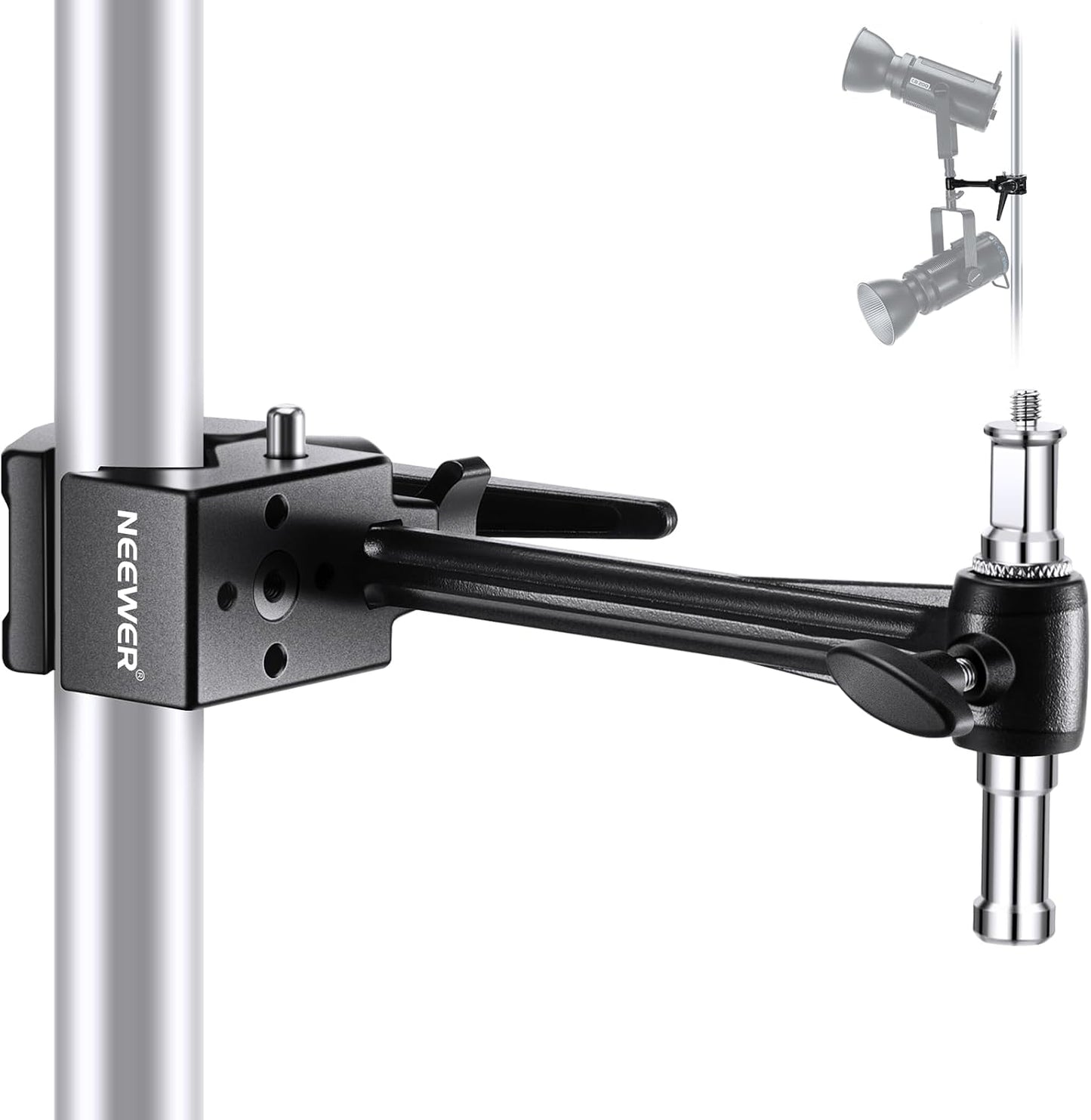

The Neewer 10104467 Super Clamp with 6" Extension Arm is a heavy-duty mounting solution built from black anodized aluminum alloy, designed to securely hold photography and studio equipment weighing up to 33 lbs (15 kg). The clamp itself features a versatile jaw system: with the included wedge insert, it grips flat surfaces like desks and shelves up to 1.6 inches thick, and with the insert removed, it accommodates round objects ranging from 0.2 to 2.4 inches in diameter — ideal for crossbars, light stand poles, and tripod legs. Nonslip rubber pads line the jaw to protect surfaces and prevent movement once tightened.

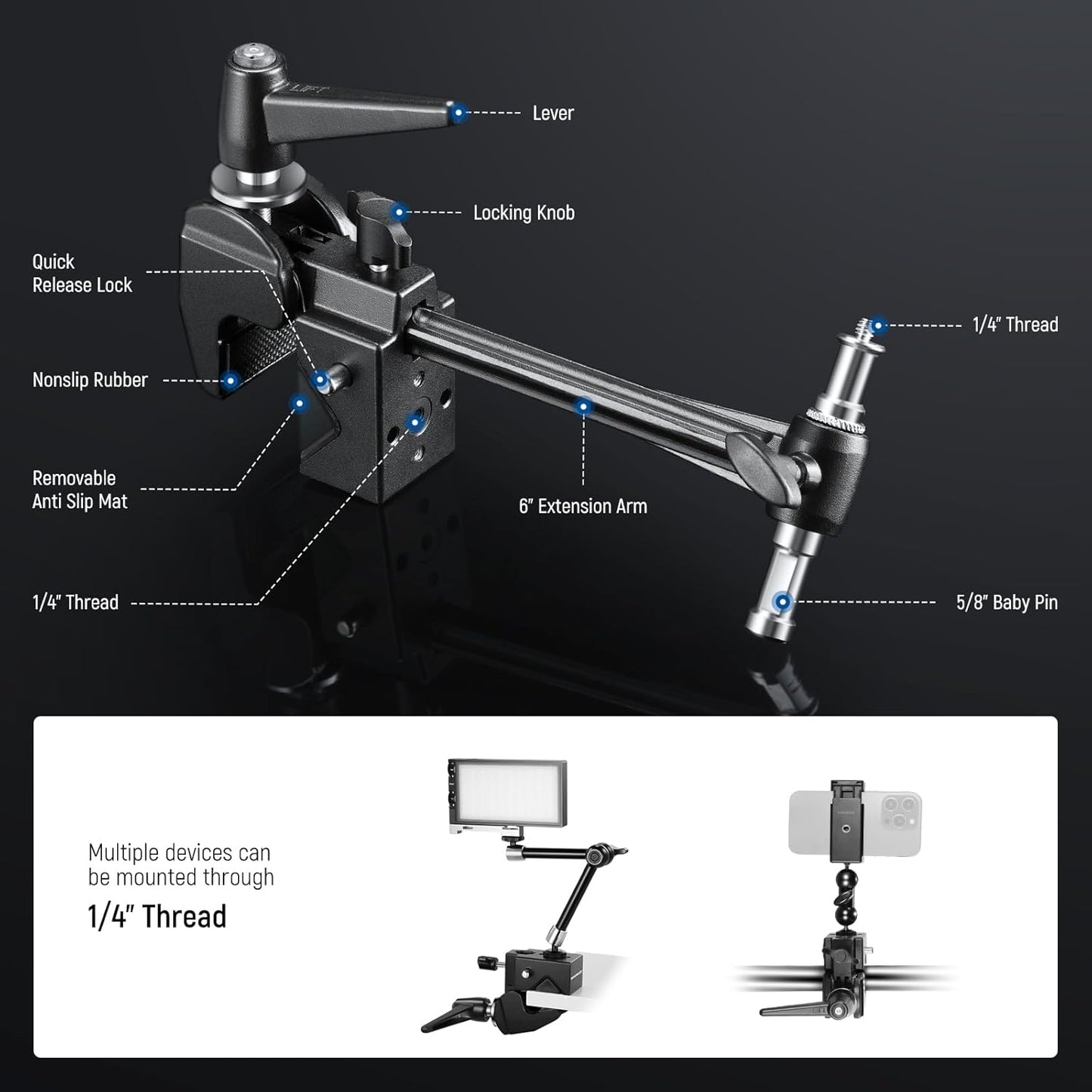

The 6-inch extension arm connects to the clamp via a hexagonal tip with a quick-release spring lock, allowing fast attachment and removal. A secondary knob lock adds another layer of security to prevent loosening during use. At the end of the arm, a 4-inch (10 cm) dual-purpose stud offers a 5/8" thread on one end for mounting studio strobes, ring lights, and LED panels, and a standard 1/4" thread on the opposite end for cameras, microphones, and monitors. The long lever handle on the clamp itself enables firm tightening with minimal effort, and it can be lifted and swiveled to avoid obstructions in tight spaces. Weighing 22.5 oz, it is a robust tool built for permanent or semi-permanent studio installations.

Key Features

【Convenient & Secure Mounting】The long lever enables you to tighten the super clamp with minimal effort. "LIFT" the long handle and then swivel to tighten the super clamp if there are obstructions

【Super Clamp for Round/Flat Surfaces】This super clamp mount can fix on flat desks up to 1.6" (4cm) thick with the wedge insert. Removing the insert, it can grip on round objects 0.2"-2.4" (0.5-6cm) in diameter, such as background crossbars, rods, tubes, poles and tripod legs. Nonslip rubber pads bring more stability for a stationary position

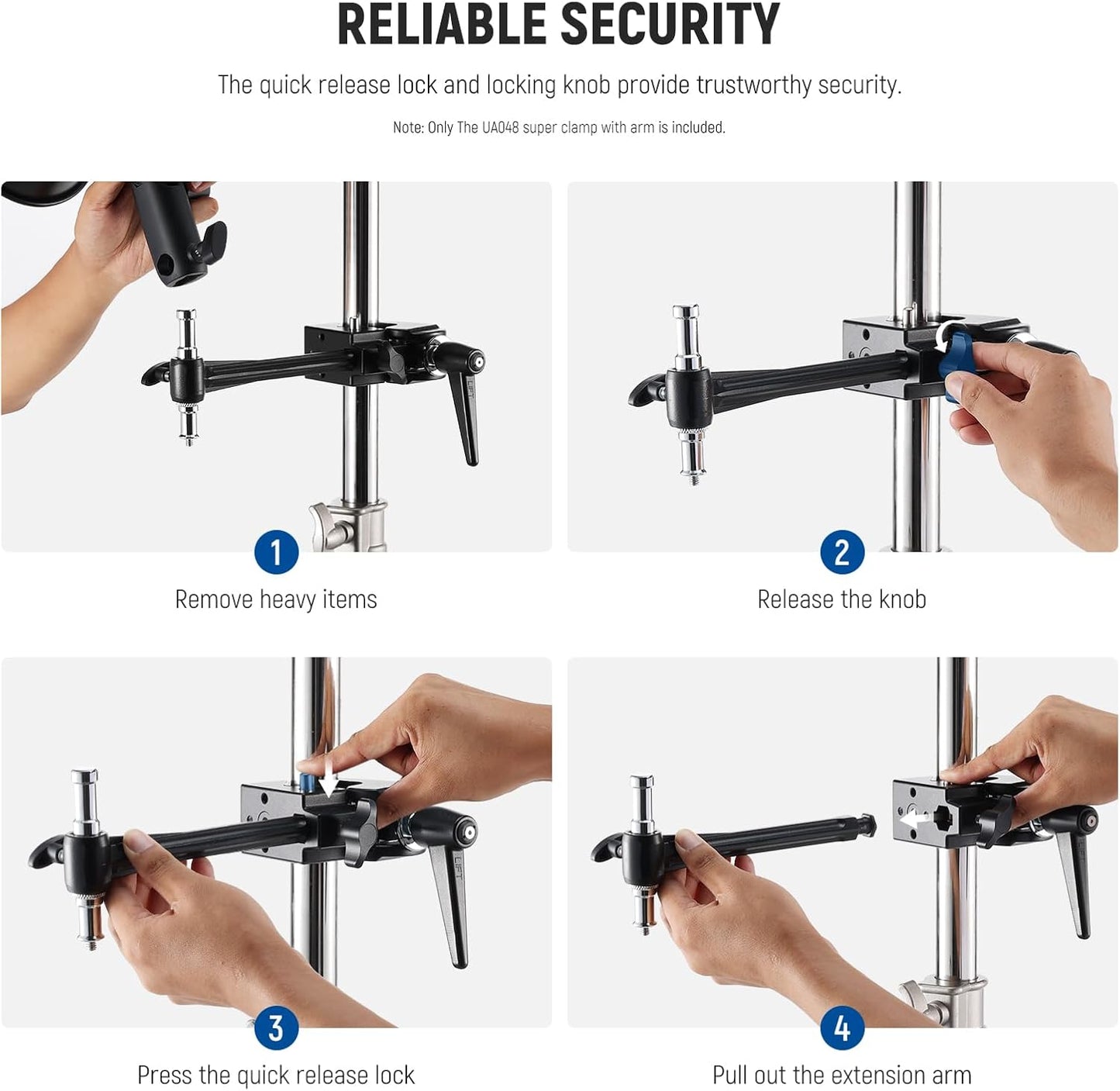

【6" Extension Arm】There is a spring buckle and a knob lock to ensure the security while mounting. Plug the hexagonal tip of the 6" Extension Arm into the super clamp while pressing the quick release spring lock, and then swivel the knob lock to tighten further

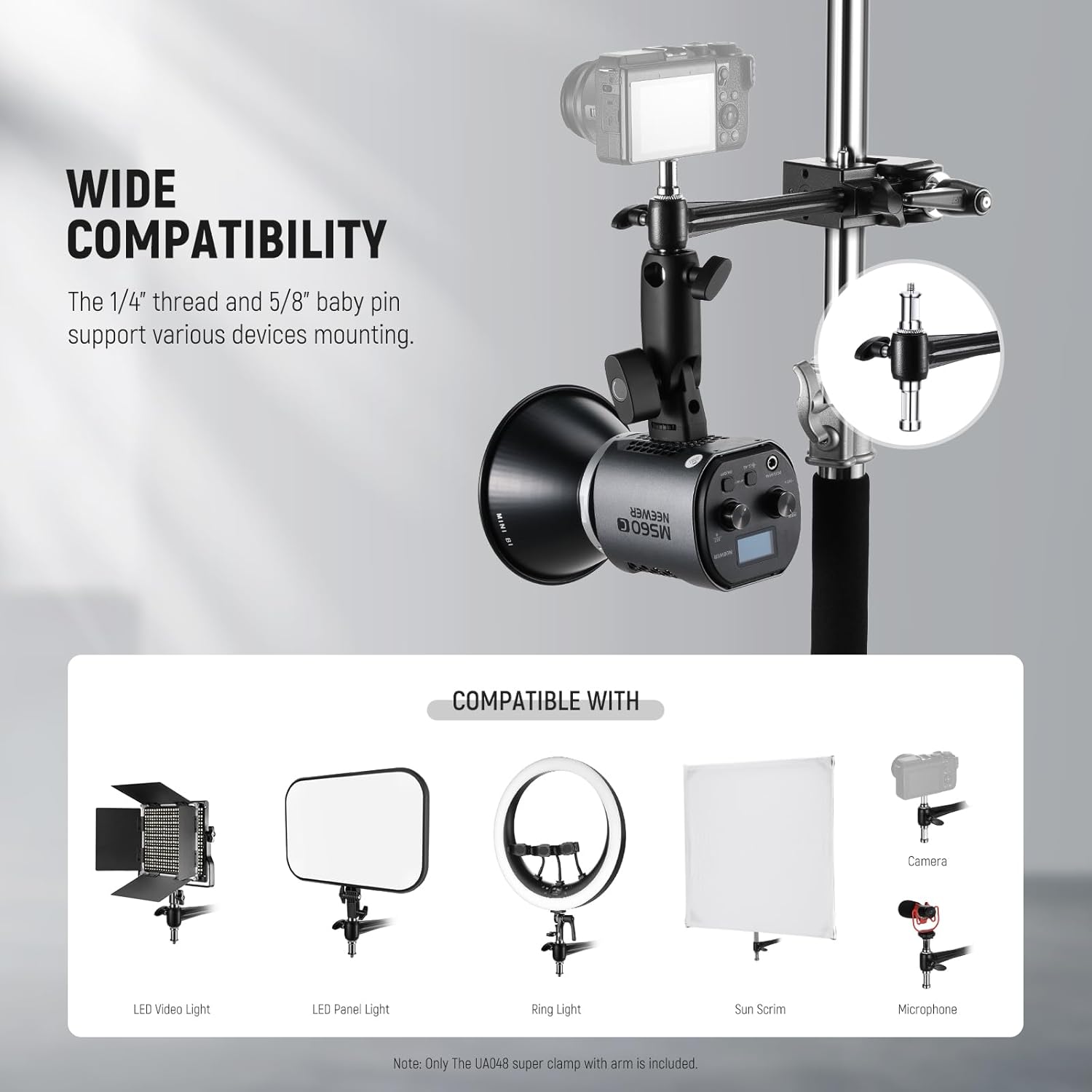

【4"/10cm Dual Purpose Stud】After putting into the extension arm, this stud can be used for two purposes. One end is the 5/8" thread suitable for ring lights, strobes, monolights, LED studio video lights, LED panel lights, and other devices. One end is a standard 1/4" thread that can be compatible with cameras, microphones, etc

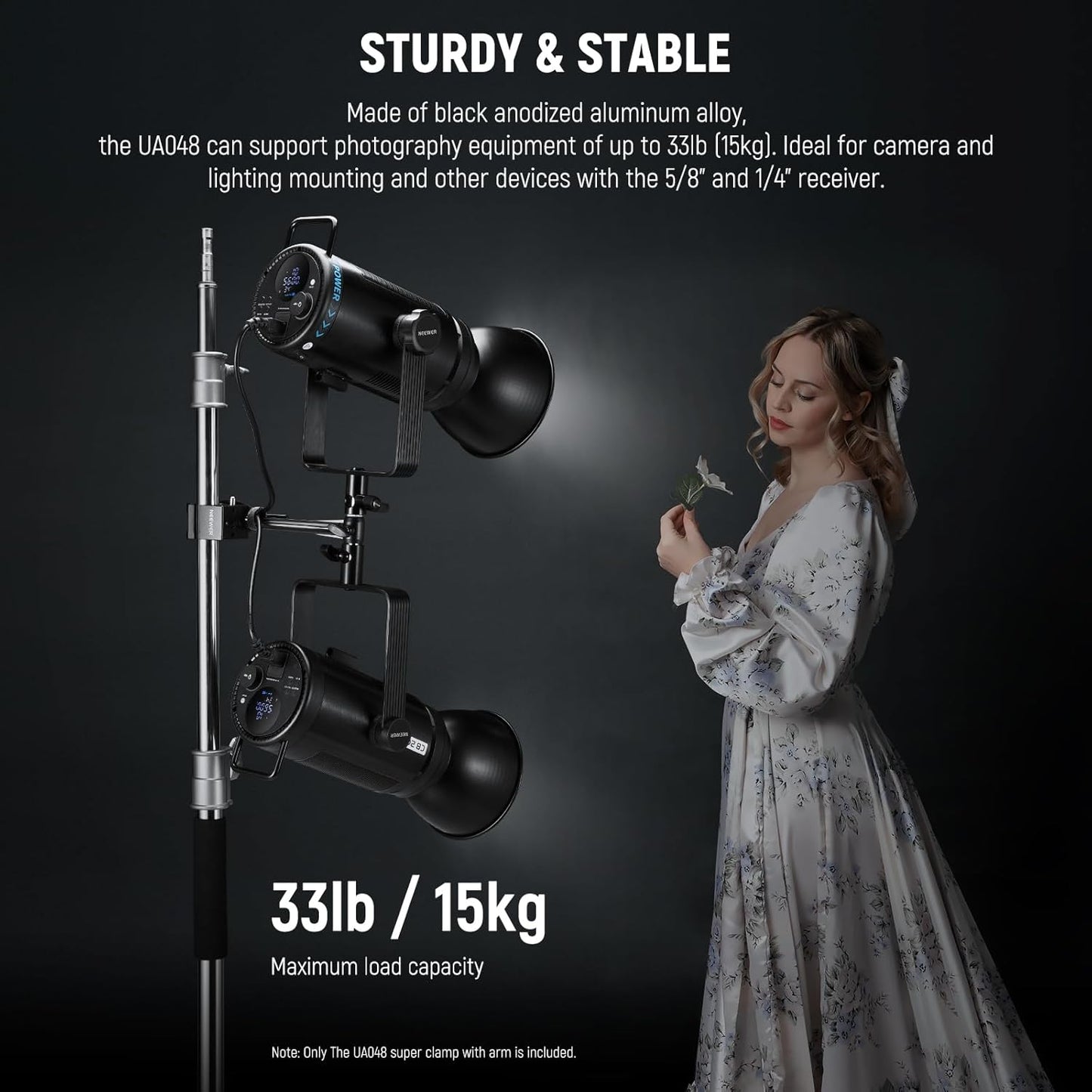

【Sturdy & Stable】Made of black anodized aluminum alloy, this heavy duty super clamp camera mount weighs 22.5oz (637g) and can support photography equipment of up to 33lb (15kg). Ideal for camera and lighting mounting and more photography equipment

Specifications

Brand

Neewer

Model

10104467

Material

Black Anodized Aluminum Alloy

Maximum Load Capacity

33 lb / 15 kg

Jaw Grip (Round Objects)

0.2"–2.4" (0.5–6 cm) diameter

Flat Surface Thickness

Up to 1.6" (4 cm)

Extension Arm Length

6" (15 cm)

Stud Size

5/8" thread + 1/4" thread (dual-purpose)

Stud Length

4" / 10 cm

Weight

22.5 oz / 637 g

Pros & Cons

👍 Pros

33 lb load capacity handles heavy studio lights and cameras without flex or slippage
Quick-release spring lock on the extension arm speeds up setup and teardown
Dual-purpose stud with 5/8" and 1/4" threads fits a wide range of equipment without adapters
Nonslip rubber pads protect mounting surfaces and prevent the clamp from shifting
Removable wedge insert allows the same clamp to grip both flat and round surfaces

👎 Cons

At 22.5 oz (637 g), the clamp is noticeably heavy to carry in a mobile kit
Maximum jaw opening of 2.4 inches limits use on thicker pipes or structural tubing
The 6-inch extension arm length may be too short for setups requiring greater reach or offset

Frequently Asked Questions

What is the maximum weight this Neewer Super Clamp can support?

The clamp supports up to 33 lbs (15 kg), making it capable of holding cameras, studio lights, LED panels, and other heavy photography equipment securely.

What surfaces and objects can this super clamp attach to?

With the wedge insert installed, it clamps onto flat surfaces like desks up to 1.6 inches (4 cm) thick. With the insert removed, it grips round objects from 0.2 to 2.4 inches (0.5–6 cm) in diameter, such as crossbars, poles, and tripod legs.

What thread sizes does the dual-purpose stud provide?

The stud has a 5/8" thread on one end for studio lights, strobes, and ring lights, and a standard 1/4" thread on the other end for cameras, microphones, and similar devices.

How does the extension arm attach to the super clamp?

The 6" extension arm has a hexagonal tip that plugs into the clamp via a quick-release spring lock. You press the spring buckle, insert the arm, then tighten the knob lock for additional security.

What material is this clamp made from?

It is constructed from black anodized aluminum alloy, providing durability and corrosion resistance while keeping the total weight at 22.5 oz (637 g).
