Neewer 28mm Low Profile Tripod Ball Head 360°

4.5 (1045 reviews)
0.43lb6.6lb

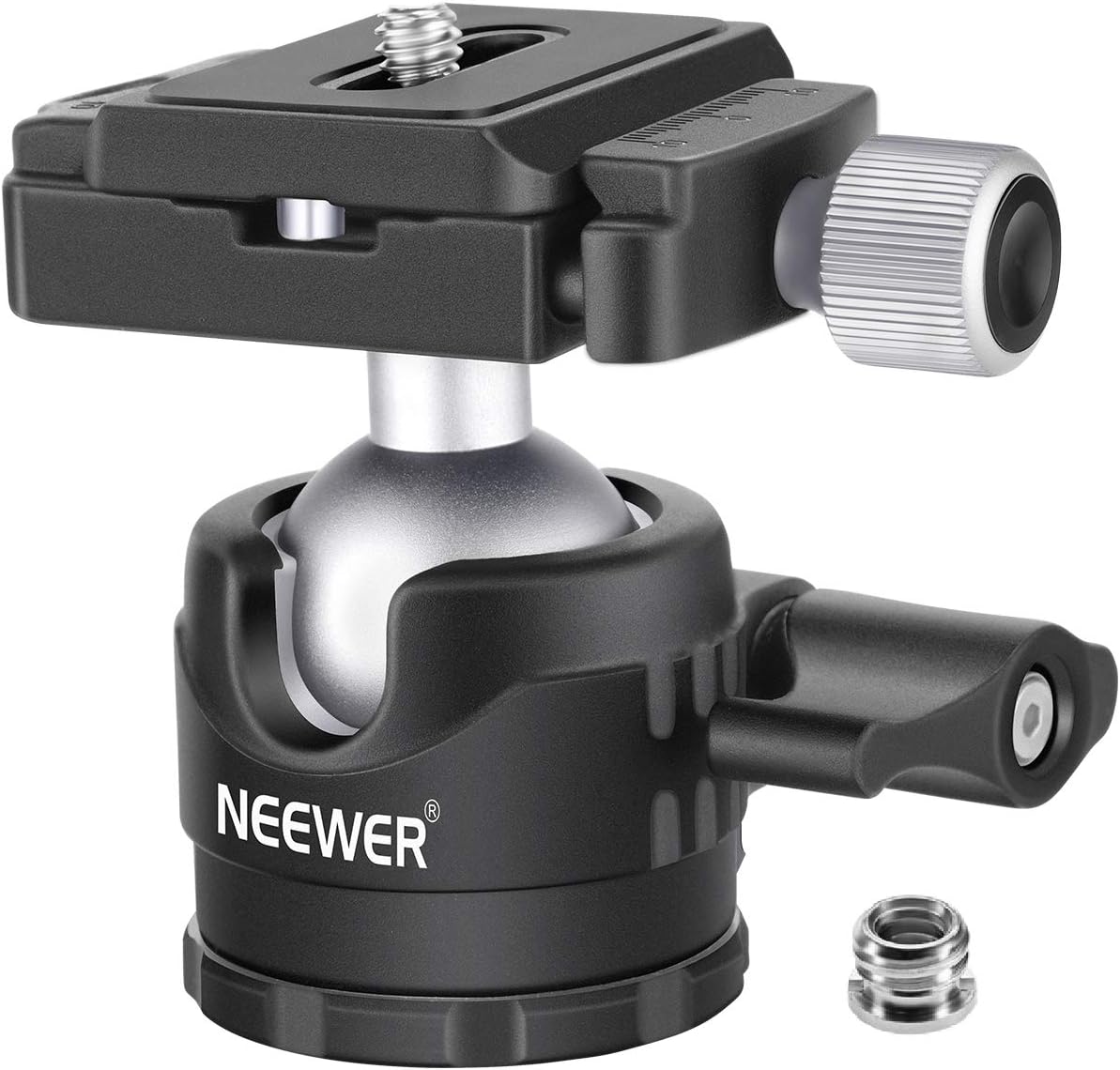

Ultra-compact 28mm aluminum ball head with low-profile design for stable, precise camera positioning.

$24.95*
In Stock on Amazon.com
View on Amazon

*Price sourced from Amazon.com. Last updated:Jun 28, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Neewer GM-LO28 is a 28mm low-profile tripod ball head constructed from aluminum alloy and engineered to keep your camera setup as compact and stable as possible. Its defining feature is the relocated locking knob — positioned on the side of the ball rather than beneath the joint — which lowers the overall center of gravity by approximately 15%. This design choice translates to noticeably improved stability, particularly on lightweight travel tripods where a top-heavy configuration can introduce unwanted movement.

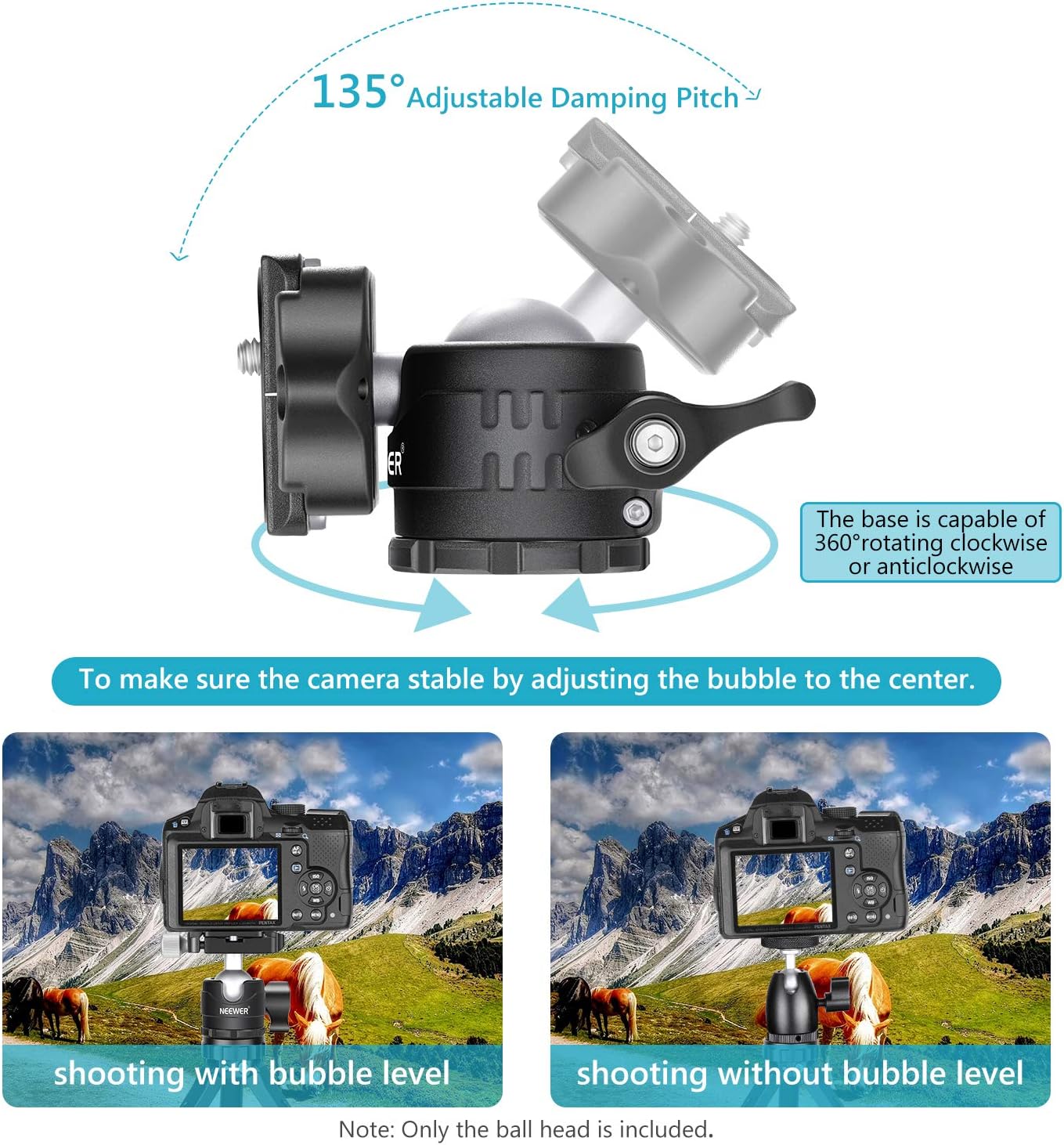

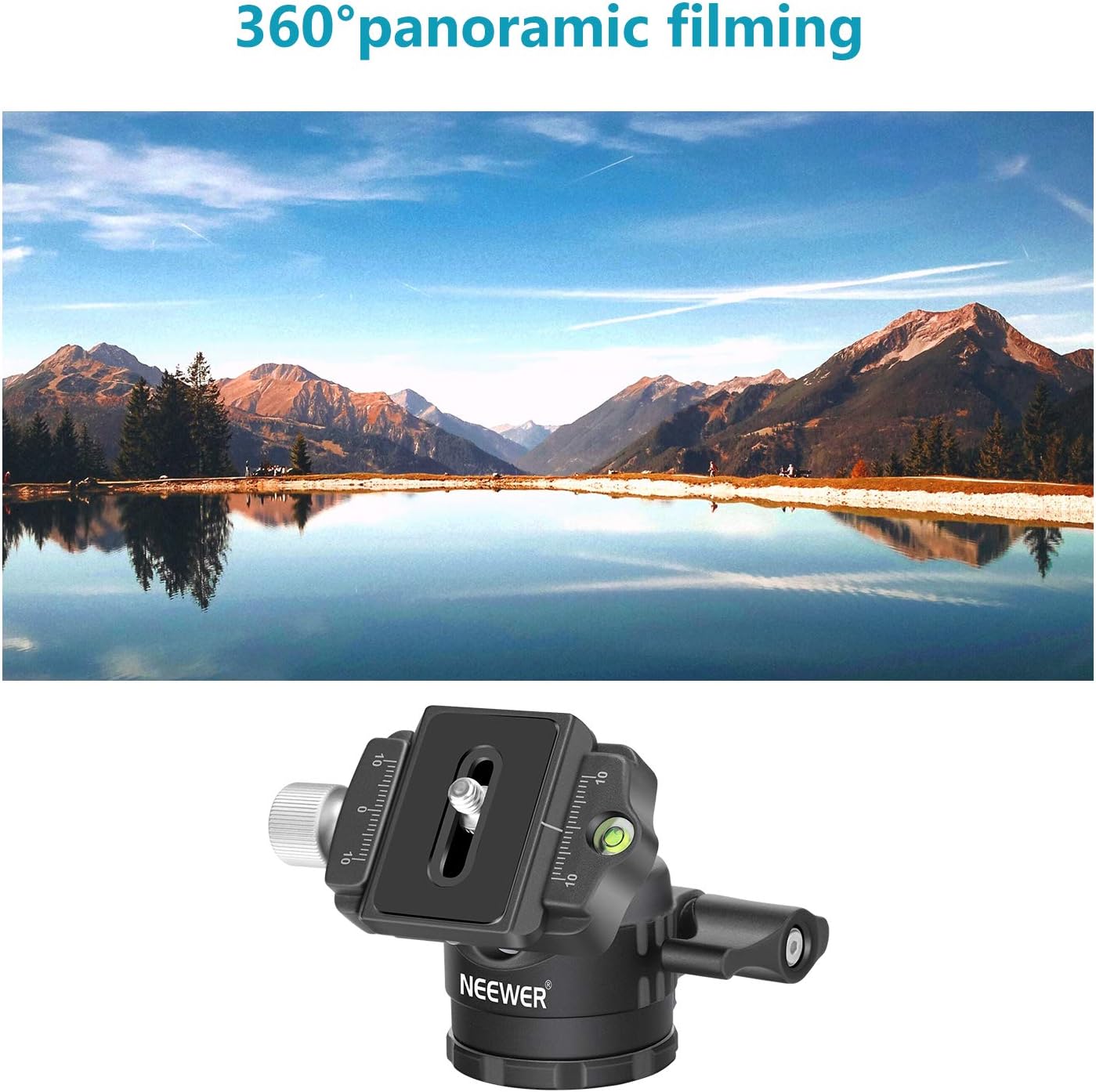

Standing just 68mm tall and weighing only 197 grams, this ball head adds minimal bulk to your kit. It offers full 360-degree pan rotation, a built-in spirit level for quick horizon checks, and ships with an Arca-type quick release plate that's compatible with the widely adopted Arca-Swiss mounting standard. The single screw knob provides friction control over the ball joint, letting you position your camera at virtually any angle before locking it down. With a rated capacity of 6.6 lbs, it's well matched to mirrorless cameras, compact DSLRs, and moderate-length lenses — an efficient, budget-friendly option for photographers who prioritize portability without sacrificing essential stability.

Key Features

HIGH STABILITY: Low profile ball head design creates stronger locking force and greater stability. The screw knob is located on the side of the ball instead of the bottom of the ball joint, lowers the entire center of gravity of the ball joint by 15%, improve stability.

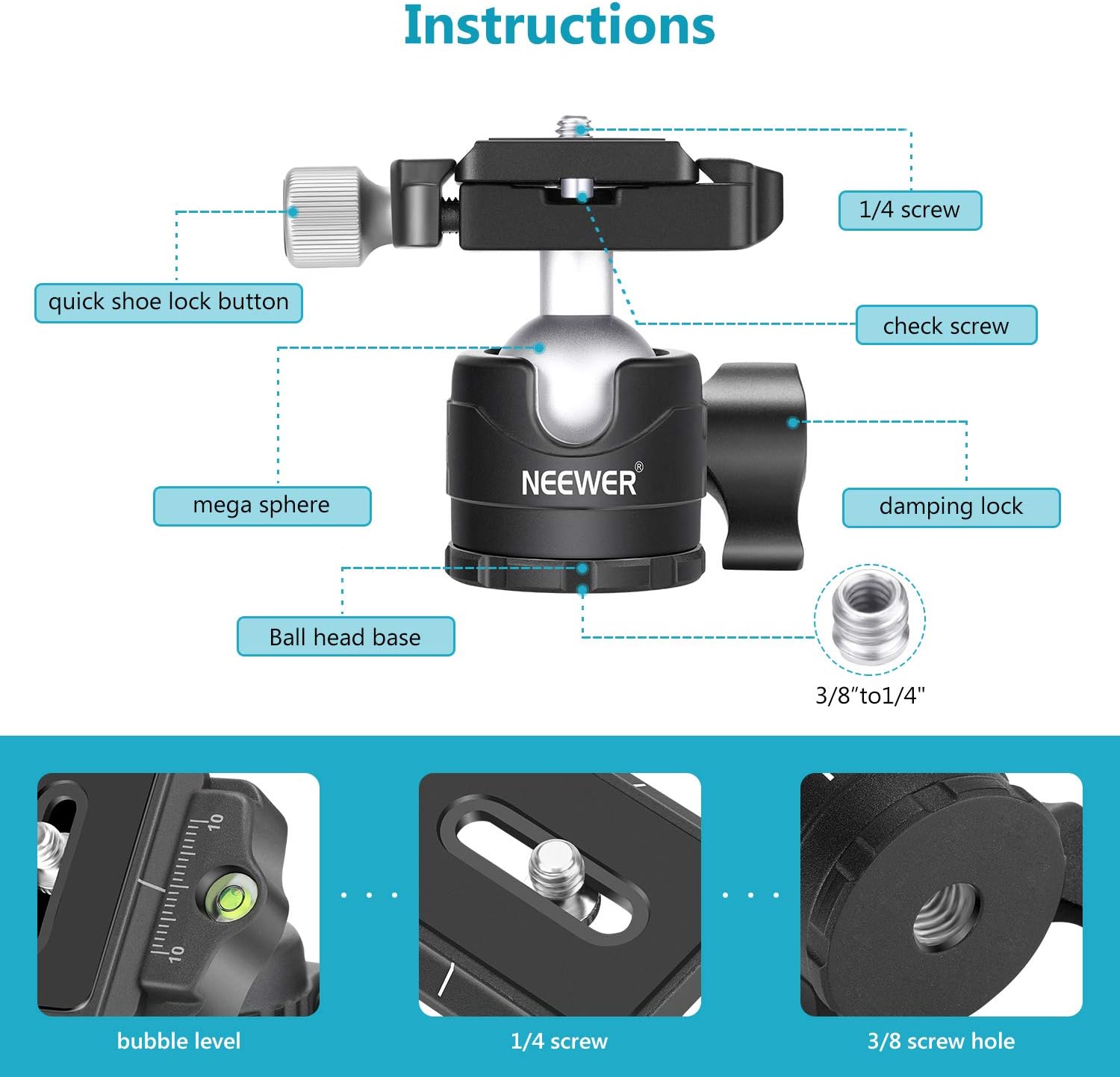

WIDE COMPATIBILITY: Equipped with a 1/4" screw, the removable Arca type quick release plate is suitable for all SLR cameras. The 3/8 screw hole at the bottom can be attached to the tripod or monopod

Free Rotation Ball Head The screw knob can quickly tighten or loosen the ball and allow it to move freely in any direction.

SMALL AND PRRTABLE: Height only 68mm/2.68", Weight only 197g/0.43lb, easy to carry

Sturdy & Durable - Max load up to 6.6lb/5kg, made of aluminum alloy.

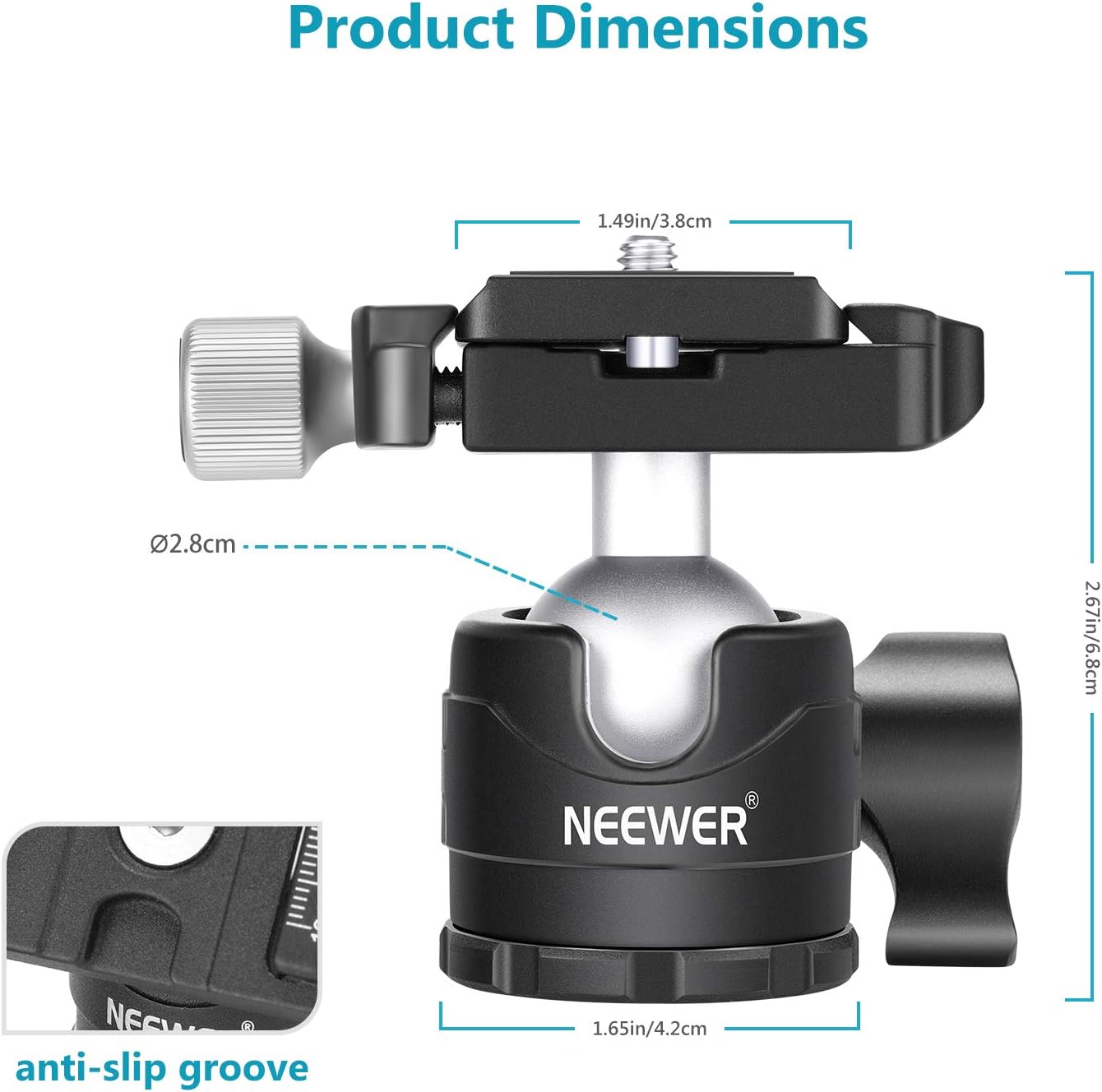

Specifications

Material
Aluminum Alloy
Ball Diameter
28mm (1.1 in)
Base Diameter
42mm (1.65 in)
Height
68mm (2.68 in)
Weight
197g (0.43 lbs)
Maximum Load
6.6 lbs (3 kg)

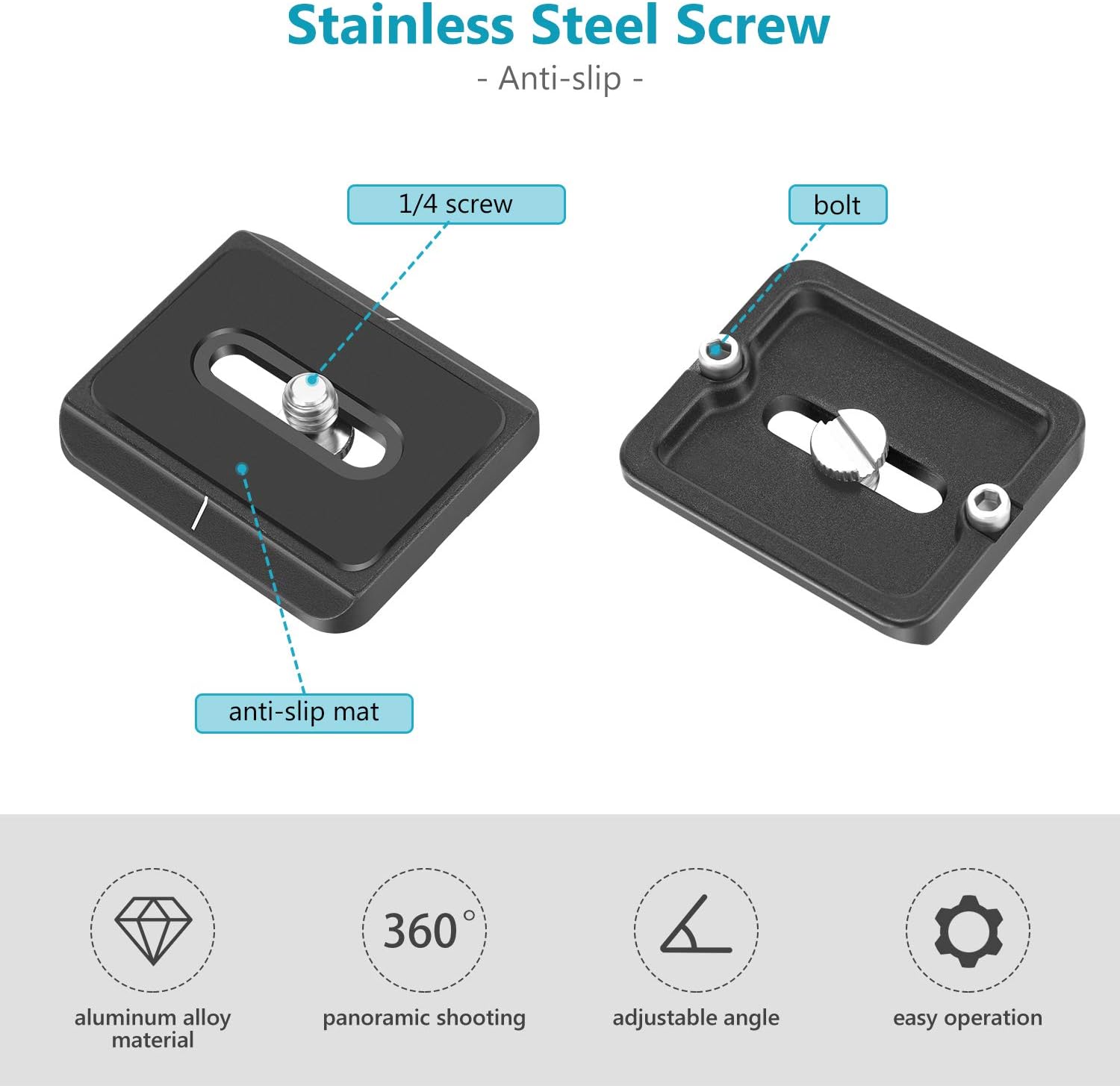

Quick Release Plate
Arca-type, 38 × 43mm
Mounting Thread (Top)
1/4 inch
Mounting Thread (Bottom)
3/8 inch
Features
360° Pan Rotation, Built-in Spirit Level
ASIN
B07RXQTL1V

Pros & Cons

👍 Pros

  • Low-profile design lowers the center of gravity by 15%, improving stability compared to traditional ball heads
  • Very compact at just 68mm tall and 197g, making it easy to pack for travel
  • Built-in spirit level helps ensure accurate horizon alignment without an external accessory
  • Arca-type quick release plate provides fast, standardized camera mounting and removal

👎 Cons

  • 6.6 lb maximum load limits use to lighter cameras and lenses — not suitable for heavy telephoto setups
  • Single locking knob controls all axes, offering less independent adjustment than dual-knob designs
  • Small 28mm ball diameter provides less contact surface, which can reduce smoothness with heavier loads
  • No separate panning base lock — pan rotation is controlled by the same knob as the ball tension

Frequently Asked Questions

The manufacturer lists a maximum load of 6.6 lbs (3 kg), though the product features also reference 5 kg (11 lbs). For reliable stability, stay within the conservative 6.6 lb rating, especially with heavier lens setups.
Yes. It includes a removable Arca-type quick release plate (38 × 43mm) that's compatible with Arca-Swiss standard clamps and camera base plates.
The ball head has a 3/8-inch threaded hole on the bottom, which is the standard mounting thread for most tripods and monopods.
Yes, there is a built-in spirit level to help you confirm the ball head is set to a level horizon.
A single side-mounted screw knob tightens or loosens the ball joint, allowing you to lock it at your desired angle or release it for free movement in any direction.
