Neewer
Neewer CS120CM 47.2in Carbon Fiber Camera Slider Track
★★★★★
47.2in22lb11lb5.5lb4.1lb
Ultra-smooth 47-inch carbon fiber camera slider with whisper-quiet bearings and a 22lb horizontal load capacity for professional video.
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features

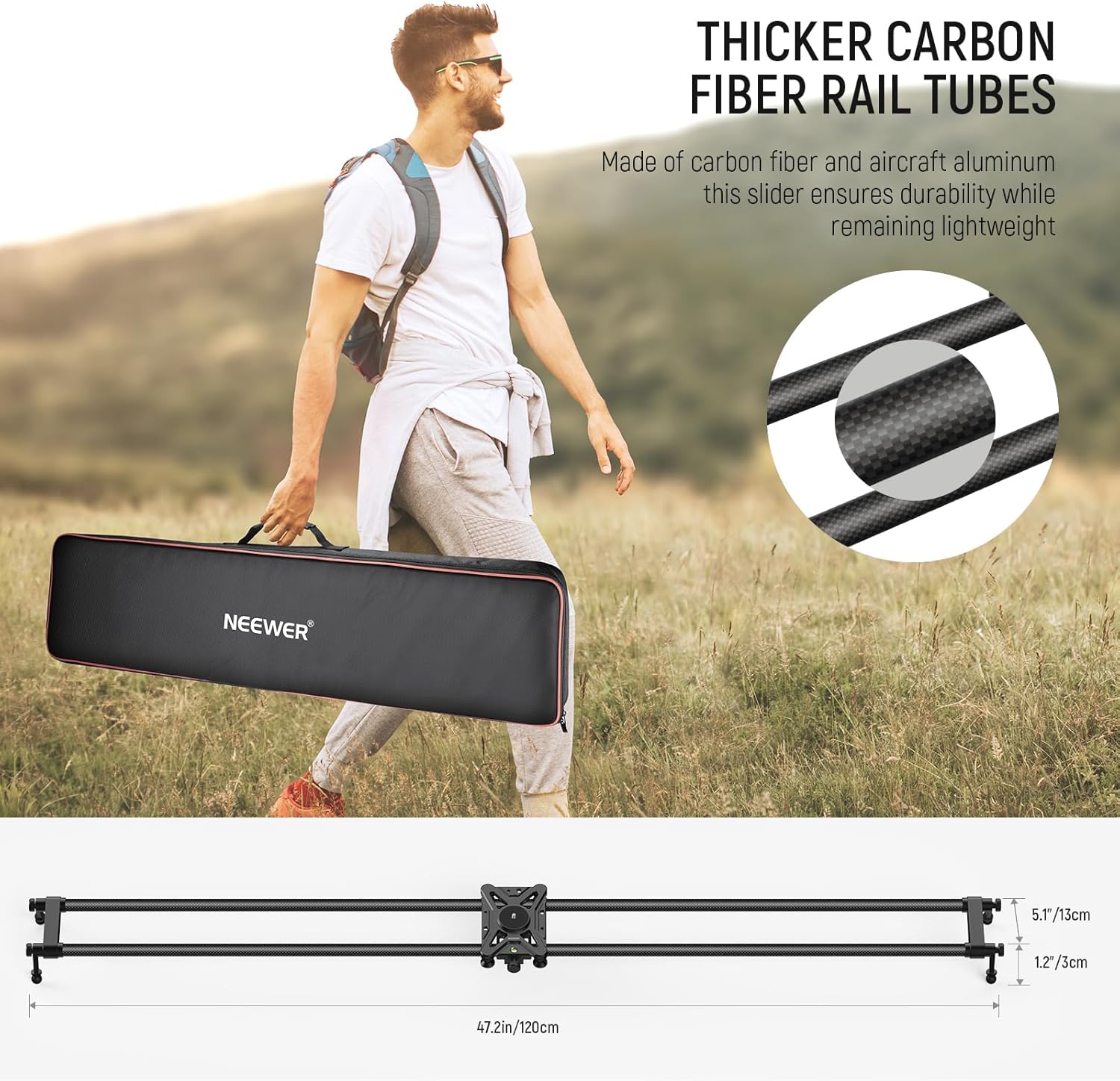

【Thicker Carbon Fiber Rail Tubes】 Made of carbon fiber and aircraft aluminum, this camera slider ensures durability while remaining lightweight. Its 22mm rail tube diameter is larger than most camera sliders, providing extra stability and smoothness to your shots. The maximum load capacity is 22lb/10kg when placed horizontally, 11lb/5kg when tilted up 45° and 5.5lb/2.5kg vertically

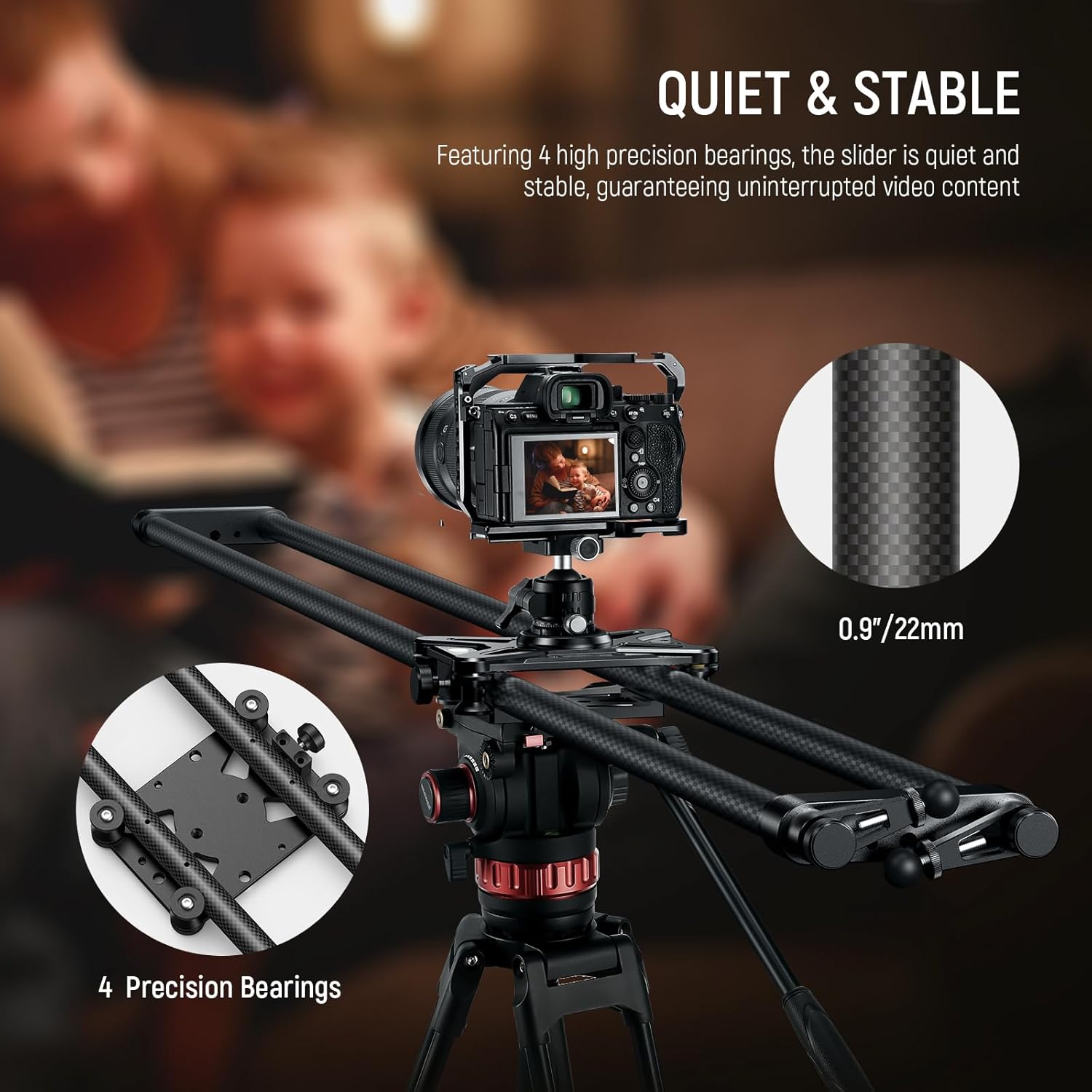

【Noiseless Smooth Sliding Motion】 Featuring 4 high precision bearings, the carrier glides smoothly along the 47.2"/120cm rails to create seamless and noiseless video content, without any distracting noises that could ruin the video. A tension knob on the side allows you to position the carriage with ease

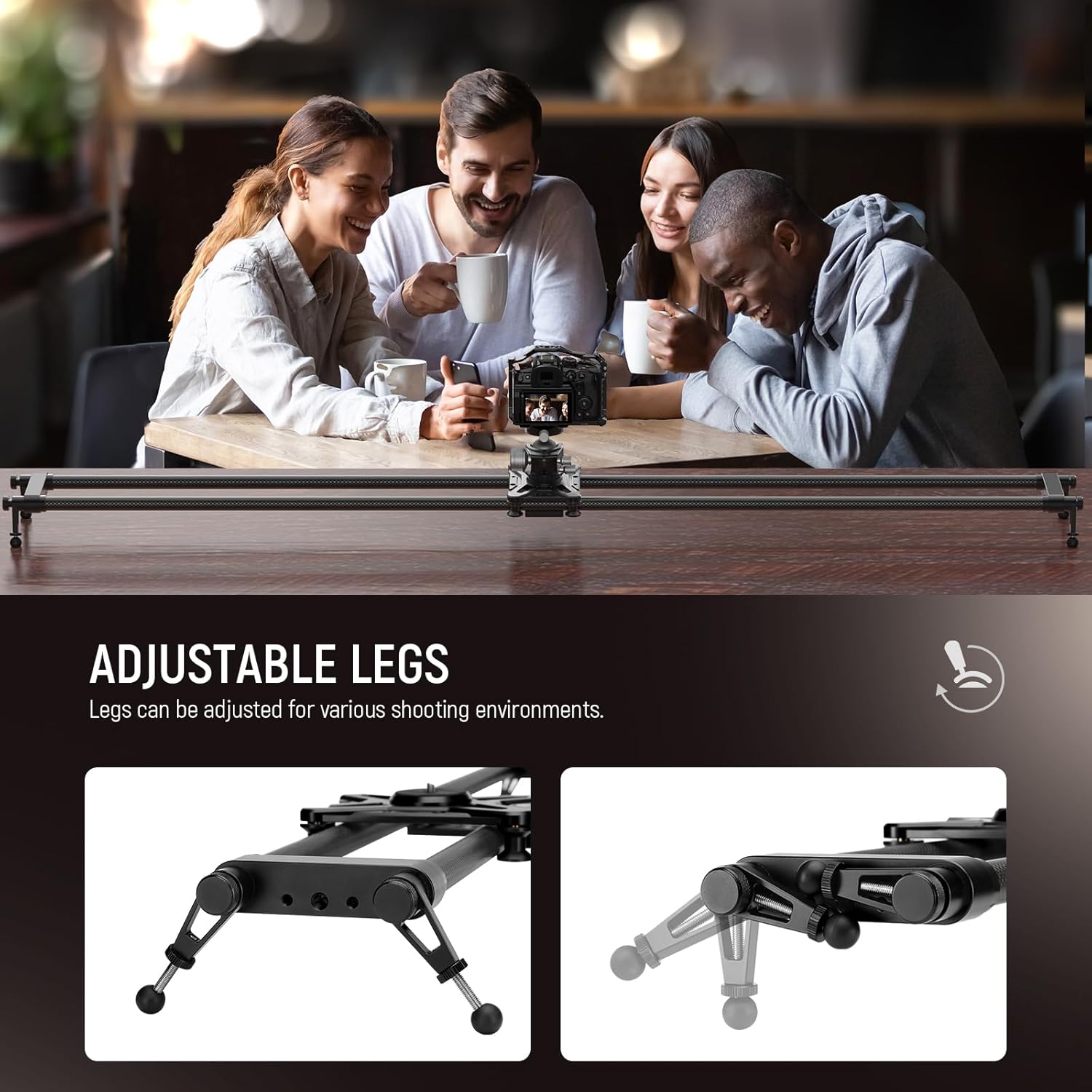

【Adjustable Legs & Spirit Level】 Comes with adjustable legs that can be set to different angles and heights. The 360° angle control is precise, with each adjustment producing a click sound, while the legs can be adjusted from 8 to 10cm in height for greater stability on uneven surfaces. A built in spirit level helps check the stability after each adjustment

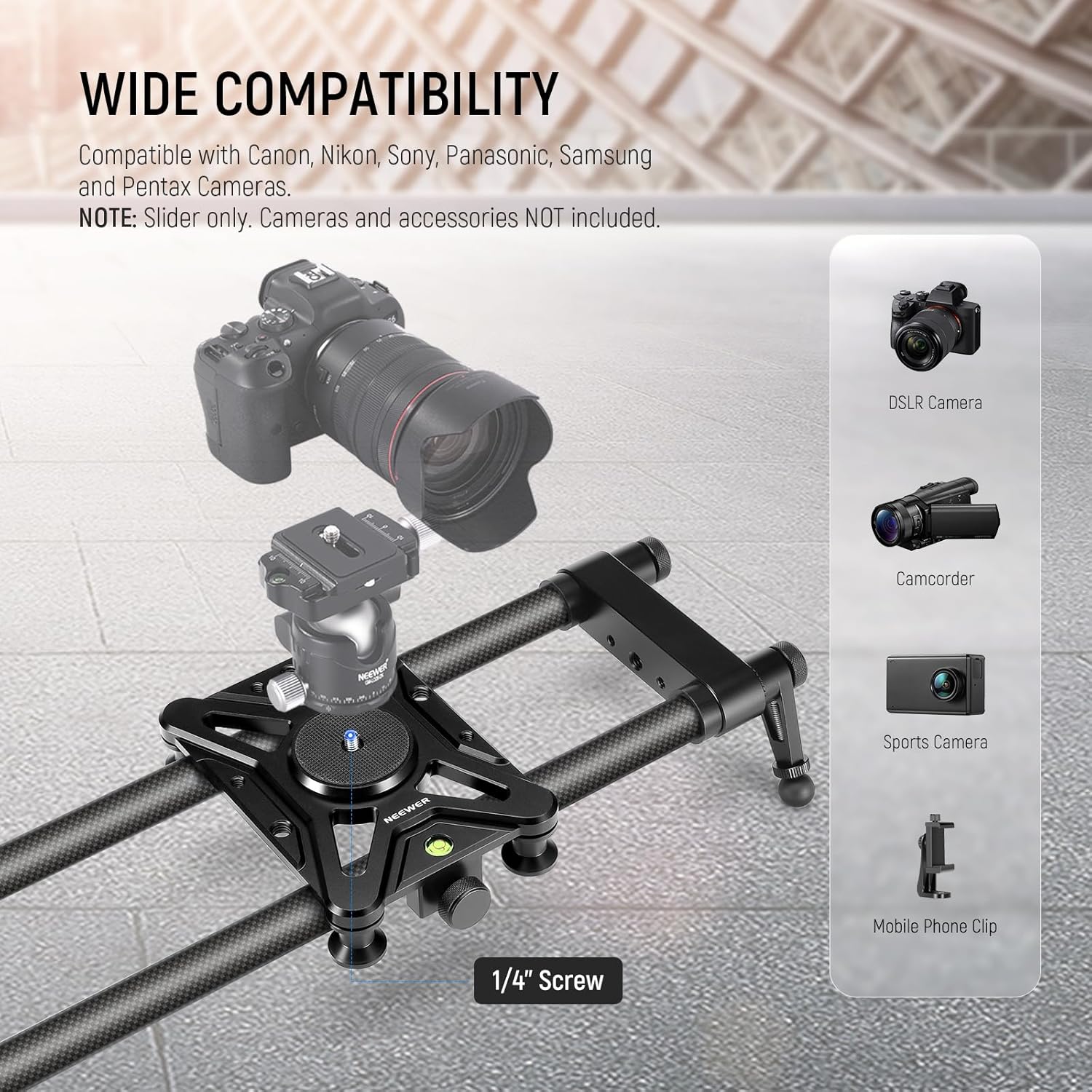

【Versatile Shooting Options】With 1/4" and 3/8" mounting threads on the bottom and each end, this video slider can be mounted on a tripod or light stand, and shoot horizontally, vertically, or even at 45° tilt. The top 1/4" mounting screw is compatible with Canon Nikon Sony Panasonic Samsung DSLR cameras, DV Camcorders, mirrorless cameras, action cameras (adapter not included), smartphones (phone holder not included), telephoto lenses, and more

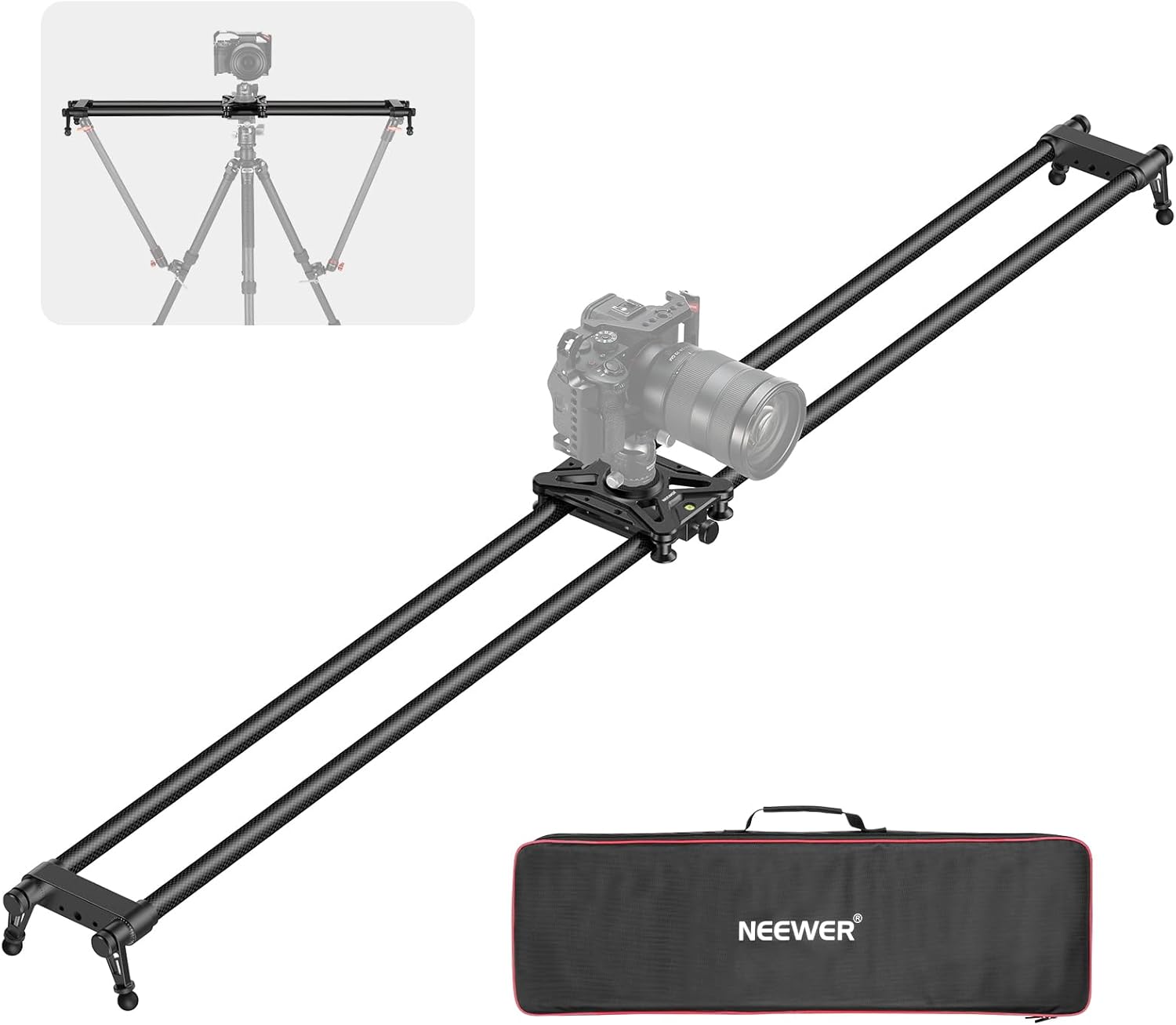

【Easy to Carry and Store】 The aluminum and carbon fiber construction weighs 4.1lb/1.84kg itself, and adds no bulk to your luggage with the included carrying bag, making it easy to carry, transport, and store and perfect for outdoor photography

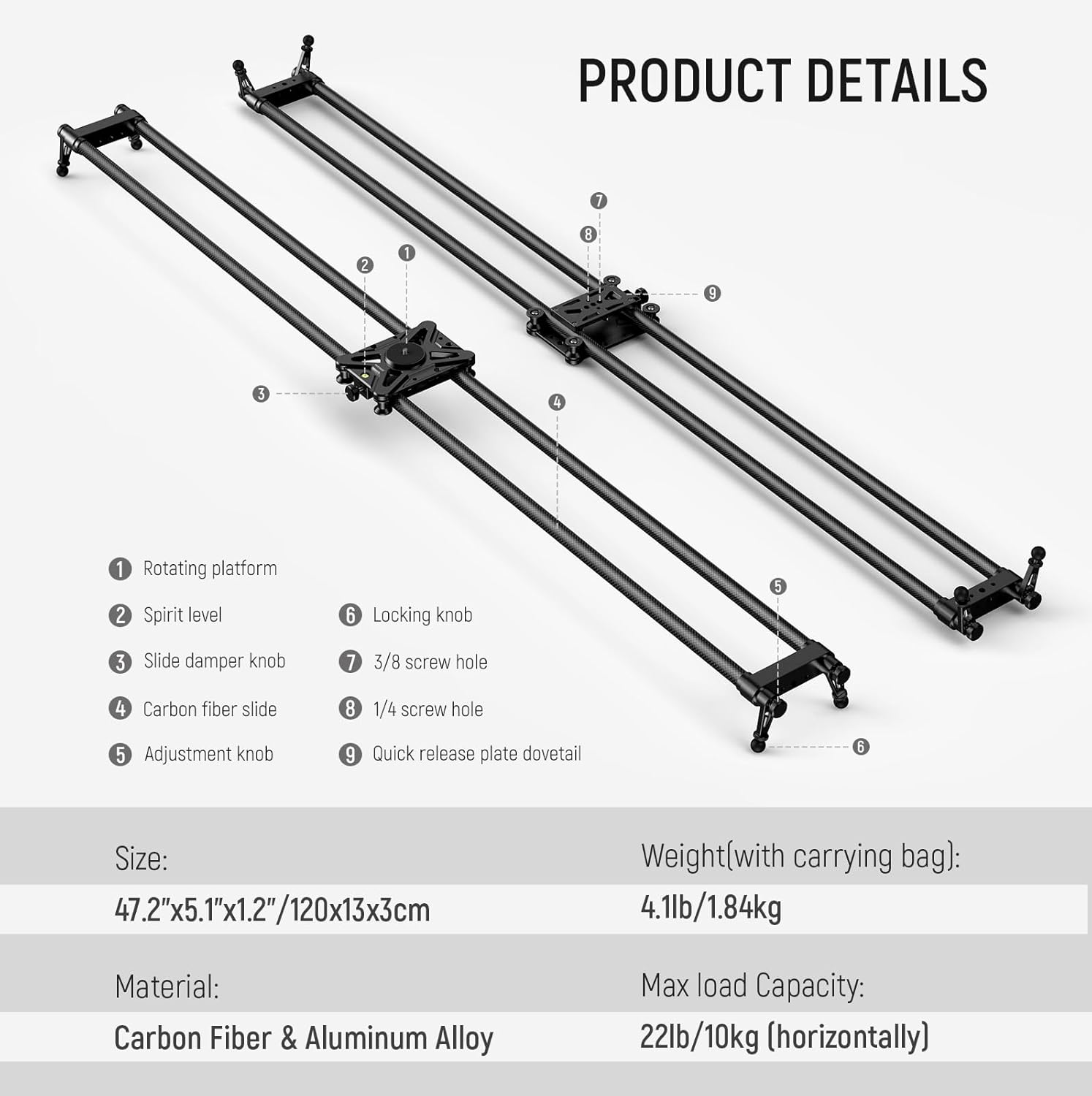

Specifications
Brand
Neewer
Model
CS120CM
Material
Carbon Fiber and Aircraft Aluminum
Rail Tube Diameter
22mm
Slider Length
47.2 inches / 120cm
Max Load (Horizontal)
22lb / 10kg
Max Load (45° Tilt)
11lb / 5kg
Max Load (Vertical)
5.5lb / 2.5kg
Bearings
4 High-Precision
Mounting Threads
1/4" and 3/8" (bottom and ends); 1/4" (top)
Leg Height Adjustment
8–10cm
Leg Angle Control
360° with click stops
Spirit Level
Built-in
Weight
4.1lb / 1.84kg
Included Accessories
Carrying Bag
Pros & Cons
👍 Pros
- 22mm carbon fiber rail tubes are thicker than most competitors, providing superior stability and rigidity
- 4 high-precision bearings deliver genuinely smooth and noiseless sliding motion
- Adjustable legs with 360° angle control and a built-in spirit level simplify setup on uneven terrain
- Lightweight 4.1lb construction with included carrying bag makes it highly portable for field work
👎 Cons
- 47.2-inch travel length may be too long for tight indoor spaces or small studio setups
- No motorized option — all sliding motion must be performed manually
- Maximum vertical load of 5.5lb/2.5kg limits the size of camera setups usable in vertical orientation
- Phone holder and action camera adapter are not included and must be purchased separately
Frequently Asked Questions
How much weight can the CS120CM support in different orientations?
The slider supports up to 22lb/10kg when used horizontally, 11lb/5kg when tilted at 45°, and 5.5lb/2.5kg when mounted vertically. Make sure to account for the combined weight of your camera, lens, and any accessories.
How noisy is the sliding motion during recording?
The CS120CM uses 4 high-precision bearings designed for noiseless operation. The carriage glides quietly enough that sliding sounds should not be picked up by on-camera microphones during normal use.
Can this slider be mounted on a tripod?
Yes, the slider has 1/4" and 3/8" mounting threads on the bottom and at each end, allowing you to mount it on a tripod or light stand for horizontal, vertical, or 45° tilted shooting positions.
How does the tension knob work on the carriage?
The tension knob on the side of the carriage lets you adjust the friction of the slide. Increasing tension gives you more controlled, slower movements, while loosening it allows free, faster sliding — helpful for dialing in the exact motion speed you need for a shot.
Does the slider come with a carrying case?
Yes, a carrying bag is included. Combined with the slider's 4.1lb/1.84kg weight thanks to its carbon fiber and aluminum construction, it is straightforward to transport for on-location shoots.
