Neewer

Neewer NW-MAGICARM 11" Articulating Magic Arm Clamp

Name: Neewer NW-MAGICARM 11" Articulating Magic Arm Clamp
Brand: Neewer
SKU: NW-MAGICARM

★★★★★4.6 (109 reviews)

4.4lb12.9oz

Mount cameras, monitors, and lights at any angle with this rugged 11-inch articulating magic arm and super clamp.

$26.99*$27.99Save 3%

✓ In Stock on Amazon.com

View on Amazon

*Price sourced from Amazon.com. Last updated:Jul 15, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

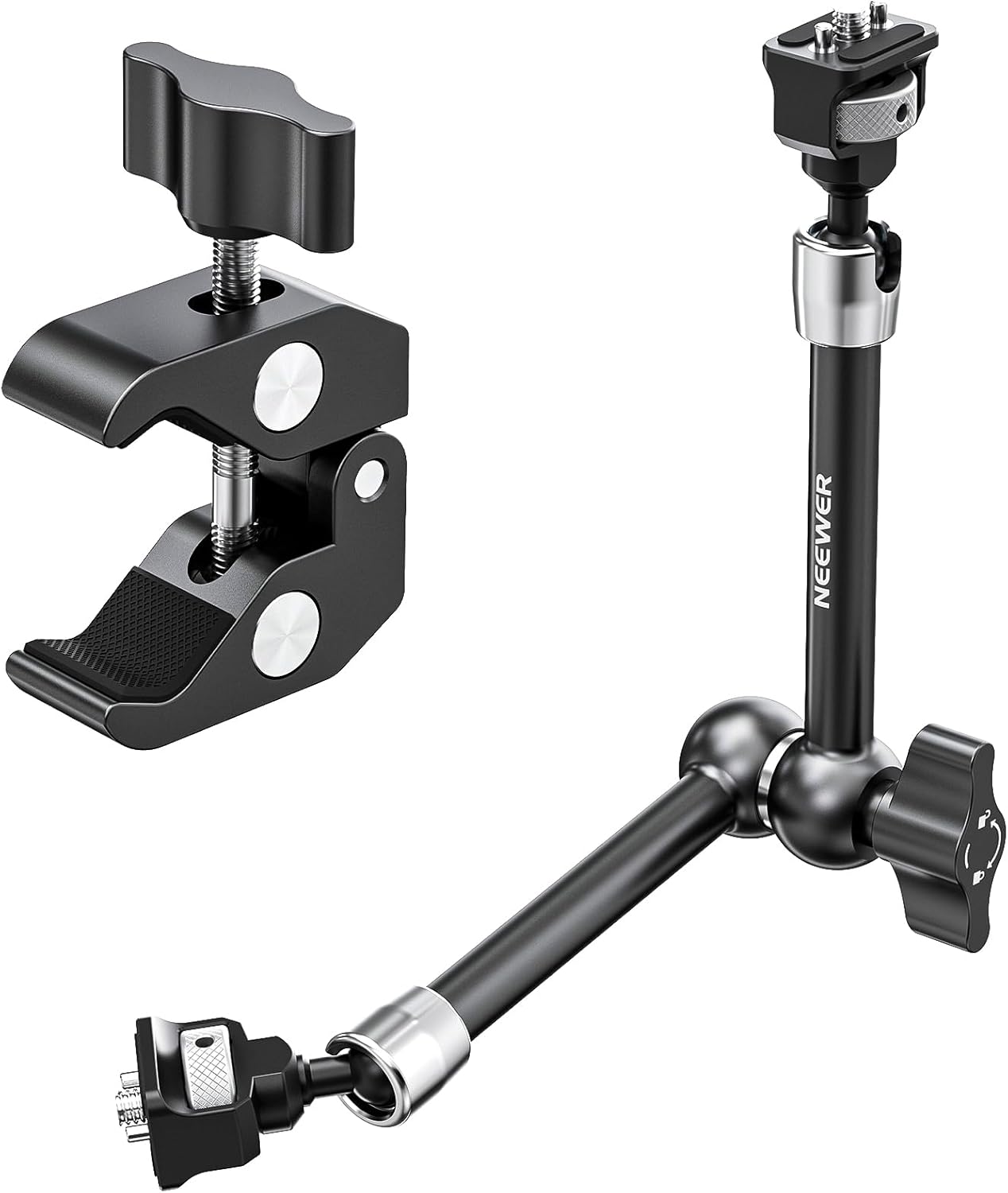

The Neewer NW-MAGICARM is an 11-inch articulating magic arm paired with a super clamp, designed to give photographers and videographers flexible mounting options for lightweight accessories. The arm consists of two segments connected by a central 360-degree friction gear joint, with a ball head at each end offering 360-degree rotation and 90-degree tilt. This three-point articulation system lets you position a monitor, LED light, microphone, or small camera at virtually any angle relative to your mounting point. An enlarged ergonomic lever controls the central joint, and the upgraded locking structure incorporates thrust ball bearings for smooth rotation and firm, one-second lockdown.

Build quality is a highlight — the arm and clamp are constructed from aluminum alloy and stainless steel, giving the assembly a robust feel while keeping total weight at just 12.9 oz (366 g). The 1/4-inch mounting screws feature spring-loaded anti-twist locating pins that follow the ARRI standard, preventing mounted accessories from spinning or shifting during use. Non-slip silicone pads on the clamp jaws protect surfaces and improve grip. The super clamp itself accommodates rods, poles, table edges, and handlebars, and includes both 1/4-inch and 3/8-inch threaded holes for direct attachment to cages, handles, or tripod hardware. With a maximum load capacity of 4.4 lb (2 kg), the NW-MAGICARM is well-suited for compact field monitors, small LED panels, action cameras, and similar accessories that need secure, adjustable positioning on set or on location.

Key Features

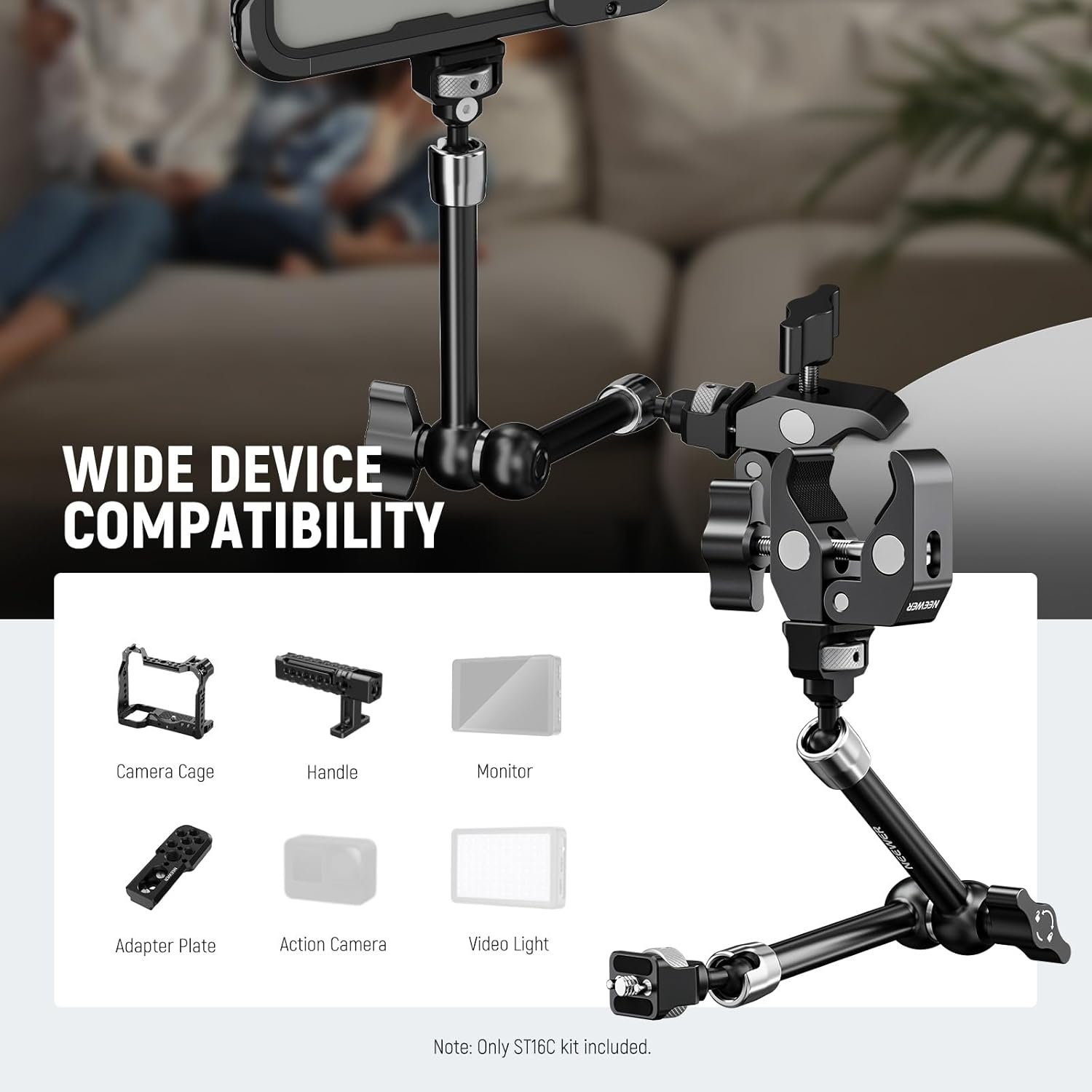

【Articulating Magic Arm with Super Clamp】 With 2 arms connected by a 360° friction gear joint, the 11"/28cm rosette magic arm clamp mount positions a DSLR mirrorless camera, LED video light panel, microphone, monitor (compatible with Atomos Ninja V), phone holder for iPhone 16 15 Pro Max Plus Samsung, action camera mount adapter accessories compatible with GoPro Hero 13 12 11 10 9 8 7 Black go pro Max, compatible with Insta360 x4 x3 insta 360 ace pro compatible with DJI Osmo Action 5 Pro 4 3

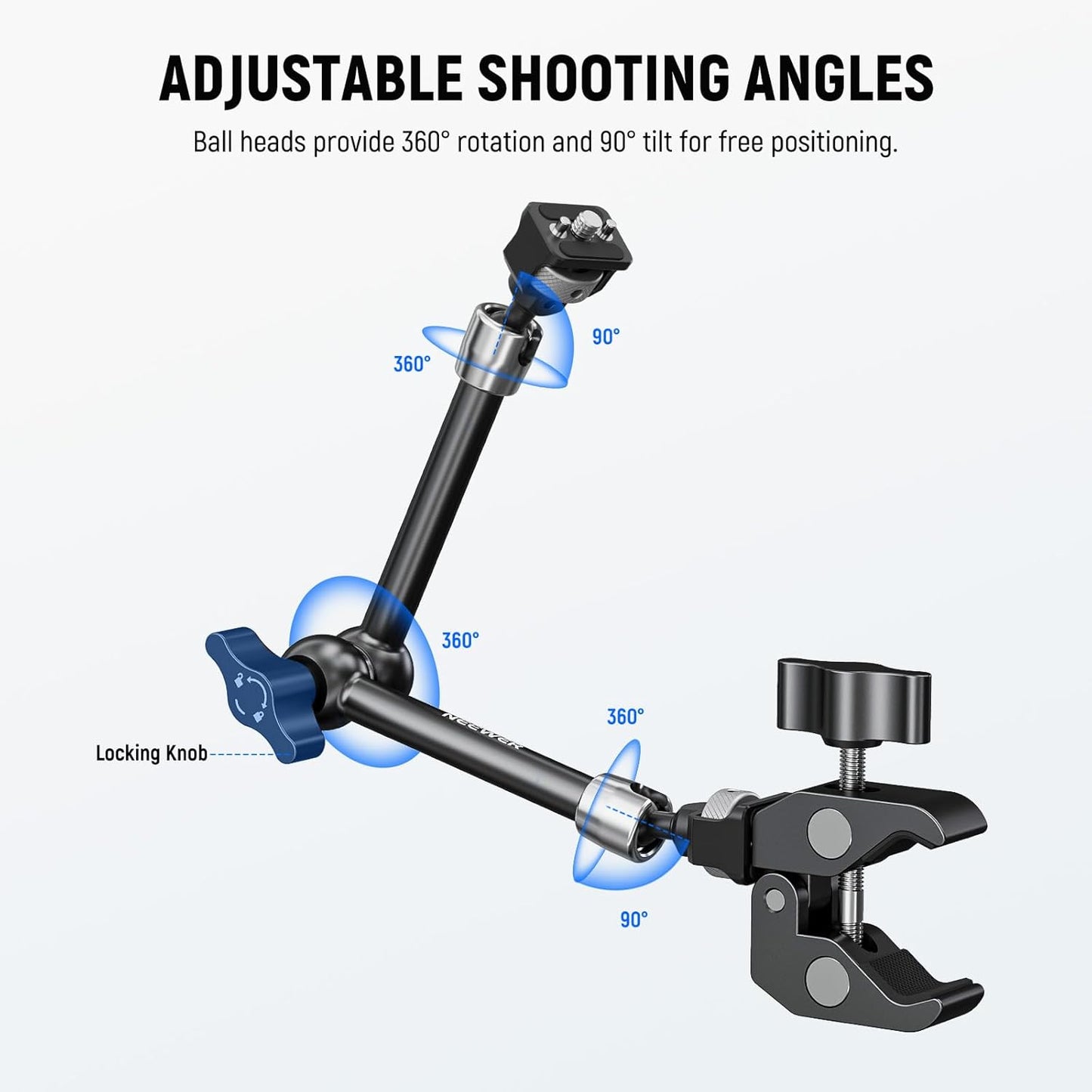

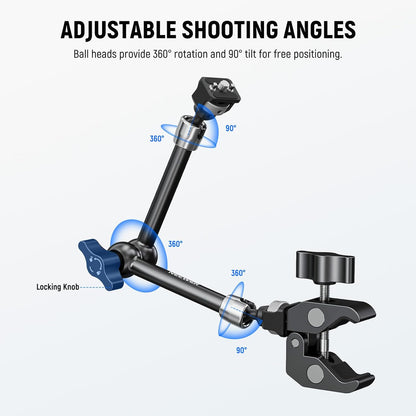

【360° Dual Ball Head for Versatile Angles】 Each joint arm features a ball head with a U notch for 360° rotation and 90° tilt adjustments, and can be secured at any desired angle using the enlarged lever, ensuring stability and precise positioning

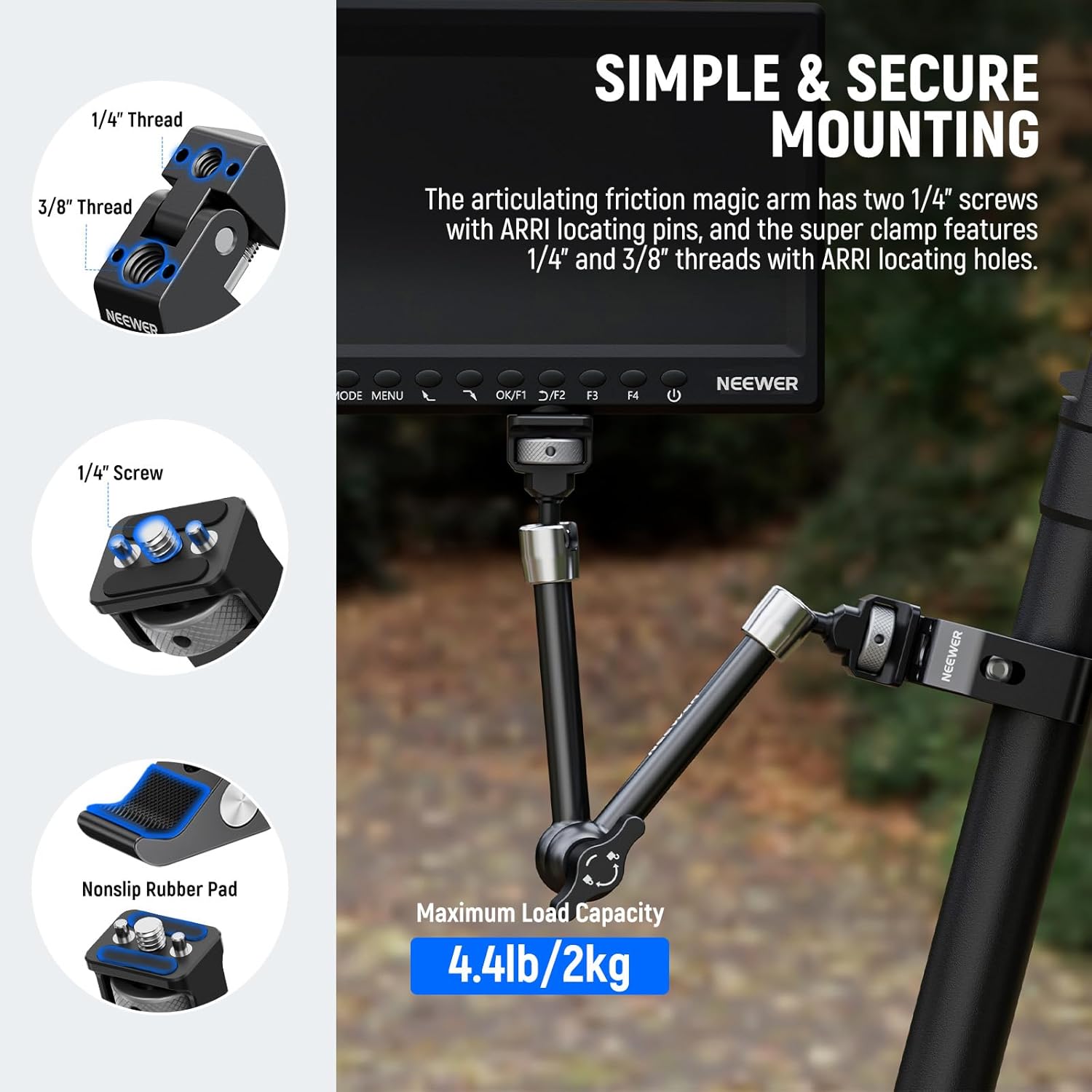

【Secure Mounting with Locating Pins for ARRI Standard】 The 1/4" mounting screws with bouncy anti twist locating pins for ARRI standard and nonslip silicone pads prevent wobbling or vibration while in use. The thumbscrews can be tightened by hand for tool free setup. The super clamp mounts on rods, poles, tables, desks, bike/motorcycle handlebars, or connects to cages, handles, or tripods via 1/4" and 3/8" locating holes for ARRI standard. Max Load 4.4lb/2kg

【Improved Locking System & Smooth Adjustment】 The upgraded locking structure at the gear joint is built with thrust ball bearings for smooth and efficient rotation. The enlarged ergonomic lever ensures precise torque, enabling rapid locking of arms within one second, saving both time and effort

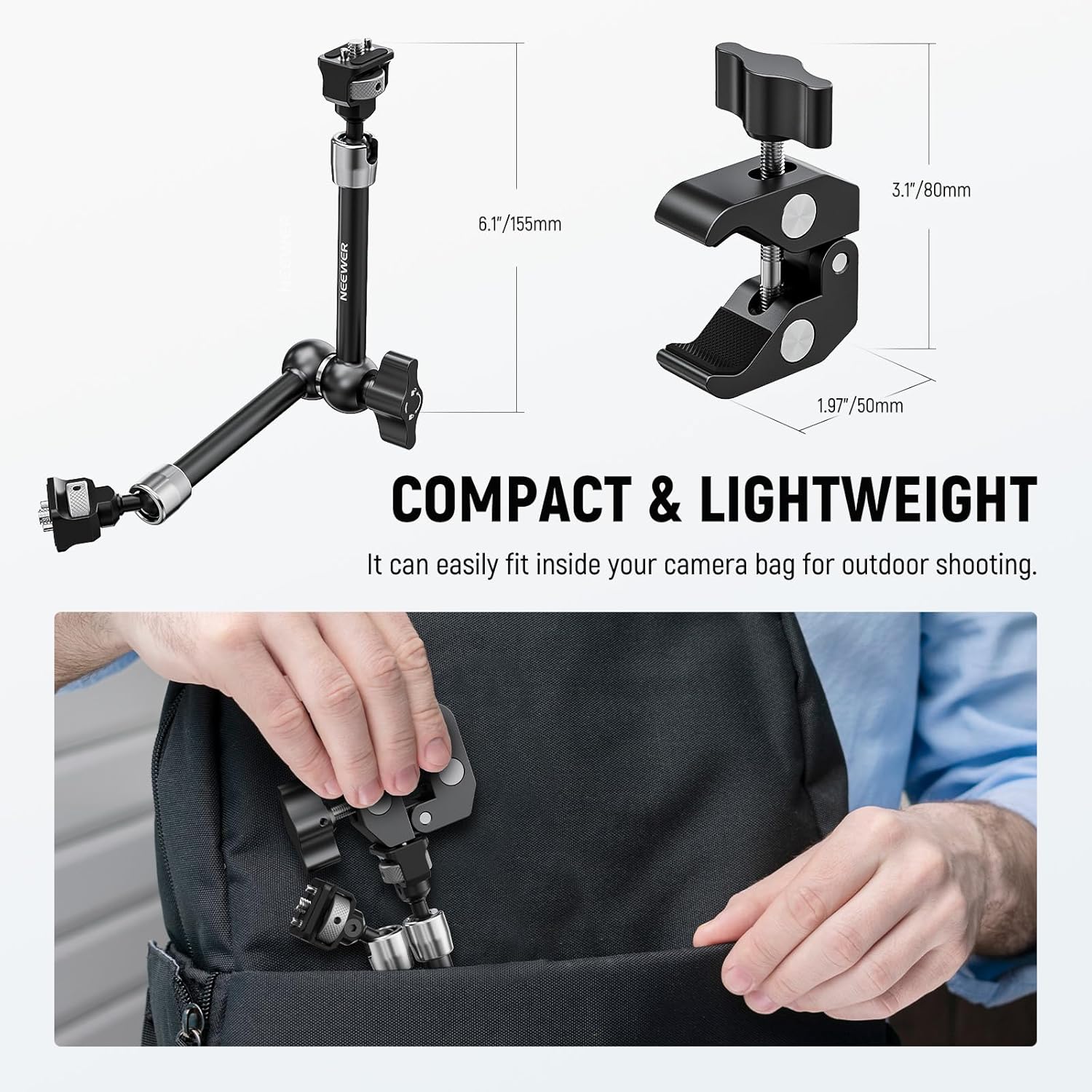

【Rugged Metal Construction】 Crafted from aluminum alloy and stainless steel, this heavy duty adjustable magic arm and the super clamp are robust enough to support and secure your camera monitor equipment, and tough enough to withstand frequent use and daily scratches, while retaining a total weight of 12.9oz/366g for outdoor videography or photography on the go

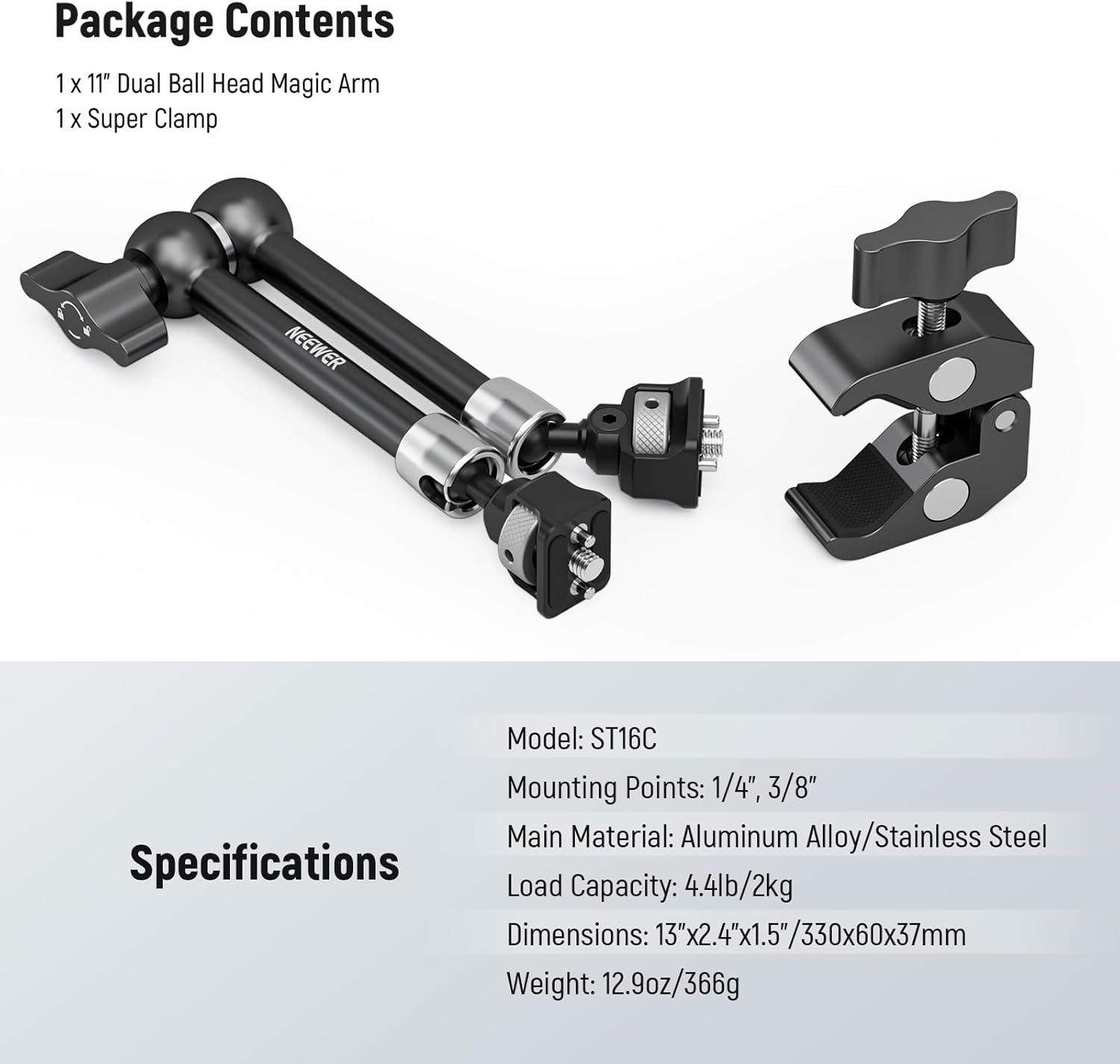

Specifications

Brand

Neewer

Model

NW-MAGICARM

Arm Length

11" (28 cm)

Rotation

360° dual ball heads

Tilt

90°

Mounting Screws

1/4" with ARRI-standard anti-twist locating pins

Clamp Thread Holes

1/4" and 3/8" (ARRI standard)

Maximum Load

4.4 lb (2 kg)

Material

Aluminum alloy and stainless steel

Weight

12.9 oz (366 g)

Pros & Cons

👍 Pros

360-degree dual ball heads with 90-degree tilt provide highly flexible positioning at both ends of the arm.
Thrust ball bearing locking mechanism allows smooth rotation and rapid one-second lockdown with the single lever.
ARRI-standard locating pins prevent mounted accessories from twisting or rotating under vibration.
All-metal aluminum alloy and stainless steel construction offers durability while keeping weight under 13 oz.
Super clamp included in the box, eliminating the need to purchase a separate mounting solution.

👎 Cons

4.4 lb maximum load capacity rules out heavier cameras or larger field monitors.
At 11 inches, the arm may not provide enough reach for some overhead or boom-style mounting setups.
The single-lever locking design means all joints release simultaneously, requiring you to support mounted gear while repositioning.
Clamp jaw opening may not fit very thick rods, pipes, or wide table edges without checking dimensions first.

Frequently Asked Questions

What is the maximum weight the Neewer NW-MAGICARM can support?

The magic arm and clamp are rated for a maximum load of 4.4 lb (2 kg), suitable for small monitors, LED panels, mirrorless cameras, and similar lightweight accessories.

What mounting thread sizes does this magic arm use?

It uses 1/4-inch mounting screws with ARRI-standard anti-twist locating pins, and the super clamp has both 1/4-inch and 3/8-inch locating holes for ARRI standard connections.

Can I adjust the arm without any tools?

Yes. The enlarged ergonomic lever locks and unlocks the friction gear joint by hand, and the thumbscrews on the mounting points are also designed for tool-free tightening.

What can the super clamp attach to?

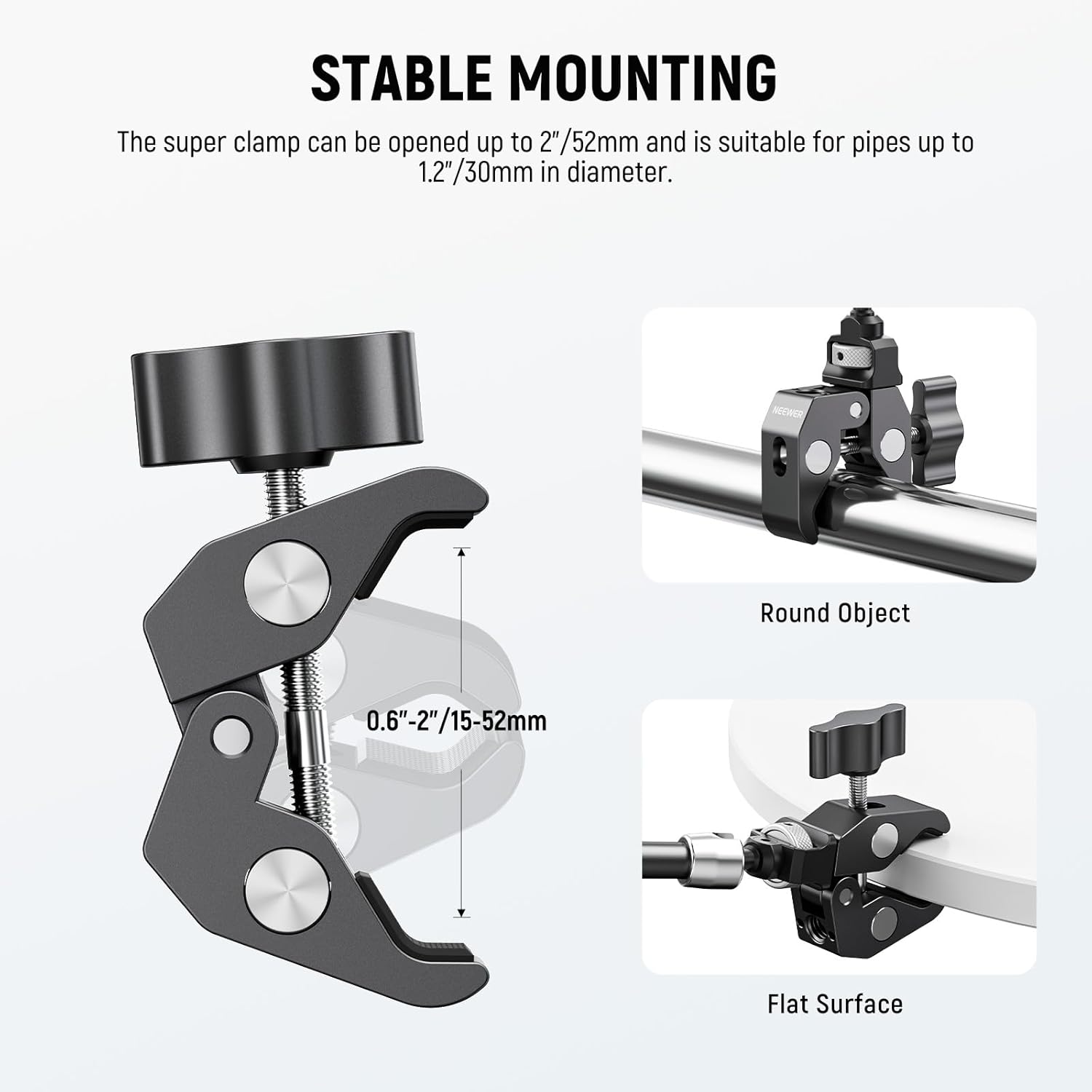

The included super clamp grips rods, poles, table edges, desk edges, and handlebars. It also connects to camera cages, handles, and tripods via its 1/4-inch and 3/8-inch threaded holes.

How much does the full arm and clamp assembly weigh?

The complete assembly weighs 12.9 oz (366 g), making it light enough for portable field setups.
