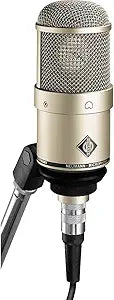

Neumann 8434 M147 Cardioid Tube Condenser Microphone
Condenser
Capture Pristine Audio with Legendary ClarityIntroducing the Neumann M147 Tube Condenser Microphone, a cardioid microphone that blends classic design with cutting-edge technology. Featuring the renowned K 47 dual diaphragm capsule and a transformerless output circuit, this microphone delivers exc...
$3,495.00*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Capture Pristine Audio with Legendary Clarity
Introducing the Neumann M147 Tube Condenser Microphone, a cardioid microphone that blends classic design with cutting-edge technology. Featuring the renowned K 47 dual diaphragm capsule and a transformerless output circuit, this microphone delivers exceptional sound quality with ultra-low self-noise, ideal for vocals and instruments.
- Acoustical Operating Principle: Pressure gradient transducer
- Directional Pattern: Cardioid
- Frequency Range: 20 Hz...20 kHz
- Sensitivity at 1 kHz into 1 kohm: 20 mV/Pa
- Rated Impedance: 50 ohms
- Rated Load Impedance: 1000 ohms
- Equivalent SPL CCIR 468-3: 24 dB
- Equivalent SPL DIN/IEC 651: 12 dB-A
- S/N Ratio CCIR 468-3: 70 dB
- S/N Ratio DIN/IEC 651: 82 dB
- Maximum SPL: 114 dB for THD <0.5 %; 134 dB for THD <5 %
- Maximum Output Voltage: 8 dBu
- Dyn. Range of the Mic. Amplifier: 102 dB for THD <0.5 % DIN/IEC 651: 122 dB for THD <5 %
- Supply Voltage: Power supply N 149 A
- Matching Connector: Microphone: DIN 8F Power Supply: XLR 3F
- Weight: 460 g
- Diameter: 57 mm
- Length: 142 mm
Key Features
Large-diaphragm Cardioid Tube Condenser Microphone
Specifications
Brand
Neumann
Model
M147
Microphone Type
Tube Condenser
Diaphragm Size
Large-diaphragm
Polar Pattern
Cardioid
Pros & Cons
👍 Pros
- Features a large-diaphragm design, typically associated with capturing rich and detailed audio.
- Utilizes tube condenser technology, known for imparting a warm and classic sonic character to recordings.
- Offers a cardioid polar pattern, which is effective for isolating a single sound source and reducing background noise.
- The M147 is a Neumann microphone, a brand highly respected in professional audio for its quality and performance.
- Suitable for a variety of studio applications where high-fidelity vocal or instrument capture is desired.
👎 Cons
- As a tube condenser microphone, it typically requires external phantom power and a dedicated power supply unit, increasing setup complexity.
- The large-diaphragm and tube design often make it more delicate and less suitable for rugged, on-the-go recording environments.
- Its cardioid-only polar pattern limits versatility compared to microphones offering multiple patterns.
- The high-end nature of a Neumann microphone often translates to a premium price point, which may not fit all budgets.
- Requires proper acoustic treatment in the recording environment to truly shine, due to its sensitive nature.
Frequently Asked Questions
What type of microphone is the Neumann M147?
The Neumann M147 is a large-diaphragm tube condenser microphone, known for its warm sound characteristics.
What is the polar pattern of the M147?
The Neumann M147 features a cardioid polar pattern, making it ideal for focusing on a single sound source and minimizing off-axis noise.
Is this microphone suitable for professional studio recording?
Yes, as a Neumann product, the M147 tube condenser microphone is designed for high-quality audio capture in professional studio environments.
Does this microphone require phantom power?
Typically, tube condenser microphones like the M147 require a dedicated power supply unit, which often includes the necessary powering for the tube circuitry.
What kind of sound can I expect from a tube condenser microphone like the M147?
Tube condenser microphones are generally known for delivering a rich, warm, and often "vintage" sound, adding character to recordings.
