Peavey 03617300 RX 22N Diaphragm Kit

Name: Peavey 03617300 RX 22N Diaphragm Kit
Brand: Peavey
SKU: 03617300

Replace your worn Peavey RX 22N driver diaphragm with this complete titanium dome kit for restored high-frequency clarity.

$79.99*

✓ In Stock on Amazon.com

View on Amazon

*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Peavey 03617300 RX 22N Diaphragm Kit is a factory-spec replacement designed to breathe new life into aging or blown high-frequency drivers. Built around a titanium dome with an edge-wound copper-clad aluminum voice coil mounted on a high-temperature composite bobbin, this diaphragm is engineered for the thermal and mechanical demands of professional audio. It fits the Peavey RX22N, RX22, and RXT+ series drivers, making it a versatile spare to keep on hand for live sound rigs and installed systems alike.

What sets this kit apart from a bare diaphragm is its completeness. Peavey includes Ferro Fluid, new mounting bolts, and step-by-step installation instructions, so technicians and experienced users can perform the swap without sourcing additional parts. The 8-ohm impedance matches the original driver spec, and the 2-inch voice coil ensures the replacement integrates seamlessly with the existing magnetic assembly. For anyone maintaining Peavey speaker cabinets or monitors, this kit offers a cost-effective alternative to replacing the entire driver.

Key Features

Replacement diaphragm kit for RX 22N high frequency driver.

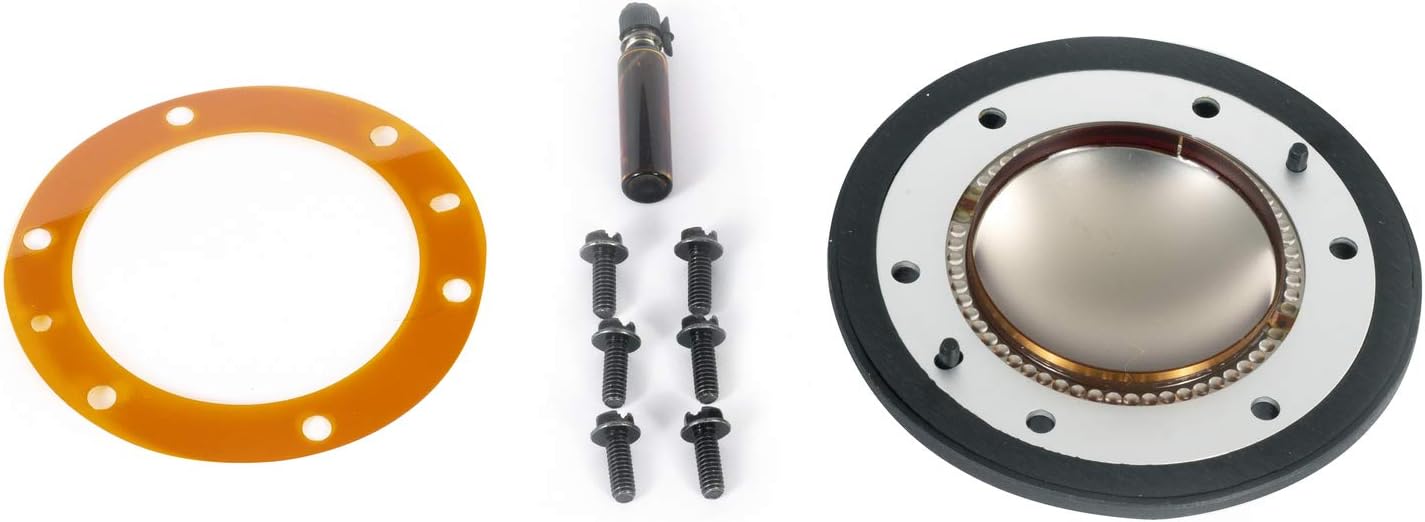

RX 22N diaphragm kit includes ferrofluid, 22N spacer gasket, 22N mounting screws, installation instructions, and material safety data sheet.

Specifications

Compatibility

Peavey RX22N, RX22, RXT+ series drivers

Voice Coil Diameter

2 inches (50mm)

Diaphragm Diameter (Original)

4.5 inches (115mm)

Diaphragm Diameter (New)

4 inches (102mm)

Impedance

8 ohm

Dome Material

Titanium

Voice Coil

Edge wound copper clad aluminum on high temp composite bobbin

Included Accessories

Installation instructions, Ferro Fluid, mounting bolts

Pros & Cons

👍 Pros

Includes Ferro Fluid and mounting bolts for a complete replacement
Titanium dome construction delivers durable high-frequency reproduction
Compatible across three Peavey driver series (RX22N, RX22, RXT+)
High-temperature composite bobbin supports extended use in demanding environments

👎 Cons

Limited to Peavey RX22N, RX22, and RXT+ drivers only
Installation requires disassembly of the existing driver
The updated 4-inch diaphragm diameter differs from the original 4.5-inch size, which may affect fitment in some enclosures

Frequently Asked Questions

Which drivers is this diaphragm kit compatible with?

It is compatible with Peavey RX22N, RX22, and RXT+ series high-frequency drivers.

What is the voice coil diameter of this replacement diaphragm?

The voice coil diameter is 2 inches (50mm).

Does this kit include everything needed for installation?

Yes, the kit includes the titanium diaphragm, installation instructions, Ferro Fluid, and new mounting bolts.

What is the impedance rating of this diaphragm?

The diaphragm is rated at 8 ohms.

What material is the diaphragm dome made from?

It features a titanium dome with an edge-wound copper-clad aluminum voice coil on a high-temperature composite bobbin.
