Pentax PF-80ED 80mm Spotting Scope with XF Zoom

The Pentax PF-80ED resolves fine detail in challenging light with ED glass clarity and nitrogen-sealed weatherproofing built for serious field use.

View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

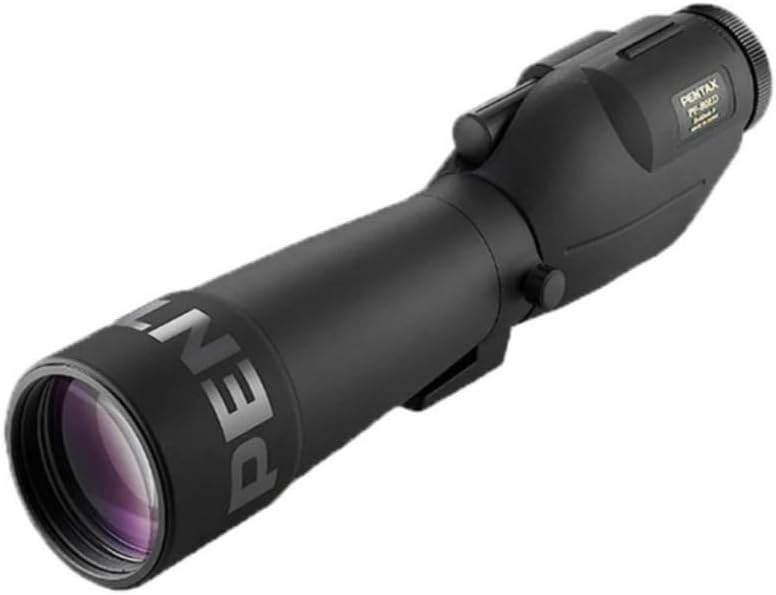

The Pentax PF-80ED is a high-performance spotting scope built around an 80mm extra-low dispersion objective lens coated with Pentax's SMC (Super-Multi-Coating) for maximum light transmission and contrast. The ED glass element is the defining optical choice here — it controls chromatic aberration (color fringing at high-contrast edges) far more effectively than standard crown-and-flint achromat designs, which means the scope maintains clean, color-accurate imagery as you climb toward 60x magnification. BAK4 Porro prisms deliver high light transmission and strong edge-to-edge sharpness across the field. The nitrogen-filled, O-ring-sealed body carries a JIS Class 6 waterproof rating, making it genuinely field-ready rather than merely splash-resistant.

This scope is built for the serious birder, naturalist, or long-range target shooter who works in variable conditions and demands optics that hold up over seasons of real use. The lightweight magnesium-alloy body keeps the package manageable for pack-in hikes or extended tripod sessions without the structural flex of plastic-bodied alternatives. The included XF Zoom Eyepiece spans 20–60x, covering tracking at the low end and fine-detail resolution at the high end — a practical single-eyepiece solution for most observation scenarios. The built-in lens shade serves double duty: it cuts peripheral glare in bright conditions and physically shields the front element from rain during active use. For photographers exploring digiscoping, Pentax's adapter ecosystem opens the door to camera attachment, though a solid tripod becomes non-negotiable at high magnification.

Key Features

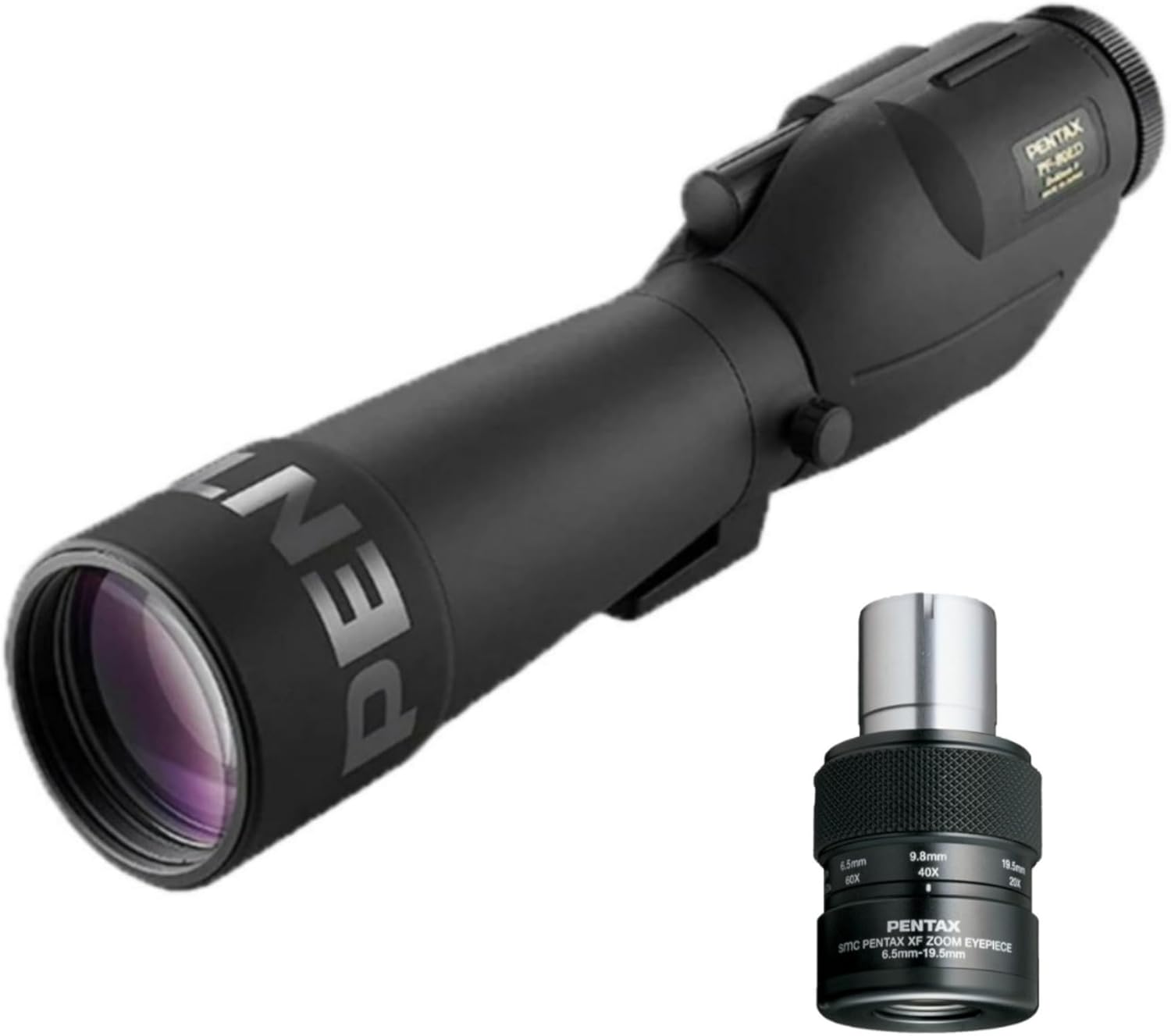

Bundle Includes: Pentax PF-80ED 80mm Spotting Scope, and Pentax XF Zoom Eyepiece for Pentax Spotting Scopes

Object Lens Diameter Large 80mm objective lenses for bright viewing under all light conditions.

Weatherproof: The receptacle has a special "O" ring assembly, which allows the body of the scope to be filled with nitrogen, making it fog proof and JIS Class 6 waterproof.

Features: A built-in lens shade cuts excessive light and helps to prevent rain and other weather elements from interfering with viewing.

Construction: Exceptionally lightweight magnesium-alloy body.

Specifications

Brand
Pentax
Model
PF-80ED
Objective Lens Diameter
80mm
Optical Design
Extra-low dispersion (ED) glass
Lens Coatings
SMC (Super-Multi-Coating)
Prism Type
BAK4 Porro
Included Eyepiece
Pentax XF Zoom (20–60x)
Waterproof Rating
JIS Class 6
Fog Protection
Nitrogen-filled body
Body Material
Magnesium alloy
Additional Features
Built-in lens shade

Pros & Cons

👍 Pros

  • Extra-low dispersion glass delivers visibly reduced chromatic aberration at high magnification, keeping edges clean even in high-contrast lighting.
  • JIS Class 6 waterproofing combined with nitrogen purging handles rain, condensation, and temperature transitions without fogging internally.
  • The 80mm objective gathers enough light for satisfying image brightness in low-light dawn and dusk observation sessions.
  • Magnesium-alloy body provides a stiff, durable chassis that resists flex and maintains optical alignment across sessions and transport.
  • The built-in lens shade reduces glare and physically protects the front element from direct rain during field use.

👎 Cons

  • At 60x magnification, atmospheric shimmer and heat haze will frequently limit usable resolution — the optics outperform typical atmospheric conditions on warm days.
  • The XF Zoom eyepiece, while versatile, does not match the edge sharpness or eye relief of a premium fixed-magnification eyepiece at the top end of the zoom range.
  • No integrated tripod foot or Arca-Swiss compatible base — a separate adapter is required for quick-release tripod mounting, adding to the kit cost.
  • Digiscoping performance requires additional Pentax adapter accessories, which are sold separately and add to the system price.
  • The straight-body design (rather than angled) can require more tripod height adjustment when sharing the scope between observers of different heights.

Frequently Asked Questions

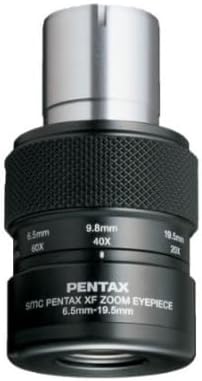

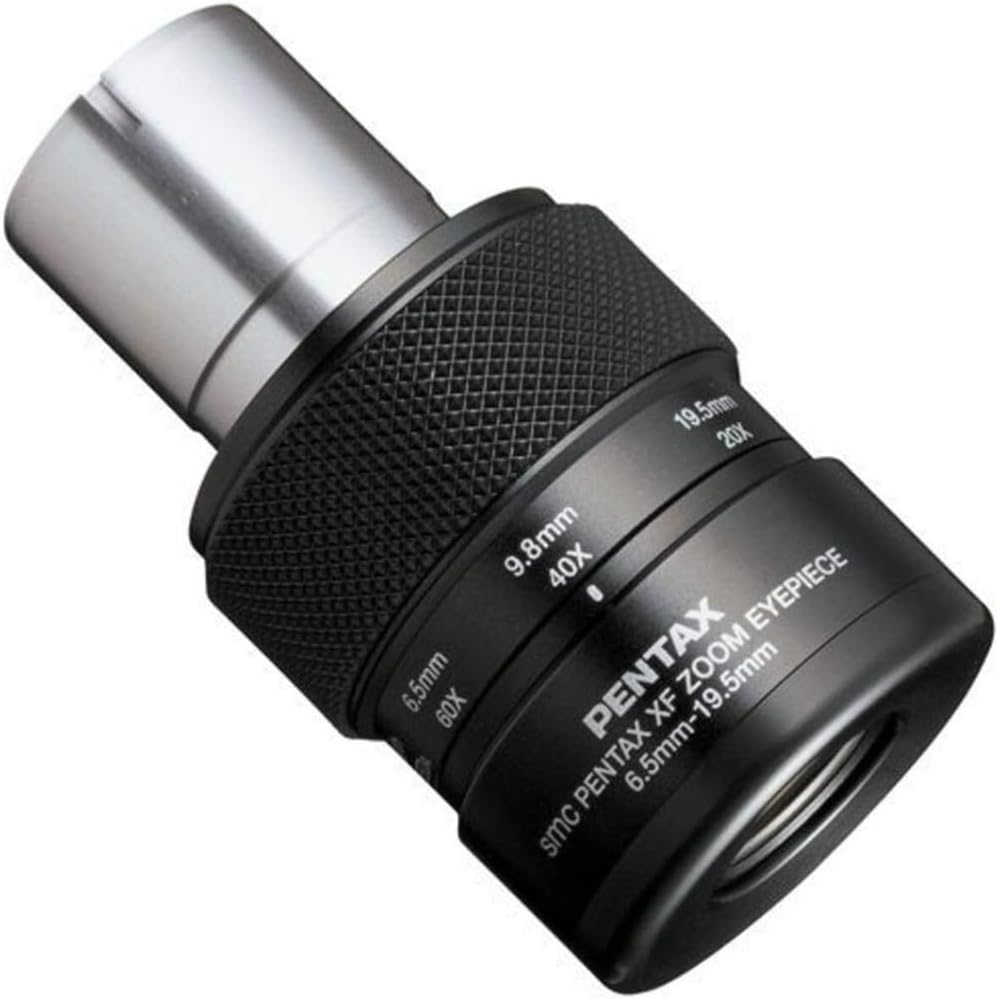

The Pentax XF Zoom Eyepiece delivers 20–60x magnification on the PF-80ED's 80mm objective. At 20x you get a wider field of view suitable for locating and tracking subjects; at 60x you're pulling in fine detail — individual feather structure on birds, target scoring at distance — though atmospheric shimmer and heat haze will limit how often 60x is truly useful in the field.
Extra-low dispersion glass bends different wavelengths of light more uniformly than standard optical glass, which means high-contrast edges — a bird against a bright sky, a target against white paper — render with clean, tight borders rather than color fringing. In practice, this means you can push to higher magnification before the image quality starts to degrade, which is the real payoff of ED glass in a spotting scope.
JIS Class 6 is equivalent to protection against powerful water jets from any direction — more than enough for rain, river spray, or fog. Combined with nitrogen purging (which also prevents internal fogging from temperature changes), the PF-80ED can handle genuinely demanding outdoor conditions: coastal birdwatching, alpine observation, and wet hunting seasons. It is not rated for submersion.
Yes — Pentax offers a T-mount adapter system for the PF-80 series that allows attachment of SLR or mirrorless cameras via their respective T-mount rings. The 80mm aperture supports this reasonably well, though digiscoping at the upper magnification range will amplify atmospheric distortion and camera shake, making a stable tripod essential.
Magnesium alloy is significantly lighter than polycarbonate at equivalent stiffness, and far more resistant to flex and impact. The PF-80ED body is rigid enough that eyepiece-to-objective alignment stays consistent even after repeated field transport. The trade-off is that magnesium is slightly denser than some polymer composites of equal wall thickness, but Pentax has optimized the wall geometry — the result is a scope that feels substantive without being heavy.
