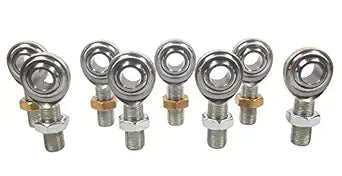

QSC 3/4 X 3/4-16 Economy 4-Link Rod End Kit
★★★★★
Precision and Durability: QSC Economy 4-Link Rod End Kit The QSC 3/4 X 3/4-16 Economy 4-Link Rod End Kit offers reliable performance for various applications. This kit includes both right-hand and left-hand rod ends, crafted with quality materials to ensure strength and longevity. Ideal for proje...
$85.40*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Precision and Durability: QSC Economy 4-Link Rod End Kit
The QSC 3/4 X 3/4-16 Economy 4-Link Rod End Kit offers reliable performance for various applications. This kit includes both right-hand and left-hand rod ends, crafted with quality materials to ensure strength and longevity. Ideal for projects requiring robust and dependable linkage solutions.
Kit Contents and Specifications:
- Rod Ends: 4 Right Hand & 4 Left Hand
- Body Material: C1045 Steel, Heat Treated
- Ball Material: 52100 Bearing Steel, Precision Ground, Heat Treated
- Bore: 0.750 inches
- Ball Width: 0.875 inches
- Thread: 3/4-16
- Load Rating: 18,810
- Jam Nut Thread: 3/4-16
- Jam Nut Width: 1-1/8 inches
- Jam Nut Height: 27/64 inches
Key Features
4 Right Hand & 4 Left Hand
Rod Ends Specs: Body: C1045 Steel Heat Treated, Ball 52100 Bearing Steel Precision Ground Heat Treated, Bore: .750, Ball Width: .875, Thread: 3/4-16, Load Rating: 18,810
Jam Nut Specs: Thread: 3/4-16, Width: 1-1/8, Height: 27/64
Specifications
Rod Ends Included
4 Right Hand, 4 Left Hand
Rod End Body Material
C1045 Steel Heat Treated
Rod End Ball Material
52100 Bearing Steel Precision Ground Heat Treated
Rod End Bore
.750
Rod End Ball Width
.875
Rod End Thread
3/4-16
Rod End Load Rating
18,810
Jam Nut Thread
3/4-16
Jam Nut Width
1-1/8
Jam Nut Height
27/64
Pros & Cons
👍 Pros
- Includes both right-hand and left-hand threaded rod ends, providing versatility for various assembly configurations.
- Rod ends are constructed with a C1045 heat-treated steel body for enhanced durability and strength.
- Features a 52100 bearing steel precision-ground and heat-treated ball, ensuring smooth operation and longevity.
- Offers a high load rating of 18,810, indicating robust performance under significant stress.
- Comes with jam nuts with a 3/4-16 thread, suitable for secure installation and adjustment.
👎 Cons
- The specific application or recommended usage for this kit is not detailed, which may require users to have prior knowledge.
- The kit only includes rod ends and jam nuts, meaning other components for a complete 4-link system would need to be sourced separately.
- The "Economy" designation might imply certain compromises in materials or precision compared to higher-end rod end kits.
- Assembly of a 4-link system with these components requires specific tools and expertise, which might be a barrier for novice users.
- Exact dimensions of the assembled rod end and jam nut combination are not provided, which could impact fitment planning.
Frequently Asked Questions
What materials are used for the rod end body and ball?
The rod end body is made from C1045 heat-treated steel, while the ball is crafted from 52100 bearing steel, precision-ground and heat-treated for durability.
Are both right-hand and left-hand threaded rod ends included in this kit?
Yes, the QSC Economy 4-Link Rod End Kit includes 4 right-hand threaded rod ends and 4 left-hand threaded rod ends, offering versatility for different configurations.
What is the load rating for these rod ends?
Each rod end in this kit has a substantial load rating of 18,810, indicating their capacity for robust performance in demanding applications.
What is the thread size of the included jam nuts?
The jam nuts provided in this kit have a thread size of 3/4-16, matching the rod end threads for secure fastening.
What is the bore size of the rod end?
The rod end features a bore size of .750, accommodating appropriate fasteners for a secure connection in your assembly.
