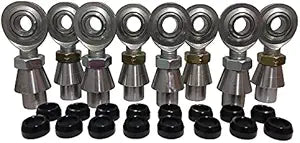

QSC 5/8 Economy 4-Link Rod End Kit Aluminum Spacers
Optimize Your Suspension System with the QSC 4-Link Rod End KitThe QSC 5/8 X 3/4-16 Economy 4-Link Rod End Kit provides the components you need to upgrade or build a robust 4-link suspension system. This kit includes rod ends, aluminum cone spacers, and steel bungs, ensuring durability and precis...
View price on Amazon
Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Optimize Your Suspension System with the QSC 4-Link Rod End Kit
The QSC 5/8 X 3/4-16 Economy 4-Link Rod End Kit provides the components you need to upgrade or build a robust 4-link suspension system. This kit includes rod ends, aluminum cone spacers, and steel bungs, ensuring durability and precise fitment. The black anodized cone spacers add a sleek look, while the heat-treated steel rod ends provide strength.
- Brand: QSC
- Thread Size: 5/8 X 3/4-16
- Rod Ends: 4 Right Hand, 4 Left Hand
- Rod End Material (Body): C1045 Steel, Heat Treated
- Rod End Material (Ball): 52100 Bearing Steel, Precision Ground Heat Treated
- Rod End Bore: .625 inches
- Rod End Ball Width: .750 inches
- Rod End Load Rating: 19,350 lbs
- Bungs: 1045 Mild Steel, 3/4-16 Thread
- Cone Spacers: 7075 Aluminum, Black Anodized
- Cone Spacer Bore: .625 inches
Key Features
4 Right Hand & 4 Left Hand with Bungs & 16 Cone Spacers
Rod Ends Specs: Body: C1045 Steel Heat Treated, Ball 52100 Bearing Steel Precision Ground Heat Treated, Bore: .625, Ball Width: .750, Thread: 3/4-16, Load Rating: 19,350
Jam Nut Specs: Thread: 3/4-16, Width: 1-1/8, Height: 27/64
Bung Specs: 1045 Mild Steel, Thread: 3/4-16, Fits tube Size: 1-1/2" OD X 1.000 ID X .250 Wall
Cone Spacer Specs: 7075 Aluminum, Black Anodized, Bore: .625, Width: .980, Height: .445, Deg. Angle: 23 Deg.
Specifications
Rod Ends Included
4 Right Hand & 4 Left Hand
Accessories Included
Bungs & 16 Cone Spacers
Rod End Body Material
C1045 Steel Heat Treated
Rod End Ball Material
52100 Bearing Steel Precision Ground Heat Treated
Rod End Bore
0.625 inches
Rod End Ball Width
0.750 inches
Rod End Thread
3/4-16
Rod End Load Rating
19,350
Jam Nut Thread
3/4-16
Jam Nut Width
1-1/8 inches
Jam Nut Height
27/64 inches
Bung Material
1045 Mild Steel
Bung Thread
3/4-16
Bung Fits Tube Size
1-1/2" OD X 1.000 ID X .250 Wall
Cone Spacer Material
7075 Aluminum, Black Anodized
Cone Spacer Bore
0.625 inches
Cone Spacer Width
0.980 inches
Cone Spacer Height
0.445 inches
Cone Spacer Angle
23 Degrees
Frequently Asked Questions
What materials are used for the rod ends in this kit?
The rod end body is made from C1045 Steel that is heat treated, and the ball is constructed from 52100 Bearing Steel that is precision ground and heat treated.
What is the load rating for these rod ends?
The rod ends in this QSC Economy 4-Link Rod End Kit have a load rating of 19,350.
What are the specifications for the bungs included in the kit?
The bungs are made of 1045 Mild Steel, have a 3/4-16 thread, and are designed to fit tube sizes of 1-1/2" OD X 1.000 ID X .250 Wall.
Are the cone spacers included in the kit made from aluminum?
Yes, the cone spacers are made from 7075 Aluminum and feature a black anodized finish.
What is the thread size for the rod ends and jam nuts?
Both the rod ends and the jam nuts in this kit feature a 3/4-16 thread.
