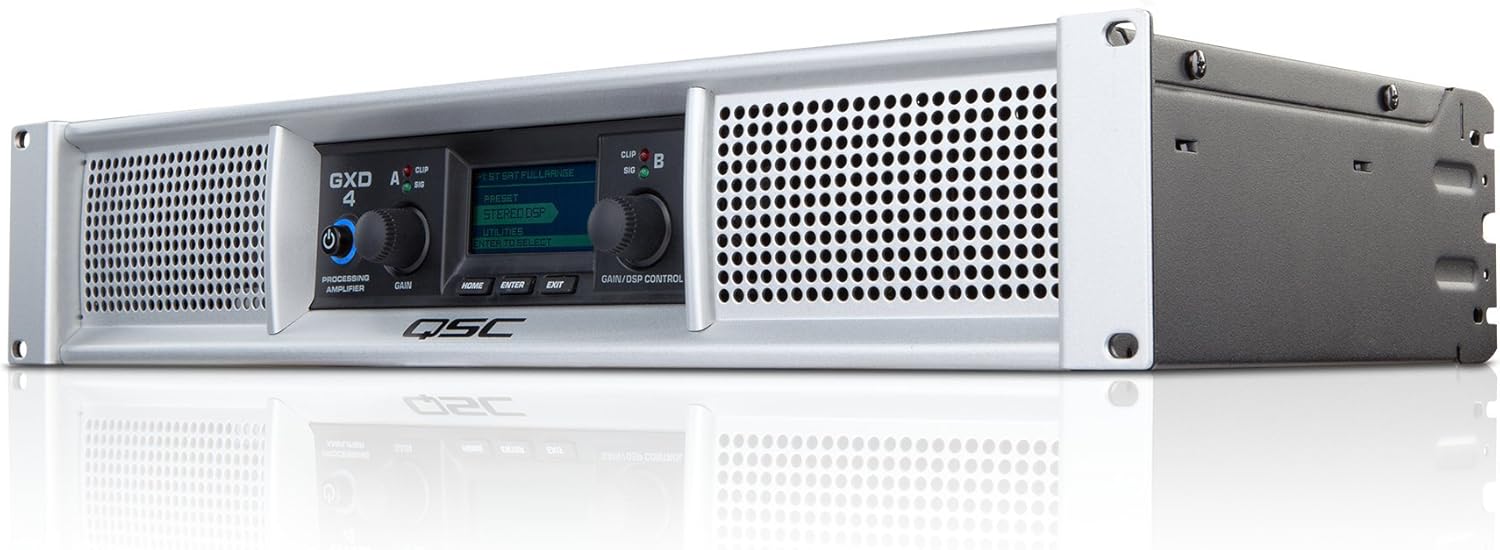

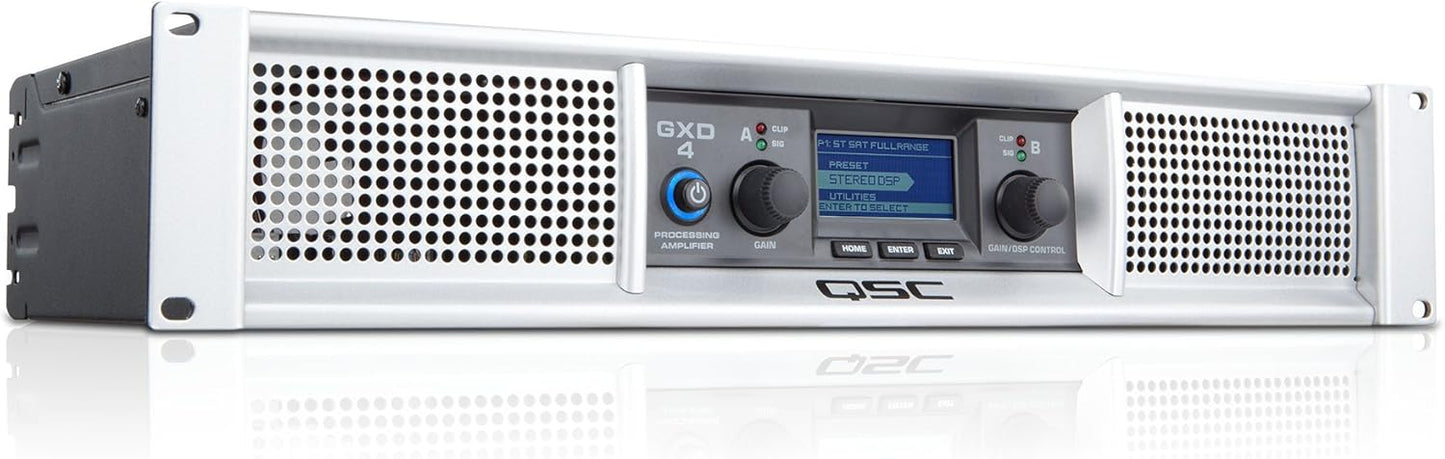

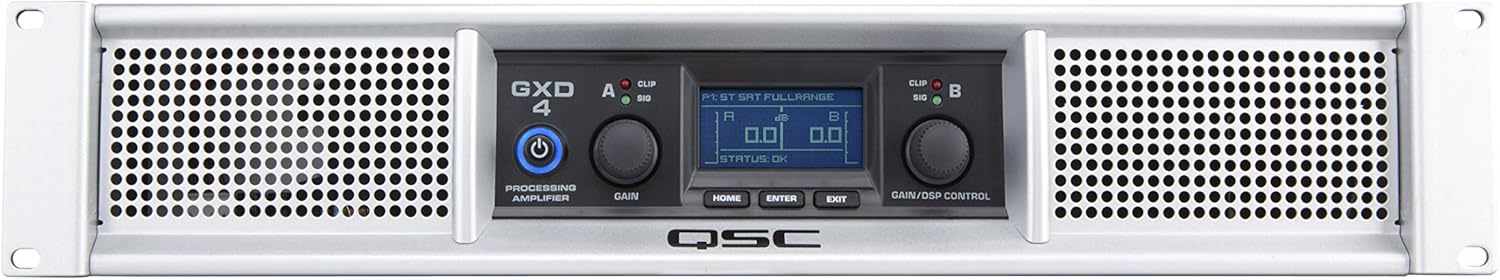

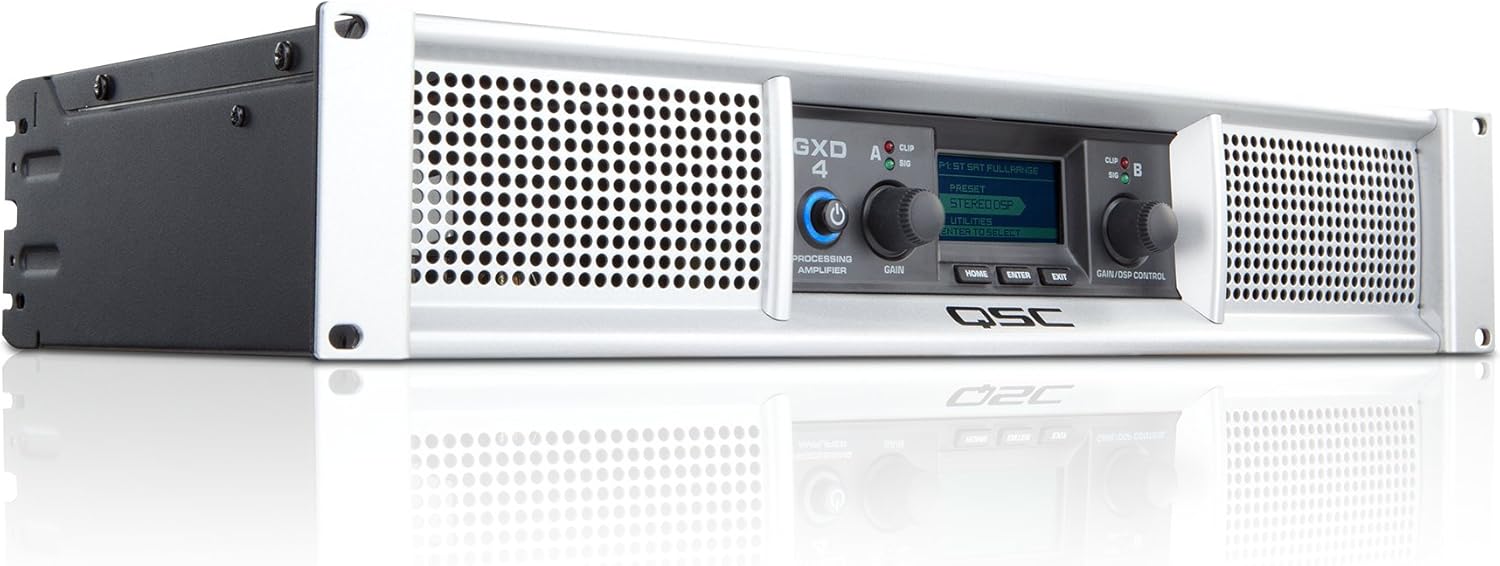

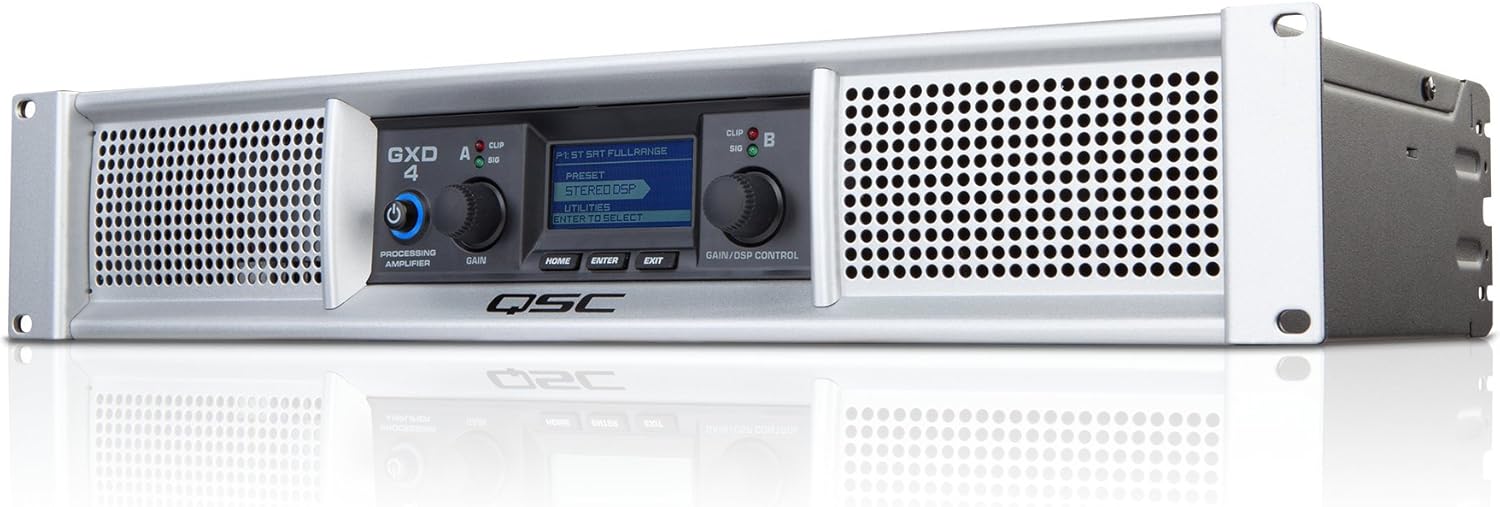

QSC GXD4 Class D Power Amplifier DSP

The QSC GXD4 is a Class D power amplifier with integrated DSP, rated to 1600 watts peak and designed for portable sound reinforcement and fixed installation environments where signal chain efficiency and rack space are real constraints. Class D's switching output stage means the GXD4 operates with substantially higher efficiency than Class AB equivalents — that efficiency translates directly into less heat, lower operating weight, and reduced current draw on venue power circuits. Sonically, the amplifier is neutral and transparent; there is no character being added to the signal, which is exactly what a power amplifier should be. The onboard DSP — covering high and low-pass filters, 4-band parametric EQ, limiting, and signal delay — handles the processing functions that would otherwise require a dedicated rack unit, making the GXD4 a logical choice for systems where every rack unit and pound of weight matters.

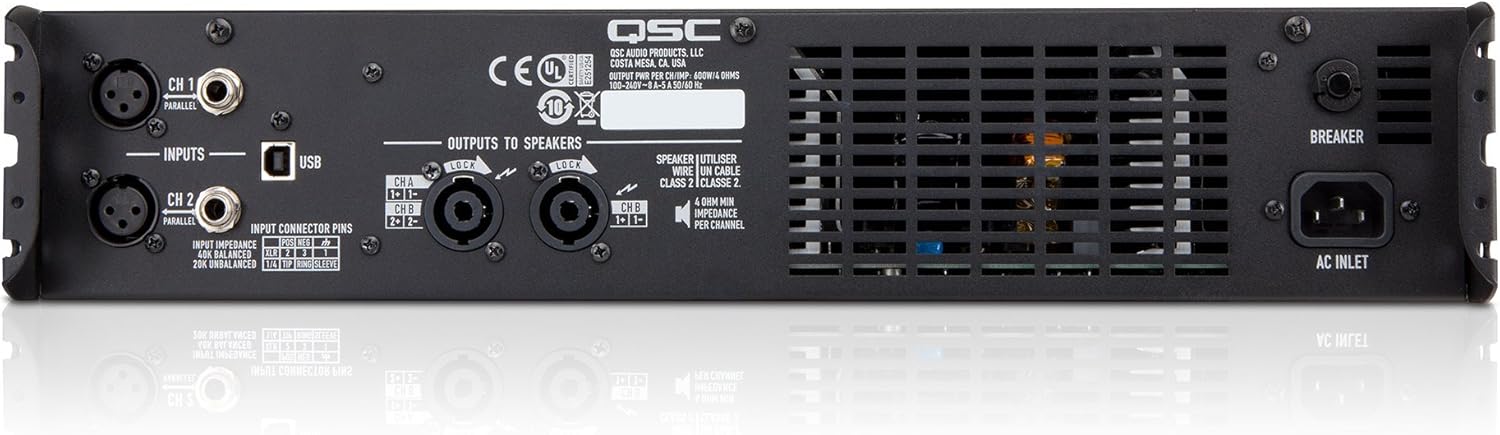

In practice, the GXD4 is built for engineers who need proven reliability across long touring runs and demanding install environments. The parallel XLR and 1/4" TRS inputs accommodate any professional console or processor output format while enabling convenient loop-through for multi-amplifier arrays. NL4 Speakon and binding post outputs cover touring and permanent install cabling conventions in a single rear panel. The onboard limiter is particularly useful in rental and touring contexts, protecting speaker investments from operator error or console overloads without requiring a separate compressor/limiter in the chain. Where the GXD4 reaches its ceiling is in complex multi-zone systems demanding granular DSP routing or networked remote monitoring — those applications call for higher-tier QSC platforms. For the core use case — a clean, efficient, processed stereo amplifier that gets signal to cabinets with authority and reliability — the GXD4 delivers without compromise.
