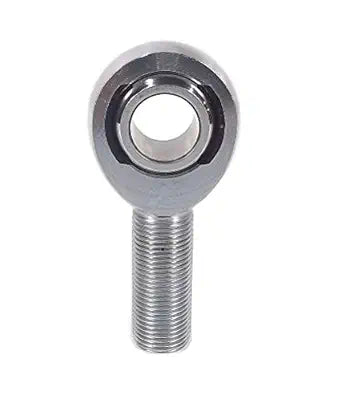

QSC XML-12 Heim Joint Chromoly Teflon Kevlar Rod End
★★★★★
Achieve Precision and DurabilityIntroducing the QS Components XML-12 Rod End, meticulously crafted for high-performance applications requiring strength and reliability. This 3/4 X 3/4-16 Chromoly Teflon Kevlar Male LH Rod End (Heim Joint) is engineered to withstand extreme conditions, providing e...
$21.00*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Achieve Precision and Durability
Introducing the QS Components XML-12 Rod End, meticulously crafted for high-performance applications requiring strength and reliability. This 3/4 X 3/4-16 Chromoly Teflon Kevlar Male LH Rod End (Heim Joint) is engineered to withstand extreme conditions, providing exceptional stability and longevity.
- Body: 4130 Chromoly Steel, Heat Treated, Race Injection Molded Teflon Kevlar
- Ball: 52100 Bearing Steel, Precision Ground, Heat Treated
- Bore: .750 inches
- Width: .875 inches
- Center Of Ball To Bottom Of Shank: 2.875 inches
- Thread Size: 3/4-16 LH
- Thread Length: 1.750 inches
- Ult. Static Radial Load: 28,081 lbs
Key Features
Body:4130 Chromoly Steel, Heat Treated, Race: Injection Molded Teflon Kevlar
Ball: 52100 Bearing Steel, Precision Ground, Heat Treated. Bore: .750, Width: .875
Center Of Ball To Bottom Of Shank: 2.875
Thread Size: 3/4-16 LH, Length: 1.750
Ult. Static Radial Load: 28,081
Specifications
Body Material
4130 Chromoly Steel, Heat Treated
Race Material
Injection Molded Teflon Kevlar
Ball Material
52100 Bearing Steel, Precision Ground, Heat Treated
Bore
.750
Width
.875
Center Of Ball To Bottom Of Shank
2.875
Thread Size
3/4-16 LH
Length
1.750
Ultimate Static Radial Load
28,081
SKU
66M-12411-01-00
Sale Unit
Each
Pros & Cons
👍 Pros
- Constructed with a 4130 Chromoly Steel body that is heat-treated for enhanced strength and durability.
- Features a precision-ground, heat-treated 52100 Bearing Steel ball for smooth operation and longevity.
- Utilizes an injection-molded Teflon Kevlar race, providing a low-friction and wear-resistant bearing surface.
- Offers a high ultimate static radial load capacity of 28,081, suitable for demanding stress conditions.
- Designed with a 3/4-16 LH thread size and a 1.750-inch length, facilitating specific mounting applications.
👎 Cons
- The single SKU suggests it is sold individually, requiring multiple purchases for applications needing more than one rod end.
- The specific thread size (3/4-16 LH) may not be universally compatible with all existing mounting hardware.
- The .750-inch bore and .875-inch width dimensions require precise fitment to mating components.
- The robust construction may lead to a higher cost compared to less heavy-duty rod end options.
- Lack of specific application details means buyers must verify fitment for their particular use case.
Frequently Asked Questions
What materials are used in the construction of this rod end?
The body is made from heat-treated 4130 Chromoly Steel, the race is injection-molded Teflon Kevlar, and the ball is precision-ground, heat-treated 52100 Bearing Steel.
What is the ultimate static radial load capacity of this product?
This rod end has an ultimate static radial load capacity of 28,081.
What are the bore and width dimensions of the ball?
The ball has a bore of .750 and a width of .875.
What is the thread size of this rod end?
The thread size is 3/4-16 LH (Left Hand).
Is this product sold individually or in a set?
This product is sold individually, as indicated by "Sold Each."
