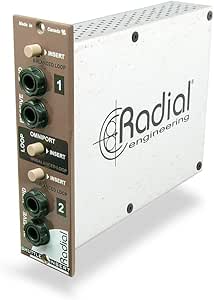

Radial Engineering R700 0134 00 Shuttle Patch Insert Panel — main product image
Radial Engineering

Radial Engineering R700 0134 00 Shuttle Patch Insert Panel

Seamless Integration for Your 500 Series RackThe Radial Shuttle is a versatile patch and insert panel designed to integrate effects and other modules into your Workhorse or 500 series rack. Streamline your workflow with flexible routing options and balanced connections. Specifications Inpu...

View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Seamless Integration for Your 500 Series Rack

The Radial Shuttle is a versatile patch and insert panel designed to integrate effects and other modules into your Workhorse or 500 series rack. Streamline your workflow with flexible routing options and balanced connections.

Specifications

  • Input: Workhorse or other 500 series rack
  • Insert Loops:
    • Loop 1: Fully balanced for +4dB studio gear
    • Loop 2: Unbalanced for -10dB operation
    • Loop 3: Accessed via Omniport (Workhorse equipped)
  • Insert On/Off: Individual selector for each loop
  • Application: Real-time playback and auditioning

Key Features

500-series Insert Loop

Add Impressive Routing to Your 500 Series Rack! 500 Series Other lunchbox500 seriess:500_series

500 Series Insert Loop Module

Specifications

Product Type
Insert Panel
Compatibility
500-series Rack
Function
500-series Insert Loop Module

Pros & Cons

👍 Pros

  • Designed specifically to provide a 500-series insert loop, enhancing rack functionality.
  • Enables impressive routing capabilities for a 500 Series Rack, making signal flow more versatile.
  • Functions as a dedicated 500 Series Insert Loop Module, ensuring seamless integration into compatible systems.
  • Optimized for audio professionals requiring flexible signal processing within their existing 500-series setup.
  • Offers a streamlined solution for incorporating external gear into the signal chain of 500-series modules.

👎 Cons

  • This product is exclusively designed for 500-series racks, meaning it is not compatible with other audio formats.
  • The Radial Engineering R700-0134-00 Shuttle Patch Insert Panel requires an existing 500-series lunchbox for operation.
  • It serves a very specific routing function, which might not be necessary for all audio setups.
  • The product's utility is limited to users who actively utilize insert loops in their audio workflow.
  • Details regarding the construction materials or specific connector types used are not provided in the feature list.

Frequently Asked Questions

The primary function of this product is to provide a 500-series insert loop, allowing for enhanced signal routing within a compatible rack.
No, it is specifically designed for 500-series racks and requires a 500-series lunchbox for operation.
It adds impressive routing capabilities to your 500 Series Rack, making it easier to integrate external processing into your audio signal chain.
This module is intended to be used as part of a 500-series system, functioning as an insert loop within that framework.
Audio professionals and engineers who need flexible signal processing and routing within their 500-series studio setups will find this module beneficial.
