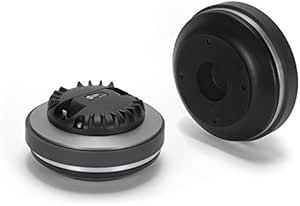

RCF CD850 High Performance 2" Bolt-On Driver
2 inch2.0 inch3.0 inch220W500Hz - 20kHz
High-Performance Audio ReproductionExperience powerful and clear audio with the RCF CD850 2.0" Bolt-On Driver, designed for professional sound reinforcement applications. Type: 2" BOLT ON DRIVER
$358.52*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jul 13, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
High-Performance Audio Reproduction
Experience powerful and clear audio with the RCF CD850 2.0" Bolt-On Driver, designed for professional sound reinforcement applications.
- Type: 2" BOLT ON DRIVER
Key Features
GENERAL || Brand : RCF || Model Number : CD8502.0 | CD850 2.0 | 15129044 || UPC : 881314449811 || The CD850 2.0 is a high performance 3.0-inch diaphragm compression driver with a 2 inch exit throat featuring several state of the art technologies. The diaphragm are precision formed from pure titanium. The suspension is based on a vented and damped design in order to provide low distortion. Voice coil assembly is designed using high temperature kapton former. ||
FEATURES || 3-inch Diaphragm, 2-inch Exit Throat / Pure Titanium Compression Driver || 220W continuous program power handling || Frequency range: 500Hz - 20kHz || 3-slot optimized geometry phase plug || Ceramic Magnet Assembly || Copper inductance ring for extended response || Vented, damped, low distortion suspension system || THIELE - SMALL PARAMETERS || Bl factor (Bl) (T x m) : 12.30 T x m ||
SPECIFICATIONS || Exit Throat Diameter : 2.0 inch / 51 mm || Related Impedance : 8 ohm || Program Power (watt) : 220 W || Power handling capacity : 110 W || Sensitivity : 109 dB || Frequency range : 500 - 20000 Hz || Suspension Design : Flat || Minimum Impedance (ohm) : 8.50 ohm || Voice Coil Diameter : 3.0 inch / 76 mm || Voice Coil Former Design : Straight - Kapton || Number of layers : 1 || Kind of layers : outside || Flux Density : 1.9 T || Phase Plug Design : 3 slot ||
MOUNTING INFORMATION || Overall diameter : 180 mm / 7.09 inches || Overall height : 88 mm / 3.46 inches || Mounting : 4 x 6 mm threaded holes at 90° || SIZE || Weight : 5.72 kg / 12.61 lbs ||
SHIPPING INFORMATION || Package Height : 114 mm / 4.49 inches || Package Width : 203 mm / 7.99 inches || Package Depth : 205 mm / 8.07 inches || Package Weight : 5.97 kg / 13.16 lbs ||
Specifications
Brand
RCF
Model Number
CD850 2.0
Exit Throat Diameter
2.0 inch / 51 mm
Diaphragm Size
3-inch
Diaphragm Material
Pure Titanium
Related Impedance
8 ohm
Program Power
220 W
Power Handling Capacity
110 W
Sensitivity
109 dB
Frequency Range
500 - 20000 Hz
Voice Coil Diameter
3.0 inch / 76 mm
Flux Density
1.9 T
Weight
5.72 kg / 12.61 lbs
Pros & Cons
👍 Pros
- Features a 3-inch pure titanium compression diaphragm, ensuring precise and detailed high-frequency reproduction with low distortion.
- Offers a robust 220W continuous program power handling, allowing for high output levels without compromising integrity.
- Provides a wide frequency range of 500Hz - 20kHz, capturing a broad spectrum of critical mid-range and treble frequencies.
- Incorporates a 3-slot optimized geometry phase plug, which contributes to a coherent wave-front and improved clarity.
- Equipped with a ceramic magnet assembly and a copper inductance ring for extended response and controlled voice coil behavior.
👎 Cons
- Requires a 2-inch exit throat for mounting, which means it may not be compatible with all horn types or system configurations.
- The 500Hz minimum frequency might necessitate careful crossover design to integrate smoothly with woofers without gap or overlap.
- Weighing 5.72 kg (12.61 lbs), this driver is relatively heavy, which could add significant weight to portable sound systems or line arrays.
- Specific impedance is 8 ohm, which must be matched with amplifier and crossover output for optimal performance.
- The bolt-on mounting mechanism is secure but may require more effort or specific tools for installation compared to screw-on types.
Frequently Asked Questions
What is the power handling capacity of the RCF CD850 driver?
The RCF CD850 2.0 driver has a continuous program power handling of 220W and a power handling capacity of 110W, allowing for robust performance.
What is the frequency range covered by this compression driver?
This compression driver covers a frequency range from 500Hz to 20kHz, making it suitable for high-frequency reproduction in a sound system.
What is the exit throat diameter of the CD850 driver?
The CD850 features a 2.0-inch (51 mm) exit throat diameter, which is important for matching with compatible horns.
What material is the diaphragm made of in the RCF CD850?
The diaphragm is precision formed from pure titanium, which contributes to its high performance and low distortion characteristics.
What impedance does the RCF CD850 operate at?
The RCF CD850 has a related impedance of 8 ohms and a minimum impedance of 8.50 ohms, which is crucial for amplifier matching.
How does the phase plug design contribute to its sound quality?
The driver utilizes a 3-slot optimized geometry phase plug, designed to provide a coherent wavefront and minimize phase distortion for improved clarity.
Is this driver heavy for integration into speaker cabinets?
The RCF CD850 driver weighs 5.72 kg (12.61 lbs), which should be considered when designing speaker cabinets or planning for portability.
