Roland BRIDGECSTX Dual Bus Gaming Mixer Interface
★★★★★
48VPhantom Power
Roland BRIDGE CAST X combines a dual-bus audio mixer, video capture, and assignable controls in one compact streaming command center.
$440.86*$499.99Save 11%
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features
Elevate your streaming content with BRIDGE CAST X, a compact, all-in-one desktop solution filled with hands-on controls and Roland’s acclaimed pro AV features.
Ideal for online gamers, podcasters, and vloggers.

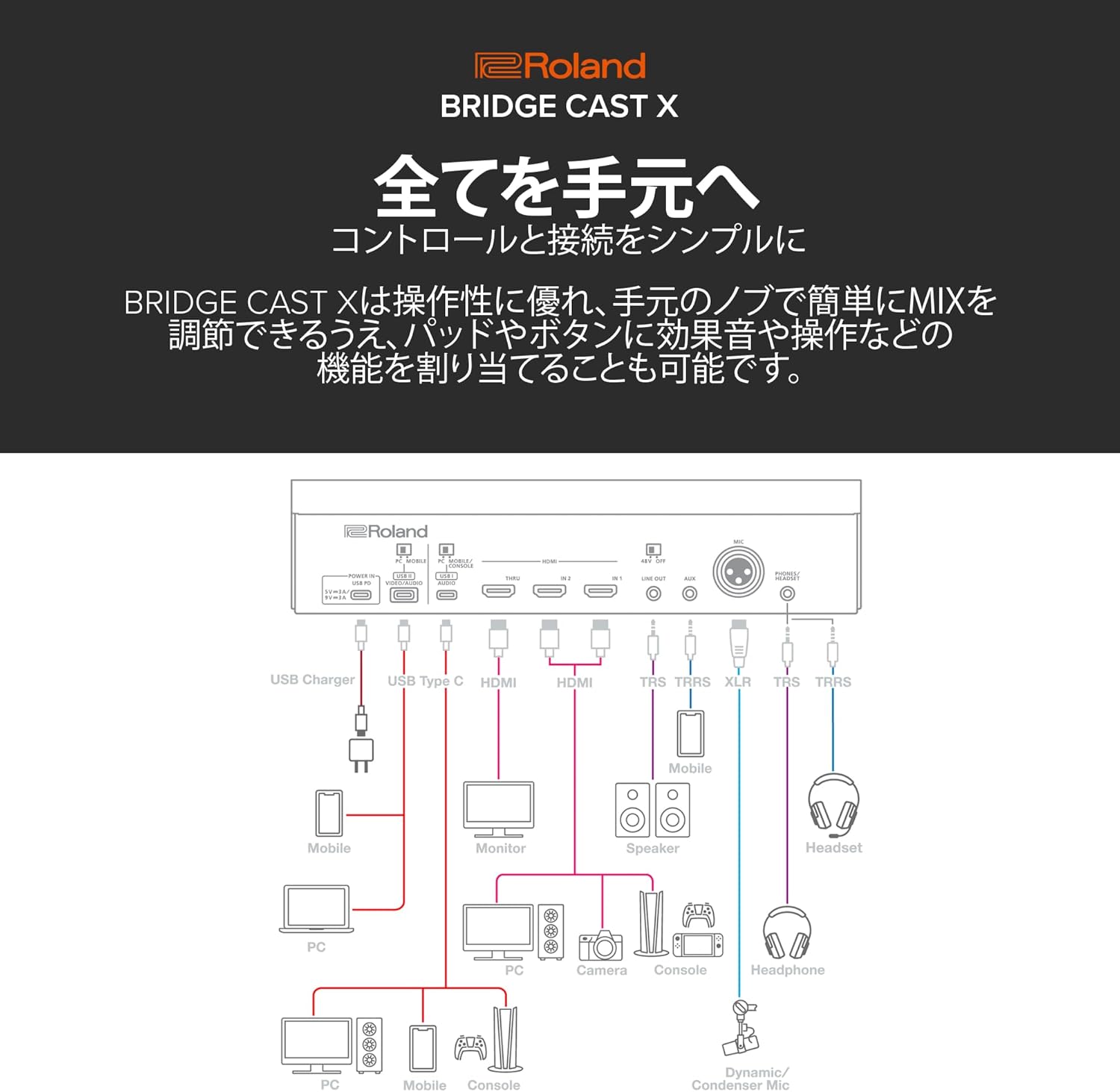

Say goodbye to messy add-ons and unify your workflow with multiple connections for gaming consoles, computers, cameras, and audio devices.
Then crush the competition with epic features like dual sound mixes, broadcast-quality XLR mic support, voice processing, royalty-free music and sound effects, assignable control pads, and so much more.

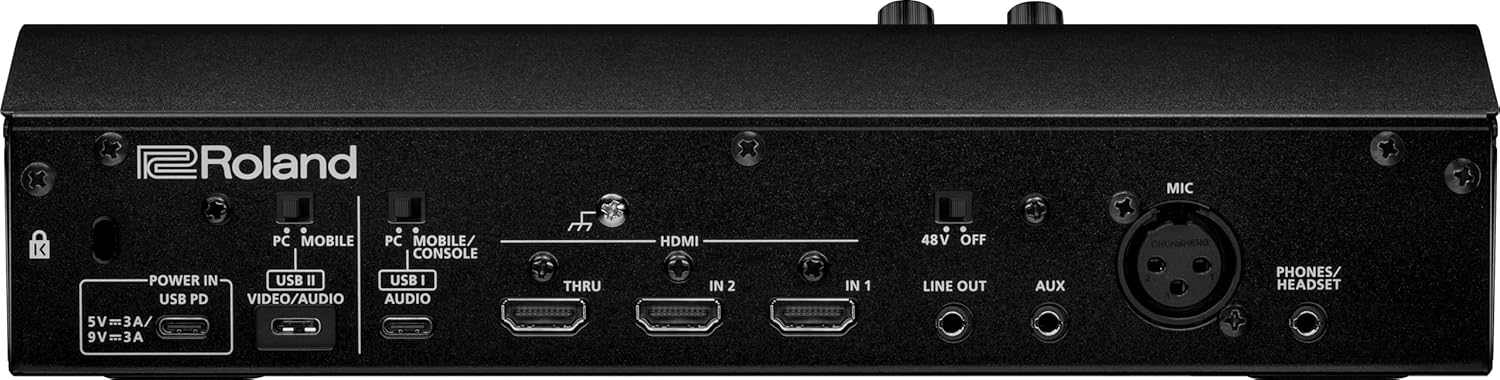

Two USB-C ports for computers and mobile devices.
Two HDMI inputs for gaming consoles, cameras, and more.
HDMI Thru for connecting to an external video monitor.
Powerful 32-bit hardware DSP allows you to dedicate all your sources to gaming and streaming.
Create independent mixes for you and the online audience with dual audio busses.
High-quality XLR microphone preamp with phantom power for broadcast-grade mics.
Specifications
Brand
Roland
Model
BRIDGE CAST X
Type
Dual-Bus Audio/Video Streaming Mixer
Audio Channels
4
DSP
32-Bit Hardware DSP
HDMI Ports
2 Inputs, 1 Thru
Microphone Input
XLR with 48V Phantom Power
Aux Input
3.5mm TRRS Stereo
Headphone Output
3.5mm
Connectivity
USB-C (Windows and Mac)
Control Pad
6 Assignable Buttons
Bundled Software
Yes
Pros & Cons
👍 Pros
- Combines audio mixing, video capture, and stream control into a single desktop unit eliminating the need for multiple separate devices.
- 32-bit hardware DSP handles audio processing on-device reducing CPU load on your streaming computer.
- Dual HDMI inputs allow switching or combining two video sources without an additional capture card.
- Six assignable control buttons provide tactile one-press access to sound effects, mutes, and scene triggers during live broadcasts.
👎 Cons
- Compact form factor means small knobs and buttons that may feel crowded during fast-paced live adjustments.
- Only one XLR microphone input so multi-mic setups like two-person podcasts require an external mixer or splitter.
- Premium price point compared to buying a basic capture card and audio interface separately.
- 3.5mm headphone output may not drive high-impedance studio headphones at sufficient volume.
Frequently Asked Questions
How many HDMI inputs does the BRIDGE CAST X support?
It features two HDMI inputs plus an HDMI thru output, allowing you to capture from two video sources and pass one signal through to a monitor simultaneously.
Does it provide phantom power for condenser microphones?
Yes, the BRIDGE CAST X supplies 48V phantom power through its XLR microphone input, supporting condenser microphones directly without an external preamp.
What does the dual-bus audio system do?
The dual-bus system lets you create two independent audio mixes — for example, one mix for your live stream audience and a separate mix for your own headphone monitoring — giving you precise control over what each listener hears.
Is the BRIDGE CAST X compatible with both Mac and Windows?
Yes, it connects via USB-C and is compatible with both Windows and Mac computers.
What is the 6-button control pad used for?
The six assignable buttons can be configured to trigger sound effects, mute channels, switch scenes, or execute other custom actions during a live stream.
