Samson

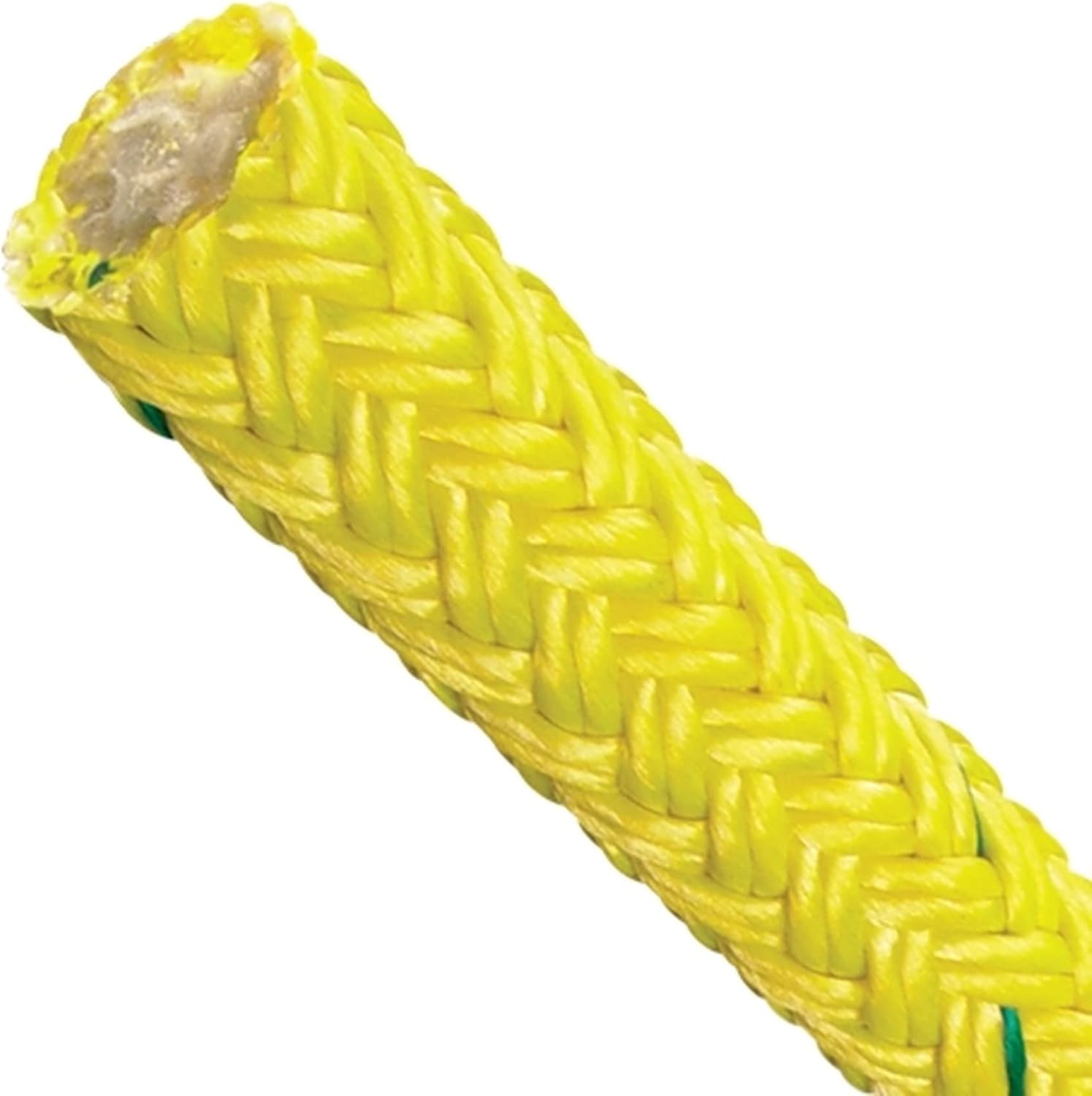

Samson 5/8" Stable Braid 200' Rigging Rope - Yellow

3.5 (4 reviews)
8 in300 lbs1630 lbs

High-strength 5/8-inch double-braid polyester rigging rope with Samthane coating, rated at 16,300 lbs tensile strength.

$320.99*
In Stock on Amazon.com
View on Amazon

*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Samson Stable Braid is a 5/8-inch double-braid rigging rope built for professional-grade applications where strength, low stretch, and durability are non-negotiable. Its 100% polyester construction delivers a tensile strength of 16,300 lbs while keeping elongation to just 1.1% at 10% of the working load limit. That low-stretch characteristic is critical in rigging work, where predictable load behavior prevents dangerous shock loading and gives the operator precise control when lowering heavy sections. The double-braid design — a braided core inside a braided cover — provides a balanced, round profile that runs smoothly through blocks and pulleys.

Samson applies their proprietary Samthane coating to the outer braid, creating a protective layer that resists abrasion from rough surfaces, rigging hardware, and repeated use over tree bark. Polyester as a fiber choice adds natural resistance to UV degradation and moisture absorption, so the rope maintains its rated strength even after extended outdoor exposure. The 480°F melting point provides a thermal safety margin well above what friction-generated heat produces in normal rigging operations. This 200-foot length in high-visibility yellow gives professionals a full working line ready to deploy without splicing, suitable for tree care, utility work, and general industrial rigging.

Key Features

Diameter - 5/8 in (16 mm)

Elongation - 1.1% at 10% WLL

Melting Point - Polyester melts @ 480°F

Tensile Strength - 16,300 lbs. (72.5 kN)

Working Load Limit - 1630 lbs. (7.25 kN)

Specifications

Diameter
5/8 inch (16 mm)
Length
200 feet
Material
Polyester (double-braid)
Color
Yellow
Tensile Strength
16,300 lbs (72.5 kN)
Working Load Limit
1,630 lbs (7.25 kN)
Elongation
1.1% at 10% WLL
Melting Point
480°F
Coating
Samthane (abrasion resistant)

Pros & Cons

👍 Pros

  • 16,300 lbs tensile strength provides a substantial safety margin for heavy rigging loads
  • Low 1.1% elongation delivers predictable, controlled load behavior with minimal bounce
  • Samthane coating significantly extends service life by resisting abrasion from bark and hardware
  • Double-braid polyester construction offers excellent UV and moisture resistance for outdoor use
  • 200-foot length is sufficient for most standard rigging setups without splicing

👎 Cons

  • 5/8-inch diameter and 200-foot length result in considerable weight and bulk to transport
  • Polyester construction is heavier than comparable high-performance fiber ropes like Dyneema blends
  • Yellow color may show dirt and sap staining over time in heavy field use
  • Not available in shorter lengths for buyers who do not need a full 200-foot section

Frequently Asked Questions

The working load limit is 1,630 lbs (7.25 kN), which is the maximum load recommended for regular use. The ultimate tensile strength is 16,300 lbs (72.5 kN).
Samthane is Samson's proprietary coating applied to the rope's outer braid to increase abrasion resistance, helping the rope last longer when running over rough bark, hardware, and rigging blocks.
The Stable Braid has an elongation of just 1.1% at 10% of the working load limit, making it a low-stretch rope that provides predictable and controlled load lowering.
It is a double-braid construction made entirely of polyester, which offers high strength, UV resistance, and a melting point of 480°F.
Yes, the Samson Stable Braid is one of the most widely used ropes in professional arborist rigging. Its low stretch, high strength, and abrasion-resistant coating make it well suited for lowering heavy limbs and trunk sections.
