Sirui

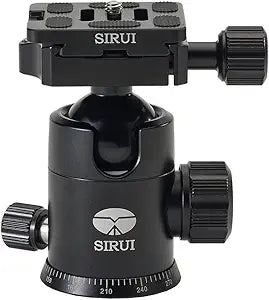

Sirui 103391 E-20 Aluminum Tripod Ball Head Arca-Swiss
★★★★★
The Sirui E-20's 12kg load capacity and Arca-Swiss clamp give compact system cameras a ball head that won't creep mid-composition, even with a heavy lens attached.
$77.77*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features
Country of Origin:China
Package length:14.0"
Package width:12.2"
Package height:7.4"
Specifications
Brand
Sirui
Model
E-20 (103391)
Ball Diameter
36mm
Weight
0.36 kg
Height
100mm
Load Capacity
12 kg
Mounting Thread
3/8"
Clamp Standard
Arca-Swiss compatible
Material
Aluminum
Included
TY-50E quick release plate, neoprene carrying bag
Features
360° panorama base, adjustable ball friction, portrait notch, safety lock
Pros & Cons
👍 Pros
- The 12kg load rating creates a large headroom buffer above realistic compact camera payloads, preventing ball friction from being stressed near its limit and eliminating the slow drift that under-rated ball heads exhibit under sustained lens weight.
- The Arca-Swiss compatible clamp accepts plates from any manufacturer adhering to the standard, preventing ecosystem lock-in and allowing use of existing plates already in a photographer's kit.
- The independent 360° panoramic base allows horizontal rotation without disturbing a locked ball position, enabling precise panoramic stitching sequences or subject tracking without re-adjusting tilt.
- The adjustable ball friction control lets you tune damping resistance for smooth incremental composition adjustments without fully releasing the ball lock — useful for portrait and event work requiring repeated small framing changes.
- At 0.36kg, the E-20 adds minimal weight to a travel kit relative to its 12kg capacity, making it the appropriate balance point for compact system camera users who don't want to carry a heavy head for occasional controlled shooting.
👎 Cons
- The 36mm ball diameter, while sufficient for compact system camera loads, does not provide the ultra-smooth micro-adjustment feel that 44mm+ balls on larger heads deliver — users migrating from larger ball heads will notice a difference in refinement.
- The included TY-50E quick-release plate measures only 50mm in length, which is too short for adequate grip on larger DSLR bodies where a longer plate would prevent rotation under load.
- At 100mm tall, the E-20 adds a full 100mm of height to the tripod-to-camera distance, which reduces effective low-angle shooting capability compared to lower-profile head designs.
- The neoprene carrying bag included in the kit provides minimal impact protection — photographers storing the E-20 in a packed camera bag without a padded case risk scuffing the anodized finish and damaging the clamp knob.
- No published drag range specification for the friction adjustment means there's no technical reference for how much resistance range the friction knob actually covers — you're calibrating by feel rather than a documented range.
Frequently Asked Questions
Is the Arca-Swiss clamp on the E-20 compatible with third-party plates from other manufacturers?
Yes. Arca-Swiss is an open standard — any plate conforming to the dovetail geometry will seat and lock in the E-20's clamp. This means plates from RRS, Kirk, Markins, and most third-party manufacturers will work. The included TY-50E plate (50mm x 39mm x 10mm) is the Sirui proprietary plate, but you are not locked into Sirui's ecosystem for future plate purchases.
What does the 12kg load capacity mean for typical camera and lens combinations?
12 kilograms of load capacity is substantial for a ball head in this size class. A mirrorless body with an 85mm f/1.8 lens might weigh 1.5kg; even a compact body with a 70-200mm zoom rarely exceeds 3kg. The E-20's capacity provides a large safety margin that prevents the friction lock from being stressed near its limit, which helps prevent slow creep under sustained load.
How does the adjustable ball friction on the E-20 affect handling for portrait work?
The adjustable ball friction knob lets you dial in resistance so the ball moves with controlled damping rather than snapping to a new position or drifting freely. For portrait work where you're making small incremental framing adjustments between shots, a medium friction setting allows smooth repositioning without releasing the main lock, keeping your subject in frame while you fine-tune composition.
Does the E-20 include a separate pan lock, or does the panoramic base function independently of the ball lock?
The 360° panoramic base on the E-20 operates as a separate rotation function from the main ball lock, allowing smooth horizontal panning without affecting the ball position. This means you can lock your vertical and tilt framing and then pan horizontally to follow a subject or build a panoramic sequence without disturbing the set ball angle.
What is the mounting thread size, and will the E-20 fit my tripod?
The E-20 uses a 3/8" mounting thread, which is the standard thread size for most full-size tripods. A 1/4"-20 to 3/8" bushing adapter (commonly included with tripods) allows mounting on 1/4" tripod platforms as well.
