Sirui AM-223+B-00K Carbon Fiber Travel Tripod Ballhead Mini

4.6 (570 reviews)
1.17lbs0.45lbs33lbs22.05lbs33.1lbs

At 1.17 lbs and 8.5" folded, the Sirui AM-223 carbon fiber mini tripod packs 33-lb load capacity into a kit that disappears in a carry-on.

$64.00*$71.25Save 10%
Check availability

*Price sourced from Amazon.com. Last updated:Jun 28, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

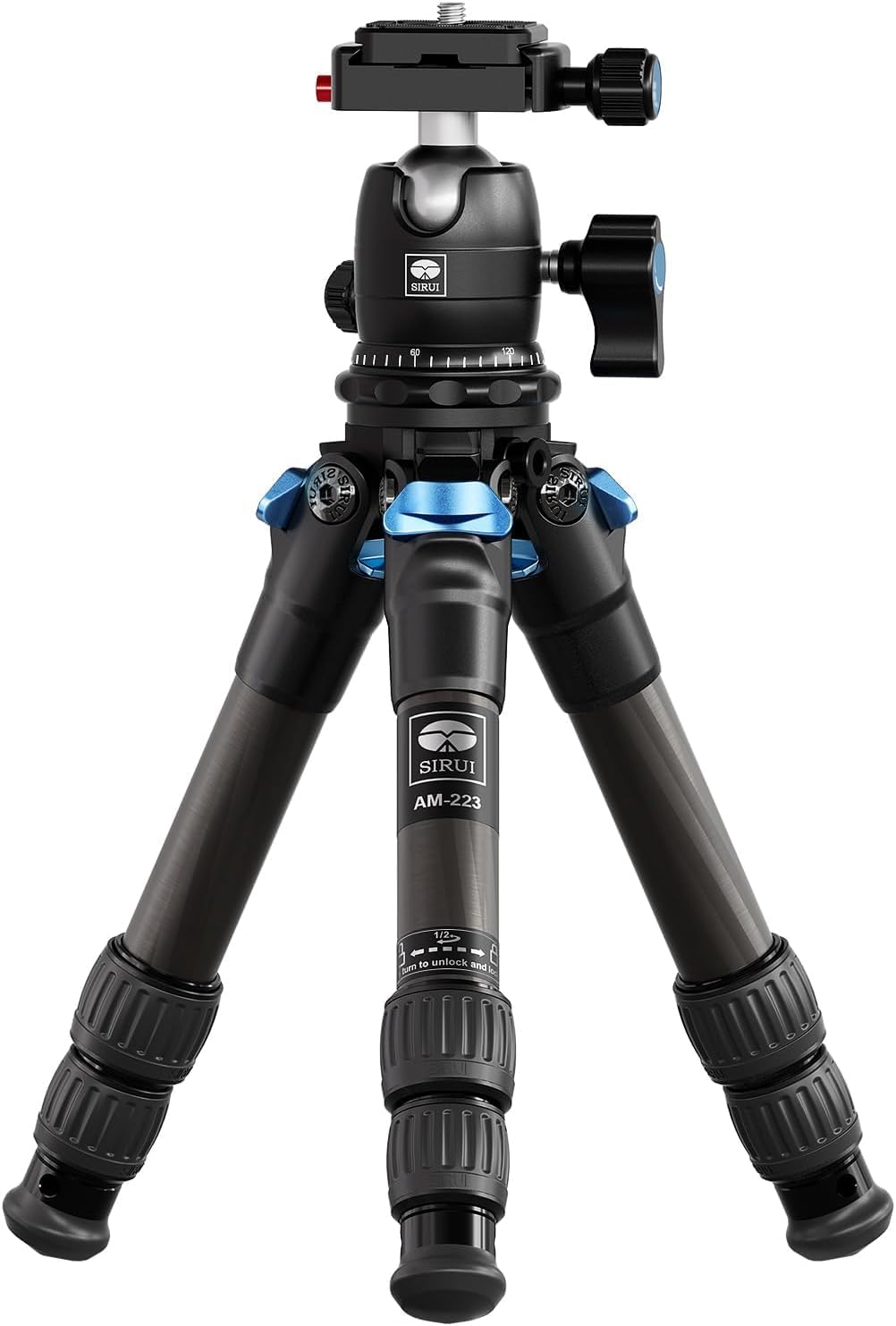

The Sirui AM-223 is a three-section carbon fiber mini tripod designed around a specific creative use case: a featherweight, go-anywhere support for mirrorless cameras in travel, tabletop, and low-angle photography. The carbon fiber leg construction produces a 1.17 lb tripod weight — meaningful when combined with the 0.45 lb B-00K ball head for a complete kit weight under 1.65 lbs. The 3-section legs with twist-lock collars collapse to 215mm (8.5"), a folded length that fits nearly any camera bag insert. Despite the compact form factor, the engineering doesn't compromise on load capacity: 15kg through the legs and 10kg through the ball head accommodates the heaviest mirrorless system + lens combinations with structural margin to spare. The three-position leg angle adjustment system provides genuinely different shooting geometries — from near-flat tabletop spread to standard tripod angles — expanding the creative range of a support that its size might otherwise suggest is single-purpose.

In practice, this tripod is built for photographers who need reliable support at ground level, on tabletops, or for camera-low landscape details, and who have committed to a travel or street kit where every gram is accounted for. The B-00K ball head is Arca-Swiss compatible, meaning photographers already invested in an Arca plate ecosystem can transition this head into their existing workflow without adapter plates. The retractable metal spikes add genuine field utility for outdoor location work where rubber feet would shift on soft ground. Where the AM-223 reveals its design boundaries is at height: 13.8" is the ceiling, and photographers who need eye-level or waist-level framing will need a separate support. For its intended domain — compact, low-angle, travel-first still photography — it delivers a level of build confidence and load-bearing integrity that justifies its position above entry-level aluminum competitors.

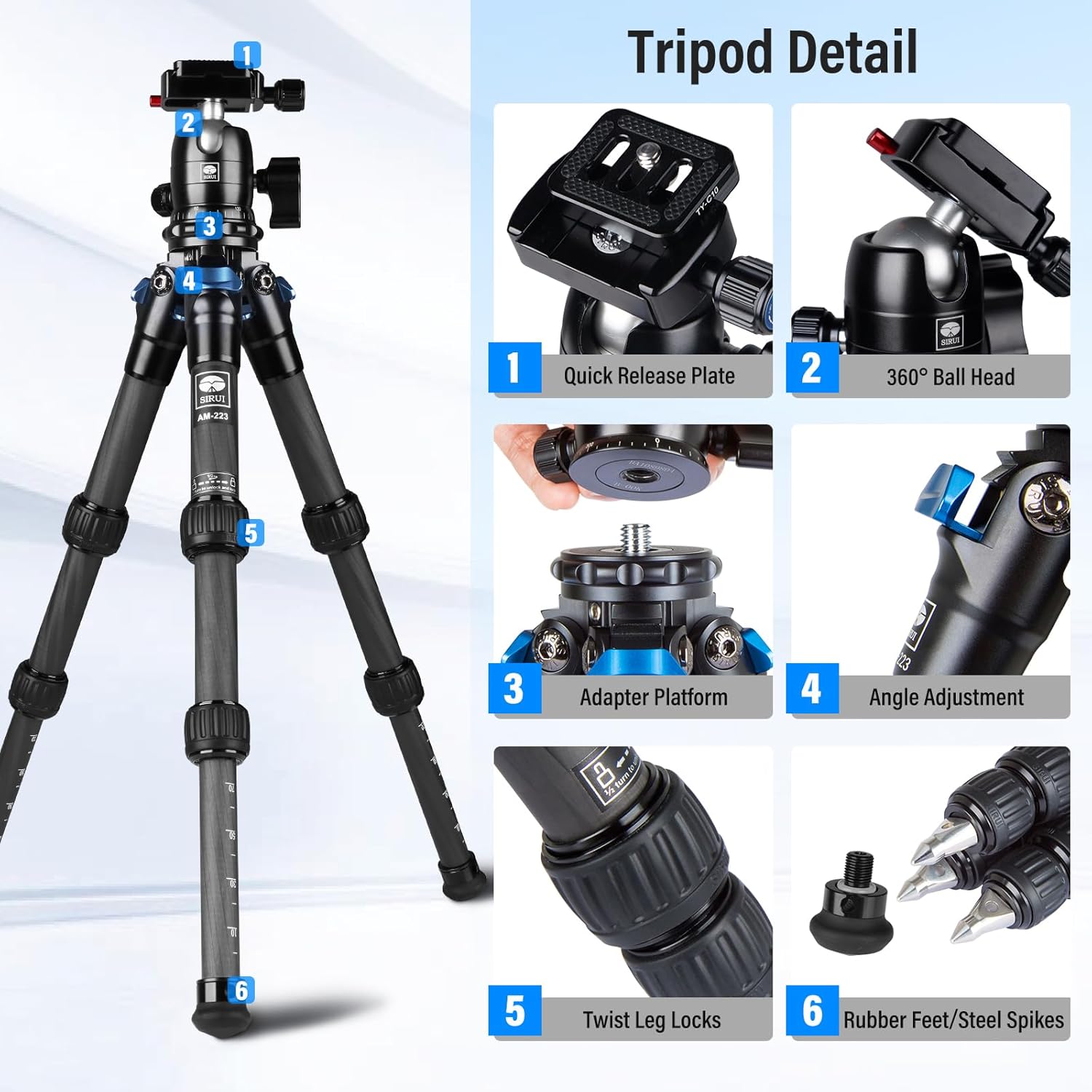

Key Features

SIRUI Compact Mini Tripod: Material: carbon fiber; Color: Black; Weight: 1.17lbs (tripod) + 0.45lbs (ball head); Sections: 3; Min Tube: 16mm/0.63"; Max Tube: 22mm/0.87"; Min Height: 58mm/2.3"; Max Height: 350mm/13.8"; Retracted Height: 215mm/8.5"; Max Load: 33lbs/15KG;Ball Head Max Load: 22.05lbs/10KG

Durable Carbon Fiber: Manufactured with premium carbon fiber, SIRUI M-223 tripod kit is lightweight, sturdy and durable, and can support up to a 15kg/33.1lbs load.

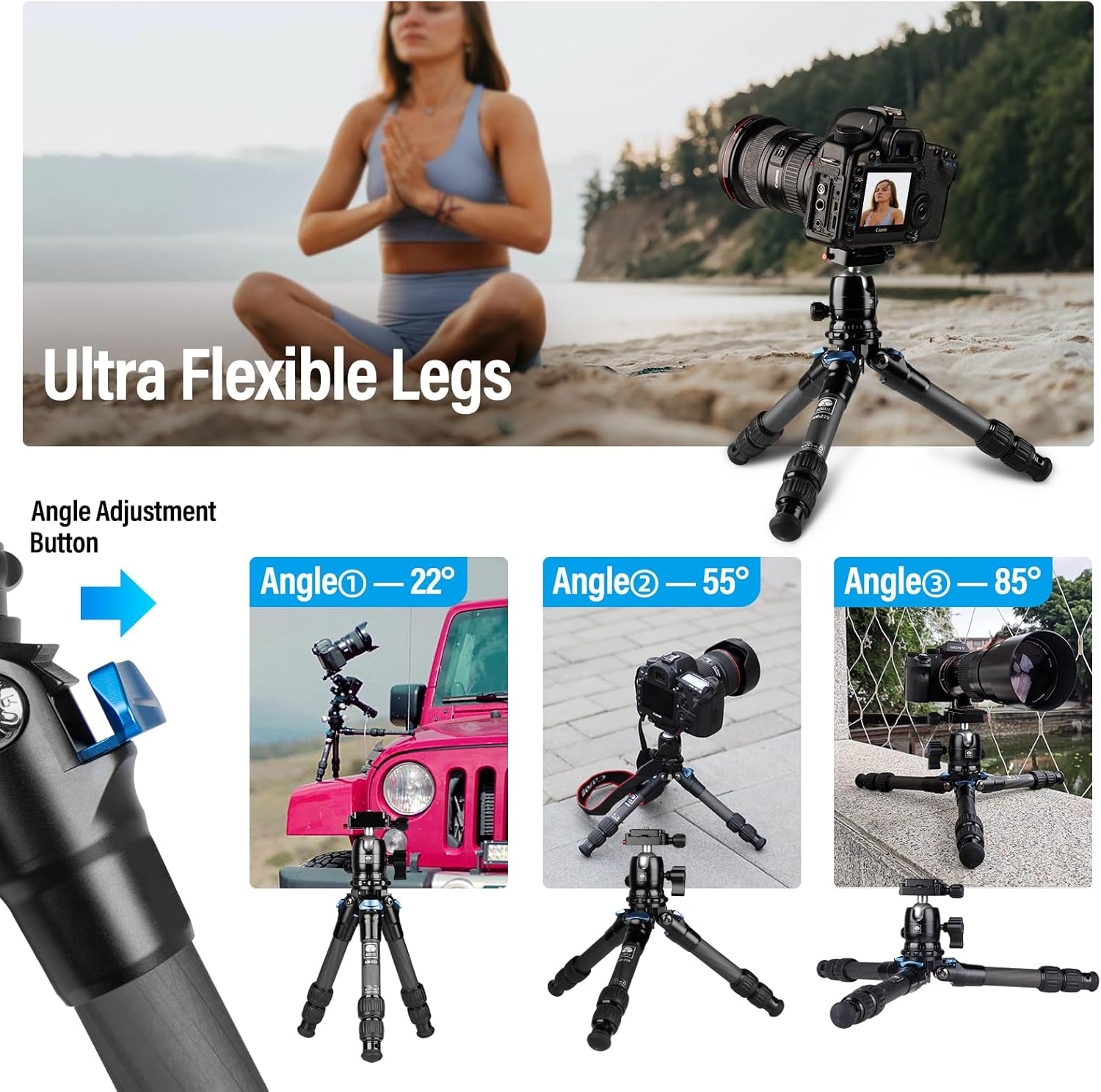

Adjustable and Extendable: 3-section carbon fiber legs with quick release twist-locks allow you to adjust the working height from 2.3" To 13.8". 3-position leg angle adjustment system can provide flexible shooting for different photography scenarios and conditions.

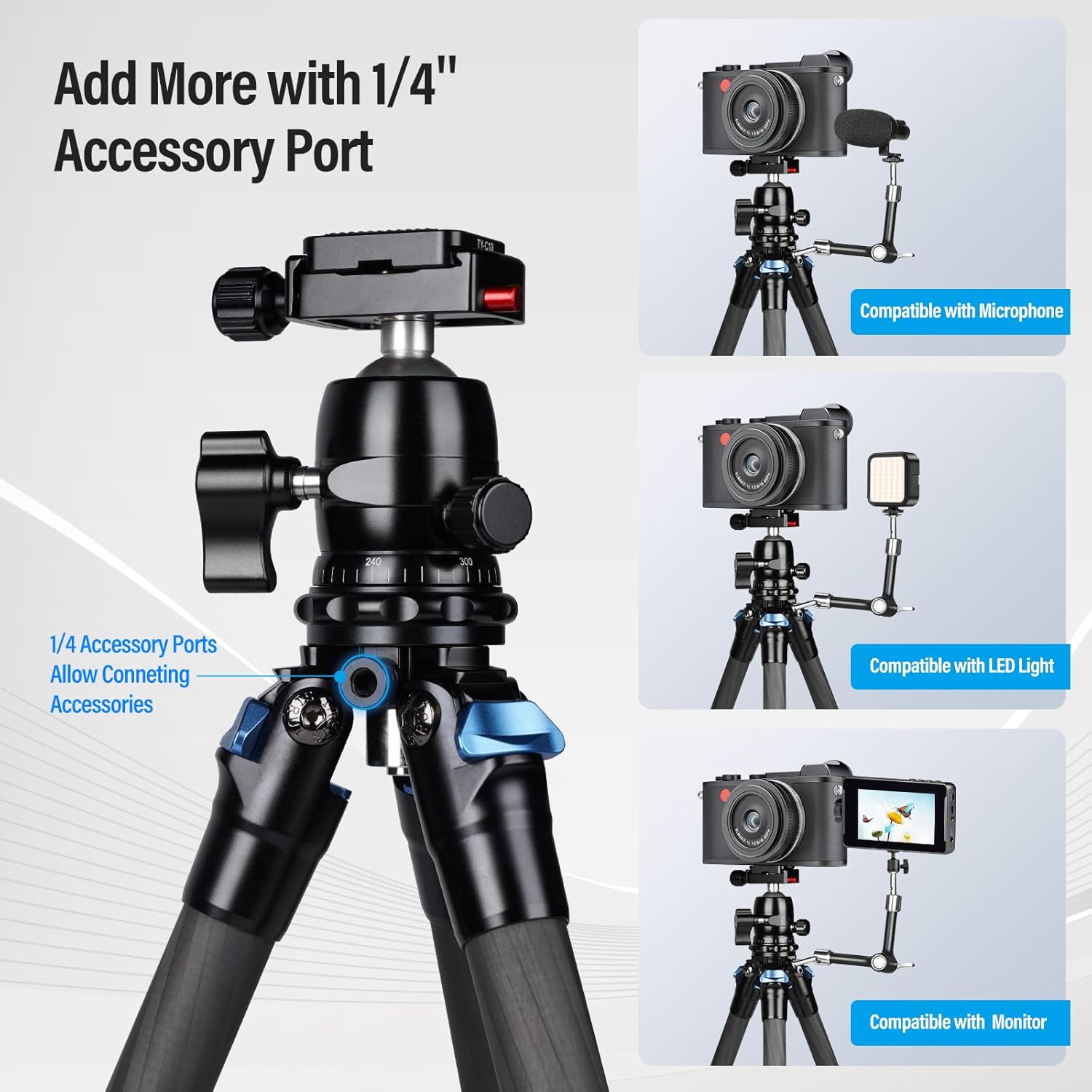

Aluminum Ball Head: B-00K is Arca-swiss compatible. It can be attached to different photographic devices with 1/4" standard screw on the plate and can be connected to tripods and monopods with 3/8” screw hole at the bottom.

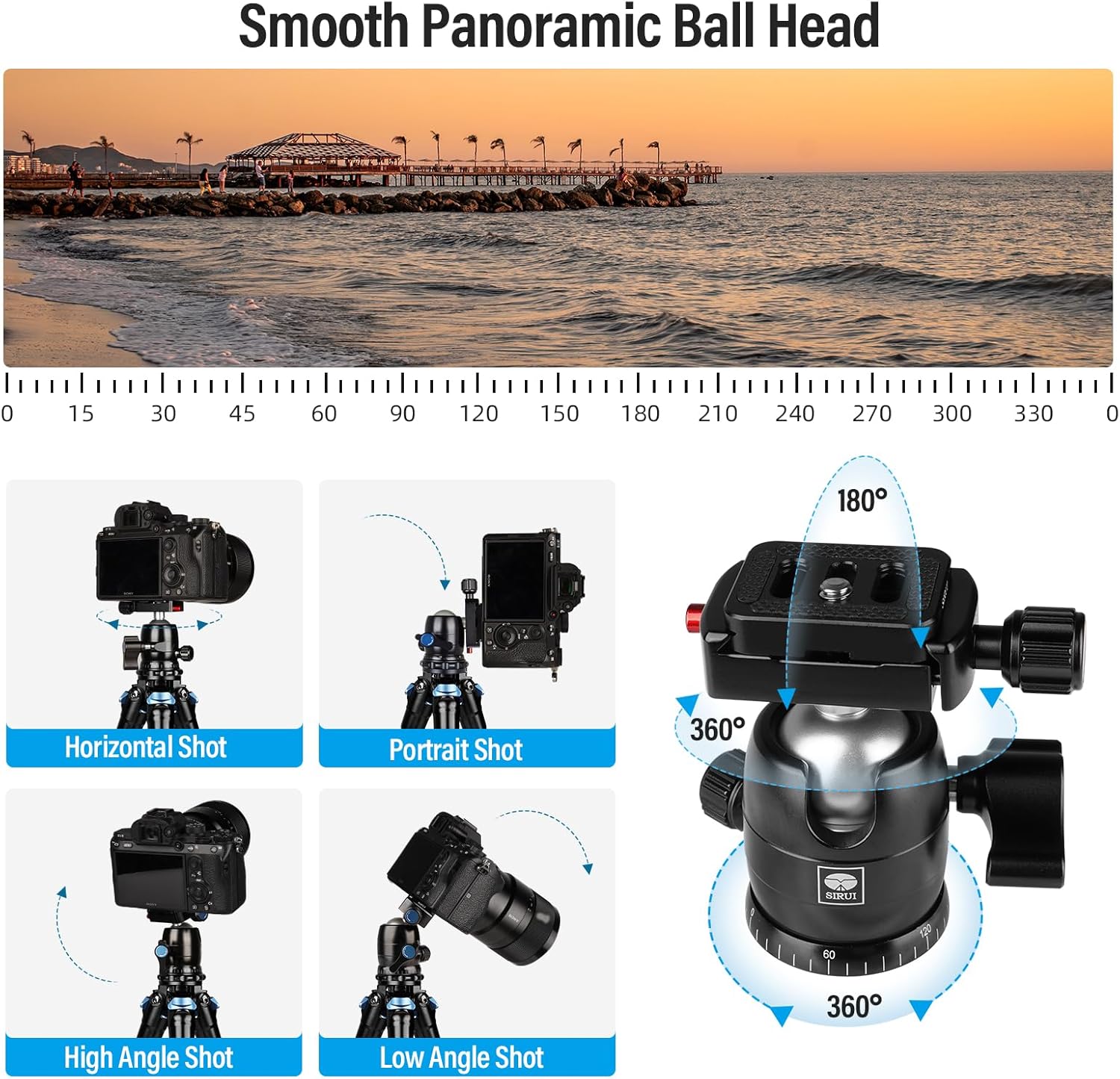

Flexible Angle Adjustment: With independent locking knobs and fine damping mechanism, photographers can adjust shooting angle flexibly in seconds.

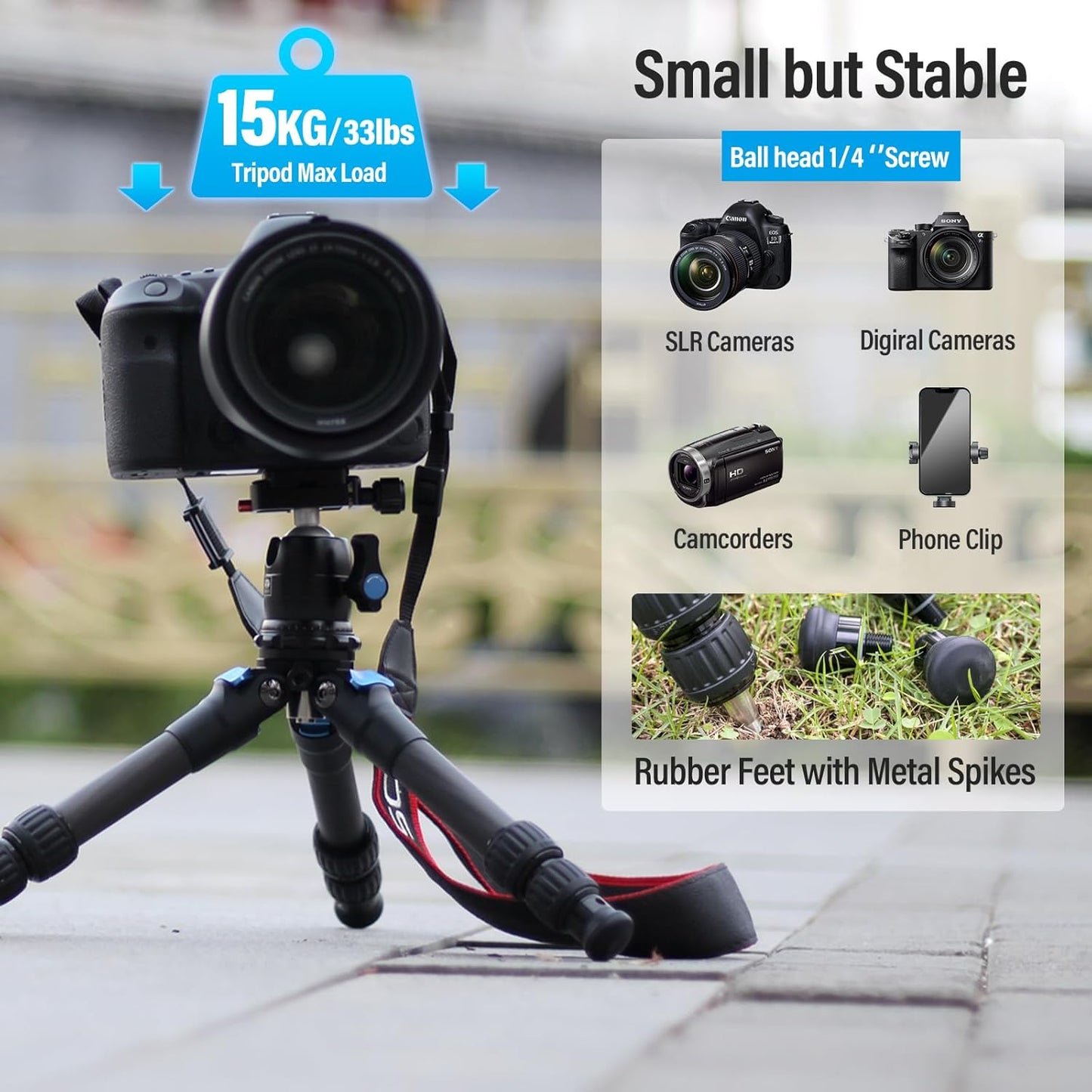

Non-slip Design: With wear-resistant rubber feet and retractable metal spikes, the M-223 tripod can stand firm on different terrains.

Specifications

Brand
Sirui
Model
AM-223+B-00K
Material
Carbon Fiber (legs), Aluminum (ball head)
Leg Sections
3
Min Tube Diameter
16mm (0.63")
Max Tube Diameter
22mm (0.87")
Min Height
58mm (2.3")
Max Height
350mm (13.8")
Folded Length
215mm (8.5")
Tripod Weight
1.17 lbs
Ball Head Weight
0.45 lbs
Max Leg Load
33 lbs (15kg)
Ball Head Max Load
22.05 lbs (10kg)
Ball Head Compatibility
Arca-Swiss (1/4" plate screw, 3/8" base)
Feet
Rubber (default) / Retractable metal spikes

Pros & Cons

👍 Pros

  • Carbon fiber construction delivers a 1.17 lb leg weight — light enough that including it in a travel bag is a non-decision, even for photographers who obsessively minimize carry weight.
  • 33 lb leg load rating and 22 lb ball head rating are engineered well beyond any mirrorless or DSLR + lens combination, meaning the tripod is not the structural weak point in your support chain.
  • Three-position leg angle adjustment enables quick adaptation between tabletop flat setups, standard spread, and wide low-angle spreads without tools or additional hardware.
  • Arca-Swiss compatible B-00K clamp integrates with the existing Arca-Swiss ecosystem — no adapters needed if your camera body or plate is already Arca-compatible.
  • Retractable metal spikes extend the usable terrain from studio tabletops to outdoor ground surfaces, a dual-use capability uncommon in mini tripods at this weight.

👎 Cons

  • Maximum height of 13.8" with the ball head positions the camera at a low-angle perspective in all configurations — this is not a substitute for a standard travel tripod for eye-level or standing-height shots.
  • Twist-lock leg sections require deliberate engagement to confirm full lock — partially engaged locks can slip under load, a failure mode that requires attention during fast deployment in the field.
  • The B-00K ball head uses a single locking knob for pan and tilt simultaneously — photographers who prefer separate pan and tilt locks for precise independent axis adjustment will find this head's control scheme limiting.
  • Carbon fiber at this diameter and section count is durable under compression but vulnerable to impact — dropping the folded tripod onto a hard surface at the leg tube joints is a real damage risk.

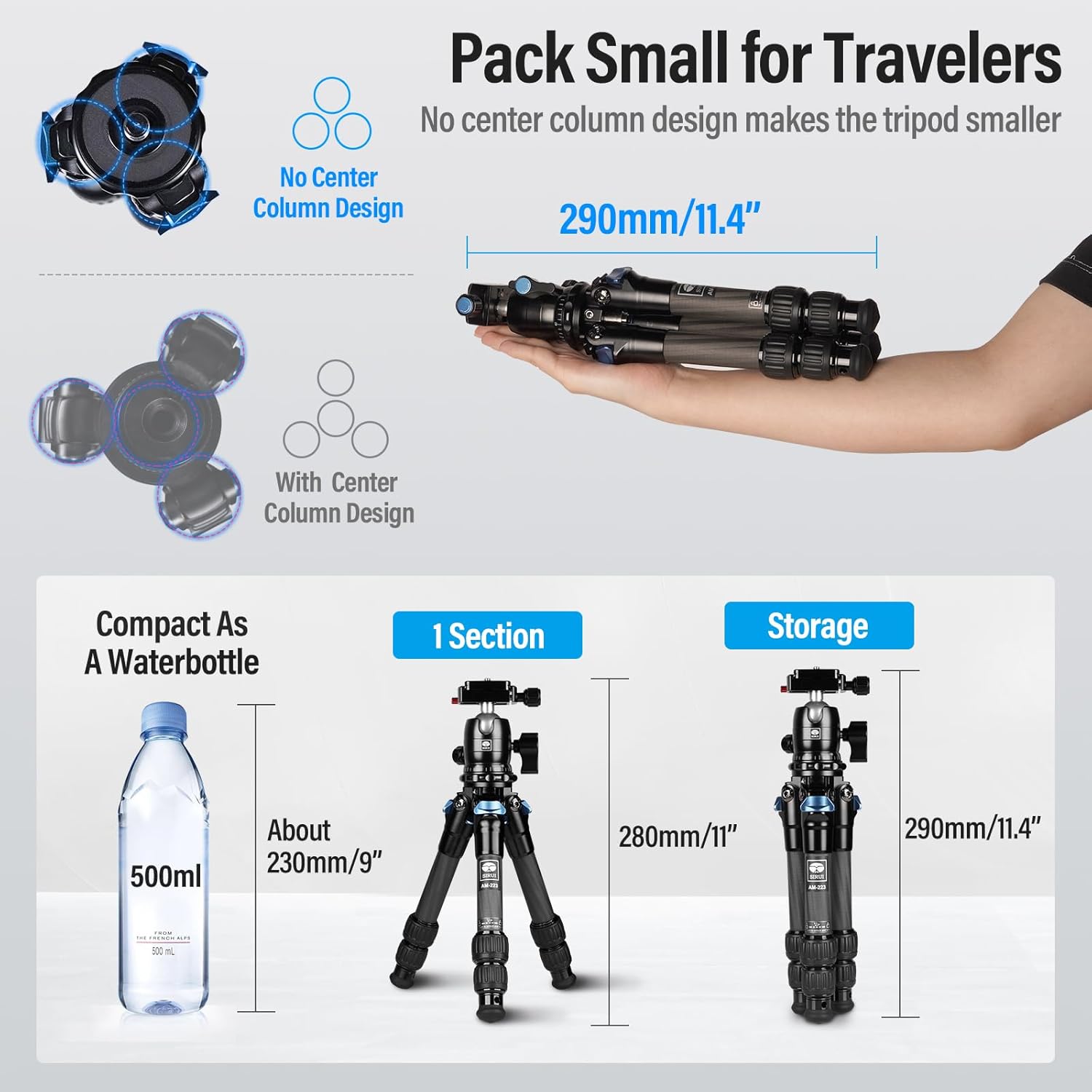

  • At 215mm (8.5") folded, it fits carry-on bags and camera inserts, but it is not small enough to pocket, which means it still requires dedicated bag space unlike a tabletop gorillapod-style support.

Frequently Asked Questions

The tripod legs extend from 58mm (2.3") at their lowest to 350mm (13.8") at maximum leg extension. At minimum height, the setup functions as a low-profile tabletop support — useful for product photography, macro work, or camera-level compositions on surfaces. At maximum extension, 13.8" positions a mirrorless camera at a low-angle perspective for environmental or architectural detail shots. This is a compact support tool, not a standard full-height tripod.
The more conservative figure governs: 22 lbs (10kg) from the B-00K ball head. In practice, the relevant camera + lens combinations for a tripod at this height range — mirrorless bodies with standard zoom or prime lenses — are well under 5 lbs. The 22 lb head rating provides meaningful safety margin for larger mirrorless systems with telephoto lenses.
The B-00K accepts standard Arca-Swiss compatible plates — any plate conforming to the Arca-Swiss dovetail specification (approximately 38mm wide with angled sides) will seat in the clamp. This covers plates from RRS, Kirk, Desmond, Joby, and most third-party manufacturers. Verify your existing plates are Arca-Swiss profile, not a proprietary system like Manfrotto RC2 or the older Bogen hex style.
The rubber feet are the default surface contact — appropriate for indoor surfaces, tile, wood, pavement, and anywhere marring or slipping is a concern. The retractable metal spikes deploy by twisting the foot mechanism and are intended for soft outdoor terrain (soil, grass, sand) where rubber would shift under the camera's weight. Switching takes seconds and meaningfully improves stability on uneven ground.
For static video shots — locked-off interview inserts, product turntables, or timelapse — yes. The ball head's fine damping mechanism allows precise leveling, and the leg angle adjustment provides three spread positions for low-angle video framing. For pan-and-tilt video moves or follow shots, the B-00K ball head is not designed for fluid motion and will produce jerky results; a dedicated fluid video head would be required for smooth movement.
