Sony
Sony MCX-500 8-Input Video Switcher - Streaming/Recording Bundle
Stream and Record Professional-Quality Video Introducing the Sony MCX-500 Global Production Switcher Bundle. The MCX-500 is more than just a portable 8-input switcher; it's a global system that supports both 60 and 50 Hz production formats, allowing you to work with it virtually anywhere in the w...
$1,769.95*$1,829.95Save 3%
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jul 13, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Stream and Record Professional-Quality Video
Introducing the Sony MCX-500 Global Production Switcher Bundle. The MCX-500 is more than just a portable 8-input switcher; it's a global system that supports both 60 and 50 Hz production formats, allowing you to work with it virtually anywhere in the world.
Overview:
The Sony MCX-500 combines a manual control surface with a touchscreen LCD. It features four 3G-SDI inputs, two HDMI, and two composite (CVBS) inputs. In addition to the program and multiview preview outputs, the switcher can also live stream via Ethernet, without requiring additional hardware.
Specifications:
- Inputs: 4 x 3G-SDI, 2 x HDMI, 2 x Composite (CVBS)
- Switcher Type: 8 x Primary, 1 x Title Input Switcher
- Processing: Internal 1080i Processing
- Audio Mixer: Built-In Audio Mixer
- Recording: Record Program to SD Card Slot in AVCHD
- Streaming: Built-In Live Streaming Encoder
Key Features

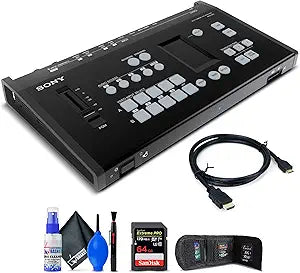

Bundle Includes: 1 x Sony MCX-500 8-Input 4-Video Channel Global Production Streaming/Recording Switcher, 1 x SanDisk 64GB Extreme PRO UHS-I SDXC Memory Card, 1 x Deluxe Cleaning Set, 1 x HDMI Cable, 1 x Memory Card Wallet
VERSATILE: Sony's MCX-500 8-Input 4-Video Channel Global Production Streaming/Recording Switcher is much more than just a portable 8-input switcher. It is a global system that supports both 60 and 50 Hz production formats, so you can work with it virtually anywhere in the world.
CONNECTED: Four 3G-SDI inputs, two HDMI, and two composite (CVBS) inputs each feature a discrete frame synchronizer, allowing you to mix input sources. The unit internally processes the input footage at 1080i.
EASY TO USE: The MCX-500 combines a manual control surface with a touchscreen LCD that you can control locally or from a networked device. As you would expect from a professional mixer, cut, mix, wipe, and key effects are built into the unit.
KEY FEATURES: 8 x Primary, 1 x Title Input Switcher - NTSC/PAL, HD Input Supported - Individual Frame Synchronizer per Input - Internal 1080i Processing - Hardware Buttons and LCD Touchscreen - Cut, Mix, Wipe, and Keyer Effects - Built-In Live Streaming Encoder - Record Program to SD Card Slot in AVCHD - Built-In Audio Mixer - Mac, PC, and Tablet Integration
Specifications
Model
MCX-500
Input Channels
8 Primary, 1 Title
Video Inputs
4 x 3G-SDI, 2 x HDMI, 2 x Composite (CVBS)
Processing Format
1080i (internal)
Supported Formats
NTSC/PAL, HD Input
Frame Synchronizer
Individual per input
Control Interface
Hardware Buttons and LCD Touchscreen
Effects
Cut, Mix, Wipe, Keyer
Streaming
Built-In Live Streaming Encoder
Recording
Record Program to SD Card Slot (AVCHD)
Audio
Built-In Audio Mixer
Integration
Mac, PC, and Tablet
Pros & Cons
👍 Pros
- Supports both 60 and 50 Hz production formats, making it versatile for global use cases
- Features eight primary inputs (4x 3G-SDI, 2x HDMI, 2x composite) for comprehensive source integration
- Includes individual frame synchronizers on each input, allowing seamless mixing of diverse sources
- Offers internal 1080i processing, ensuring consistent high-definition output within a professional workflow
- Equipped with a built-in live streaming encoder, facilitating direct broadcast without additional hardware
👎 Cons
- Internal processing is limited to 1080i, which might not be ideal for productions requiring native 1080p or higher progressive formats throughout the workflow
- The bundle includes a 64GB SDXC card, which may be insufficient for extended recording sessions of high-bitrate video
- While supporting various inputs, the specific audio input capabilities are not fully detailed beyond a built-in audio mixer
- The tactile control surface is combined with a touchscreen, which some operators might find less precise than dedicated physical controls
- The unit's functionality as a global system supports different formats but doesn't explicitly state conversion capabilities between them.
Frequently Asked Questions
What video input types does the Sony MCX-500 switcher accept?
The Sony MCX-500 accepts four 3G-SDI inputs, two HDMI inputs, and two composite (CVBS) inputs.
Can this switcher be used for live streaming?
Yes, the unit features a built-in live streaming encoder, enabling direct streaming of your program output.
Does the MCX-500 handle different video formats like NTSC and PAL?
Yes, it is a global system that supports both 60 Hz and 50 Hz production formats, including NTSC and PAL.
What is the internal processing resolution of the Sony MCX-500?
The unit internally processes the input footage at 1080i resolution.
How does the switcher ensure smooth transitions between different sources?
Each input on the MCX-500 features a discrete frame synchronizer, allowing for seamless mixing of various input sources.
Can the MCX-500 record the program output?
Yes, it can record the program output to an SD card slot in AVCHD format.
