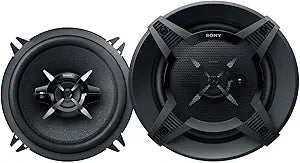

Sony XSFB1330 5.25" 240W 3-Way Car Audio Speakers
★★★★★
240W
The Sony XSFB1330's three-driver design and 240W peak power bring noticeably fuller, clearer audio to the stock speaker locations your car already has.
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features
3-way speaker system, 5-1/4" Foamed-Mica Cellular Reinforced Woofers, 1" Polyester Main Tweeter
3/4" Piezo Super Tweeter for extended high-frequency response, Perfect compatibility with Sony MEX-N and CDG-G head units, Power Bass Response w/(60 -24,000 Hz) Effective Frequency Range
4 ohm Speaker Impedance, 240 W Max Power Handling, 35 W Rated Power Handling
Specifications
Speaker System Type
3-way
Woofer Material
Foamed-Mica Cellular Reinforced
Woofer Size
5-1/4"
Main Tweeter Size
1"
Main Tweeter Material
Polyester
Super Tweeter Size
3/4"
Super Tweeter Type
Piezo
Effective Frequency Range
60 - 24,000 Hz
Speaker Impedance
4 ohm
Max Power Handling
240 W
Rated Power Handling
35 W
Pros & Cons
👍 Pros
- The 3/4-inch piezo super tweeter extends high-frequency response beyond what most 2-way speakers reproduce, which translates to noticeably cleaner detail in cymbal, string, and vocal consonant reproduction.
- Foamed-mica cellular reinforced woofer cone is stiffer and lighter than standard paper cones, reducing distortion at higher output levels during dynamic passages.
- 4-ohm impedance is the standard for aftermarket car audio, ensuring compatibility with virtually any head unit without impedance mismatch concerns.
- 240W peak power handling provides substantial headroom above typical head unit output, meaning the speakers will not compress or distort at moderate-to-high volume levels.
- Effective frequency range of 60Hz–24kHz covers the entire musically relevant spectrum, requiring no crossover configuration for standard listening setups.
👎 Cons
- The 60Hz low-frequency floor means bass frequencies below that point are not reproduced — listeners who value deep bass impact will need to add a subwoofer to the system.
- 35W RMS rated power is moderate — high-powered aftermarket amplifiers running significantly above this rating risk damaging the drivers over time.
- Piezo super tweeters have a known characteristic: they cannot be easily attenuated with a passive crossover, which can make high-frequency output harder to balance in some listening environments.
- 5.25-inch driver size limits low-frequency excursion capability compared to 6.5-inch alternatives, contributing to the 60Hz floor rather than deeper bass extension.
- No grille or protective cover is included — buyers need to source compatible grilles separately or rely on the vehicle's factory speaker grilles for driver protection.
Frequently Asked Questions
Will the Sony XSFB1330 physically fit my existing 5.25" speaker cutouts without modification?
These are 5.25-inch speakers — they are designed as drop-in replacements for factory 5.25" speaker locations. That said, mounting depth and basket diameter can vary between vehicles and speaker brands. Measure your available mounting depth before purchasing; some factory speaker pockets are shallower than aftermarket speakers require, particularly in doors with full window regulators.
What does "3-way" mean on the XSFB1330, and how does it improve sound over a standard 2-way speaker?
A 3-way speaker uses three drivers to cover the audio spectrum — the foamed-mica woofer handles bass and midrange, a 1-inch polyester tweeter covers the upper midrange and treble, and the 3/4-inch piezo super tweeter extends high-frequency response above what the main tweeter can cleanly reproduce. The result is smoother, more detailed audio at the high end without the fatigue that comes from a single tweeter being pushed too hard.
My receiver is rated at 20 watts RMS per channel — will it drive these speakers adequately?
Yes. The XSFB1330 is rated at 35W RMS power handling, which is comfortably within the range of most factory and aftermarket head units. The 240W figure is peak (maximum burst) power — matching rated RMS output is what matters for everyday listening. Underpowering a speaker is less of a risk than the inverse; you'll simply have volume headroom you won't use.
Are these speakers compatible with Sony's MEX-N and CDX-G head unit series in any special way?
Sony describes these as having perfect compatibility with MEX-N and CDX-G head units, which suggests optimized impedance matching and tonal tuning between the speaker and those Sony source units. They function as standard 4-ohm speakers with any compatible head unit — the Sony pairing is a specific optimization, not a hard requirement.
What is the effective frequency range, and will these handle bass without a separate subwoofer?
The effective frequency range is 60Hz to 24,000Hz. The low-end floor of 60Hz means these speakers reproduce useful bass but do not reach sub-bass frequencies — you will miss the lowest octave (20–60Hz) that a subwoofer handles. For most music genres, 60Hz is enough for impact and body. For bass-heavy genres or dedicated audiophile listening, a separate subwoofer will fill the gap these speakers don't cover.
