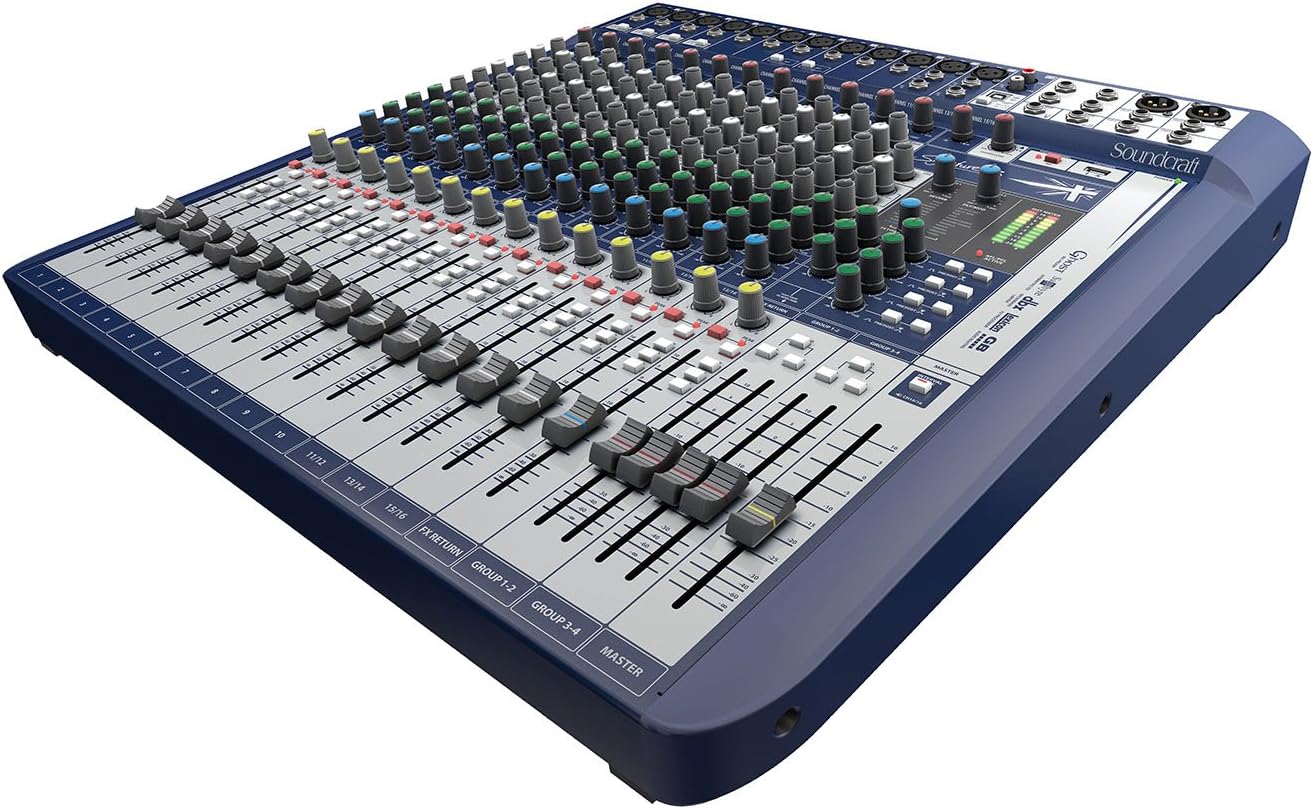

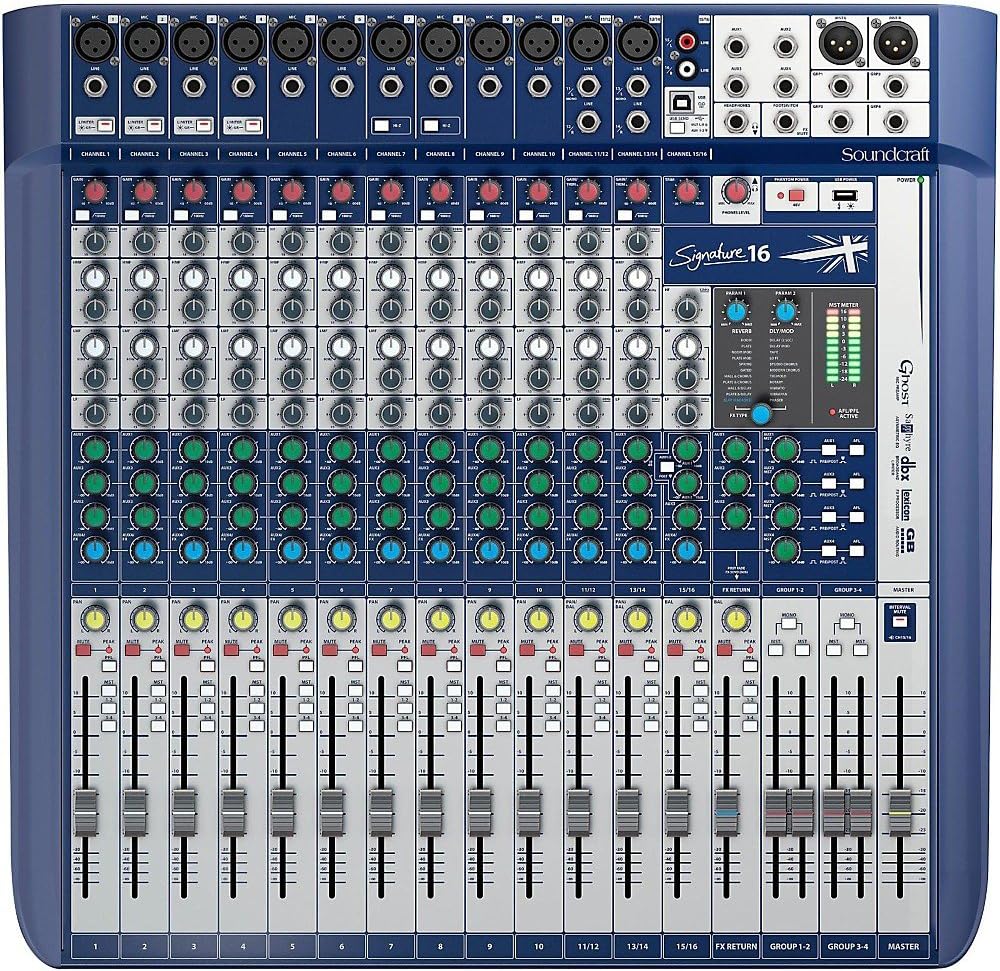

Soundcraft Signature 16 Analog Mixer with Lexicon Effects

Name: Soundcraft Signature 16 Analog Mixer with Lexicon Effects
Brand: Soundcraft
SKU: Signature 16

Ghost preamps and Sapphire British EQ on 16 channels — the Soundcraft Signature 16 brings studio-grade analog warmth to live and tracking sessions.

$819.00*$1,010.00Save 18%

Check availability

*Price sourced from Amazon.com. Last updated:Aug 28, 2026.Price and availability are subject to change — details.

Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Soundcraft Signature 16 is a 16-input analog mixer built around the Soundcraft Ghost microphone preamp circuit — a design derived from the Ghost recording console and characterized by low noise, wide dynamic range, and a transparent, detailed sonic signature. The Sapphire British EQ on each channel adds the warm, musical mid-range character associated with classic UK console designs, with the sweepable mid-band allowing active frequency management rather than passive tone shaping. The onboard Lexicon effects engine delivers the same reverb and modulation algorithms found in Lexicon's dedicated hardware units, routed via a conventional aux send/return architecture. dbx limiters per channel add automatic transient protection across all inputs — a meaningful safeguard in live environments where source levels are unpredictable.

The Signature 16 is engineered for mid-size live sound reinforcement, rehearsal rooms, houses of worship, and project studio tracking sessions where analog warmth, reliable preamp performance, and onboard effects are required without the cost of a separate outboard effects rack. The GB series audio routing with pre/post switching on each aux send provides the monitor send flexibility expected in live mixing. Build quality uses tour-grade metal construction throughout, and the internal universal power supply removes the need for an external transformer. The USB stereo output makes it straightforward to archive a stereo mix of any session directly to a laptop. Engineers moving from entry-level plastic-chassis mixers will immediately notice the improved noise floor, more responsive EQ, and the qualitative difference the Lexicon processing brings to room acoustics.

Key Features

High-performance 16-Input small format analogue mixers with onboard effects

Iconic Sound craft Ghost mic preamps with ultra-low noise performance

Renowned Sound craft sapphire British EQ with sweepable mid-bands per channel

Lexicon effects engine featuring award-winning reverbs, delays, Choruses and Modulations

Dbx Limiters (High-ratio Compressors) on input channels

Specifications

Type

Analog Mixer

Input Channels

Mic Preamps

Soundcraft Ghost

Soundcraft Sapphire British EQ with sweepable mid-bands per channel

Effects

Lexicon effects engine (reverbs, delays, choruses, modulations)

Dynamics

dbx limiters (high-ratio compressors) on input channels

Construction

Tour-grade metal chassis

Power Supply

Internal universal power supply

Routing

GB series audio routing, flexible pre/post switching per AUX

USB

Stereo 2-channel USB audio output

Frequently Asked Questions

How do the Ghost mic preamps perform at high gain with dynamic microphones on loud sources?

The Ghost preamps are characterized by low self-noise and a clean, open top end — they hold together well at elevated gain settings without the harshness found in budget-tier designs. On dynamic mics like the SM58 or SM7B requiring more gain, the preamps remain quiet and transparent, preserving transient attack without added coloration.

What does the sweepable mid-band EQ actually give you that a fixed mid does not?

A sweepable mid means you can move the center frequency of the mid band across a defined range — typically around 250Hz–5kHz on the Sapphire EQ — allowing you to find and cut problem resonances or boost presence frequencies specific to each source, rather than applying a fixed boost or cut at a frequency that may not match your instrument.

Does the Lexicon effects engine operate as a dedicated stereo bus, or can effects be sent to individual channels?

The effects engine receives signal via the dedicated FX send bus and returns on a stereo channel. Individual channels use their aux send knob to control how much of that channel feeds the effects engine — standard parallel effects routing, not an insert.

Are the dbx limiters on every input channel, and can they be switched out of the signal path?

Yes, dbx limiters are fitted per input channel. They are high-ratio compressors designed to catch transient peaks and protect the mix bus — they engage automatically above threshold and cannot be hard-bypassed, so they are always in circuit.

What does the USB connectivity on the Signature 16 support — is this a full multi-channel audio interface?

The USB connection provides stereo 2-channel USB audio recording to a DAW — it captures the stereo mix bus output, not individual channel stems. It is useful for recording rehearsals or live sets but does not function as a multi-track interface.

Strengths & Trade-offs

👍 Pros

Ghost mic preamps deliver ultra-low noise performance that keeps the noise floor inaudible on sensitive condenser microphones, preserving dynamic range across all 16 channels.
Sapphire British EQ with sweepable mid-bands per channel gives precise surgical control over problem frequencies — a meaningful advantage over fixed-mid designs in live or tracking scenarios.
Lexicon effects engine provides production-quality reverbs and delays without an external effects rack, reducing signal chain complexity and hardware cost.
dbx limiters on input channels provide automatic transient protection, reducing the risk of unexpected peaks clipping the mix bus during live or recording sessions.
Tour-grade metal construction handles the mechanical stress of repeated setup and teardown better than plastic-chassis budget mixers.

👎 Cons

USB connectivity delivers only stereo 2-channel recording — sessions requiring multi-track stems for post-production need a separate audio interface or DAW recorder alongside the mixer.
The dbx limiters cannot be removed from the signal path, which limits gain-staging flexibility for engineers who prefer to manage dynamics entirely in the box or through external processing.
At 16 inputs, channel count may feel tight in larger live configurations where monitor sends and effects returns compete for available strips.
The Lexicon engine is a single stereo effects bus — complex productions requiring multiple independent effects chains will need external outboard gear.
Physical size and weight of a 16-channel analog frame makes this less practical for highly mobile single-person rigs where pack-down speed is critical.
