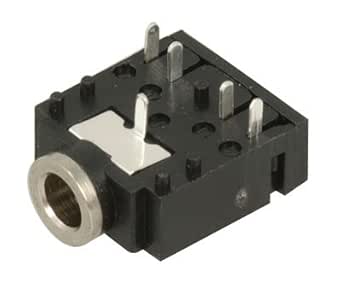

Switchcraft 35RAPC4BHN2 Stereo Audio Jack Right Angle Connector
Reliable Audio Connectivity for ProfessionalsThe Switchcraft 35RAPC4BHN2 is a high-quality stereo audio jack connector designed for professional applications. Featuring a right-angle configuration and durable construction, it ensures reliable connectivity in demanding environments. This pack incl...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Reliable Audio Connectivity for Professionals
The Switchcraft 35RAPC4BHN2 is a high-quality stereo audio jack connector designed for professional applications. Featuring a right-angle configuration and durable construction, it ensures reliable connectivity in demanding environments. This pack includes four connectors, making it ideal for custom audio projects and repairs.
- Connector Type: Stereo Audio Jack.
- Size: 3.5 mm.
- Configuration: Right Angle.
- Dimensions: 15 mm D x 6 mm H x 12 mm L.
- Contact Resistance: 30 milliohms maximum, initial 100 milliohms maximum, after life.
- Origin: Made in United States.
- Pack Quantity: 4
Key Features
Insulation resistance: 100 megohms minimum water 500V dc
Dielectric withstanding voltage: 500V ac
Life: 5000 cycles, minimum
Insertion force: 0.88 pounds - 6.6 pounds
Withdrawal force: 0.88 pounds - 6.6 pound
Specifications
Product Type
Stereo Audio Jack Right Angle Connector
Insulation Resistance
100 megohms minimum water 500V dc
Dielectric Withstanding Voltage
500V ac
Life Cycles
5000 cycles, minimum
Insertion Force
0.88 pounds - 6.6 pounds
Withdrawal Force
0.88 pounds - 6.6 pound
Brand
Switchcraft
Pros & Cons
👍 Pros
- Offers a robust insulation resistance of 100 megohms minimum at 500V dc, indicating strong electrical safety.
- Capable of withstanding a dielectric voltage of 500V ac, ensuring reliability under electrical stress.
- Designed for a long operational life of 5000 cycles minimum, suggesting durability for repeated connections.
- Features controlled insertion and withdrawal forces between 0.88 pounds and 6.6 pounds for secure connections.
- The right-angle design of the connector can be advantageous for space-constrained installations or reducing cable strain.
👎 Cons
- The description only details the connector itself, not a full speaker cable, requiring separate purchase of cable.
- The specified insertion and withdrawal forces, while within a range, might feel too tight or loose depending on personal preference.
- No specific material composition for the connector body or contacts is provided, which could impact perceived quality.
- While durable, the 5000 cycles life is a minimum and actual performance can vary based on usage and environmental factors.
- The product title specifies "Stereo Audio Jack," which might not be suitable for mono or specialized speaker configurations.
Frequently Asked Questions
What is the insulation resistance of this Switchcraft connector?
The Switchcraft 35RAPC4BHN2 connector has an insulation resistance of 100 megohms minimum at 500V dc, indicating strong electrical isolation.
How many cycles can this audio jack withstand?
This connector is rated for a minimum of 5000 cycles, suggesting robust durability for repeated connections.
What is the dielectric withstanding voltage for this connector?
The dielectric withstanding voltage for this stereo audio jack is 500V ac, ensuring it can handle specific electrical loads.
What are the typical insertion and withdrawal forces for this connector?
The insertion and withdrawal forces are specified to be between 0.88 pounds and 6.6 pounds, designed for a secure yet manageable connection.
Is this connector a straight or right-angle design?
This is a right-angle connector, which can be useful for managing cables in tight spaces or reducing strain.
