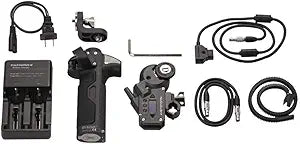

Tilta WLC-T03-K2 Nucleus-M Wireless Follow Focus Kit — main product image

Tilta WLC-T03-K2 Nucleus-M Wireless Follow Focus Kit

Tilta

Tilta WLC-T03-K2 Nucleus-M Wireless Follow Focus Kit

Name: Tilta WLC-T03-K2 Nucleus-M Wireless Follow Focus Kit
Brand: Tilta
SKU: WLC-T03-K2

Pull critical focus from 1000 feet away — the Nucleus-M gives solo operators cinematic lens control across gimbal, drone, and shoulder rigs.

$549.00*

✓ In Stock on Amazon.com

View on Amazon

*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Tilta Nucleus-M Wireless Follow Focus Kit is built for the one- or two-person camera team that needs precise, repeatable lens control without the tether of a hard-link system. Whether you're flying a gimbal through a crowded venue, mounting a camera to a vehicle for a commercial shoot, or working a shoulder rig on a documentary, the Nucleus-M's 1,000-foot wireless range gives the focus puller — or the operator wearing both hats — genuine creative freedom. The three knob-rotation settings are a practical, underappreciated feature: dialing in 85° for a fast, punchy rack focus and switching to 310° for a slow, meditative pull to infinity is the kind of workflow flexibility that shows up on screen.

The motor's clamp-on rod design and standard 0.8 mod cinema gear mean it drops onto almost any existing rig without sourcing adapters or modifying your setup. Power management is equally thoughtful — a single P-tap input to the first motor, daisy-chained to additional units, keeps cable clutter off a rig that's already carrying a camera, monitor, and battery. The ARRI rosette on the handgrip plays nicely with established shoulder and cage ecosystems. This Kit 2 configuration (one motor, one right handgrip) is the logical entry point for operators who want to evaluate the system before committing to a full FIZ build, and the modular architecture means adding motors or a left handgrip later is straightforward.

Key Features

Handgrip features include three knob-rotation settings, optional adapters for either bar- or ring-based gimbals, LED indicators, and an LCD display. With a wireless control range of up to 1000', the Wireless Handgrip can be used for drone or car-mounted shots in addition to handheld configurations.

Customizable focus, iris, and zoom control Run/stop control for select cameras ARRI-style rosette mounting and optional gimbal adapter mounts 1000' wireless control range 85, 180, and 310° knob rotation settings LCD display and LED indicators

To power the motors, only one power port on your camera rig needs to be used. Simply plug the P-tap power cable into one of the motors and then daisy chain power to the rest of the motors with the short 7-pin to 7-pin cables. The motors can be powered through a power source that has a voltage output ranging from 7.2V-24V.

Motors fit standard 15mm and 19mm Rods . Ideal for Gimbal, Drone, and Shoulder-mounted setups.The motors are designed to clamp onto 19mm or 15mm rods (with the included rod bushings). This clamp-on design allows you to easily attach and detach the motors without needing to remove any other accessory from your setup. Every motor has a 0.8 mod, 35 tooth, 32 pitch gear attached, which is the standard gear size for cinema lenses. The torque of the Nucleus-M Motor at 14.8V is 2.5N·m

Function as a one-person camera team & keep the form factor of your camera setup to a minimumThe motors allow for automatic calibration of the lens as well as manual calibration if you are using lenses that don’t have hard end stops at close focus and infinity.

Specifications

Kit Configuration

Right Handgrip (WLC-T03-HR) + Brushless Wireless Motor (WLC-T03-M)

Wireless Range

Up to 1,000 ft (approx. 300 m)

Knob Rotation Settings

85°, 180°, 310°

Motor Torque

2.5 N·m at 14.8V

Motor Power Input

7.2V – 24V (P-tap)

Rod Compatibility

19mm (native), 15mm (with included bushings)

Gear Standard

0.8 mod, 35 tooth, 32 pitch

Handgrip Mount

ARRI-style rosette

Motor Connection

7-pin daisy-chain

Control Functions

Focus, Iris, Zoom; Run/Stop for select cameras

Pros & Cons

👍 Pros

The 1,000-foot wireless range opens up drone, car-mount, and remote-camera configurations that a cabled system simply can't touch.
Three selectable knob rotation settings let you tune the handgrip response to the shot — tight pulls for event work, silky slow moves for narrative.
P-tap daisy-chain power means one cable from your battery powers the entire motor chain, keeping the rig clean and reducing failure points on a long shoot day.
Clamp-on 15mm/19mm rod mount lets you move the motor between rigs in seconds without stripping your entire build.
ARRI-style rosette mounting on the handgrip integrates naturally into existing shoulder and cage configurations without proprietary adapters.

👎 Cons

Kit 2 includes only a single motor and right handgrip — full FIZ control requires purchasing additional motors and a left handgrip separately, which adds significant cost.
At the torque rating of 2.5 N·m (at 14.8V), very stiff or heavily damped vintage lenses may not turn smoothly at lower supply voltages.
The LCD and LED indicators on the handgrip are functional but small — reading focus distance feedback in bright outdoor daylight requires deliberate positioning.
Wireless latency, while minimal, is perceptible to operators accustomed to mechanical hard-link systems, requiring a short adjustment period on set.

Frequently Asked Questions

What lens gear standard does the Nucleus-M motor use, and will it work with my cinema glass?

The motor ships with a 0.8 mod, 35 tooth, 32 pitch gear — the industry standard for cinema lenses — so it will mate directly with virtually all professional cinema glass without an adapter ring.

How do I configure the handgrip's rotation range for a tight indoor interview vs. a wide landscape pull?

The right handgrip offers three selectable knob rotation settings — 85°, 180°, and 310°. Use 85° for fast rack-focus pulls in run-and-gun or event work, and 310° for precise, gradual focus transitions on longer focal lengths or macro work.

Can I run the Nucleus-M motors off my existing V-mount or Anton Bauer batteries?

Yes. The motors accept 7.2V–24V input via P-tap, so any standard V-mount or gold-mount battery with a P-tap output will power the system. Daisy-chain additional motors from the first using the included 7-pin cables to keep your cable run clean.

How does the wireless range hold up for drone or car-mount work where line-of-sight varies?

Tilta rates the handgrip at up to 1,000 feet of wireless range. In practice that covers most drone and vehicle-mounted scenarios with clear line-of-sight; dense urban environments or metal vehicle bodies will reduce effective range, so test your specific setup before a critical shoot.

Does the motor support automatic lens calibration, or do I need to map hard stops manually?

Both. The motor will auto-calibrate lenses that have hard end stops at close focus and infinity. For vintage or modified glass without hard stops, manual calibration is available so you can define your own travel limits.
