Westcott

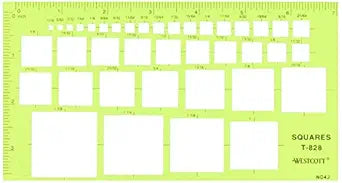

Westcott 1440839 Square Geometric Template 4x7 Inches
★★★★★
Draw precise squares from 1/16" to 1-3/8" with this compact translucent drafting template featuring 39 openings.
$8.00*$8.09Save 1%
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features
The Westcott Squares Geometric Template has 39 square openings ranging from 1/16 to 1-3/8 inches with centering lines to help with accuracy. Features two edges that are calibrated in the 16th to the inch. Measures 4 x 7-1/4 inches.
Use this flexible, translucent green plastic template to design floor plans for homes, offices and more
Centering lines help with accuracy
Rulers at edges to ensure straight lines and proper proportions
Great for design, architecture and art classes
Specifications
Brand
Westcott
Model
1440839
Shape
Square
Number of Openings
39
Opening Range
1/16" to 1-3/8"
Dimensions
4 x 7-1/4 inches
Material
Translucent Green Plastic
Calibration
16ths of an inch
Features
Centering Lines
Pros & Cons
👍 Pros
- 39 square openings cover a wide range of sizes from 1/16" to 1-3/8"
- Translucent green plastic lets you see the drawing beneath for accurate placement
- Calibrated edges in 16ths of an inch double as a measuring straightedge
- Centering lines on openings help with precise alignment
- Compact 4 x 7-1/4 inch size fits easily in drafting kits and toolboxes
👎 Cons
- Limited to square shapes only, requiring separate templates for circles, triangles, or other geometries
- Maximum opening of 1-3/8 inches is too small for larger-scale drawings
- Plastic material can shift on smooth surfaces if not held firmly while tracing
- Smallest openings at 1/16 inch are difficult to use with thicker pencil leads or markers
Frequently Asked Questions
What range of square sizes does this template include?
It features 39 square openings ranging from 1/16 inch to 1-3/8 inches, giving you a wide selection of sizes for detailed and mid-scale work.
Are the edges of the template calibrated for measuring?
Yes, the edges are calibrated in 16ths of an inch, so you can use the template as a straightedge ruler in addition to drawing squares.
What material is the template made from?
It is made from translucent green plastic, which allows you to see your drawing underneath while positioning the template accurately.
Do the square openings include centering lines?
Yes, centering lines are included to help you align each square precisely over your intended location on the drawing.
What are the overall dimensions of the template?
The template measures 4 inches by 7-1/4 inches, making it compact enough to store in a drafting kit or pencil case.
