Westcott T-830 Home Furnishing Template

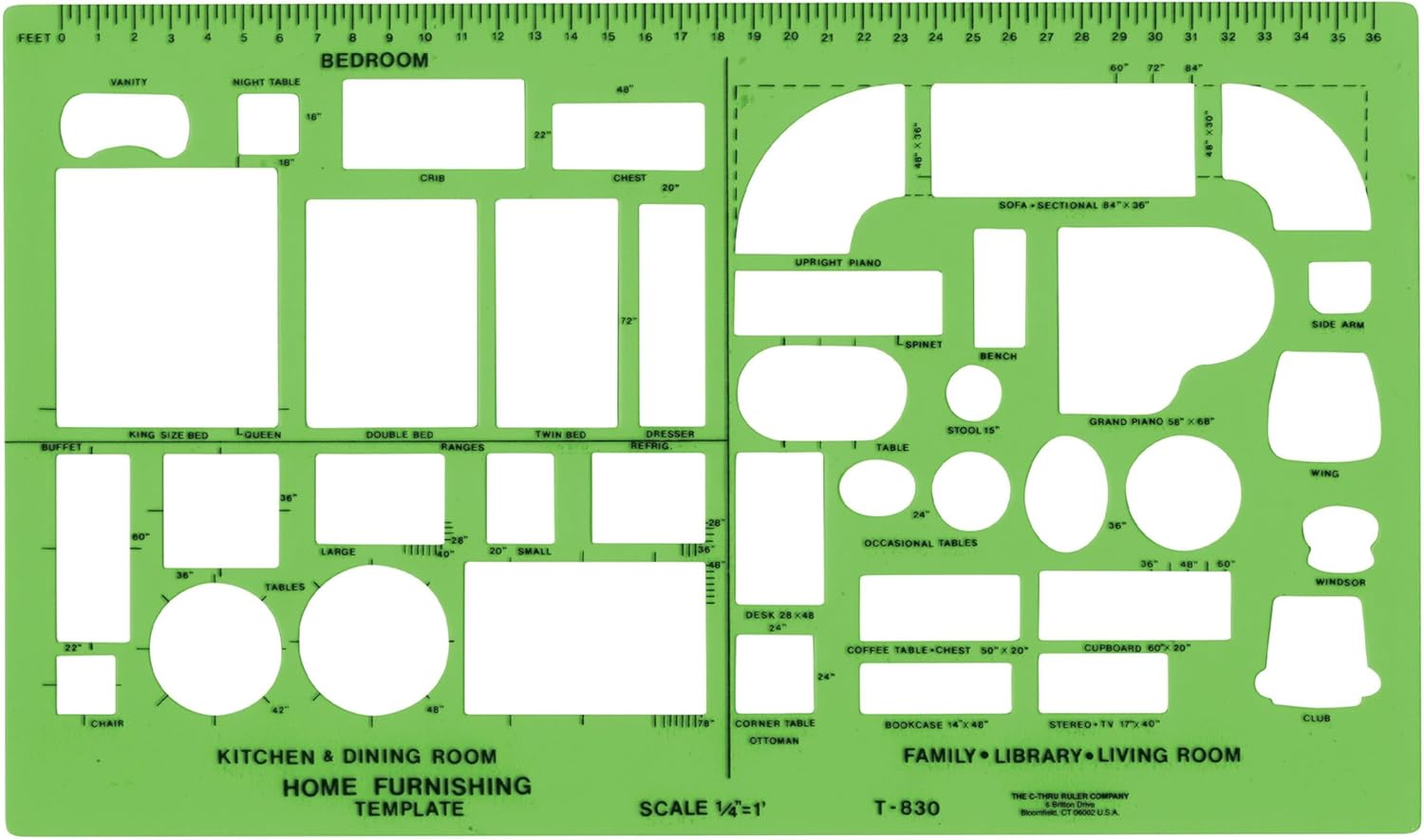

The Westcott T-830 is a single-piece drafting template aimed at anyone who needs to rough out or refine residential room layouts on paper. Its value proposition is simple: rather than sketching furniture freehand or hunting for individual templates, you get cutouts for kitchens, dining rooms, family rooms, libraries, living rooms, and bedrooms all in one translucent sheet. At ¼" to the foot scale it maps directly to the most common residential drawing standard, making it a natural fit for interior design students, architecture coursework, and homeowners doing their own renovation planning.

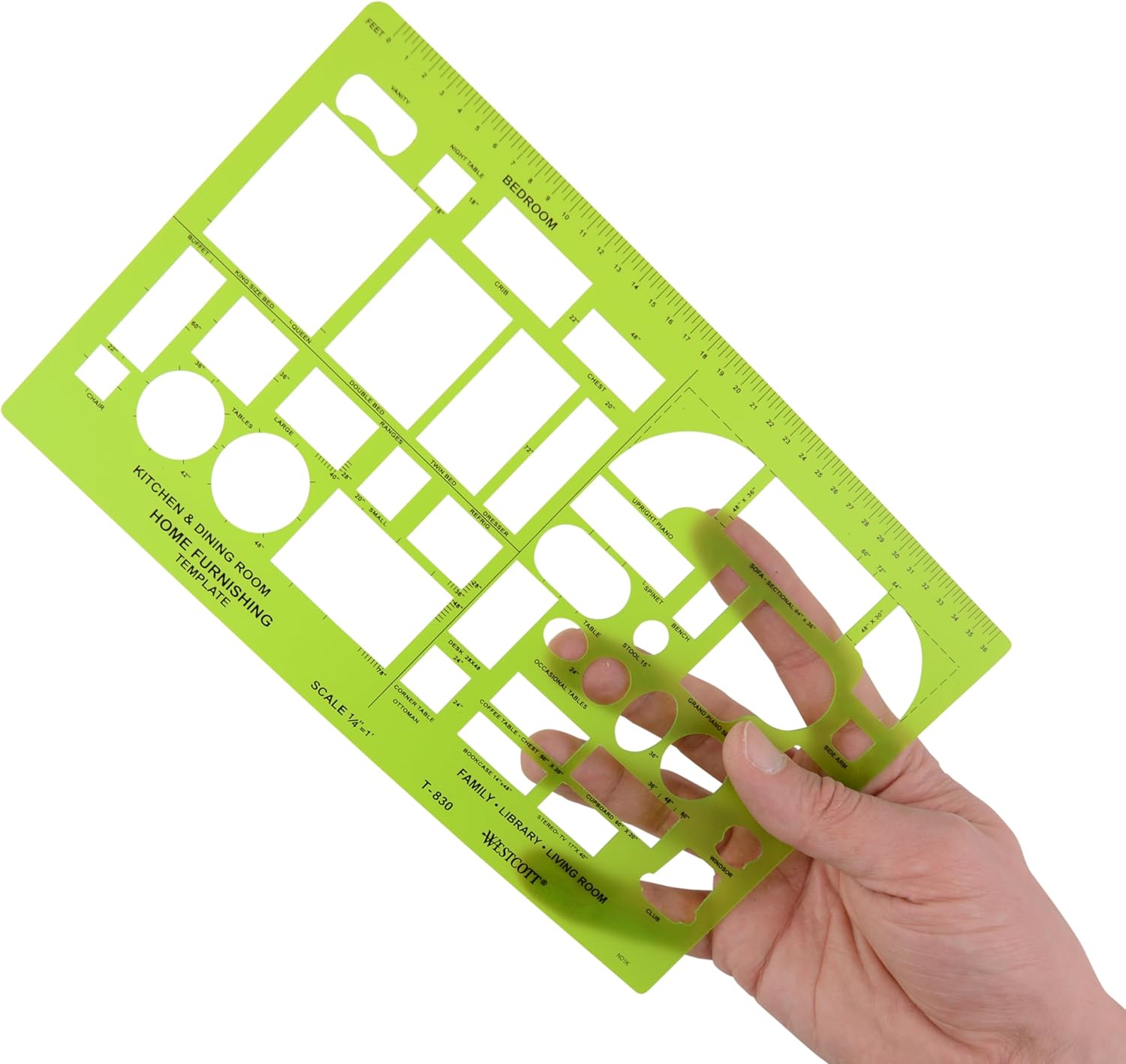

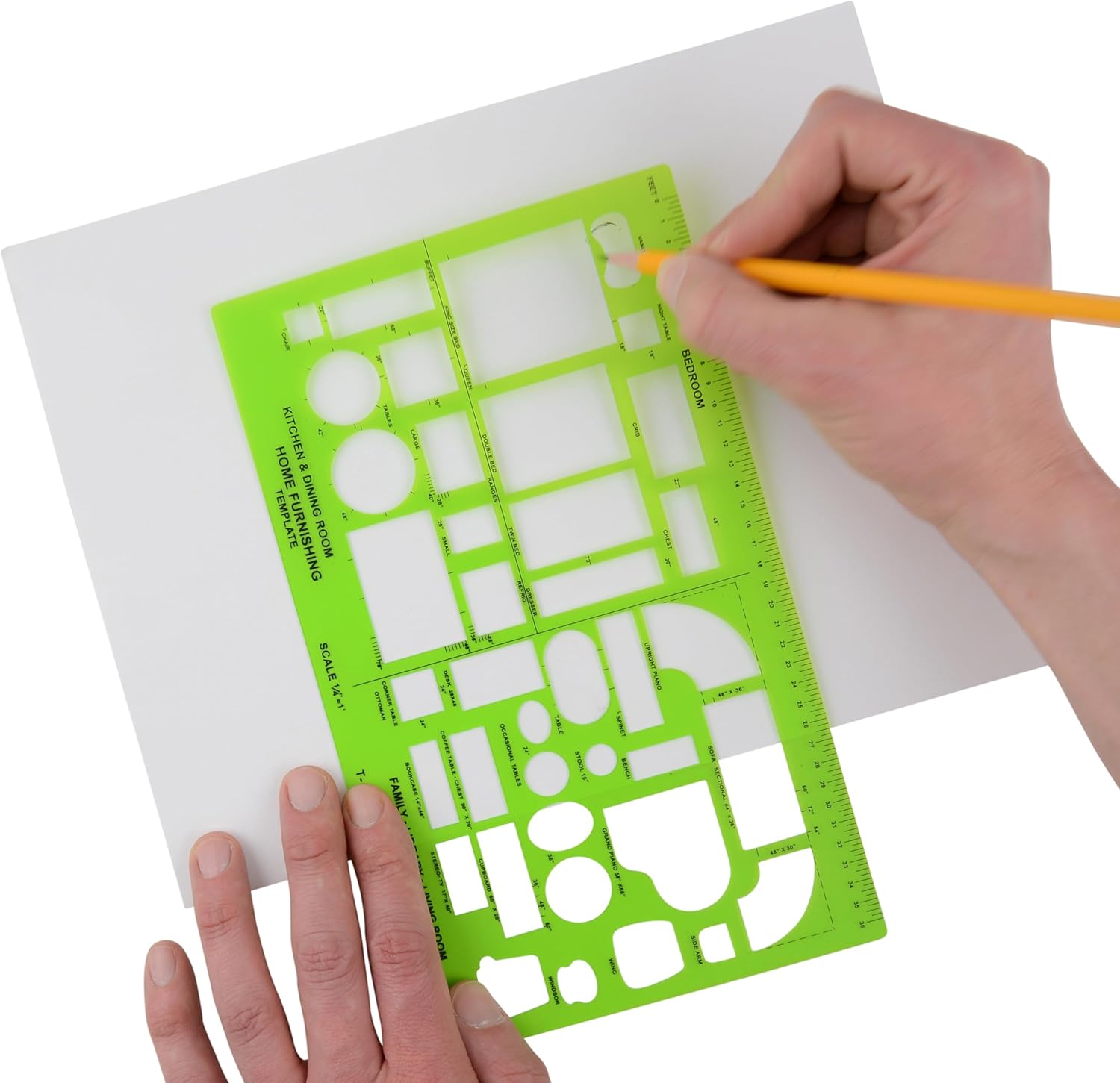

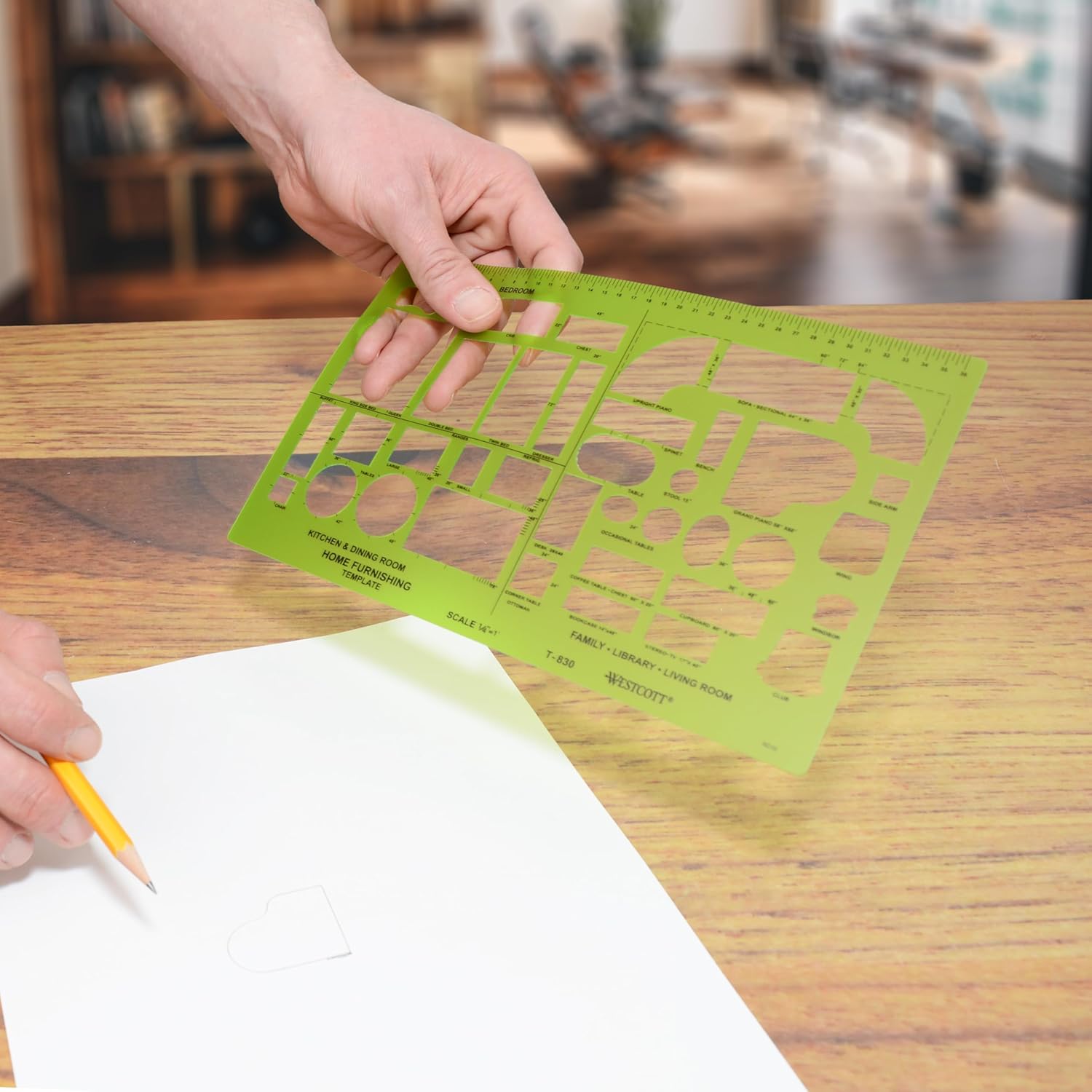

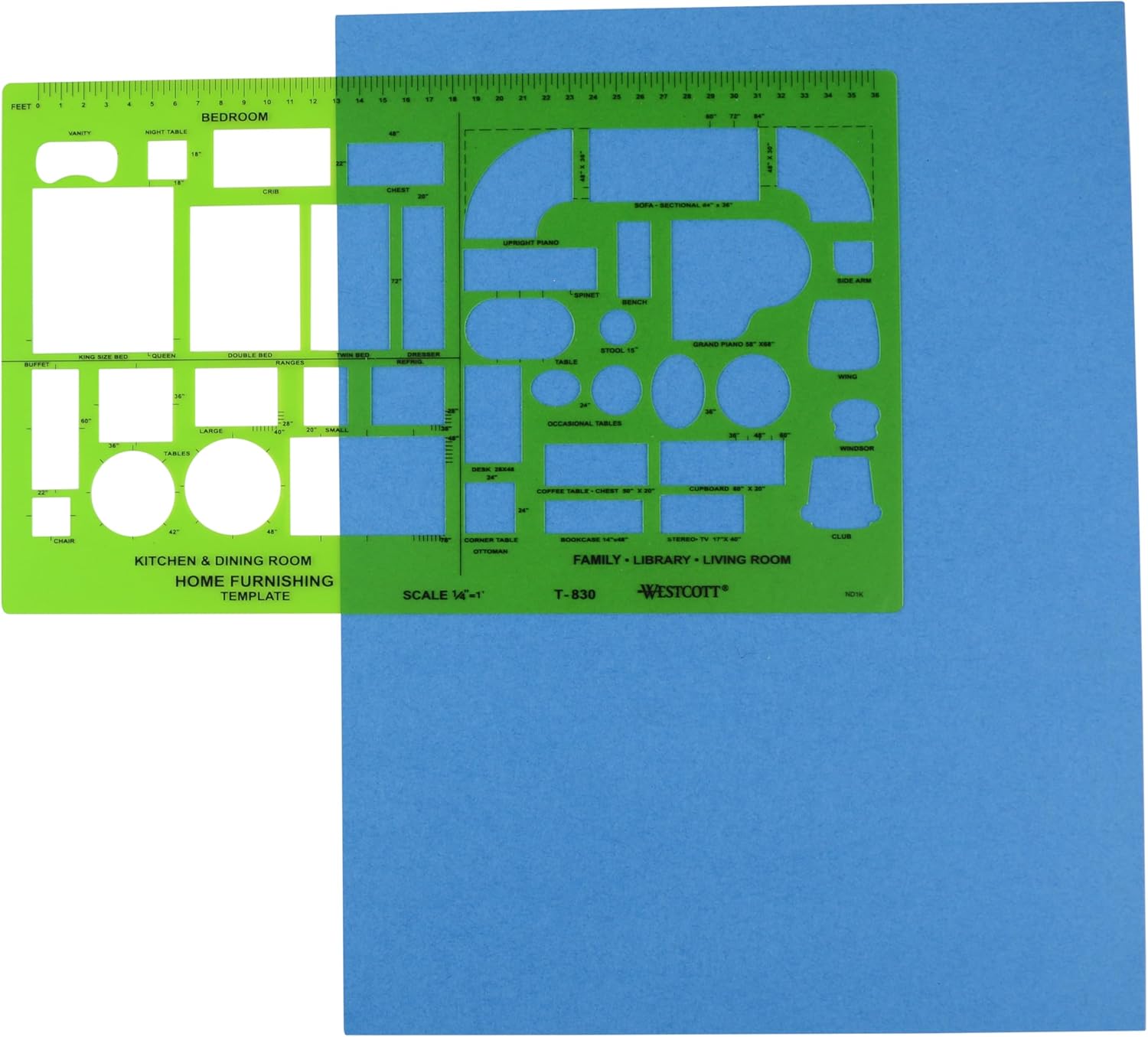

Construction is straightforward molded plastic — translucent enough to see your page beneath it, rigid enough to trace cleanly when handled with care. One edge is graduated in ¼"-per-foot increments, so it can pull double duty as a basic scale ruler without reaching for a separate tool. It won't replace digital floor planning software for complex projects, and its single-scale format is a hard limit for anyone working outside the ¼" standard. But for what it is — an affordable, portable, ready-to-use drafting aid — the T-830 covers the essentials with minimal fuss.
