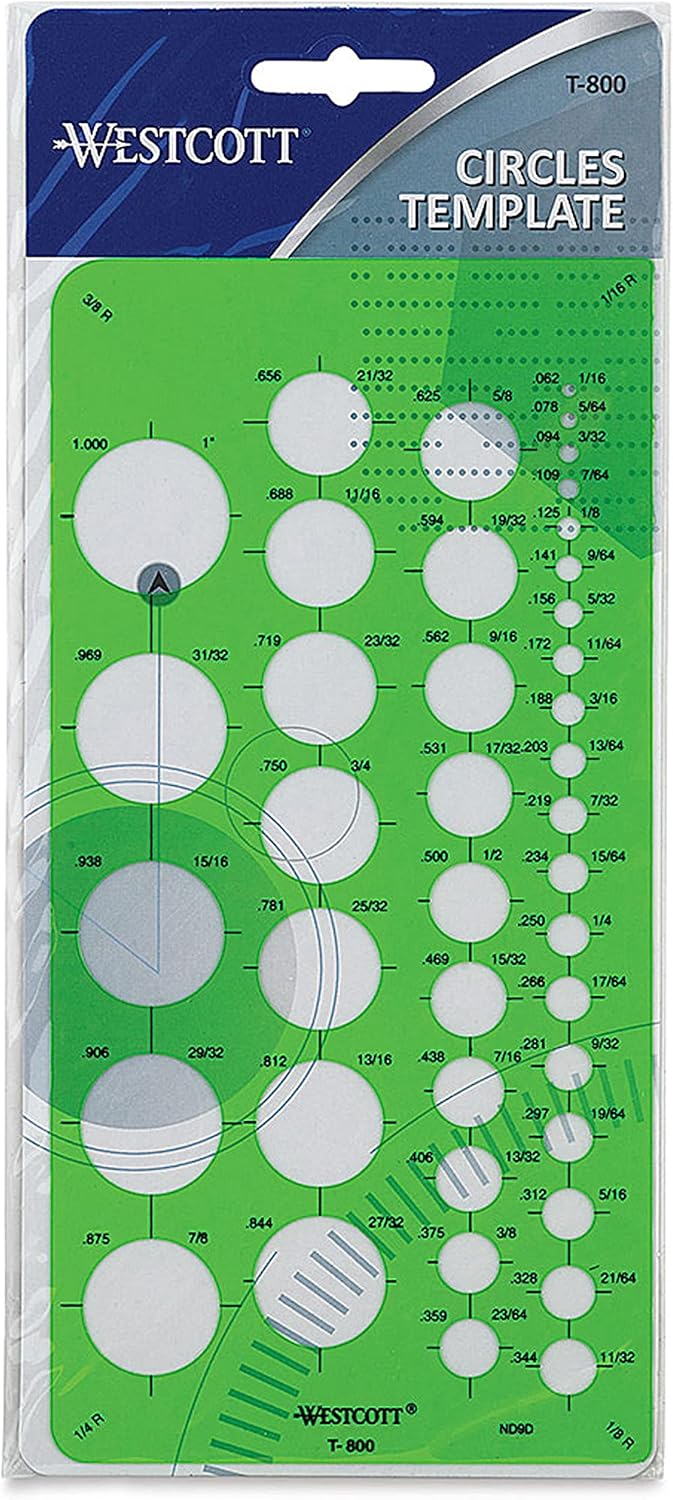

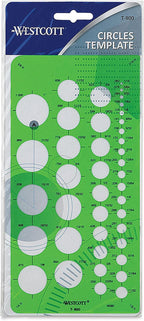

Westcott T-800 Small Circles Template Tool

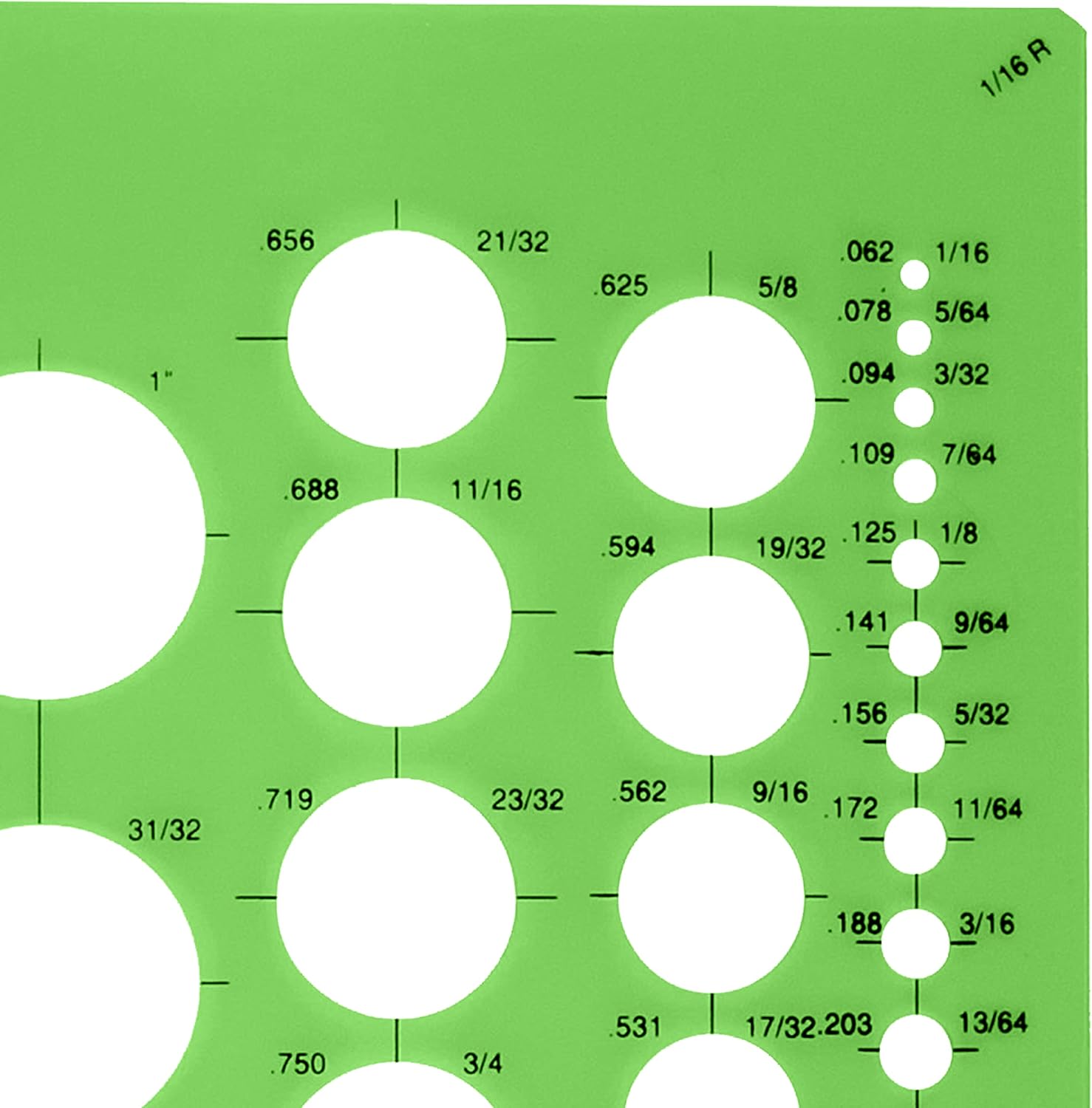

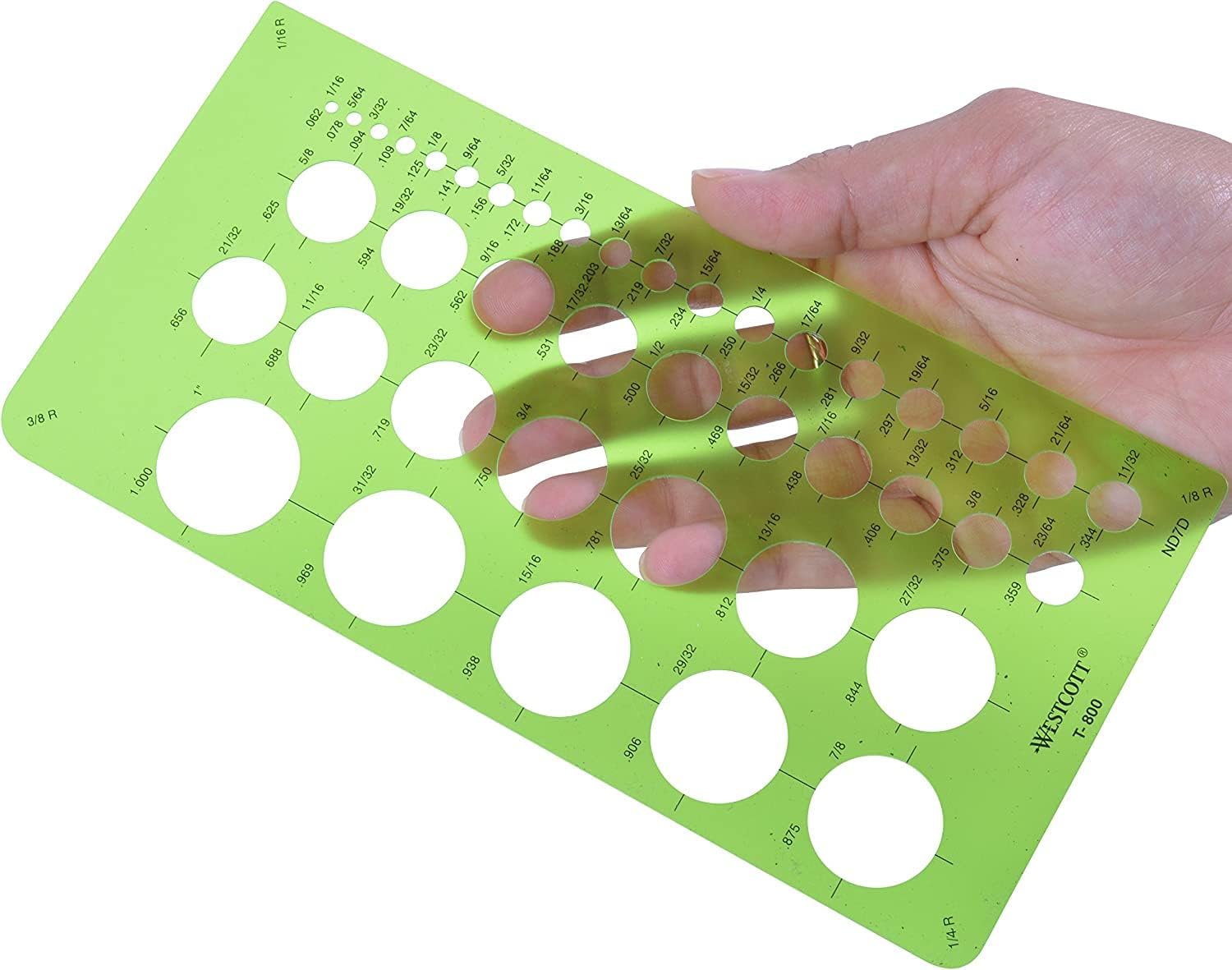

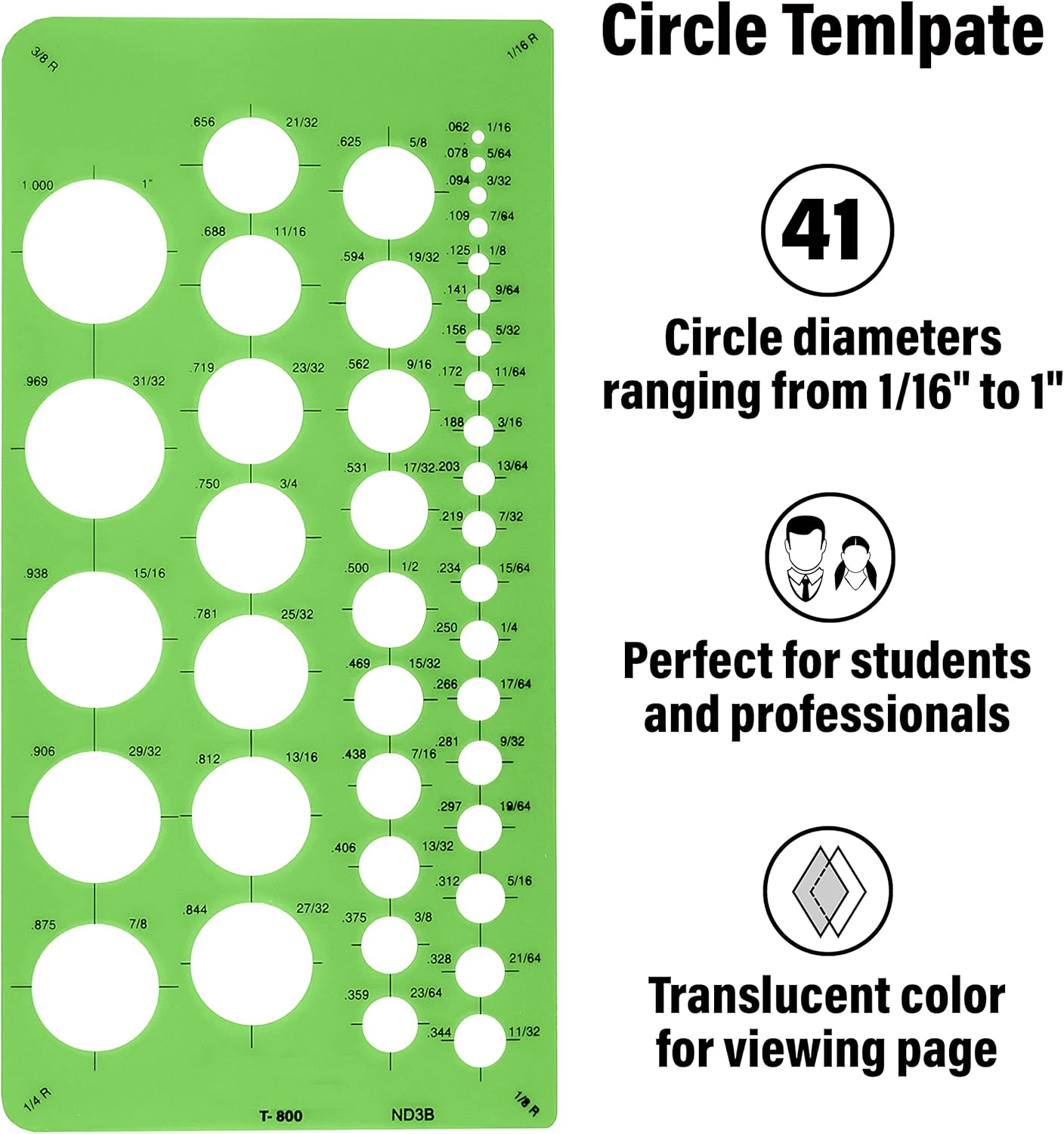

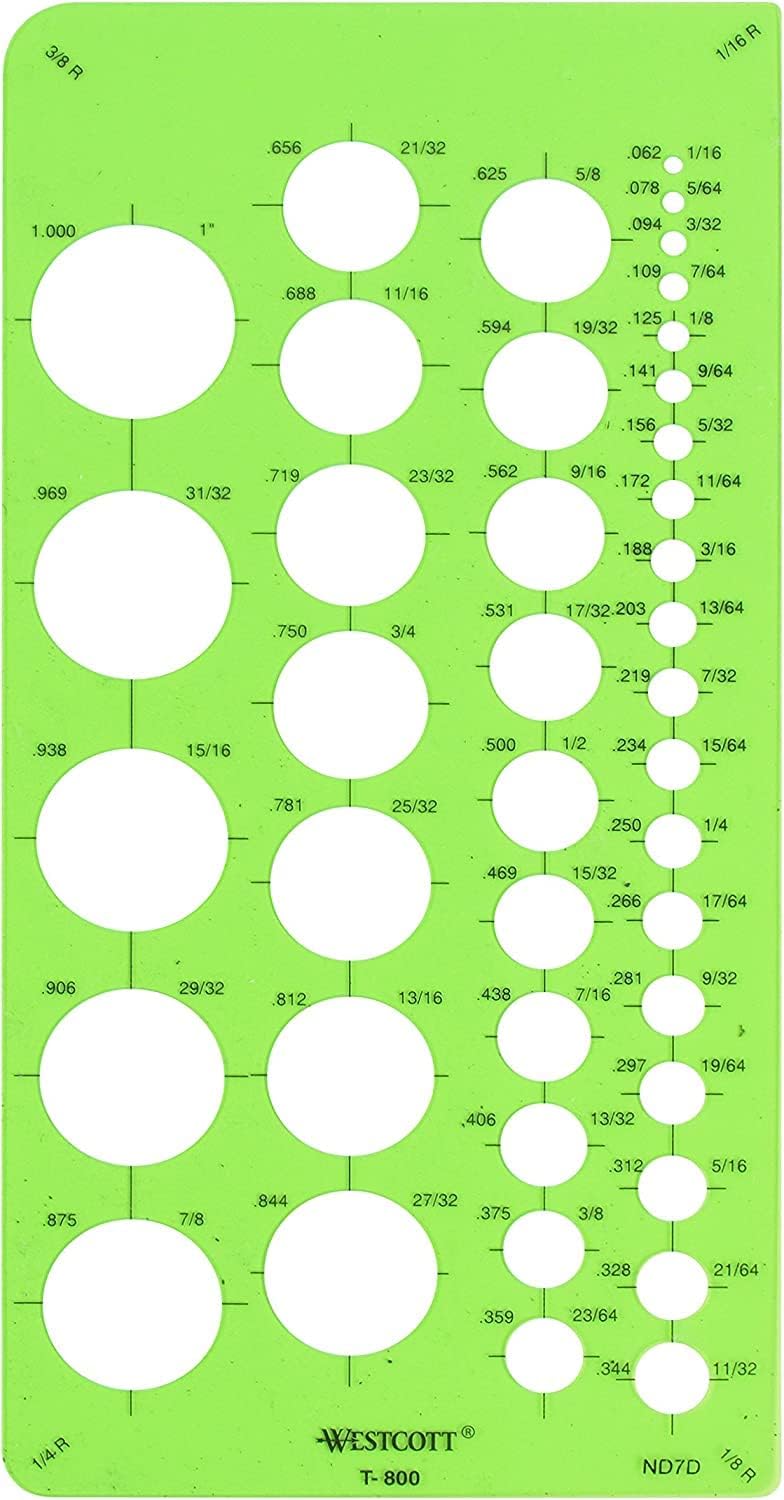

The Westcott T-800 Small Circles Template is a precision drafting tool that consolidates 41 commonly used circle diameters — from 1/16" up to 1" — into a single, easy-to-use stencil. Each circle is cleanly cut into translucent green plastic, allowing you to position the template over your work and see exactly where each shape will land before committing a line. This makes it particularly effective for technical drawing, architectural drafting, and engineering diagrams where placement accuracy matters as much as the shapes themselves.

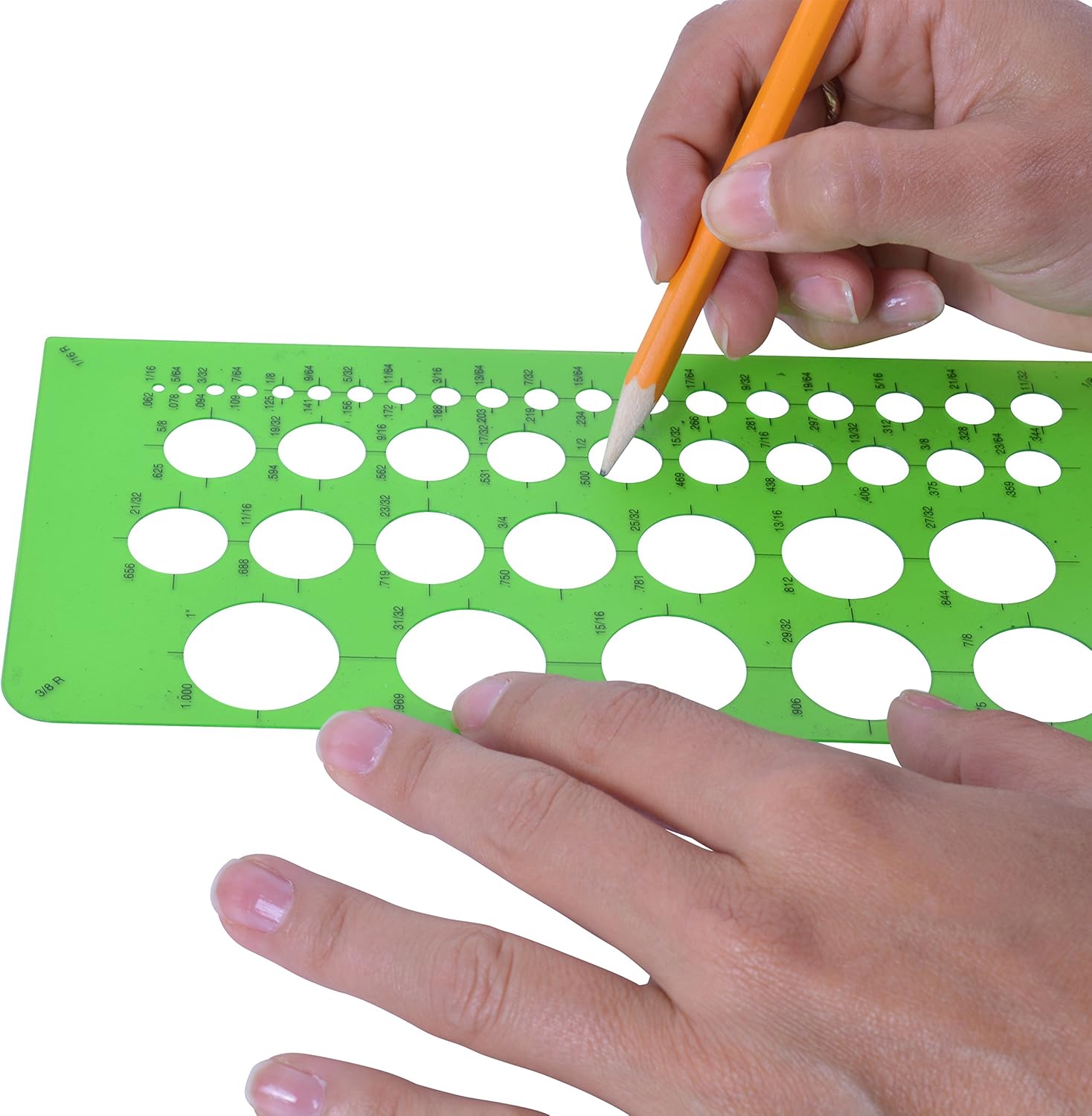

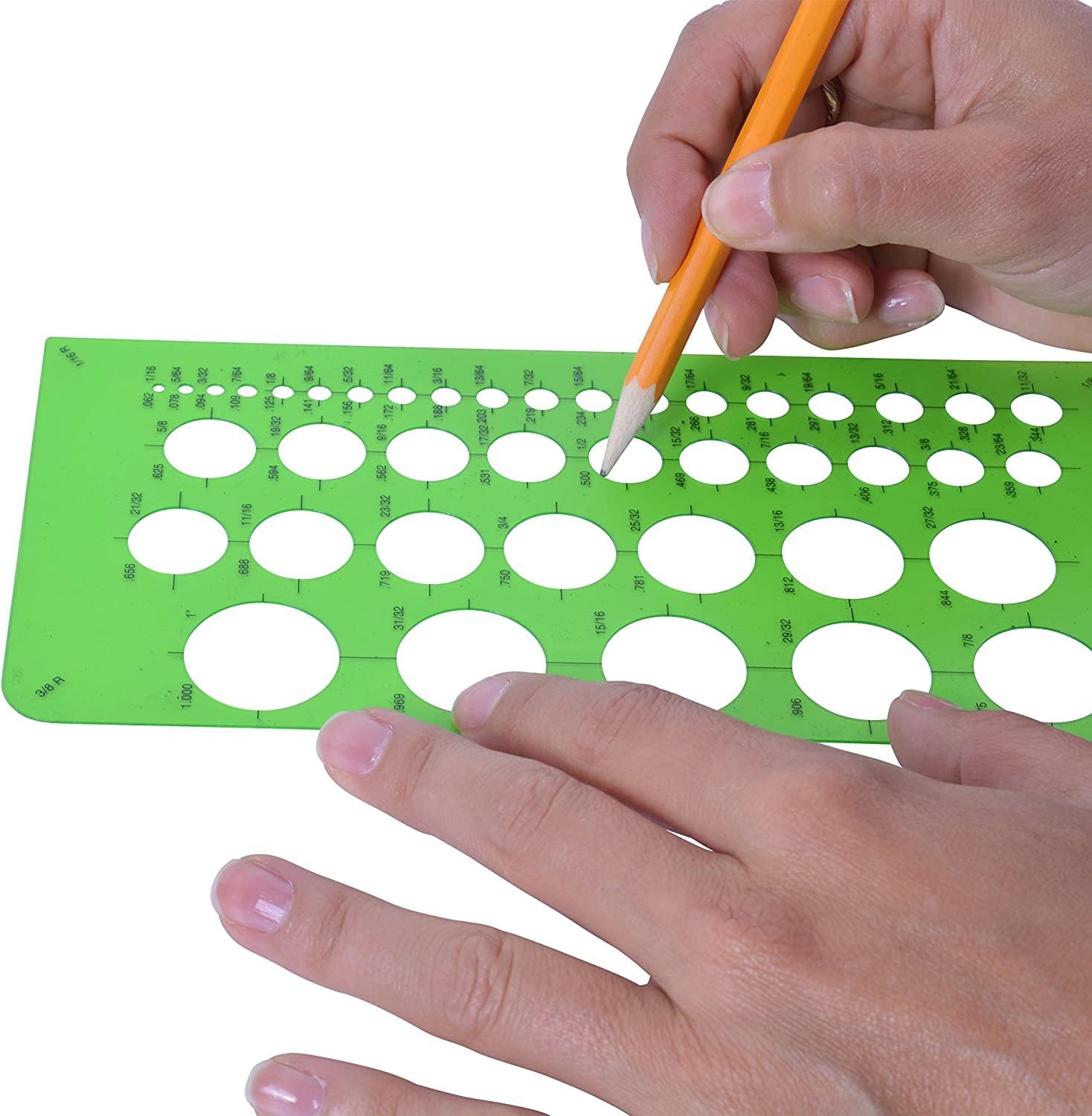

Beyond the circles, the template includes corner radii in four sizes (1/16", 1/8", 1/4", and 3/8") for drawing rounded corners, and it prints both decimal and metric equivalents directly on the surface for quick measurement reference. Whether you are a student working through geometry coursework, an architect detailing plans, or a hobbyist creating precise illustrations, the T-800 provides a straightforward, durable tool that handles a wide range of small-circle drafting tasks without needing to switch between multiple templates.
