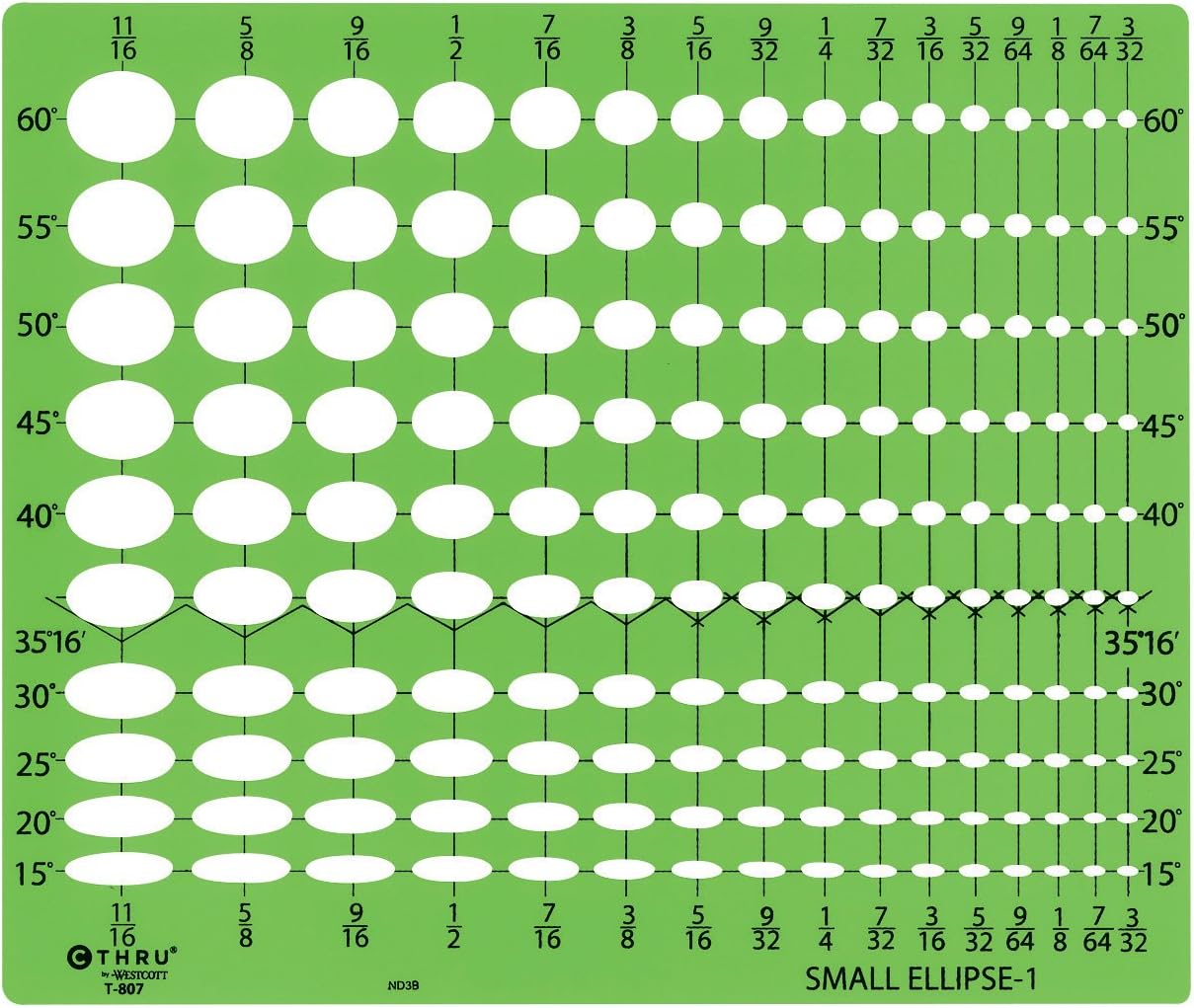

Westcott T-807 Small Ellipse Template #1 — main product image

Westcott T-807 Small Ellipse Template #1

Westcott

Westcott T-807 Small Ellipse Template #1

Name: Westcott T-807 Small Ellipse Template #1
Brand: Westcott
SKU: T-807

★★★★★4.6 (143 reviews)

A precision plastic template for drawing ellipses from 15° to 60° with center lines for accurate technical drafting.

$10.29*$12.69Save 18%

✓ In Stock on Amazon.com

View on Amazon

*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Westcott T-807 Small Ellipse Template #1 is a practical drafting tool designed to simplify the creation of accurate elliptical shapes in technical illustrations. It provides ellipse projections ranging from 15° to 60° in 5° increments, covering the angles most commonly required in mechanical drawing, architectural drafting, and design coursework. Each cutout includes center line markings, allowing users to quickly align the template with existing reference points on their work surface for clean, precise results.

Constructed from durable plastic, the T-807 is lightweight enough to carry in a drafting kit and sturdy enough to withstand regular classroom or studio use. The template also includes commonly used circle diameters, making it a versatile addition to any drafting toolkit. Whether you are a student learning the fundamentals of technical illustration or a professional producing detailed engineering drawings, this template delivers the consistency and accuracy needed for quality results.

Key Features

Small ellipse offer 15˚ to 60˚ projections in 5˚ increments

Large ellipse offer 15˚, 30˚, 35˚, 45˚ and 60˚projections in ¼" increments

Commonly used circle diameters

Center lines provided

Specifications

Brand

Westcott

Model

T-807

Material

Plastic

Ellipse Projections

15° to 60° in 5° increments

Features

Center lines provided, commonly used circle diameters

Pros & Cons

👍 Pros

Covers a wide range of ellipse angles from 15° to 60° in convenient 5° increments.
Includes center line markings for precise alignment on drawings.
Lightweight plastic construction is easy to handle and store.
Includes commonly used circle diameters for added versatility.

👎 Cons

Limited to small ellipse sizes, so larger drawings may require a separate template.
Plastic material can scratch over time with heavy use and repeated inking.
Does not include ellipse projections below 15° or above 60°.

Frequently Asked Questions

What range of ellipse projections does the Westcott T-807 offer?

The T-807 provides small ellipse projections from 15° to 60° in 5° increments, covering the most commonly needed angles for technical drawing.

Does this template include center line markings?

Yes, center lines are provided on the template, which helps with precise alignment and positioning of your ellipses on the drawing surface.

What material is the Westcott T-807 made from?

The template is constructed from plastic, making it lightweight and durable enough for repeated use in drafting and classroom settings.

Is this template suitable for professional drafting work?

Yes, the T-807 is designed for both students and professionals who need accurate ellipse projections for technical illustrations and mechanical drawings.
