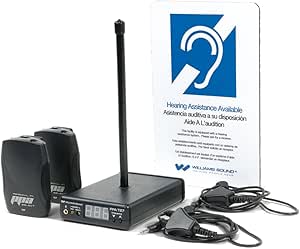

Williams Sound FM ADA Kit 1 Large Area System

Clear Communication Solution for Accessibility Compliance

The Williams Sound FM ADA Kit 1 is designed to provide clear and reliable audio communication in large areas, ensuring compliance with ADA accessibility guidelines. This kit includes a transmitter and receiver, offering a range of up to 1000 feet.

• Brand: Williams Sound
• Model: FM ADA Kit 1
• Type: Large Area Value Kit
• Range: Up to 1000 feet
• Compliance: Meets new 2010 ADA accessibility guidelines
• Origin: Made in USA

PPA R37 Receiver Specifications:

• Channels: 17, accessed via seek button in battery compartment
• Intermediate Freq.: 75 kHz
• FM Deviation: 75 kHz
• De-Emphasis: 75 µS
• AFC Range: ± 120 kHz
• Sensitivity: 2 µV at 12 dB Sinad with squelch defeated
• Input Overload: 100 mV
• Frequency Response: 200 – 15 kHz
• Modulation: FM, +/- 75 kHz peak deviation
• Signal-to-Noise Ratio: 65 dB min @ 100 uV
• Receive Antenna: Integral with earphone/headphone cord
• Audio Output: 35 mW max, peak into 16 ohms
• Output Connector: 3.5 mm stereo/mono phone jack

PPA T27 Transmitter Specifications:

• Frequency Selector: External switches, 17 channels (lockable)
• RF Field Strength: Does not exceed 80mV/m @ 3m
• Modulation: FM, 75 kHz deviation (wide–band) max.
• Stability: ± .005% over 0-50˚C
• Pre-Emphasis: 75 µS
• Frequency Response: 85Hz - 14kHz ±3dB
• Distortion: 1% Max. THD
• Microphone Input: 3.5mm mini phone jack
• Mic Input Level: 1–10 mV, nominal
• Line-Level Input: RCA Jack, Hi Z, unbal.
• Line Input Level: .1–1 Vrms, nominal
