Wooden Camera
Wooden Camera 274600 PL Mount for BMPCC 4K/6K
★★★★★
4K
Unlock PL Mount Lens Compatibility for Your BMPCC 6K The Wooden Camera PL Mount Modification Kit allows users to convert their Blackmagic Pocket Cinema Camera 6K to a professional PL Mount, opening up a world of cinema lens options. Specifications Mount Material: Stainless steel and aircraft-gr...
$159.20*$549.00Save 71%
Check availability
*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Unlock PL Mount Lens Compatibility for Your BMPCC 6K
The Wooden Camera PL Mount Modification Kit allows users to convert their Blackmagic Pocket Cinema Camera 6K to a professional PL Mount, opening up a world of cinema lens options.Specifications
- Mount Material: Stainless steel and aircraft-grade aluminum
- Compatibility: Blackmagic Pocket Cinema Camera 6K

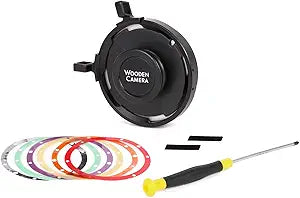

- Includes: PL port cap, shims for back focus adjustment, jeweler's screwdriver, flocking tape
- Shim Set Thicknesses: Silver .0127mm, Amber .0254mm, Purple .0381mm, Red .0508mm, Green .0762mm, Tan .1016mm, Blue .127mm
Key Features
PL MOUNT MODIFICATION KIT: The PL Mount Modification Kit (Blackmagic Pocket Cinema Camera 6K) allows users to convert their BMPCC6K camera to a PL Mount through a short modification process. Shims are provided with the kit for adjusting back focus. The Pocket Camera 6K's own EF Mount screws are used to attach the PL Mount to the camera.
EXPAND YOUR LENSES: Expand your lens choices to include the most cine-style PL lenses by replacing your Blackmagic Design Pocket Cinema Camera 6K camera's EF lens mount with this PL Mount Modification Kit from Wooden Camera. The kit includes a set of seven shims for aligning the back focus, along with all necessary tools and hardware.
REVERSED MOUNT SWAP PROCESS: The best thing about these modifications is that the lens mount swap process can be reversed. If you choose to go back to EF mount in the future, you can do it by reversing steps in the process, however, Wooden Camera warns that switching back and forth will eventually strip the plastic in your camera as the sensor block is made of a composite plastic material.
STAINLESS STEEL AND AIRCRAFT GRADE ALUMINUM: The PL mount itself is made of stainless steel and aircraft-grade aluminum and includes the PL port cap. Shims are provided with the kit for adjusting back focus and the appropriate shims are installed prior to shipping. Further adjustment should not be needed but can be checked using a wide-angle lens and a focus chart.
COMPATIBLE DESIGN: The majority of S35mm lenses are compatible, but lenses with a rear protrusion longer than 40mm measured from the PL flange are not compatible with this mount. Some lenses may not fit due to the shape of the BMPCC 6K body design.
Specifications
Product Type
PL Mount Modification Kit
Compatible Cameras
Blackmagic Pocket Cinema Camera 6K, Blackmagic Pocket Cinema Camera 4K
Materials
Stainless steel, Aircraft-grade aluminum
Included Accessories
7 shims, PL port cap, necessary tools and hardware
Rear Lens Protrusion Limit
40mm from PL flange
Installation Type
User modification (reversible)
Pros & Cons
👍 Pros
- Allows conversion of the Blackmagic Pocket Cinema Camera 6K to a PL mount, significantly expanding compatible cine-style lens choices.
- Includes a set of seven shims for precise back focus adjustment, crucial for achieving sharp focus with various PL lenses.
- Constructed from durable stainless steel and aircraft-grade aluminum, ensuring robust and long-lasting performance in professional environments.
- The modification process is reversible, allowing users to switch back to the EF mount if desired, though repeated switching is not recommended.
- Comes with a PL port cap and all necessary tools and hardware for installation, providing a complete kit.
👎 Cons
- Not compatible with lenses that have a rear protrusion longer than 40mm from the PL flange, limiting some specific PL lens choices.
- Repeated switching between PL and EF mounts is cautioned against due to potential stripping of the camera's composite plastic sensor block.
- Requires a modification process that involves disassembling the camera's existing EF mount, which might be complex for some users.
- The kit is designed for the BMPCC 6K and 4K, meaning it is not universally compatible with other camera systems.
- The description notes that some lenses may not fit due to the specific shape of the BMPCC 6K body design.
Frequently Asked Questions
What cameras are compatible with this Wooden Camera PL Mount Modification Kit?
This PL Mount Modification Kit is designed for use with the Blackmagic Pocket Cinema Camera 6K and 4K, allowing conversion to a PL lens mount.
What is included in the kit for adjusting back focus?
The kit includes a set of seven shims for precise back focus adjustment, and appropriate shims are pre-installed before shipping.
What materials are used to construct the PL mount?
The PL mount itself is crafted from high-quality stainless steel and aircraft-grade aluminum for durability and precision.
Can the camera be reverted to its original EF mount after this modification?
Yes, the lens mount swap process can be reversed, allowing you to return to the EF mount, but repeated switching is not recommended due to potential wear.
Are all PL mount lenses compatible with this modification?
The majority of S35mm lenses are compatible, but lenses with a rear protrusion longer than 40mm from the PL flange are not, and some may not fit due to the camera's body design.
What does the kit provide for installation?
The kit comes complete with the PL port cap and all necessary tools and hardware required for the modification process.
