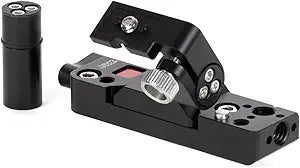

Wooden Camera Monitor Hinge Kit RED Komodo ARCA Swiss
Secure and Versatile Monitor Mounting Solution The Wooden Camera Monitor Hinge Kit provides a robust and adaptable mounting solution for your on-camera monitor. Designed for use with RED Komodo, Komodo-X, and ARCA Swiss compatible systems, this kit offers secure attachment, flexible positioning, ...
$206.99*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 26, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Secure and Versatile Monitor Mounting Solution
The Wooden Camera Monitor Hinge Kit provides a robust and adaptable mounting solution for your on-camera monitor. Designed for use with RED Komodo, Komodo-X, and ARCA Swiss compatible systems, this kit offers secure attachment, flexible positioning, and convenient accessory mounting options.
Specifications:
- Mounting: ARCA Swiss dovetail clamping slot, 1/4-20 and 3/8-16 threaded holes
- Compatibility: RED Komodo, Komodo-X, ARCA Swiss
- Includes: Top Mount, Monitor Hinge, Rubber Pad, 15mm Mounting Spud
Key Features
Monitor Hinge can attach into ARCA slot and provides a direct 1/4-20 mount for SmallHD monitors. Included rubber pad can be added for attaching third party monitors. A 15mm mounting spud is included and allows monitor arm to be quick released and attached onto Top Handle (RED Komodo) which is sold separately.
For a complete kit choose Complete Top Mount Kit (RED KOMODO, ARCA Swiss) Items like Top Handle Only and Top Plate Only can be purchased separately and installed with this device.
Specifications
Product Type
Monitor Hinge Kit
Mounting Interface 1
ARCA slot
Monitor Mount
1/4-20 mount (for SmallHD monitors)
Included Accessory
Rubber pad for third-party monitors
Quick Release Feature
15mm mounting spud (for Top Handle RED Komodo, sold separately)
Brand
Wooden Camera
Compatibility
RED Komodo, ARCA Swiss
Pros & Cons
👍 Pros
- Allows direct 1/4-20 mounting for SmallHD monitors, ensuring a secure and compatible connection.
- Includes a rubber pad that can be added for securely attaching third-party monitors.
- Features a 15mm mounting spud for quick release and attachment onto a Top Handle (RED Komodo), sold separately.
- Designed to attach into an ARCA slot, providing a versatile mounting option.
- Part of a modular system, with components like Top Handle Only and Top Plate Only available for separate purchase to build a complete kit.
👎 Cons
- The Top Handle (RED Komodo), which the 15mm mounting spud attaches to, is sold separately, requiring an additional purchase for the full quick-release functionality.
- The "Complete Top Mount Kit (RED KOMODO, ARCA Swiss)" must be chosen for a full setup, implying this is an individual component rather than an all-in-one solution.
- Specific weight capacity of the hinge is not detailed, which is critical for ensuring monitor stability.
- The materials used for the hinge construction are not specified, making it hard to assess durability or longevity.
- Beyond SmallHD, specific compatibility with other monitor brands or models is not explicitly guaranteed without the rubber pad.
Frequently Asked Questions
What is the primary function of the Wooden Camera Monitor Hinge Kit?
The primary function of the Wooden Camera Monitor Hinge Kit is to provide a versatile mounting solution for monitors, specifically offering a direct 1/4-20 mount for SmallHD monitors and adaptability for other monitors using an included rubber pad, attaching via an ARCA slot.
Is this Monitor Hinge Kit a complete solution for mounting a monitor on a RED Komodo camera?
This Monitor Hinge Kit is a component of a larger system; for a complete kit with a RED Komodo, users are advised to choose the "Complete Top Mount Kit (RED KOMODO, ARCA Swiss)," as the Top Handle is sold separately.
Can I use this hinge with monitors other than SmallHD?
Yes, while it provides a direct 1/4-20 mount for SmallHD monitors, an included rubber pad allows for the attachment of third-party monitors, increasing its versatility.
How does the 15mm mounting spud work with my camera setup?
The 15mm mounting spud is designed to allow the monitor arm to be quick-released and attached onto a Top Handle (RED Komodo), which is sold separately, offering swift transitions in your setup.
What are the benefits of attaching this hinge into an ARCA slot?
Attaching the hinge into an ARCA slot provides a widely recognized and secure mounting standard, allowing for quick adjustments and compatibility with existing ARCA-based camera rigs.
