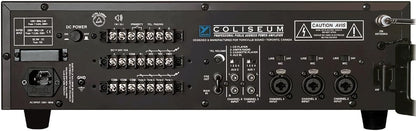

Yorkville 4334197053 CA1 70V 6-Channel PA Amplifier — main product image
Yorkville

Yorkville 4334197053 CA1 70V 6-Channel PA Amplifier

★★★★★4.1 (36 reviews)
phantom powercondenserXLR

A 6-channel, 180-watt PA amplifier with phantom power and 70V output for installed sound systems.

View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Yorkville CA1 is a 6-channel public address amplifier delivering 180 watts of mono power, built for permanent installation in churches, boardrooms, conference rooms, and similar spaces. Its input section combines XLR/TRS balanced combi-jack connectors with attenuated RCA unbalanced inputs on each channel, making it straightforward to integrate microphones alongside line-level sources like CD players, satellite tuners, and video systems. Three channels offer user-selectable phantom power, enabling direct connection of condenser microphones—the type most often found on podiums and clip-on lavalier mics—without requiring separate preamp hardware.

On the output side, the CA1 supports either a standard 4-ohm speaker load or four independent 70-volt speaker zones, giving installers the flexibility to distribute audio across multiple rooms or areas from a single amplifier. A pre-amp output is included for feeding an external power amplifier, active subwoofer, or recording equipment, allowing the system to be expanded as needs grow. Housed in a rack-mountable steel chassis, the CA1 is designed for reliable long-term operation in fixed installations where versatile mixing, phantom power, and zoned distribution are essential from a single unit.

Key Features

Versatile input mixing capabilities make the CA1 the solution for small churches, boardrooms and conference room PA applications. Unlike most installation amplifiers in this class, user selectable phantom power is available on three channels to drive condenser microphones, the type most commonly used on podiums or as a lavaliere (tie clip) microphone.

XLR / TRS balanced combi-jack inputs and attenuated RCA unbalanced inputs ensure the CA1 system can interface with any source (CD, Cassette, Satellite Tuner, DVD or video system) your installation may require.

Capable of driving either a 4-ohm speaker load, or four separate 70-volt speaker systems (one 'system' per zone), the CA1 system delivers 180 watts (mono). A pre-amp output is available to feed an auxiliary power amplifier or active subwoofer to enhance the system, or to feed video or audio recording equipment.

Specifications

Brand
Yorkville
Model
CA1
Type
Public Address / Installation Amplifier
Channels
6
Output Power
180 Watts (Mono)
Speaker Load
4-ohm or Four 70-volt speaker systems (one per zone)
Phantom Power
User selectable on three channels
Inputs
XLR / TRS balanced combi-jack, attenuated RCA unbalanced
Outputs
Speaker outputs, Pre-amp output
Chassis
Rack Mountable Steel

Pros & Cons

👍 Pros

  • Six input channels with both balanced XLR/TRS and unbalanced RCA connections handle a wide variety of sources
  • User-selectable phantom power on three channels supports condenser microphones without external preamps
  • 70-volt output with four independent zones simplifies distributed speaker installations
  • Pre-amp output allows system expansion with additional amplifiers or recording equipment

👎 Cons

  • 180 watts mono output may not be sufficient for larger venues or high-volume applications
  • No built-in wireless or Bluetooth connectivity for modern source devices
  • Single mono output means it cannot deliver discrete stereo sound to listening areas

Frequently Asked Questions

Yes, user-selectable phantom power is available on three of the six channels, allowing direct connection of condenser microphones commonly used on podiums or as lavalier mics.
It can drive a single 4-ohm speaker load or up to four separate 70-volt speaker systems, with each system assigned to an independent zone.
The amplifier accepts balanced sources via XLR/TRS combi-jack inputs and unbalanced sources via attenuated RCA inputs, accommodating microphones, CD players, satellite tuners, DVD players, and other audio equipment.
Yes, a pre-amp output allows connection to an external power amplifier, active subwoofer, or recording equipment to extend or supplement the system.
Yes, it features a rack-mountable steel chassis designed for permanent installation in equipment racks.
