Audio Cable Guide: XLR vs TRS vs TS vs RCA — When to Use Each

Walk into any recording studio and you will see four connector families on the back of nearly every box: XLR, TRS, TS, and RCA. They are not interchangeable. Using the wrong one is the difference between a clean signal and a noisy one — and in a few cases, the difference between gear that works and gear that does not.

This guide explains what each connector is, what it carries, when to use it, and the small set of mistakes that account for most "why is there hum?" support tickets. Where a number or standard is cited, the source is named inline.

Quick Decision Guide

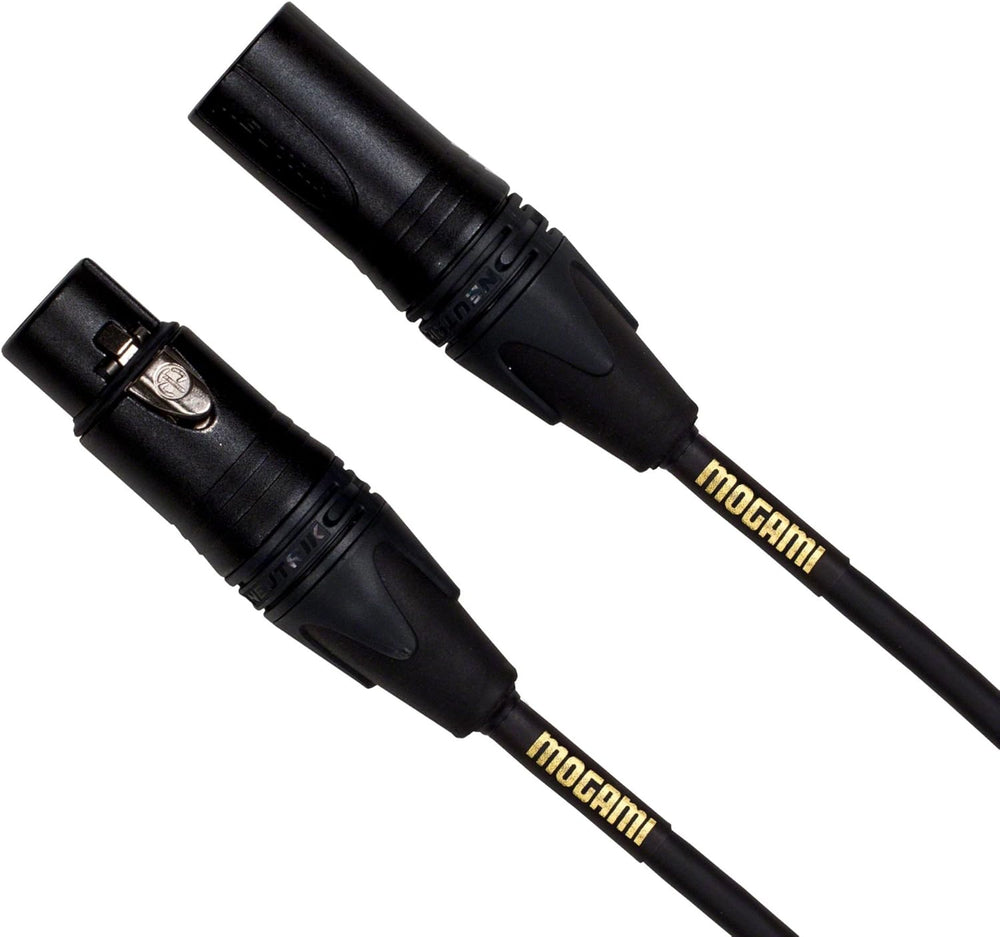

XLR: The Balanced Mic-Level Standard

XLR is the three-pin locking circular connector that defines pro audio. The pinout is fixed by international standard — pin 1 = ground/shield, pin 2 = hot (+), pin 3 = cold (−) — codified in AES14-1992 ("pin 2 hot") and harmonised internationally as IEC 60268-12. Every modern XLR mic, every modern XLR preamp, and every modern XLR cable wires to that pinout (AES Standards directory; see also Shure's tech write-up that explains how the pin 2 / pin 3 balanced pair carries audio relative to pin 1: Shure, "What is Phantom Power and why do I need it?").

What makes XLR matter is what the standard pinout enables: a balanced signal. The same audio is sent on pin 2 (hot) and pin 3 (cold) with opposite polarity. Any electromagnetic interference picked up along the cable run hits both conductors equally; the differential receiver flips one back and sums them, which doubles the audio and cancels the noise. That is why XLR runs are reliable at long distances, and why microphones — which produce extremely low-level signals — almost always use XLR.

The same balanced pinout is what allows the cable to carry phantom power (P48, defined in IEC 61938) without disturbing the audio: per Shure's tech documentation, +48 V DC is applied equally to pins 2 and 3, with pin 1 as the return, so the differential input sees no DC because both signal pins sit at the same potential (Shure, "What is Phantom Power"). For a deeper treatment of phantom power and ribbon-mic risks, see article 0027.

Practical implications:

• If you own a passive ribbon (Royer R-121, AEA R84, Coles 4038, sE Voodoo, Cascade Fat Head), follow the disable-and-wait protocol above before plugging into any XLR input that could have phantom enabled. Per Royer Labs' technical bulletin, electrically shorted, damaged or improperly wired microphone cables can allow phantom power to reach the ribbon element — patch-bay insertion is the most commonly cited damage scenario (Royer Labs, "Ribbon Mics and Phantom Power"). Production Expert covers the same issue and notes that the risk is not a myth for vintage ribbons or cross-patched signal paths (Production Expert, "Phantom Power And Ribbon Microphones — The Myth Busted!"). For a Tier-1 review of the R-121 itself, see Sound on Sound's Royer R121 review.
• For high-RF environments, quad-conductor "star-quad" XLR cables (Mogami W2534, Canare L-4E6S) are the standard recommendation. Mogami's product documentation states that the W2534 / Neglex Quad construction provides a typical signal-to-noise improvement of 10–20 dB over equivalent twisted-pair cables in RFI-heavy installations (Mogami, Neglex Quad cable category page (manufacturer-stated)).
• The locking latch on XLR is not cosmetic — it prevents accidental disconnection during a take or a live performance, and it keeps phantom-power connections stable.

TRS: One Connector, Two Different Jobs

TRS stands for Tip-Ring-Sleeve, the three contact bands on a 1/4" (or 3.5 mm) jack. The connector itself is just a connector; what it carries depends on how the cable is wired and what the source/destination expect.

TRS as balanced mono

In studio gear, TRS is most often balanced line-level mono: tip = hot (+), ring = cold (−), sleeve = ground. Electrically this is the same balanced topology as XLR — same noise rejection, same long-run capability. Studio monitors, balanced line outputs from interfaces, send/return loops, and DB25 snake breakouts all use balanced TRS.

TRS as unbalanced stereo

The exact same connector also carries unbalanced stereo: tip = left, ring = right, sleeve = ground. This is how nearly every consumer headphone wires, how aux cables work, and how the headphone output of an interface delivers L/R. The wiring is incompatible with balanced mono — plugging a stereo headphone into a balanced output sends only the left channel and shorts the right to ground.

TRRS: a fourth contact

1/8" connectors with a fourth band (TRRS) add a microphone or video return — used on phone headsets, smartphone-attached lavalier mics, and the like. They are not interchangeable with three-conductor TRS.

Practical implications:

• Balanced TRS line cables and unbalanced TRS instrument cables look identical and are wired differently. Patch a stereo headphone into a balanced output and you get half the signal; patch a balanced cable into a stereo headphone jack and you sum L+R and lose the right channel.
• For monitor connections, prefer balanced TRS or XLR over TS. Unbalanced runs to powered monitors are typically the single most common source of computer-generated noise in home studios (Sound on Sound, "Q. Is there a better balanced-to-unbalanced cabling solution?").

TS: Unbalanced, Instrument-Level, Short

TS (Tip-Sleeve) is the simplest of the four: tip = signal, sleeve = ground. No balanced pair, no stereo. It is what every electric guitar cable on Earth uses, and what most analog effects pedals use for input and output.

Two important characteristics distinguish TS from TRS-balanced:

• Unbalanced. No common-mode rejection. The cable acts as an antenna for any nearby EMI, so runs are practical only over short distances. The widely repeated rule of thumb in the pro-audio literature is to keep unbalanced instrument-level TS runs under approximately 20–25 ft; longer requires a DI box to convert to balanced. Sound on Sound's reader-question archive discusses this directly when readers ask about long unbalanced runs and balanced-to-unbalanced cabling solutions (Sound on Sound, "Q. Is there a better balanced-to-unbalanced cabling solution?").
• Instrument-level / high-impedance. Electric guitar pickups output a high-impedance signal that is incompatible with line-level inputs. Plug a guitar straight into a line input and the signal will typically be quiet and tonally dark. Use the "Hi-Z" / instrument input on your interface, or use a passive or active DI to convert. Radial Engineering's reference doc explains the impedance-conversion role of a DI in detail (Radial Engineering, "What is a DI?").

Use TS for: electric guitars and basses, instrument-amp inputs, individual pedal patch cables, and synthesizer outputs that are explicitly specified as unbalanced TS. Use TRS or XLR for everything else.

RCA: Consumer Audio and DJ Gear

RCA (sometimes called "phono" connectors) use a coaxial design — center pin for signal, outer barrel for ground — and are almost always used in stereo pairs (red = right, white or black = left). They are unbalanced and line-level.

You will see RCA on:

• Consumer hi-fi gear (CD players, AV receivers, integrated amps)
• DJ mixers and turntables (RCA is still the dominant deck-to-mixer connection)
• Older / vintage tape machines and outboard
• The "consumer line" inputs/outputs on some pro audio interfaces (often labelled −10 dBV)

Two RCA-specific gotchas:

• Phono level vs. line level. A turntable with a moving-magnet cartridge outputs phono-level signal — much lower than line level, and with RIAA equalization that has not yet been applied. It must run into a "phono" input or an external phono preamp. Plug a turntable into a regular line input and it will typically be quiet and tonally wrong (the RIAA equalization curve is the published industry standard for vinyl playback — see RIAA equalization, encyclopedic summary for the curve and history; pro discussion of phono-stage requirements appears throughout Sound on Sound's Q&A archive).
• Consumer (−10 dBV) vs. pro (+4 dBu) levels. RCA gear typically runs roughly 12 dB hotter or quieter than pro balanced gear depending on direction (the exact figure is approximately 11.78 dB because the two standards reference different 0 dB points, per Sweetwater's signal-levels primer: Sweetwater InSync, "Understanding Signal Levels in Audio Gear"). A pro line output into a consumer RCA input may overload it; a consumer RCA output into a pro line input will typically be quiet. Most modern interfaces handle this transparently; older gear may need a level matcher.

Balanced vs. Unbalanced: The One Concept That Matters

Almost every cable mistake collapses to this single distinction. A balanced connection sends the audio twice (with opposite polarity) plus a separate ground; the receiver subtracts the two and any noise picked up equally on both wires cancels out. An unbalanced connection sends the audio once with the cable shield doing double duty as both the ground and the return path; any noise picked up on the shield ends up directly in the signal.

The differences in practice:

The length figures above are typical industry rules of thumb, not absolute limits — exact useful length depends on cable construction, source impedance, and the local RF environment. Sound on Sound's archive treats these as practical guidelines rather than hard physical limits (Sound on Sound, "Q. Is there a better balanced-to-unbalanced cabling solution?").

Common Misconceptions

"A TS cable will work fine in a balanced TRS jack — it just loses the noise rejection." Sometimes, but not always. A TS plug shorts the ring (cold/−) to the sleeve (ground) when seated. On many balanced outputs that simply unbalances the signal cleanly; on a few designs (especially cross-coupled output stages) it can stress or shut down the output stage. The safe rule: use TRS where the connection is specified as balanced.

"Expensive cables sound better." Within a build-quality threshold, no — and there is no Tier-1 published double-blind test that has shown otherwise. Cable quality matters for durability, shielding effectiveness, connector reliability, and impedance consistency on long digital runs, not for analog tone. Buy cables on construction quality, not boutique branding.

"All XLRs are wired the same." Pinout, yes (AES14 is universal — AES Standards directory). Wiring topology, no — quad-conductor "star quad" cable (e.g. Mogami W2534) uses four conductors paired diagonally for materially better RF rejection than standard two-conductor XLR cable; Mogami's product documentation cites a typical 10–20 dB SNR improvement in RFI-heavy environments (Mogami, Neglex Quad cable page (manufacturer-stated)).

"Phantom power damages dynamic mics." Per Sound on Sound's Hugh Robjohns, modern dynamic mics with properly balanced XLR outputs can be plugged into a phantom-on input safely — this is standard practice in BBC radio and TV facilities, where phantom is left permanently on and engineers swap dynamic, condenser and ribbon mics throughout the day (Sound on Sound, "Q. Is it safe to apply phantom power to dynamic mics?"). Shure's own documentation echoes this: a balanced dynamic microphone is not affected by phantom power because the two signal pins sit at the same DC potential (Shure, "What is Phantom Power"). The damage cases are passive ribbon mics in cross-patch or miswired-cable scenarios, vintage gear with non-standard wiring, and any dynamic connected via a TS-to-XLR adapter that shorts pin 3 to ground.

"RCA is obsolete." Not in DJ booths, not on turntables, not on most home A/V gear. It is "consumer" rather than "pro," but it is current and widely supported.

When This Affects You — Practical Examples

• You bought a condenser mic and you hear nothing: verify phantom power is enabled on the channel, the cable is properly wired XLR, and nothing in the chain is converting to TS.
• You hear computer noise through your monitors: check whether your interface-to-monitor connection is balanced TRS (or XLR) end-to-end. An unbalanced TS cable on that path is typically the single most common cause (Sound on Sound, balanced cabling Q&A).
• You own a passive ribbon mic and a global-phantom interface: route the ribbon to a separate phantom-off preamp, or use the disable-wait-connect protocol every time. Per Royer Labs, the highest-risk scenario is connector seating with phantom live — pulse-bounce on contact mate is what reaches the ribbon (Royer Labs, "Ribbon Mics and Phantom Power").
• You need a 50-ft guitar run: use a DI box at the guitar end to convert to balanced low-impedance, run XLR for the long distance, and re-amp at the destination if needed. Do not run a 50-ft TS cable — the high-impedance signal loses high-frequency content over long unbalanced runs (Radial Engineering, "What is a DI?").
• Your turntable sounds quiet and thin into your interface: you are missing a phono preamp. RCA from a moving-magnet turntable needs phono-stage RIAA equalization before it hits a line input (RIAA equalization reference).

Sources & Citations

1. AES Standards directory (AES14-1992 XLR pin assignments — "pin 2 hot"), aes.org/standards (accessed 2026-04-20)
2. Shure, "What is Phantom Power and why do I need it?" (Shure tech FAQ — pin 2 / pin 3 balanced phantom delivery, dynamic mic compatibility), shure.com (accessed 2026-04-20)
3. Royer Labs, "Ribbon Mics and Phantom Power" (Royer technical bulletin — passive ribbon damage modes, patch-bay risk), royerlabs.com (accessed 2026-04-20)
4. Production Expert, "Phantom Power And Ribbon Microphones — The Myth Busted!" (Tier-2 pro audio publication), production-expert.com (accessed 2026-04-20)
5. Sound on Sound, "Royer R121" review (Hugh Robjohns / Paul White), soundonsound.com (accessed 2026-04-20)
6. Sound on Sound, "Q. Is it safe to apply phantom power to dynamic mics?" (Hugh Robjohns), soundonsound.com (accessed 2026-04-20)
7. Sound on Sound, "Q. Is there a better balanced-to-unbalanced cabling solution?" (cable length, balanced vs. unbalanced practical limits), soundonsound.com (accessed 2026-04-20)
8. Mogami, Neglex Quad (W2534) microphone cable category page — manufacturer-stated 10–20 dB SNR improvement over twisted pair in RFI environments, mogamicable.com (accessed 2026-04-20)
9. Radial Engineering, "What is a DI?" (high-Z to low-Z impedance conversion for long cable runs), radialeng.com (accessed 2026-04-20)
10. Sweetwater InSync, "Understanding Signal Levels in Audio Gear" (+4 dBu vs −10 dBV reference levels — ~11.78 dB difference), sweetwater.com (accessed 2026-04-20)
11. RIAA equalization reference (curve and history of the playback EQ standard required for moving-magnet phono playback), en.wikipedia.org/wiki/RIAA_equalization (accessed 2026-04-20)

Last verified: 2026-04-20
