How to Upgrade Your GPU: PSU Sizing, 12VHPWR, Clearance, and Driver Migration

Introduction

A GPU upgrade delivers the highest single-component gaming performance return in 2026, but it is also the upgrade with the most prerequisite checks before the hardware arrives. Unlike a RAM or SSD swap — where almost any compatible part drops in cleanly — a GPU upgrade requires verifying four independent constraints before purchasing: power supply capacity, power supply connector compatibility, physical case clearance, and driver migration procedure. Getting one of these wrong means either a GPU that cannot run at full capability, a connector fire risk, a GPU that physically does not fit, or a display that shows nothing after install. This guide covers all four before the physical installation steps.

In terms of upgrade economics, the highest-value jumps in 2026 are across two generations: a 3060 or 3070 owner stepping up to an RTX 4070 or RTX 4080, or an RX 6700 XT owner moving to an RX 7900 XTX. The RTX 4090 and flagship workstation-class GPUs deliver professional-grade performance at professional prices — they are correct for creative workloads and 4K gaming at maximum settings, but a mid-range upgrade target for most users is the 4070 or 4070 Super tier. According to AnandTech's RTX 4070 review, the Ada Lovelace architecture delivered a substantial improvement in performance-per-watt over Ampere, making it one of the most efficient mainstream GPU generations in NVIDIA's history. TechPowerUp's RX 7900 XTX review similarly noted AMD's RDNA 3 architecture achieved competitive rasterization performance against the RTX 4080 at a lower price point.

Prerequisite Checks Before You Purchase

1. PSU Wattage — Total System Draw Plus Headroom

GPU TDP ratings are useful for comparisons but do not represent the actual peak power demand during gaming. Modern high-performance GPUs exhibit transient power spikes — brief current draw events lasting milliseconds — that can exceed TDP by 30–50% or more. According to TechPowerUp's review methodology, accurate GPU power measurement requires monitoring peak transient draw, not just average TDP. NVIDIA's own recommended system power guidelines for the RTX 4070 tier call for a 650W PSU, with the RTX 4080 requiring 750W and the RTX 4090 requiring 850W in total system configurations. These recommendations already account for typical transient behavior.

The safe approach is to calculate total system draw — CPU TDP (or measured system power at load) plus GPU TDP — and add 150–200W of headroom to account for transient spikes and future component additions. For a system with a 125W TDP CPU and an RTX 4070 (200W TDP), the math is 125 + 200 + 175W headroom = 500W minimum; a 650W PSU is the appropriate choice. For an RTX 4090 system (450W TDP at peak), a 850W PSU is the minimum and a 1000W unit provides proper headroom. Undersized PSUs do not simply refuse to boot — they may boot and fail under load, producing system crashes, artifacting, or GPU throttling that mimics driver bugs.

2. PSU Connectors — 12VHPWR / 12V-2×6 vs. 8-Pin Adapters

NVIDIA's RTX 4000 series introduced the 16-pin 12VHPWR connector (later revised as 12V-2×6 for improved strain-relief geometry), rated for up to 600W through a single connector. RTX 4090, 4080, and 4070 Ti cards ship with 12VHPWR or 12V-2×6 connectors as the primary power input. Most PSUs manufactured before 2023 do not include a native 12VHPWR cable — they include a PCIe 8-pin adapter that the GPU box ships with, combining multiple 8-pin connectors into the single 16-pin header.

Early reports of 12VHPWR connector melting on RTX 4090s in late 2022 were investigated by multiple sources, including coverage by TechPowerUp, which attributed the failures primarily to inadequately seated connectors — specifically, connectors inserted at an angle or without full positive engagement, which caused resistive heating at the pins. The connector revision to 12V-2×6 added a slightly different spring-retention mechanism and extended the sensing pins. The correct installation practice is: seat the 12VHPWR or 12V-2×6 connector fully until the retention feature is engaged with no visible gap between the connector body and the GPU's plastic shroud. Do not strain-route the cable at a sharp angle immediately after the connector exit — the cable must exit at a gentle curve. If the GPU ships with a multi-8-pin-to-12VHPWR adapter, using the included manufacturer adapter is preferable to third-party cables for the initial installation.

3. Physical Clearance — Length, Height, and Slot Width

Flagship and performance-tier GPUs have grown significantly in physical size. Many RTX 4080 and 4090 cards exceed 340mm in length — longer than the internal drive bay-to-PCIe-slot clearance in compact mid-tower and small-form-factor cases. Before purchasing, measure the internal GPU clearance in the case with the existing card removed: measure from the inside of the front panel (or front drive bay cage if present) to the PCIe slot center, along the bottom of the PCIe lane. Check the target GPU's listed dimensions against this measurement, adding 10mm of margin for cable routing.

Height is the second dimension: some boards place M.2 heatsinks, capacitors, or PCIe power connectors directly beside the x16 slot, limiting available height for 3-slot (or 3.5-slot) GPUs. Check the GPU's listed slot width and compare against the physical spacing in the case. Depth (thickness) is less commonly a problem but matters in micro-ATX builds where adjacent expansion slots are occupied.

4. PCIe Slot Generation and Lane Availability

Virtually all consumer GPUs are PCIe x16 devices, but the PCIe generation of the motherboard's primary x16 slot determines maximum theoretical bandwidth: PCIe 4.0 x16 provides 32 GB/s, versus PCIe 3.0 x16 at 16 GB/s. In practice, as of the RTX 4000 and RX 7000 GPU generations, the performance delta between Gen 3 x16 and Gen 4 x16 is modest — typically under 3–5% in most gaming workloads — because GPU memory bandwidth far exceeds what the PCIe bus transfers in steady-state gaming. The constraint is only relevant for applications that perform large GPU-to-CPU data transfers (certain compute workloads, capture cards in the adjacent slot). For a standard gaming GPU upgrade, PCIe 3.0 x16 is not a meaningful bottleneck.

One scenario to check: some motherboards — particularly B550 and earlier — share PCIe lanes between the primary x16 slot and one or more M.2 slots. Populating certain M.2 slots can drop the primary x16 slot from x16 to x8 mode. Consult the board's manual to confirm the lane topology before installing a new GPU alongside a recently added M.2 drive.

Safety

Power off fully and disconnect the PSU power cable before removing or installing any PCIe card. Do not remove the GPU with the system powered — there is no hot-swap capability on consumer PCIe slots. Anti-static precautions apply: discharge by touching the bare chassis with the PSU switch off and cable connected for grounding, then handle the GPU by the PCB edges and bracket, not by the cooler fins or memory modules. The GPU is the largest and most expensive single component in most systems — treat it accordingly.

Tools and Supplies Needed

• Phillips #1 screwdriver — for the GPU's rear bracket screws in the case expansion slot cover
• Anti-static surface or wrist strap (recommended) — the GPU PCB houses expensive GDDR6X memory and expensive silicon
• The included 12VHPWR or power adapter — use the GPU manufacturer's included cable for initial installation rather than a third-party cable where possible

Step-by-Step Installation

Step 1: Uninstall old GPU drivers with DDU before the hardware swap

Download Display Driver Uninstaller (DDU) from Guru3D. Reboot into Safe Mode (hold Shift and click Restart in Windows, then select Troubleshoot → Advanced options → Startup Settings → Restart → Safe Mode with Networking). Run DDU and select "Clean and restart" for the old GPU's driver. DDU removes all traces of the previous driver stack — registry entries, leftover DLLs, INF files — that can cause conflicts when a new GPU from a different vendor (NVIDIA to AMD or vice versa) or even a different generation is installed. This step is critical for cross-vendor swaps and strongly recommended for same-vendor upgrades.

Step 2: Shut down and unplug the PSU

After DDU completes and the system restarts (in low-resolution generic display mode with no GPU driver), shut down through the operating system. Unplug the PSU power cable from the wall. Flip the PSU rocker switch off. Press the case power button once to discharge residual capacitor charge.

Step 3: Remove the side panel and locate the GPU

Remove the case side panel. The GPU occupies the PCIe x16 slot — typically the topmost full-length PCIe slot on the motherboard. Identify all power cables connected to the GPU: one or two 8-pin PCIe cables, or a single 12VHPWR / 12V-2×6 connector.

Step 4: Disconnect GPU power cables

Disconnect all PCIe power cables from the GPU. For 12VHPWR connectors, press the retention tab while pulling straight out. Do not pull by the cable body — grip the connector housing.

Step 5: Release the PCIe slot retention clip and remove the GPU

Locate the PCIe slot retention clip at the far end of the x16 slot (opposite the bracket). On most motherboards this is a white or black tab that clicks to the side to release the card. Unscrew the GPU bracket screws securing the card to the case's expansion slot cover panel — typically one or two Phillips #1 screws. With the bracket screws removed and the retention clip released, rock the GPU gently along its length to disengage any adhesive friction, then pull straight up and out of the slot. Set it on an anti-static surface or back in its original packaging.

Step 6: Install the new GPU

Remove the expansion slot cover plates for the slots the new GPU will occupy — a 3-slot GPU needs three consecutive slot covers removed. Align the new GPU's PCIe x16 edge connector with the slot, and the bracket with the case expansion slot opening. Press down evenly along the card's length until the retention clip at the far end of the slot clicks closed. The click confirms the PCIe edge connector is fully seated. Screw the bracket to the case expansion panel — do not overtighten.

Step 7: Connect the power cables

Route the appropriate PCIe power cables from the PSU to the GPU. For 12VHPWR or 12V-2×6 connectors: seat the connector fully until the retention latch engages. Confirm there is no visible gap between the connector body and the GPU's plastic shroud — a partial engagement leaves the spring-retention pins floating and creates a fire risk from resistive heating. Route the cable with a gentle curve immediately after the connector, not a tight 90-degree bend. If using the included multi-8-pin-to-12VHPWR adapter, connect each of the 8-pin ends to separate PSU cables (not daisy-chained from the same cable strand) to distribute current load evenly across conductors.

Step 8: Reinstall the side panel and reconnect power

Replace the side panel. Reconnect the PSU power cable. Flip the PSU rocker switch to the on position.

Step 9: Power on and confirm display from the GPU output

Power the system on. Connect the monitor cable to the GPU's HDMI or DisplayPort output — not the motherboard's display output. If the motherboard's integrated graphics was in use previously, the BIOS may default to iGPU output on first boot; switch the cable to the GPU if there is no display. Enter the BIOS if needed and confirm the PCIe primary display device is set to the PCIe slot.

Step 10: Install new GPU drivers

Boot into Windows. The system will display at low resolution with the generic Microsoft display driver — this is correct. For NVIDIA GPUs: download the latest Game Ready Driver from NVIDIA's driver download page and run the installer (choose "Clean installation" to overwrite any residual files). For AMD GPUs: download the latest Adrenalin Software from AMD's support and downloads page. Reboot after the driver installation completes.

Step 11: Verify driver version and display output

After reboot, confirm the display is running at the correct native resolution. Right-click the desktop, select Display Settings, and verify resolution. Open Device Manager and confirm the new GPU model appears under Display Adapters without a warning flag. In NVIDIA GeForce Experience or AMD Adrenalin, confirm the installed driver version matches the downloaded package.

Troubleshooting

System POSTs but no display from the GPU. The monitor cable is connected to the motherboard's display output instead of the GPU. Unplug from the motherboard's HDMI/DP port and reconnect to one of the GPU's outputs. If the GPU has multiple outputs (HDMI + multiple DisplayPort), try the DisplayPort first — it is the primary output on most modern GPUs. Additionally, some boards default to iGPU output when a discrete GPU is first detected; enter the BIOS via the GPU output (or temporarily reconnect to the motherboard output to navigate BIOS settings) and set the primary display device to the PCIe slot.

12VHPWR / 12V-2×6 connector concerns. Visually inspect the connector after the first boot: the connector should be fully flush with the GPU's plastic shroud with no visible gap. Any gap indicates partial engagement — power down immediately, disconnect the cable, and reseat it fully. A connector that feels springy or loose under slight manipulation is not fully seated. Do not operate the GPU with a partially seated 12VHPWR connector.

Driver installation fails or produces errors. If DDU was not run before the swap, residual entries from the old driver stack can cause installation conflicts. Reboot into Safe Mode, run DDU again to clean the driver state, reboot normally, and reinstall the new driver from the manufacturer's current download.

System crashes under sustained GPU load (artifacting, BSOD, or sudden shutdown). Two common causes: PSU is undersized for the new GPU's transient power demand, or the PCIe power cable is not delivering the required current (check each 8-pin connector is fully seated, or for 12VHPWR adapters, verify each 8-pin input comes from a separate PSU output). A third cause on NVIDIA RTX 4000+ GPUs: some models support a power limit adjustment in GeForce Experience or the NVIDIA Control Panel — reduce the power limit by 10% to test if crashes stop, which indicates the PSU headroom is the constraint.

GPU fans spin to 100% briefly on power-on then settle. This is normal behavior on cold boot for most modern GPU coolers. The fans run at full speed momentarily before the thermal controller initializes. It is not indicative of a problem unless the fans continue at maximum speed during normal desktop use.

GPU Upgrade Economics and Platform Matching in 2026

GPU selection in 2026 is closely tied to the target resolution. At 1080p, even mid-range GPUs from the RTX 3000 and RX 6000 generations remain competitive; upgrading to a 4070 at 1080p returns diminishing performance gains because the CPU often becomes the bottleneck before the GPU is saturated. At 1440p, the RTX 4070 and RX 7800 XT tier are the value sweet spot, delivering high frame rates in demanding titles without the premium of the 4080 or 7900 XTX. At 4K, the RTX 4080 and RX 7900 XTX are the practical minimum for consistent high-frame-rate gaming at maximum quality settings; the RTX 4090 provides additional headroom for 4K maximum settings in the most demanding titles.

PCIe 4.0 vs. 5.0 for GPUs: as of mid-2026, no consumer GPU fully saturates PCIe 4.0 x16 bandwidth in standard gaming workloads. PCIe 5.0 x16 support in boards with Intel 13th/14th gen or AMD Ryzen 7000/9000 provides future-proofing, but the performance difference in gaming today is below the margin of error in most benchmarks. According to TechPowerUp's RTX 4070 review, the GPU's aggregate PCIe data transfer in typical gaming is well within PCIe 4.0 x16 limits. Monitor pairing matters more than PCIe generation: matching the GPU tier to the display's resolution and refresh rate is the single most impactful hardware-pairing decision.

1. NVIDIA, "GeForce RTX 40 Series Graphics Cards," nvidia.com (accessed 2026-05-31)
2. AMD, "Radeon Desktop Graphics," amd.com (accessed 2026-05-31)
3. NVIDIA, "NVIDIA Driver Downloads," nvidia.com (accessed 2026-05-31)
4. AMD, "AMD Support & Drivers," amd.com (accessed 2026-05-31)
5. Guru3D, "Display Driver Uninstaller (DDU) Download," guru3d.com (accessed 2026-05-31)
6. AnandTech, "The NVIDIA GeForce RTX 4070 Review," anandtech.com (accessed 2026-05-31)
7. AnandTech, "The AMD Radeon RX 7900 XTX and RX 7900 XT Review," anandtech.com (accessed 2026-05-31)
8. AnandTech, "The NVIDIA GeForce RTX 4080 Review," anandtech.com (accessed 2026-05-31)
9. TechPowerUp, "NVIDIA GeForce RTX 4070 Founders Edition Review," techpowerup.com (accessed 2026-05-31)
10. TechPowerUp, "NVIDIA GeForce RTX 4080 Founders Edition Review," techpowerup.com (accessed 2026-05-31)
11. TechPowerUp, "AMD Radeon RX 7900 XTX Review," techpowerup.com (accessed 2026-05-31)

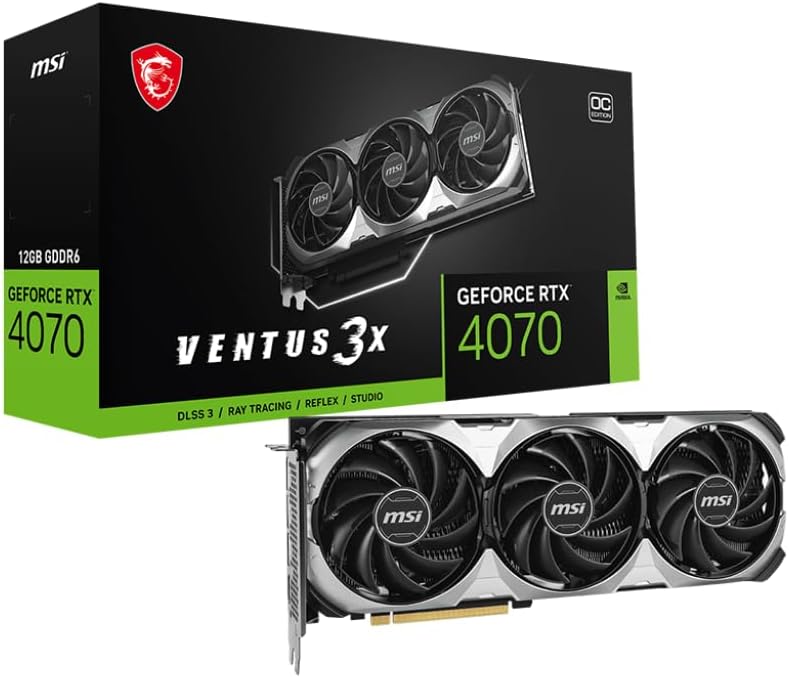

12. TechPowerUp, "MSI GeForce RTX 4070 Ventus 3X OC Review," techpowerup.com (accessed 2026-05-31)
13. TechPowerUp, "GeForce RTX 4070 GPU Specifications," techpowerup.com (accessed 2026-05-31)
14. Tom's Hardware, "GPU Hierarchy — Best Graphics Cards Ranked," tomshardware.com (accessed 2026-05-31)
15. TechPowerUp, "NVIDIA GeForce RTX 4090 Founders Edition Review," techpowerup.com (accessed 2026-05-31)

Last verified: 2026-05-31
