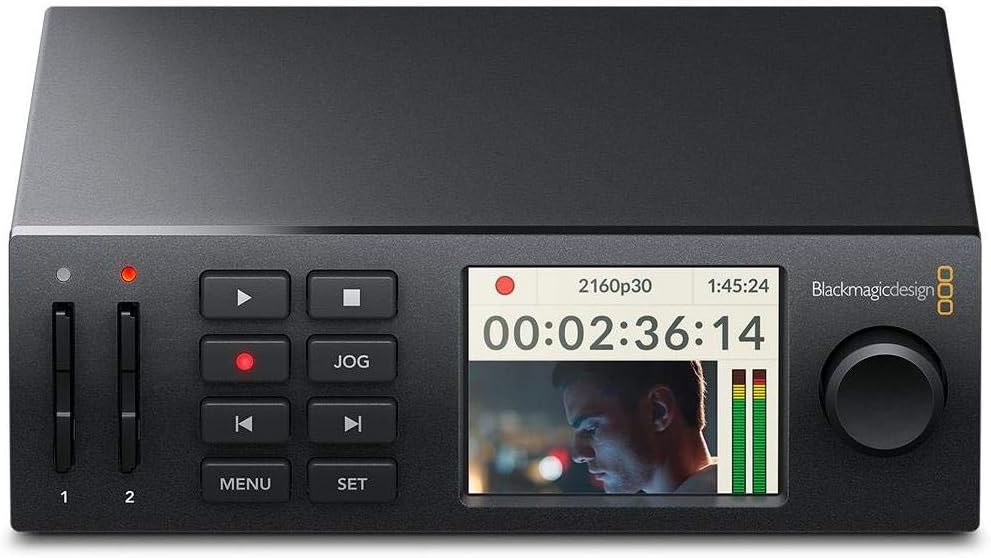

Blackmagic HyperDeck Studio Mini Review: Broadcast-Grade Recording for Indies

The Blackmagic HyperDeck Studio HD Mini is the smallest model in Blackmagic Design's current HyperDeck Studio family of dedicated broadcast recorders. It is a 1/2-rack-width, 1RU device that records and plays back HD video to standard SD and UHS-II cards (and, via USB-C, to external SSDs), in three codec families that matter for post-production handoff: Apple ProRes, Avid DNxHD, and H.264. The role of a HyperDeck in a modern production is not to replace the camera or to replace a software-based capture rig; it is to be the dedicated, deterministic, no-OS-update-pop-ups recorder that sits in a rack or on a flight case and just runs — the recording you can hand to the producer at the end of the day with confidence. The HD Mini is the most compact way to put that capability into a small studio, a rolling flight case, or a multi-camera ISO position.

Our editorial verdict: at its price point, the HyperDeck Studio HD Mini is a defensible buy for working broadcast, corporate, conference, and house-of-worship producers who specifically need hardware-deterministic recording in HD and value Blackmagic's BMD ecosystem (ATEM, Smart Videohub, DaVinci Resolve). It is not the right tool for buyers who need 4K capture, who would be better served by a software-based capture stack, or who don't already work in 3G-SDI workflows. The 1080p60 ceiling, accurately characterized, is the device's defining trade-off in 2026.

How We Approached This Review

What the HyperDeck Studio HD Mini Is, in One Paragraph

The HyperDeck Studio HD Mini is a hardware video recorder/player based on Blackmagic's Teranex Mini chassis: 1/2 rack wide, 1RU tall, designed to be rack-mountable three-across in a single rack unit alongside other Teranex Mini-form devices like Smart Videohub gear, the Mini Recorder, and the ATEM line. It accepts a single 3G-SDI input and a single HDMI input (per Blackmagic), records to two front-loaded SD/UHS-II card slots with seamless spanning between cards or to an external SSD over USB-C, and outputs back over 3G-SDI and HDMI. The codec choices are Apple ProRes (HQ / 422 / LT / Proxy), Avid DNxHD (220x / 220x MXF / 145 / 145 MXF / 45 / 45 MXF), and H.264 (multiple bitrate tiers). The Mini ships with built-in timecode and reference generators, supports RS-422 and Ethernet remote control, and presents itself to a host computer as a USB webcam class device for software-based use cases. Maximum recording resolution is 1080p60.

Specifications (per Blackmagic Design)

All values below are from Blackmagic Design's official tech-spec page for the HyperDeck Studio family (blackmagicdesign.com) and the manufacturer-supplied feature list at B&H Photo (bhphotovideo.com). We have not independently measured any of them.

Codec correction: earlier writeups of the HyperDeck Studio Mini family sometimes describe H.265 (HEVC) recording. Per Blackmagic Design's tech specs (techspecs), the HyperDeck Studio HD Mini records H.264, ProRes, and DNxHD — not H.265. H.265 / HEVC capture is associated with the larger HyperDeck Shuttle HD and HyperDeck Studio 4K Pro variants in different positions in the lineup; the HD Mini does not advertise H.265 capture in its current spec sheet.

What Independent Reviews Say

The HyperDeck Studio HD Mini is more often covered as a piece of broadcast infrastructure than as a hero-product review the way a consumer camera would be. The strongest published reference points are Streaming Media Producer's review of the closely related HyperDeck Studio HD Plus, and Newsshooter's coverage of HyperDeck firmware updates.

Streaming Media Producer — Anthony Burokas's review of the HyperDeck Studio HD Plus (streamingmedia.com) frames the HyperDeck Studio family as “an indispensable tool if you are in the business of recording and streaming conferences” and a strong fit for studio and fixed-venue capture. The HD Plus reviewed in that piece shares the firmware, codec stack, and front-panel control surface with the HD Mini; it differs in providing 6G-SDI inputs (rather than the Mini's 3G-SDI), additional outputs for fill-and-key playback, and a larger half-rack-but-1RU full-width chassis. For prospective HD Mini buyers, Burokas's review is the closest in-depth published review of the user-facing experience of the HyperDeck Studio family in a working production environment, with the caveat that the HD Mini's input topology is the smaller 3G-SDI version.

Burokas's review specifically calls out the codec triumvirate (ProRes, DNxHD, H.264) as the right set for typical broadcast and conference workflows. ProRes and DNxHD provide intermediate-codec edit-handoff to Final Cut Pro, Resolve, Avid Media Composer, and Premiere; H.264 provides smaller files for direct delivery and review. The dual SD card slots with seamless spanning are highlighted as the practical reason to use the device over a software-based capture rig: cards span automatically without dropped frames at the boundary, which matters for unattended multi-hour recordings.

Newsshooter — Newsshooter's coverage of HyperDeck firmware updates (8.4.1, July 2024; 9.0.2, February 2026) and product updates (2021 update) is the standing reference for the HyperDeck product line's continued development. The relevant editorial point for buyers in 2026 is that Blackmagic continues to ship HyperDeck firmware updates — the device is not in firmware-frozen end-of-life status.

The Broadcast Bridge — The Broadcast Bridge's article on the original HyperDeck Studio Mini (thebroadcastbridge.com) documents the addition of H.264 recording to the HyperDeck Studio Mini family and is the canonical industry-press reference for the device's H.264 capability.

ESV Magazine — ESV Magazine's family comparison (eastwoodsoundandvision.com) is a useful neutral framing of where the HD Mini sits relative to the HD Plus and the 4K Pro — the relevant decision points for buyers are input resolution (HD vs. UHD), input topology (3G-SDI vs. 6G-SDI vs. 12G-SDI), and chassis form factor (1/2 rack vs. full rack).

What you will not find in the cited Tier-1 sources: instrumented latency or audio-sync benchmarks, A/B comparisons against AJA Ki Pro Mini or Atomos Shogun-class recorders, or measured failure-rate data. Broadcast-recorder reliability is typically validated by purchase volumes from broadcasters and rental houses rather than by published lab tests.

What Owners Say

Owner discussion of the HyperDeck Studio family is concentrated on professional video forums (DVInfo.net, Creative COW, Reduser, the Blackmagic Design forum itself) rather than on consumer subreddits. Recurring themes that appear across cited owner reports and reviewer commentary:

• The dual-SD-card slots with automatic spanning are repeatedly cited as the practical workhorse feature that distinguishes the HyperDeck from software-based capture rigs — dropped frames during card transitions are a real failure mode for software capture and a non-failure-mode for the HyperDeck.
• The webcam-class USB output is widely used as a budget streaming-source device alongside the dedicated recording function: the HyperDeck appears as a standard webcam to OBS, Zoom, Teams, Wirecast, and vMix without proprietary drivers.
• Format compatibility — specifically the requirement that the SD card be recognized as fast enough for the chosen codec at the chosen frame rate — is the most frequently discussed gotcha in user-community posts. Blackmagic publishes a list of approved storage media for the HyperDeck family (blackmagicdesign.com); buyers should consult that list rather than guessing.
• Owners working in mixed-codec post-production (cutting in Avid Media Composer, Adobe Premiere Pro, Final Cut Pro, or DaVinci Resolve) consistently note the practical value of native ProRes / DNxHD recording: edit-ready files with no transcode step.

Strengths

• Hardware-deterministic recording. The core editorial argument for a dedicated hardware recorder over software-based capture: no operating system updates, no background processes, no thermal throttling, no driver updates that break the night before a shoot. The HyperDeck records what is fed into its SDI or HDMI input to the configured codec on the configured media, without an OS interposing between input and recording. Streaming Media Producer's HD Plus review frames this as the structural reason the family exists.
• Edit-ready intermediate codec recording. ProRes and DNxHD recording in the cited resolutions and frame rates means files import directly into Final Cut Pro, Resolve, Avid, and Premiere with no transcode — per Blackmagic's published codec list.
• Dual-SD card slots with seamless spanning, plus USB-C SSD support. Per Blackmagic, the recorder spans seamlessly between the two SD slots, and supports recording directly to an external SSD over USB-C. For multi-hour unattended recordings, this is a meaningful operational advantage.
• Standard SD / UHS-II media. Storage is commodity and inexpensive relative to proprietary broadcast media. Cards mount as standard volumes on Mac and Windows for direct file transfer.
• Built-in timecode and reference generators. Per Blackmagic, the HyperDeck Studio HD Mini has integrated timecode and reference generation with a reference output, allowing daisy-chaining and sync across multiple recorders without an external reference distribution box.
• Webcam-class USB output. The recorder presents as a standard webcam over its USB-C port, allowing it to double as a high-quality broadcast-grade signal source for OBS, Zoom, Teams, Wirecast, and similar without proprietary drivers.
• Compact 1/2-rack-width chassis. Three HyperDeck Studio HD Minis fit in a single 1RU rack space using Blackmagic's Teranex Mini Rack Shelf. For multi-camera ISO recording, this is a meaningful density advantage versus full-width recorders.
• RS-422 and Ethernet remote control. Per Blackmagic. The HyperDeck integrates with broadcast automation and switcher control surfaces (notably ATEM via Ethernet) without bespoke control hardware.
• Active firmware development. Per Newsshooter, Blackmagic continues to ship HyperDeck firmware updates (8.4.1 in July 2024; 9.0.2 in February 2026). The product line is not in maintenance-only status.
• AC and DC power. Per Blackmagic, the HyperDeck Studio HD Mini accepts both AC and DC input, supporting field deployment on battery packs or DC distribution alongside rack AC.

Limitations

• HD only — 1080p60 ceiling. Per Blackmagic's tech specs. In a market where most working cameras output 4K, the HD Mini's HD-only capture is the most consequential trade-off. Buyers who need 4K capture should look at the HyperDeck Studio 4K Pro or another recorder line.
• 3G-SDI input only, not 6G or 12G. Per Blackmagic. The HD Mini is the bottom-of-stack input topology in the HyperDeck Studio family. The HyperDeck Studio HD Plus moves up to 6G-SDI and the 4K Pro to 12G-SDI; if your camera or switcher outputs higher than 3G-SDI, the HD Mini's input topology limits what it can accept.
• Single SDI input, single HDMI input. Per Blackmagic. There is no multi-input switching on this model; pair multiple HyperDecks with an ATEM or comparable switcher if you need multi-source recording.
• No H.265 / HEVC recording. Per Blackmagic's current tech specs, the HD Mini's codec set is ProRes / DNxHD / H.264. Buyers who specifically need H.265 / HEVC capture should look at the HyperDeck Shuttle HD or other Blackmagic models that advertise HEVC capture.
• Premium price relative to the alternatives. The HyperDeck Studio HD Mini's price sits well above software-based capture stacks built around an Elgato or Magewell capture card and a recording laptop. Streaming Media Producer's review of the HD Plus frames this as the structural cost of hardware-deterministic recording: you pay for the no-OS, no-driver, no-update-pop-ups guarantee.
• Storage compatibility lists. Per Blackmagic's published approved-media list, only specific SD / UHS-II card models are validated for the higher-bitrate codec configurations. Owners report this as the most common installation gotcha; buyers should consult the approved-media list before purchasing cards.
• Specialised use case. The HD Mini is a broadcast-tier recorder. Its value proposition over a software capture rig is highest in workflows where recording reliability and integration with SDI infrastructure are non-negotiable. For YouTube creators, hobbyists, and cost-sensitive corporate users, software capture often delivers a comparable result at lower cost — this is the editorial framing in the cited Streaming Media Producer review and is a fair assessment of the device's natural buyer.
• Limited internal resolution preview on the front panel. The 2.2-inch LCD is sized for status (timecode, transport state, thumbnail) rather than monitoring. Buyers expecting a full preview monitor should plan for a separate field monitor on the SDI or HDMI output.

Who Should Buy the HyperDeck Studio HD Mini

• Broadcast, corporate, conference, house-of-worship, and live-event producers who specifically need hardware-deterministic recording in HD over SDI / HDMI infrastructure.
• Productions where recording failure is not acceptable (one-take interviews, live concerts, board-meeting documentation, irreplaceable events).
• Multi-camera ISO recording rigs where rack density matters — three HD Minis in a single 1RU shelf is meaningfully tighter packing than full-width recorders.
• Studios already invested in the Blackmagic ecosystem (ATEM switchers, Smart Videohub routers, DaVinci Resolve post) that benefit from native Ethernet control integration.
• Producers who deliver edit-ready ProRes or DNxHD files to a post-production team and want to avoid the transcode step from camera-native codecs.
• Rental houses serving professional clients — the HyperDeck's familiar broadcast-style transport controls and rack-friendly form factor make it a known-quantity rental item.

Who Should Skip It

• Producers shooting in 4K who need 4K capture — look at the HyperDeck Studio 4K Pro or an Atomos / AJA recorder with 4K capability instead.
• Producers whose camera or switcher outputs above 3G-SDI — the HD Plus or 4K Pro are the in-family upgrades.
• Producers who specifically need H.265 / HEVC recording — the HD Mini does not advertise that codec.
• YouTube creators, indie filmmakers, and hobbyists who do not have an SDI infrastructure and for whom software-based capture (OBS + capture card) delivers a comparable result at lower cost.
• Producers who can rely on camera-internal recording and do not need a separate hardware redundant capture path.
• Buyers who want a portable on-camera recorder with a built-in monitor (Atomos Ninja or Shogun, SmallHD recorder/monitor combos) — the HD Mini is a rack/desktop device, not an on-camera recorder.

Alternatives Worth Considering

The "dedicated broadcast HD recorder" category is small in 2026, and most direct alternatives sit in adjacent categories rather than head-to-head:

• Blackmagic HyperDeck Studio HD Plus. The next step up in the HyperDeck Studio line: 6G-SDI inputs, additional outputs supporting fill-and-key playback, full-rack-width 1RU chassis. The right pick if you need 6G-SDI input topology or fill-and-key playout from a single device.
• Blackmagic HyperDeck Studio 4K Pro. The 4K-capable model in the family. The right pick if 4K capture is on the requirements list.
• Atomos Ninja V / Shogun. On-camera recorder/monitor combos with built-in display. Different category — on-camera rather than rack-mount — but a frequent alternative for shooters who want the recording function close to the camera with monitor included.
• AJA Ki Pro line. AJA's broadcast recorder family. Direct category competitor with its own ecosystem and codec mix; the right pick for shops already standardised on AJA infrastructure.
• Software capture stack (capture card + laptop / desktop running OBS / vMix / Wirecast). Lower total cost for buyers without existing SDI infrastructure or strict reliability requirements. Trade-off: software stacks introduce the OS and driver layer the HyperDeck explicitly avoids.

The Bottom Line

The Blackmagic HyperDeck Studio HD Mini is a focused tool that does one thing well: deterministic hardware HD recording over SDI and HDMI to standard SD cards or external SSDs, in three codec families that match modern post-production workflows. The HD-only ceiling is the defining trade-off in 2026, and is the right reason to look at the HD Plus or the 4K Pro instead if your workflow demands more. Streaming Media Producer's review of the closely related HD Plus captures the family's positioning: it is “an indispensable tool” if you are in the business of recording and streaming conferences and other fixed-venue productions, and a less obvious fit for shoots that don't have those constraints. Within that scope, the HD Mini is a defensible buy — particularly for buyers who specifically value the rack-density of the 1/2-width chassis, native ATEM integration, edit-ready ProRes / DNxHD recording, and Blackmagic's continued firmware development on the platform.
