How to Connect a Mixer to an Audio Interface (and When You Don't Need Both)

The question comes up constantly in home recording forums: do I need both a mixer and an audio interface? The honest answer is “usually no” — but there are specific scenarios where pairing them is exactly the right call. This guide walks through when each tool earns its place in the chain, how to wire them together cleanly using safe, professional methods, and how to handle the two technical issues that bite first-time builders most often: level matching and ground hum. The goal is a signal path that is quiet, repeatable, and electrically safe.

If you only ever record one or two sources at a time and mix entirely in software, an interface alone is almost certainly enough. Adding a mixer makes sense when you need more simultaneous inputs than your interface offers, separate cue mixes for performers, tactile faders during a session, or a way to consolidate a noisy source like a drum kit into a couple of usable tracks. The wiring patterns below cover the practical cases that come up in podcast, band, and live-stream setups.

What You’ll Need

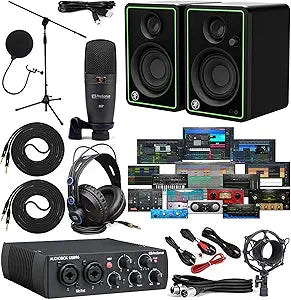

• An audio interface with line-level inputs — a PreSonus AudioBox 96 works for stereo connections; larger interfaces are needed if you plan to use multiple direct outs.
• A mixer with the outputs your workflow needs — a small option like the Mackie 402VLZ4 for podcasts, the Behringer Xenyx 1202SFX for general home use with effects, or a powered/larger console such as the Behringer PMP1680S Europower for live-plus-recording duty.
• Balanced audio cables — XLR or 1/4″ TRS for every connection between mixer and interface that supports it. Avoid unbalanced TS where possible.
• A headphone amp such as the Mackie HM-800 if you need to feed several performers from one source.
• Studio monitors like the PreSonus Eris E4.5 connected to your interface’s monitor outputs (kept on a separate path from performer cues).
• An isolation transformer or hum eliminator on hand if hum appears after wiring — see the safety callout below.

When You Actually Need Both Pieces of Gear

Most modern audio interfaces already include mixer-style routing in their bundled software, so the case for adding a hardware mixer comes down to physical capability the interface lacks. Reach for a mixer when you need:

• More simultaneous inputs than your interface provides. A 12-piece band cannot squeeze through a 2-input interface; a hardware mixer can submix sources before they hit the interface.
• Multiple independent headphone (cue) mixes. Different performers need different balances of vocals, click, and band.
• Tactile, real-time control. Some workflows are simply faster with physical faders than a mouse.
• Submixing a complex source. Condensing a drum kit to a stereo bus before tracking saves interface inputs and disk space.
• Live-plus-recording integration. Using one console for both stage and capture means fewer cables to repatch.

Conversely, stay with the interface alone if you mostly record one or two sources at a time, work entirely in the box, are budget-constrained, or simply want fewer pieces of equipment in the signal path. Sound on Sound’s long-running “Studio SOS” clinics regularly point first-time builders at the simplest possible chain because every additional box is another potential failure point and another opportunity for noise to enter the signal (Sound on Sound — Sound Advice library).

Connection Methods: Getting the Signal Path Right

Main Outputs to Line Inputs (Stereo Submix)

The most common connection method uses your mixer’s main stereo outputs feeding two of your interface’s line inputs. This records a finished stereo mix of everything plugged into the mixer to two tracks in your DAW. It is fast, predictable, and ideal for live captures, podcast roundtables, or committing a drum submix.

Wire the mixer’s Main L/R outputs to your interface’s line inputs using balanced 1/4″ TRS cables. If the interface only exposes XLR (combo) inputs, use TRS-to-XLR(M) cables wired pin-2 hot. Set your interface inputs to line level — not mic level — to avoid driving the front end of the interface into clipping.

The trade-off: once the mix is printed as a stereo pair, individual channel control is gone. If you want to fix a vocal level after the fact, you can’t.

Direct Outs for Multitrack Recording

Mid- and large-format consoles offer direct outputs on each channel. These tap each channel post-preamp (and usually pre-fader) and bypass the console’s internal mix bus, giving you the mixer’s preamps and monitoring with the DAW’s per-track flexibility. Connect each direct out to a separate interface input using balanced TRS cables, and confirm your interface has enough inputs to cover the channels you want to record.

Direct outs typically operate at line level, but levels vary between mixer models — some run hot. Check the mixer’s manual for the rated direct-out level and ensure your interface inputs are switched to line, not mic. Set initial console gain conservatively, then watch the interface meters as you bring the source up.

Auxiliary Sends for Effects and Monitoring

Aux sends are independent buses that you can use for separate monitor mixes, effect sends, or dedicated streaming feeds. A common setup: aux 1 builds a vocalist’s headphone mix with extra reverb, aux 2 builds a drummer’s mix that emphasizes click and bass, while the main mix continues to drive monitors and recording. Routing aux sends to spare interface inputs lets you record an effect return or capture a custom monitor mix as documentation.

Level Matching and Gain Staging

Professional analog audio uses two main nominal operating levels: −10 dBV (consumer / semi-pro) and +4 dBu (professional). The two reference points sit roughly 11.8 dB apart, which is enough mismatch to cause obvious problems — either you’ll need to push interface gain so far up that you raise the noise floor, or you’ll clip the interface front end with the mixer at modest fader positions. Most small mixers run at −10 dBV; many pro interfaces accept up to +4 dBu and some let you select per input.

Check your mixer manual and your interface manual for their respective nominal and maximum input/output levels. If your mixer has a global −10/+4 switch, set it to match the interface. If neither device offers a level switch, plan to compensate with conservative trim settings on both ends.

For tracking, a widely cited target is to land peaks around −18 dBFS to −12 dBFS in the DAW for typical content, leaving comfortable headroom for transients and giving downstream processing a sensible operating point. Sound on Sound’s gain-staging coverage in its “Mixing Essentials” series and Production Expert’s tutorials both endorse the same general envelope (Sound on Sound — Techniques; Production Expert).

Routing Scenarios

Podcast With Multiple Hosts

Two to four hosts around a table, each with their own mic, each wanting headphones. A small mixer like the Mackie 402VLZ4 or the Behringer Xenyx 1202SFX provides per-channel preamps and gain, plus headphone distribution, while the interface handles capture to the DAW. Wire the mixer’s main outputs to two interface line inputs; record the result as a stereo (or summed mono) podcast track.

The advantage over going direct into a small interface is the ability to ride levels in real time during the session — raising a guest who leans away from the mic, pulling down a co-host who suddenly gets loud — without touching the DAW.

Band Recording With Submixing

A full band typically needs more inputs than a 2–4 input interface offers. Use the mixer’s direct outs for sources you’ll want individual control over later in the mix (lead vocals, bass DI, lead guitar mic) and the mixer’s internal subgroup or stereo bus for sources you’re willing to commit (overheads as a stereo pair, backing-vocal stack as a stereo bus). Send each direct out and each subgroup to its own interface input. Use the mixer’s aux sends to build performer headphone mixes that don’t affect what gets recorded.

Live Streaming With Recording

A live-streaming session typically needs at least two distinct mixes: the broadcast mix (often dialogue-forward, possibly with a different music balance for the stream platform) and the recording mix (more conservative, more headroom). Send the mixer’s main outputs to your streaming software via the interface, and route aux sends or direct outs to additional interface inputs for the recording feed. Each mix can then be optimized independently.

Step-by-Step Wiring Guide

Method A: Basic Stereo Connection (Mixer Main Out → Interface Line In)

1. Power down both devices. Confirm phantom power on the mixer and the interface is off before plugging or unplugging anything — especially important if any ribbon or vintage mics are present (see callout above).
2. Place the mixer and the interface on the same circuit. Plug both into the same outlet or the same surge-protected power strip wherever possible. This is the single most effective ground-loop preventative.
3. Connect mixer Main L/R outputs to two interface line inputs using balanced TRS cables (or TRS-to-XLR(M) if your interface uses combo jacks).
4. Set interface inputs to line level (not mic level), and disable any input boost.
5. Set mixer main faders to unity (the “0” or “U” mark) and channel faders down.
6. Power the mixer first, then the interface. Powering the interface last avoids transient pops being captured.
7. Test with a known source — a music playback through one mixer channel works well. Bring the channel fader up to unity, then adjust the interface trim until DAW peaks land around −18 dBFS to −12 dBFS for typical material.
8. Listen for hum. If the noise floor is clean, you’re done. If hum is present, proceed to the troubleshooting section below.

Method B: Multitrack via Direct Outs

1. Identify which mixer channels expose direct outs and map each to a specific interface input. Write the mapping down before patching.
2. Connect each direct out to a separate interface input using balanced TRS cables.
3. Set all interface inputs to line level.
4. Connect sources to the mixer inputs and set channel gain conservatively. Bring channels up one at a time.
5. Verify direct-out signal at the interface. Per-channel peaks should sit in the same −18 to −12 dBFS window in the DAW.
6. Create separate DAW tracks for each connected input and record-arm them; confirm input assignment before any rolling take.
7. Build performer cue mixes from aux sends, not from the main mix, so changes to monitoring don’t change what gets recorded.

Troubleshooting Hum — Safely

If you hear 60 Hz hum (50 Hz outside North America) after connecting the mixer to the interface, work through these steps in order. Each step is safe and does not involve defeating equipment grounding.

Step 1: Isolate the Source

Mute the mixer’s output. If the hum disappears, it’s entering between the mixer and the interface (or earlier in the chain). Disconnect every source from the mixer except one at a time, and watch when the hum returns — the offending source, cable, or piece of outboard is usually obvious within a few minutes. Sound on Sound’s “Studio SOS” troubleshooting columns describe this isolation method as the foundation of any hum hunt (Sound on Sound Sound Advice).

Step 2: Move Everything to the Same Circuit

Connect the mixer, the interface, the computer, and any outboard processors to the same outlet (via a single rated power strip with surge protection) or to outlets known to share a circuit. Different circuits can sit at slightly different ground potentials, and that potential difference is what drives the hum current through your audio cable shields.

Step 3: Convert Unbalanced Connections to Balanced

Replace any unbalanced TS interconnect with balanced TRS or XLR. A balanced connection rejects common-mode noise (including the hum signal coupled into shields) at the receiving end, which routinely solves hum problems caused by long cable runs or modest ground-potential differences.

Step 4: Insert an Isolation Transformer / Hum Eliminator

If the hum persists after Steps 1–3, insert a passive audio isolation transformer or a dedicated hum eliminator on the offending audio path. These devices use a transformer to galvanically separate the input and output sides of the audio circuit, breaking the loop without touching any AC safety ground. Two well-known options:

• Jensen Iso-Max series passive isolators — reference products in the field, with published technical documentation describing the transformer specifications and intended use cases (Jensen Transformers).
• Ebtech Hum X — an inline AC accessory specifically designed to address ground-loop hum while maintaining the equipment’s safety ground path (Ebtech).
• Radial Engineering isolation transformers and DI boxes — widely deployed in pro studios; some Radial DIs include a ground-lift switch that breaks only the audio shield (not the AC safety ground), which is the safe, intended use of that switch (Radial Engineering).

Step 5: Call a Licensed Electrician

If hum persists across multiple isolation strategies, the problem is likely in the building’s wiring — an open neutral, a missing ground bond, two outlets that should share a circuit but don’t, or a panel issue. Stop chasing the symptom in audio gear and have a licensed electrician inspect the outlets and panel feeding your studio. Persistent hum that survives proper audio-side isolation is a real diagnostic signal worth taking seriously.

Other Common Connection Mistakes

Using Unbalanced Cables on Long Runs

Unbalanced TS cables are fine for short patch runs between adjacent gear, but they pick up hum and RF over distance and don’t reject common-mode noise. For any permanent install or any run more than a few feet, use balanced TRS or XLR.

Mic Level vs. Line Level Confusion

Sending a line-level mixer output into a mic-level input on the interface will overdrive the front end almost immediately. Sending a mic-level signal into a line input will be quiet and noisy. Always confirm input mode on the interface (line / mic / instrument) before bringing any source up.

Phantom Power Surprises

Engaging or disengaging +48 V while a ribbon mic is connected can damage the ribbon. Disable phantom power, wait a minute for capacitors to drain, then patch or unpatch ribbon mics. For active ribbons, follow the manufacturer’s documentation — some require phantom power to operate.

Monitoring Considerations

Headphone Distribution for Multiple Performers

One of the strongest reasons to add a mixer is multiple independent cue mixes. A dedicated headphone amp like the Mackie HM-800 can sit downstream of an aux send to feed several pairs of headphones from one source. Build per-aux mixes that emphasize what each performer needs to hear — more vocals for the singer, more click and bass for the drummer.

Control Room vs. Studio

Use the interface’s monitor outputs to drive control-room speakers (PreSonus Eris E4.5 or similar) and let the mixer handle the headphone distribution to performers. Keeping these paths separate avoids feedback paths and lets you change what you’re hearing in the control room without disturbing performers mid-take.

When to Consult a Professional

• Persistent hum after isolation steps: Engage a licensed electrician to inspect outlets, neutrals, and panel grounding for the room.
• Any felt shock from audio gear, no matter how slight: Stop using the gear and have the electrical system inspected. This is never normal.
• GFCI/AFCI outlets that repeatedly trip when audio gear is connected: The breaker is doing its job; a fault exists. Have it diagnosed.
• New construction or dedicated studio circuits: Have an electrician install dedicated audio circuits with proper grounding (some studios specify a single technical ground point); this is not a DIY task.

Making the Right Choice

The mixer-plus-interface route makes sense when you genuinely need more inputs, separate cue mixes, or tactile control. It does not make sense as a default. Many strong recordings are made with a quality interface and a single thoughtfully chosen microphone. Start with the simpler chain, add a mixer only when a specific limitation forces the upgrade, and wire whatever you build with balanced cables on a shared circuit. Reach for isolation transformers and hum eliminators — never ground lifts — when noise appears, and bring in a licensed electrician if the noise survives proper audio-side troubleshooting.

Sources & Citations

1. Sound on Sound, “Sound Advice” troubleshooting library (Studio SOS columns and Q&A on hum, ground loops, and signal-chain issues), soundonsound.com/sound-advice
2. Sound on Sound, “Techniques” (gain staging, recording, and mixing tutorials), soundonsound.com/techniques
3. Production Expert, pro-audio tutorials and signal-chain articles, production-expert.com
4. Jensen Transformers, Iso-Max passive isolation transformer product line and technical documentation, jensentransformers.com
5. Ebtech, Hum X ground-loop eliminator (maintains AC safety ground while breaking the loop), ebtechaudio.com
6. Radial Engineering, isolation transformers and direct boxes with shield-only ground-lift switches, radialeng.com
