DJI SDR Transmission Review: Wireless Video That Actually Works

The DJI SDR Transmission is a wireless video and control system aimed at the gap between the cheap, somewhat-fragile prosumer wireless transmitters of the last decade and the broadcast-grade Teradek Bolt-class systems that have always sat firmly in the four-figure price tier. DJI is leaning on its drone-radio engineering heritage — the company's experience designing software-defined radio (SDR) systems for ground-to-aircraft control links is the technological foundation here — and applying it to the camera-to-monitor problem instead. The result is a 1080p60 wireless video and control system with a published 3km range, a published 35ms baseline latency, and a current MSRP that puts it well below the broadcast tier.

This is an editorial review built from manufacturer documentation and published third-party reviews. It is not a hands-on lab test. Studio Supplies has not paired this transmitter with a camera, has not run it on a multi-camera production, and is not asserting any first-party measurement of latency, range, or battery runtime. Where this review describes behaviour, it is summarizing what published reviewers and DJI's official documentation have reported, attributed to source.

How We Approached This Review

What the SDR Transmission Is, in One Paragraph

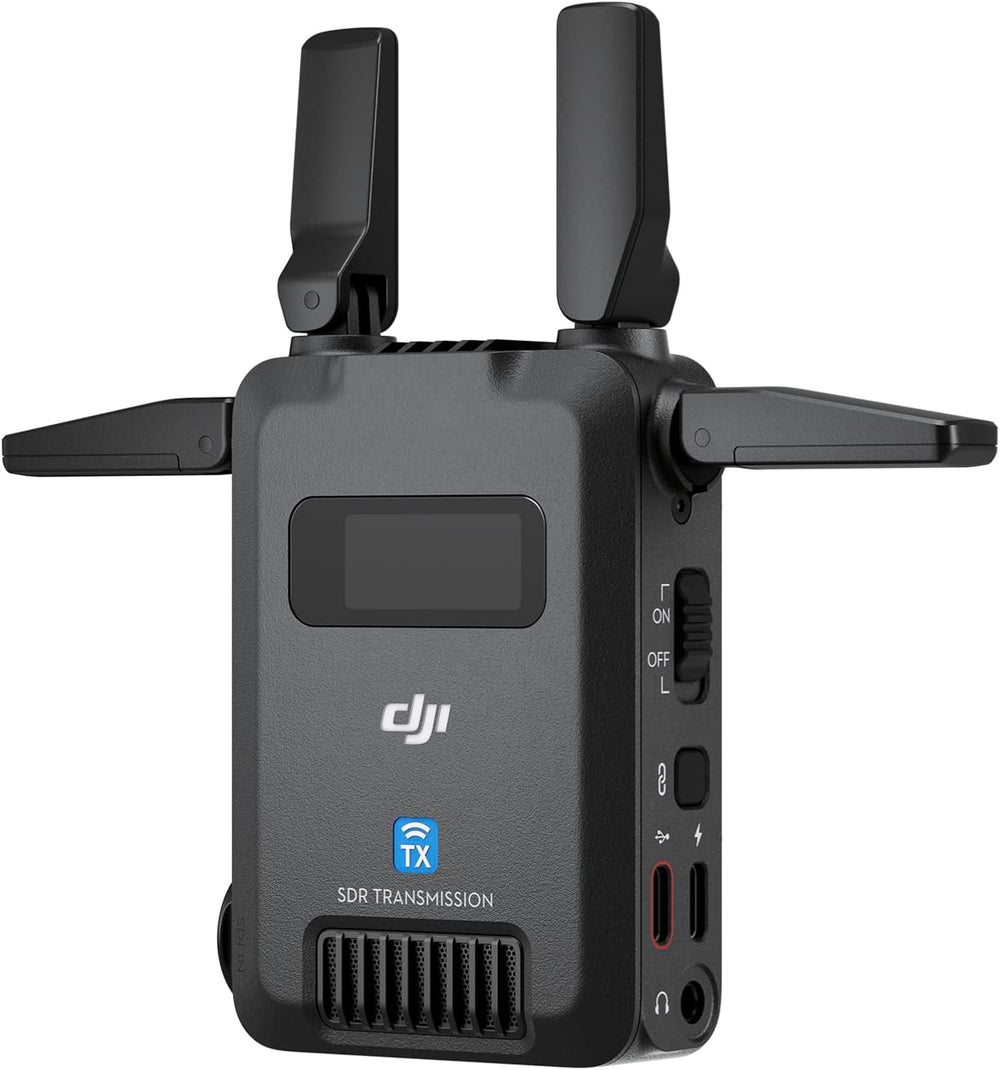

The DJI SDR Transmission is a paired transmitter (TX) and receiver (RX) wireless video and control system. The transmitter mounts to a camera or rig, accepts an HDMI input from the camera, and sends 1080p video signal wirelessly to one or more receivers. The receiver decodes the signal for a monitor, recorder, or SmallHD-class display. Per DJI's specifications, the system supports two operating modes: an SDR Control Mode optimized for the lowest-latency, highest-reliability single primary-receiver use case (with up to 3km range and the option for remote gimbal/camera control), and an SDR Broadcast Mode that allows a single transmitter to feed an unlimited number of receivers simultaneously for a multi-monitor “video village” setup. Each TX and RX unit has a built-in Sony NP-F-style battery plate and supports USB-C PD external power; when paired with the DJI RS 3 Pro, RS 4, or RS 4 Pro gimbals, the transmitter can draw power directly from the gimbal, eliminating a separate battery.

Specifications (per DJI's official spec sheet)

Hardware values below are pulled from DJI's published specifications page for the SDR Transmission (dji.com/sdr-transmission/specs) and cross-referenced with Newsshooter's coverage (newsshooter.com) and CineD's feature breakdown (cined.com). We have not independently measured any of them.

One important interpretation note on the latency spec: DJI publishes two numbers (35ms and 80ms) and clearly labels which is which. The 35ms figure is the radio-link-only latency (the time the signal spends on the wireless side); the 80ms figure includes the camera's HDMI output processing and the receiver-side display rendering. For focus-pulling and critical monitoring, the 80ms total-system figure is the more honest reference point, because that is what the human operator actually sees. The 35ms radio-link figure is the right reference when comparing this system to other wireless video products at the radio-link level — but only if those competitors are quoted on the same basis.

What Independent Coverage Shows

The SDR Transmission has been covered extensively by the cinema/video press since its 2024 announcement. The strongest published reference points:

Newsshooter — Matt Allard's coverage characterized the SDR Transmission as “a very feature-rich system with a great range, relatively low latency, and an affordable price” and walked through the SDR Control Mode and SDR Broadcast Mode use cases (newsshooter.com). Newsshooter's editorial framing positions the system as DJI's response to the gap between cheap consumer wireless and the Teradek Bolt class — specifically built for indie cinema, gimbal-rig productions, and small commercial crews who need reliable wireless video without the broadcast price tag.

CineD — covered the SDR Transmission as “a lightweight and affordable wireless video system” and went through the headline specs (1080p60, 35ms radio-link latency, 3km range) along with the system's positioning relative to the higher-end DJI Transmission line (cined.com).

ProVideo Coalition — published a hands-on writeup, “Testing Out DJI's SDR Video Transmitter,” that walks through real-world setup and operation context (provideocoalition.com). ProVideo Coalition's publication is the right reference for buyers who want a working-cinematographer perspective on the system before committing.

B&H Explora — covered the release with B&H's standard explainer treatment, including pricing, kit configurations, and the system's positioning in the wireless-video category (bhphotovideo.com/explora).

Production Hub — reviewed the SDR Transmission as a “compact yet powerful wireless video solution” with attention to multi-receiver and video-village workflows (productionhub.com).

Camera Jabber — reviewed the SDR Transmission Combo kit configuration with attention to the practical kit contents and accessories included in the combo (camerajabber.com).

Across the published coverage, the converging editorial verdict is consistent: the SDR Transmission delivers DJI's expected design polish at a meaningfully lower price than broadcast-tier wireless, with the key trade-off being the 1080p ceiling (no 4K passthrough), and with the multi-receiver SDR Broadcast Mode being the standout differentiator for production use. We are not asserting any specific instrumented latency or range measurement of our own — the numbers in this review are DJI's published specs as cited by Tier-1 outlets, not first-party measurements.

What Owners Say

Long-form owner discussion of wireless video systems concentrates in cinema and videography communities. Patterns reported across published owner coverage and discussion (paraphrased rather than asserted as Studio Supplies findings):

• The 1080p ceiling is the most-discussed limitation in owner threads, especially for crews shooting 4K who would prefer a wireless monitoring path that preserves a 4K signal end-to-end. For most monitoring use cases — on-set focus pulling, director monitor, video village — 1080p is sufficient and is what most production monitors handle natively.
• The SDR Broadcast Mode (single TX to unlimited RX) is the most-praised differentiating feature for productions that need a video village without renting broadcast-tier wireless infrastructure.
• The integration with DJI RS 3 Pro / RS 4 / RS 4 Pro gimbals — where the transmitter draws power directly from the gimbal rather than needing a separate battery — is widely cited as the cleanest workflow benefit for gimbal-based productions.
• Range in real-world (urban, obstructed, RF-busy) environments is reported as well below the 3km line-of-sight maximum, which is the universal experience with all wireless video systems and matches DJI's own documentation that 3km is a maximum, not a typical, figure.
• Pairing and initial setup are reported as straightforward; the system's automatic frequency negotiation handles changing RF conditions in the background.

These themes are reported as published owner-sentiment patterns from the cited reviews above. Buyers should evaluate their specific use case (range, monitoring topology, 4K vs 1080p needs, gimbal-power integration) against DJI's published spec sheet and the cited Tier-1 reviews before committing.

Strengths

• Manufacturer-published 35ms radio-link latency. Per DJI's spec sheet, the system specifies 35ms latency excluding camera and screen display latency at 1080p/60 with Broadcast Mode off. For the radio-link-only metric, this is competitive with broadcast-grade systems and is meaningful for focus-pulling use cases (where the operator's responsiveness is what matters).
• 3km stated maximum range. Per DJI, the SDR Control Mode supports up to 3km / 1.8 miles in line-of-sight conditions. Real-world range will be lower in obstructed, urban, or RF-busy environments — this is universal across wireless video — but the 3km ceiling is well above what most prosumer wireless transmitters publish.
• Unlimited receivers in Broadcast Mode. Per DJI's spec sheet, SDR Broadcast Mode allows a single transmitter to feed an unlimited number of receivers simultaneously. For productions that need a director monitor, script-supervisor monitor, and client village monitor without a Teradek-class infrastructure budget, this is a meaningful differentiator.
• Sony NP-F battery plate plus USB-C PD power. Per DJI / Newsshooter, each TX and RX unit has a built-in Sony NP-F-style battery plate — the de facto industry standard for cinema/video accessory power — and supports USB-C PD external power. For productions already running an NP-F ecosystem, this drops directly into existing power workflows.
• Direct gimbal power on DJI Ronin RS 3 Pro / RS 4 / RS 4 Pro. Per DJI, on those gimbals the transmitter draws power directly from the gimbal handle, eliminating a separate battery. For users already in the DJI Ronin ecosystem, this is a clean ergonomic and weight benefit.
• Multiple frame-rate support. Per DJI, the system supports the full standard frame-rate set (23.98 through 60 fps) at 1080p, which covers cinema, broadcast, and high-frame-rate use cases without an external framerate converter.
• SDR-based radio with automatic interference handling. Per DJI's documentation, the underlying software-defined radio platform handles frequency selection and interference adaptation automatically. The technological lineage is DJI's drone-control radio designs, which have a long published track record in challenging RF environments.
• Position relative to broadcast-tier price ceiling. Per Newsshooter and CineD, the system's value proposition is that it delivers most of what an indie or small-commercial production actually needs from wireless video, at a price that is well below the Teradek Bolt 4K LT class — the gap that the SDR Transmission is explicitly designed to fill.

Limitations

• 1080p ceiling. Per DJI's published spec sheet, the maximum video output is 1080p Full HD. Productions that need a 4K signal preserved end-to-end through the wireless link — for example, 4K client-village monitoring or 4K wireless-fed external recording — need a different system. For monitoring-only workflows where the production monitor is 1080p anyway, this limitation is not material.
• 3km is a maximum, not a typical, range. Per DJI's documentation and the universal behavior of wireless video, 3km is achieved in line-of-sight, FCC-compliant test conditions. Real-world range will be reduced by obstructions, interference, and regional regulatory power limits. Buyers should not budget for 3km in a working environment.
• Latency depends on which spec you read. Per DJI, the 35ms figure is radio-link only; the 80ms figure includes camera HDMI processing and display rendering. For focus-pulling, the 80ms total-system number is the more honest reference. We flag this as a transparency issue rather than a defect — DJI publishes both numbers clearly — but buyers comparing this to other wireless systems should make sure they are comparing on the same basis.
• Proprietary system; no cross-brand interoperability. Per DJI, the SDR Transmission TX and RX talk to each other and to the broader DJI Transmission line. They do not interoperate with Teradek, Hollyland, Accsoon, or other-brand wireless systems. Productions standardizing on a single wireless ecosystem need to pick a vendor and stay in it.
• Per-unit battery management adds operational tax. Per DJI, both the TX and RX use the Sony NP-F-style plate or USB-C PD power. On long shooting days, that is two batteries to manage per channel rather than one camera-side battery feeding everything. The DJI gimbal-power option mitigates the TX side on supported Ronin gimbals; the RX side still needs power.
• Regional regulatory limits. Per DJI's documentation, the published 3km maximum range assumes FCC-compliant test conditions. Regions with lower transmit-power limits (most of the EU and the UK) will have meaningfully shorter practical ranges. Buyers outside the US should verify the regional spec before assuming the 3km headline figure.
• No instrumented Tier-1 lab benchmark located. We could not find a published instrumented benchmark of latency-vs-distance, signal-vs-obstruction, or comparative range testing of the SDR Transmission against the Teradek Bolt 4K LT or Hollyland Pyro from a Tier-1 broadcast-engineering outlet. The cited published reviews are operational and editorial; they are not instrumented lab tests.

Who Should Buy the SDR Transmission

• Indie filmmakers and small-commercial production companies whose wireless monitoring needs are well-served by 1080p, and whose budget rules out broadcast-tier systems like the Teradek Bolt 4K LT.
• Gimbal operators — especially those already in the DJI Ronin RS 3 Pro / RS 4 / RS 4 Pro ecosystem — who benefit from the direct-gimbal-power integration and the cable-free workflow on the rig itself.
• Productions that need a video-village topology (single transmitter feeding director, script supervisor, client monitor, etc.) without renting broadcast-tier multi-receiver infrastructure — the unlimited-receiver SDR Broadcast Mode is the standout differentiator here.
• Documentary and event crews running long-throw single-receiver setups where the headline 3km maximum range provides useful overhead even if the working range is much less.
• Operators who already have an NP-F battery ecosystem and want a wireless system that integrates cleanly with their existing power workflow.
• Buyers stepping up from prosumer wireless systems (early Hollyland Mars or first-generation Accsoon) and willing to commit to DJI's wireless ecosystem in exchange for the broader feature set and gimbal integration.

Who Should Skip the SDR Transmission

• Productions that require 4K signal preserved end-to-end through the wireless link — the SDR Transmission does not pass through 4K. A different system is required for that workflow.
• Broadcast operations and high-end commercial productions where instrumented broadcast-grade reliability and the surrounding service ecosystem are required regardless of price — that is Teradek territory.
• Operators committed to a non-DJI wireless ecosystem (Teradek, Hollyland, Accsoon) for cross-product interoperability or existing-investment reasons.
• Studio-only productions where cameras don't move and a wired monitoring path is simpler, more reliable, and significantly cheaper.
• Buyers in regions where regulatory power limits cap practical range well below DJI's headline 3km figure — the value proposition shifts when the range is constrained by regulation.

Alternatives Worth Considering

The wireless-video category has consolidated around a small group of brands at distinct price tiers. Each is a different trade-off around resolution ceiling, latency, range, ecosystem, and price:

• DJI Transmission (the higher-end sibling). DJI's flagship wireless video system, with a higher resolution ceiling, the proprietary integrated 7-inch high-bright transceiver monitor, and a different price-and-feature target. The right pick for buyers who want DJI's polish at the higher resolution and integrated-monitor tier.
• Teradek Bolt 4K LT. The broadcast-grade benchmark for wireless video. 4K-capable, Hollywood-standard reliability, broader interoperability with the Teradek ecosystem (RT focus, Bolt Manager), and a substantially higher price. The right pick for productions where broadcast-tier reliability and 4K passthrough are required.
• Hollyland Pyro / Mars families. A direct prosumer competitor with multiple SKUs at different price points; some Hollyland models support 4K at the higher tier and the Mars line covers the budget-prosumer tier. Buyers in the Hollyland ecosystem already (for monitors, comms, etc.) may prefer staying in-ecosystem.
• Accsoon CineView family. Budget-tier wireless video with multi-device monitoring (including phones and tablets via the Accsoon app). Often the cheapest path to wireless monitoring for solo creators and small crews; lower range and feature ceiling than the DJI SDR Transmission.
• Wired HDMI / SDI with a cable management plan. Not glamorous, but for fixed-camera or short-range studio work, a properly run SDI cable is cheaper, lower-latency, more reliable, and immune to RF interference. Worth noting because the wireless-video category sometimes oversells the case against cables.

None of these alternatives is “better” or “worse” than the DJI SDR Transmission in any absolute sense. The deciding factor for most buyers is which combination of resolution ceiling, ecosystem, range, multi-receiver topology, and price matches their production needs.

The Bottom Line

The DJI SDR Transmission is a well-positioned wireless video system that fills a real gap between prosumer wireless and broadcast-tier systems. Per DJI's published specifications, it delivers 1080p video at the standard frame-rate set, a 35ms radio-link / 80ms total-system latency profile, a 3km line-of-sight maximum range, two operating modes (the low-latency SDR Control Mode for single primary receivers and the unlimited-receiver SDR Broadcast Mode for video-village topologies), and clean integration with the DJI Ronin gimbal line via direct gimbal-powered transmission. Newsshooter, CineD, and ProVideo Coalition converge on the same editorial verdict: this is feature-rich, reasonably priced, and built around DJI's proven SDR radio engineering — with the 1080p ceiling as the main trade-off versus 4K-capable broadcast wireless. For indie filmmakers, gimbal-rig operators, small-commercial productions, and crews building video-village setups without a Teradek budget, this is the well-targeted pick. For productions that genuinely need 4K signal preserved end-to-end, or that require broadcast-tier reliability and ecosystem support, Teradek is still the answer.

See Full Details

Sources & Citations

1. DJI, “DJI SDR Transmission — Specs,” https://www.dji.com/sdr-transmission/specs (manufacturer specs: 1080p resolution, frame-rate set, 20Mbps bitrate, 3km range, 35ms / 80ms latency figures, SDR Control and Broadcast modes, Sony NP-F-style battery plate, USB-C PD power, gimbal-direct power on RS 3 Pro / RS 4 / RS 4 Pro).
2. DJI, “DJI SDR Transmission — FAQ,” https://www.dji.com/sdr-transmission/faq (operating mode behavior, multi-receiver topology, regulatory notes).
3. DJI, “Support for DJI SDR Transmission,” https://www.dji.com/support/product/sdr-transmission (manufacturer support documentation).
4. DJI Store, “Buy DJI SDR Transmission Combo,” https://store.dji.com/product/dji-sdr-transmission (kit configurations and pricing).
5. Matt Allard, “DJI SDR Transmission,” Newsshooter, July 17, 2024, https://www.newsshooter.com/2024/07/17/dji-sdr-transmission/ (“feature-rich system with a great range, relatively low latency, and an affordable price” verdict; SDR Control and Broadcast Mode breakdown; positioning relative to higher-end DJI Transmission).
6. Newsshooter, “DJI Video Receiver & DJI Transmission (Standard Combo),” August 9, 2023, https://www.newsshooter.com/2023/08/09/dji-video-receiver-dji-transmission-standard-combo/ (DJI Transmission ecosystem context).
7. CineD, “DJI SDR Transmission Announced — A Lightweight and Affordable Wireless Video System,” https://www.cined.com/dji-sdr-transmission-announced-a-lightweight-and-affordable-wireless-video-system/ (1080p / 35ms / 3km feature breakdown; positioning).
8. ProVideo Coalition, “Testing Out DJI's SDR Video Transmitter,” https://www.provideocoalition.com/testing-out-djis-sdr-video-transmitter/ (working-cinematographer hands-on perspective).
9. B&H Explora, “DJI Releases Innovative and Affordable SDR Video Transmission System,” https://www.bhphotovideo.com/explora/video/news/dji-sdr-video-transmission-system (release coverage, pricing, kit configurations).
10. Production Hub, “DJI SDR Transmission System Review: A Compact Yet Powerful Wireless Video Solution,” https://www.productionhub.com/blog/post/dji-sdr-transmission-system-delivers-big-results-drive-a-winning-combination (multi-receiver and video-village workflow framing).
11. Camera Jabber, “DJI SDR Transmission Combo review,” https://camerajabber.com/reviews/dji-sdr-transmission-combo-review/ (combo kit contents and accessory framing).
