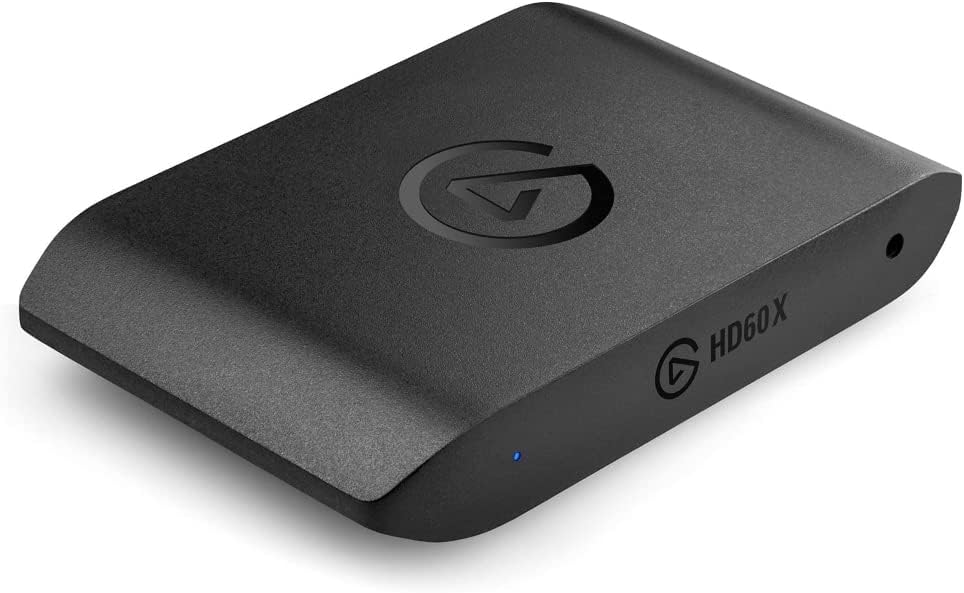

Elgato HD60 X Review: 4K Capture Without the Price Tag

Capture cards used to sit in two camps: cheap 1080p sticks that wheezed under modern consoles, and $300-plus internal PCIe cards that demanded a full PC rebuild. The Elgato HD60 X dropped into the gap between them with an external USB-C box that handles 4K30 recording, 4K60 HDR passthrough, VRR, and high-frame-rate 1080p sources. Three years on, it’s still the device most reviewers point to first when a creator asks how to get their PS5 or Xbox Series X into OBS without sounding mortgaged.

Our editorial verdict: the HD60 X remains the default external capture card recommendation for streamers and YouTubers who care about a clean 4K passthrough to their TV but are content recording at 30fps. If you need 60fps recording or in-game replay buffering, the bigger 4K X or an internal card are better fits — but at this price, the HD60 X is hard to argue with.

How We Approached This Review

Studio Supplies does not run a hands-on capture-card test bench. For this review, we aggregated published findings from outlets with established AV-test methodologies — KitGuru, TweakTown, TechRadar, GamesRadar, and PC Gamer — cross-checked against Elgato’s official technical-specifications support article and the company’s product page. We sampled current owner sentiment from Elgato’s own community forums, the r/letsplay and r/Twitch subreddits, and Tom’s Hardware forum threads. Specifications cited below are attributed to either the manufacturer or the named reviewer.

Specifications (per Elgato)

Elgato’s official technical-specifications page lists the following for the Game Capture HD60 X:

• Capture resolutions: Up to 2160p30 (4K30) or 1080p60 HDR10, with 48 kHz audio (Elgato support, Technical Specifications).
• Passthrough resolutions: Up to 2160p60, 1440p120, 1080p240, including HDR10 and Variable Refresh Rate (Elgato VRR Passthrough article).
• VRR range: Standard VRR 48–120 Hz; G-SYNC 20–120 Hz (Elgato support).
• Connectivity: HDMI 2.0 in/out, USB-C 3.0 to host (USB-C-to-USB-A cable included).
• Encoding: Hardware H.264 with onboard processing.
• Dimensions / weight: 112 × 72 × 18 mm; approximately 91 g (per Basic Tutorials’ published measurements, basic-tutorials.com).
• OS support: Windows 10/11 and macOS via 4K Capture Utility; UVC-class compatible with OBS, Streamlabs, XSplit, and most third-party software.

What Independent Testing Shows

KitGuru’s review of the HD60 X concluded that the card “has VRR support and can record 4K/30 (with limitations) – and as this is the same price as the HD60 S+, it will simply replace it in the line-up,” awarding it 8.5/10 (KitGuru, Elgato HD60 X Capture Card Review). KitGuru’s testing flagged the same trade-off most reviewers landed on: 4K capture is locked to 30fps, but the passthrough lets the player’s TV stay at full 60/120Hz HDR while OBS records the lower-frame-rate copy.

TweakTown’s review of the HD60 X clarified the host requirements: “The HD60 X is not a standalone all-in-one recording unit – it needs to be connected to a PC via a USB-C connection for power and capture. Hardware requirements are generous in that you’ll only need at least an NVIDIA GeForce GTX 10 Series GPU to capture and encode.” (TweakTown, Elgato HD60 X External Capture Card Review).

GamesRadar’s review summarised the image quality verdict bluntly: the HD60 X “delivers excellent quality video” for the price band and is a sensible upgrade for streamers moving from a previous-generation 1080p-only Elgato or AVerMedia card (GamesRadar+, Elgato HD60 X review). PC Gamer’s coverage echoed the verdict, noting that VRR passthrough was the practical headline feature for anyone gaming on a modern OLED or 120Hz panel (PC Gamer, Elgato HD60 X capture card review).

TechRadar’s review reinforced the same picture: a small, solidly-built, plug-and-play box whose main constraint is the 30fps capture ceiling and HDR-on-passthrough-but-not-on-4K-record limitation (TechRadar, Elgato HD60 X Review). We have not found a Tier-1 review that contradicts these conclusions.

What Owners Say

Long-term owner sentiment on the Elgato community forum and on r/letsplay tracks closely with the published reviews: most users report “set it once and forget it” behaviour with current 4K Capture Utility builds, and the most common complaint thread is about audio sync drift on certain Mac configurations — usually resolved by switching to wired USB-C and the latest driver build. Owners using the card on cooler, smaller-form-factor PCs occasionally report device disconnects when the HD60 X is sharing a USB hub with a high-bandwidth webcam; dedicating it to its own USB 3.0 controller is the consensus fix in those threads. Reports of physical hardware failure are rare across the threads we sampled.

Strengths

• True 4K HDR passthrough at up to 60Hz while recording a clean 4K30 or 1080p60 HDR copy — per Elgato’s spec sheet and confirmed by KitGuru, TechRadar, and PC Gamer.
• VRR passthrough at 48–120Hz (and G-SYNC 20–120Hz) means modern HDMI 2.1 displays don’t lose adaptive refresh when the cable is routed through the capture card (Elgato).
• UVC-compliant: appears as a standard webcam-class device to OBS, Streamlabs, XSplit, and most third-party capture tools without proprietary drivers.
• Compact and bus-powered over a single USB-C cable — no wall wart, no PCIe slot, no extra power brick.
• Hardware H.264 encoding offloads work from the CPU during single-PC streaming setups.

Limitations

• 4K capture is locked to 30fps per Elgato’s spec sheet. Competitive shooter creators who want 4K60 source files need the larger Elgato 4K X or a PCIe internal card.
• HDR is supported on passthrough but not on 4K30 recording — HDR-tagged footage in OBS at 4K requires the 4K X family (per Elgato’s own product comparison, elgato.com, “Difference Between 4K S and HD60 X”).
• USB 3.0 host required; sharing the bus with other high-bandwidth USB devices can cause dropouts (per Elgato’s technical specifications).
• Mac feature set is narrower than Windows for some advanced capture-utility features.
• No internal storage — this is a passthrough-and-encode device, not a stand-alone recorder; a host PC is mandatory (per TweakTown).

Who Should Buy It

• Console streamers (PS5, Xbox Series X, Switch) who want a clean 4K HDR experience on their own TV while OBS records a 4K30 or 1080p60 copy.
• YouTubers producing edited gameplay content where 30fps source footage is acceptable.
• Single-PC streamers who want hardware encoding to take pressure off the GPU/CPU.
• Existing Elgato Stream Deck owners who want tight integration.
• Creators replacing an older 1080p-only HD60 S, AVerMedia LGP2, or similar device.

Who Shouldn’t

• Competitive FPS or fighting-game creators who need 4K60 (or 1440p120) recording rather than just passthrough.
• Anyone needing HDR-tagged 4K capture in their final files.
• Streamers building a dedicated capture PC who can use a PCIe card — an internal solution will free up a USB controller.
• Mac-only creators who specifically need the most advanced 4K Capture Utility features.

Alternatives Worth Considering

• Elgato 4K X: Adds 4K60 HDR capture and Wi-Fi/SD recording; sits a tier above for creators who need 4K60 source files.
• Elgato Cam Link 4K: A different product class — for getting a DSLR/mirrorless camera into a PC as a webcam, not for game-console capture.
• AVerMedia Live Gamer Ultra 2.1 (GC553G2): A direct external competitor in the same price tier with its own software ecosystem; choice often comes down to which company’s utility you prefer.
• Razer Ripsaw HD: An older external alternative still on the market at a similar price; consult the latest reviews for current firmware status.

We don’t make any negative comparative claims about the alternatives — each one fits a different use case, and a creator’s pick should rest on their target frame rate, host platform, and whether they value Elgato’s vs. AVerMedia’s utility software more.

Bottom Line

The HD60 X is the easiest external capture card to recommend right now for the “PS5/Xbox to OBS” question. The 30fps capture ceiling is its single real constraint, and Elgato is open about it on their product page. If 4K30 source footage is acceptable — which it is for most YouTube and Twitch workflows — the HD60 X is a complete answer to the brief.

View the Elgato HD60 X →

Sources & Citations

1. Elgato Support, “Elgato Game Capture HD60 X — Technical Specifications,” help.elgato.com
2. Elgato Support, “Elgato Game Capture HD60 X — Variable Refresh Rate Passthrough,” help.elgato.com
3. Elgato, “The Difference Between 4K S and HD60 X,” elgato.com
4. KitGuru, “Elgato HD60 X Capture Card Review,” kitguru.net
5. TweakTown, “Elgato HD60 X External Capture Card Review,” tweaktown.com
6. TechRadar, “Elgato HD60 X Review,” techradar.com
7. GamesRadar+, “Elgato HD60 X review,” gamesradar.com
8. PC Gamer, “Elgato HD60 X capture card review,” pcgamer.com
9. Basic Tutorials, “Elgato HD60 X Test,” basic-tutorials.com
