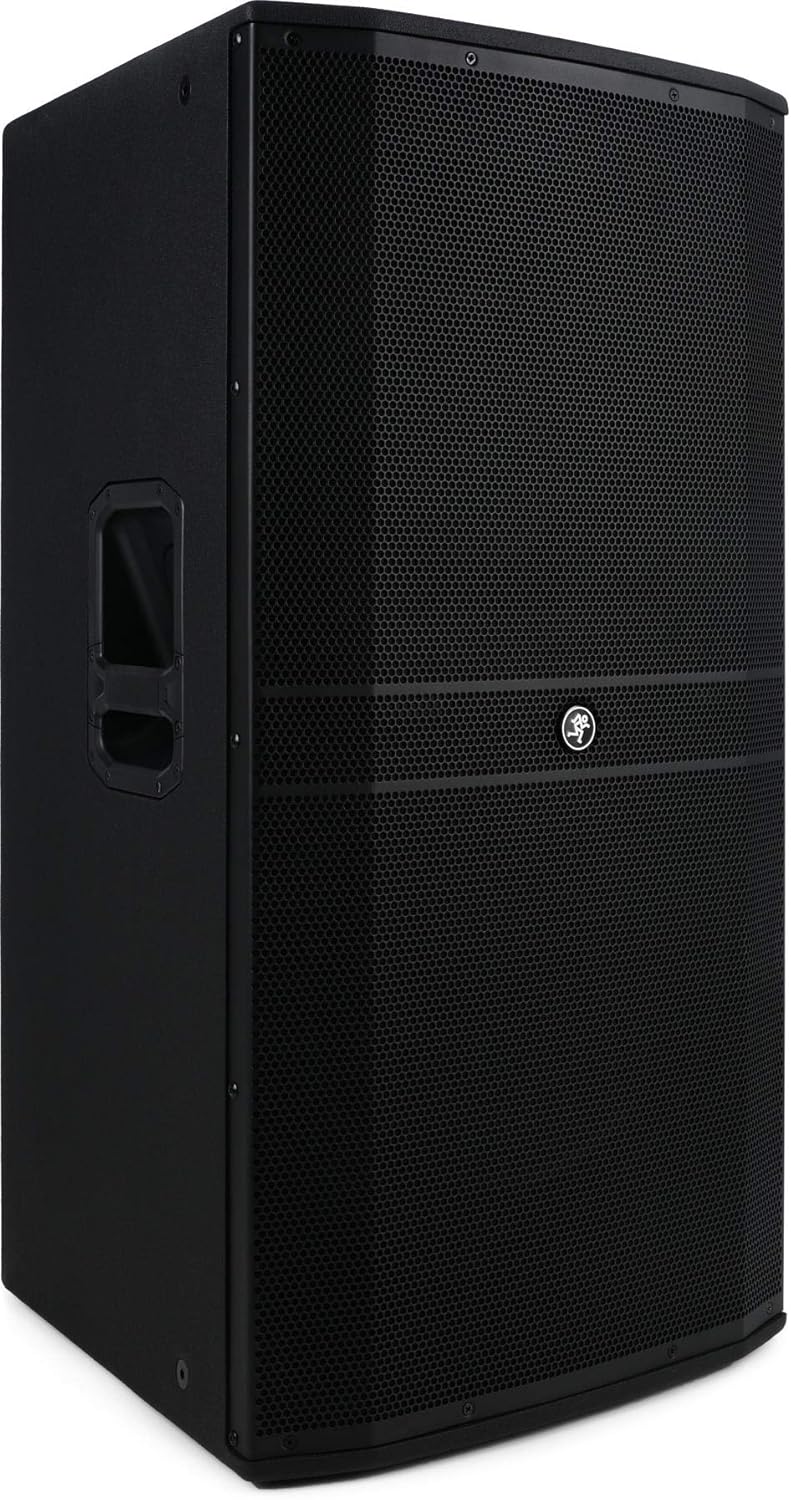

How Speakers Work: Drivers, Crossovers, and Enclosures

Every day, we rely on speakers to bring us music, movies, podcasts, and calls. But have you ever wondered how these seemingly simple boxes convert electrical signals into sound waves that our ears can interpret? This guide walks through the engineering behind drivers, crossovers, and enclosures, drawing on published explainers and manufacturer technical documents.

The Basic Principle: Electricity to Sound

At its core, a moving-coil loudspeaker converts electrical energy into mechanical motion of a diaphragm, which in turn radiates pressure waves into the air. Genelec's "Loudspeakers and Active Crossovers" technical paper describes the chain as electrical input → voice-coil force → cone displacement → acoustic output (Genelec Learning Center) [1].

1. An electrical audio signal enters the speaker
2. The signal energizes electromagnetic components
3. These components create controlled movement
4. The movement displaces air, creating sound waves

While the principle is simple, accurate full-range reproduction typically requires multiple drivers and a filter network to split the signal between them.

Speaker Drivers: The Heart of Sound Production

Drivers are the individual transducers that create sound. Most speakers contain multiple drivers, each optimized for a portion of the audible band of roughly 20 Hz to 20 kHz (AES standards index) [2].

Woofers: Handling the Low End

Woofers are typically the largest drivers and reproduce low frequencies. Sound on Sound's primer on monitor design describes a typical two-way split as a woofer covering roughly the bottom of the band up to a few hundred Hz, handing off to the tweeter (Sound on Sound, "Choosing monitor speakers") [3]. Common woofer traits include:

• Large cone area: Needed to displace enough air at low frequencies
• Heavy-duty construction: Must handle high power and large excursions
• Compliant surround: Allows significant cone movement
• Robust voice coils: Handle the current required for bass output

Sizes typically range from around 5 inches in compact bookshelf monitors to 15 inches and larger in PA cabinets, per manufacturer datasheets such as Genelec's 8000-series and Klipsch's professional cinema speakers (Genelec studio monitors; Klipsch Professional) [4][5].

Midrange Drivers: The Vocal Range

Midrange drivers typically cover the band that contains most vocal fundamentals and many instrument harmonics. Dynaudio's technical notes on three-way design discuss midrange drivers handling roughly the 500 Hz–3 kHz region in many designs, though crossover points vary by model (Dynaudio Academy) [6]. Key requirements include:

• Moderate size: Typically 3–8 inches in diameter
• Controlled dispersion: Even off-axis response across the listening area
• Low distortion: Important for natural-sounding vocals
• Smooth on-axis response: Avoids audible coloration in the presence band

Tweeters: Bringing Clarity to Highs

Tweeters reproduce the high-frequency portion of the band, typically from a few kHz upward. Several technologies are common:

Dome tweeters use a small fabric, silk, or metal dome and are the most common type in studio monitors and home hi-fi (Genelec Learning Center) [1]. Compression drivers coupled to horns provide higher efficiency and controlled directivity for PA use, as documented in Klipsch's professional cinema and live-sound product literature (Klipsch Professional) [5]. Ribbon tweeters use a thin, low-mass conductor suspended in a magnetic field and can offer extended high-frequency response, but typically have lower power handling and require careful loading (Elliott Sound Products, "Ribbon Loudspeakers") [7].

How Individual Drivers Work

The Electromagnetic Process

Most loudspeaker drivers are moving-coil (electrodynamic) transducers. Elliott Sound Products' technical primer describes the operating principle as a current-carrying voice coil suspended in the gap of a permanent magnet; the Lorentz force on the coil drives the cone (Elliott Sound Products, "Speaker Design") [8].

1. Permanent magnet: Creates a steady magnetic field in the gap
2. Voice coil: A coil of wire attached to the cone or dome
3. Audio signal: Drives a varying current through the voice coil
4. Electromagnetic force: Current in the field produces force on the coil
5. Mechanical movement: Force moves the cone, displacing air

Cone Materials and Design

Driver cones use a range of materials, each with characteristic trade-offs between stiffness, mass, and internal damping. Manufacturer documentation and Elliott Sound Products' design articles describe the common families (Elliott Sound Products; Dynaudio Academy) [8][6]:

• Paper: Traditional, generally well-damped, often described as "warm"
• Polypropylene: Lightweight, moisture-resistant, well-damped
• Aluminum: Stiff, with strong transient response; can exhibit a high-frequency resonance that designers manage with crossover or coatings
• Carbon fiber and composites: High stiffness-to-mass ratio at higher cost
• Aramid (e.g., Kevlar): Balance of stiffness and internal damping

Crossovers: Traffic Controllers for Frequencies

Because each driver covers only part of the band, a crossover network filters the signal so each driver receives only the frequencies it can handle cleanly. Genelec's active-crossover paper and Elliott Sound Products' crossover articles cover the design space in detail (Genelec; Elliott Sound Products, "Active vs Passive Crossovers") [1][9].

Passive Crossovers

Passive crossovers use capacitors, inductors, and resistors after the amplifier to split the full-range signal among drivers:

• High-pass filters: Send high frequencies to tweeters
• Low-pass filters: Send low frequencies to woofers
• Band-pass filters: Send a defined range to midrange drivers

They are called passive because they require no external power; energy comes from the amplifier signal itself, with some inevitable insertion loss (Elliott Sound Products) [9].

Active Crossovers

Active crossovers filter the signal at line level, before amplification, and require a separate amplifier channel per driver. Elliott Sound Products and Genelec both describe the typical advantages (Elliott Sound Products; Genelec) [9][1]:

• More precise frequency-domain control and easier EQ/delay alignment
• No insertion loss in passive components between amp and driver
• Easier to tune crossover points and slopes
• Each amplifier can be matched to its driver

Trade-offs include higher parts count, more amplifier channels, and added complexity in setup.

Crossover Points and Slopes

The crossover frequency is the point at which one driver hands off to another. Typical two-way studio monitors cross over somewhere in the 1.5–3 kHz region between woofer and tweeter, while three-way designs add a midrange band; exact values vary widely and are model-specific (see, e.g., Genelec and Dynaudio datasheets) (Genelec; Dynaudio Academy) [4][6].

Crossover slope describes how steeply the filter attenuates frequencies above or below the crossover point and is expressed in dB per octave. Common slopes are 6, 12, 18, and 24 dB/octave (first-, second-, third-, and fourth-order filters respectively), per standard filter theory documented by Elliott Sound Products and the AES (Elliott Sound Products, "Crossover Types"; AES) [10][2].

Speaker Enclosures: More Than Just Boxes

The enclosure is an acoustic component, not just a container: it controls the rear radiation of the driver and shapes low-frequency response. Genelec's enclosure design notes and Dynaudio's white papers cover the main alignments (Genelec; Dynaudio Academy) [1][6].

Sealed Enclosures

Sealed (acoustic-suspension) enclosures fully enclose the driver in an airtight box. Typical characteristics, per manufacturer technical literature [1][6]:

Often described as:

• Tight, well-controlled bass with a relatively gentle low-end roll-off (typically around 12 dB/octave)
• Good transient behavior
• Predictable response that is relatively tolerant of placement
• Compact form factor possible

Trade-offs typically include:

• Lower efficiency than equivalent ported designs
• Less low-frequency extension for a given box size
• Higher amplifier power required for a given SPL at low frequencies

Ported Enclosures

Ported (bass-reflex) enclosures use a tuned port to extend low-frequency output by reinforcing the driver's rear radiation near the port tuning frequency [1][6]:

Often described as:

• Higher efficiency near the tuning frequency
• Extended low-frequency response for a given enclosure volume
• Lower amplifier power required at the bottom end

Trade-offs typically include:

• More complex alignment and tuning
• Potential for port noise (chuffing) at high excursion
• Steeper roll-off below tuning (typically around 24 dB/octave) and reduced control of cone motion below port tuning

Transmission Line Enclosures

Transmission-line enclosures use a long, often folded internal pathway, typically lined with damping material, to control the rear wave. They can extend low-frequency response but are more complex to design and build, as discussed in Elliott Sound Products' enclosure articles (Elliott Sound Products, "Transmission Line Loudspeakers") [11].

Advanced Speaker Technologies

Coaxial Drivers

Coaxial designs place a tweeter at the acoustic center of a larger driver, approximating a point source for improved imaging and time alignment. Genelec's coaxial Ones-series and KEF's Uni-Q literature describe the design rationale (Genelec "The Ones") [12].

Planar Magnetic Drivers

Planar magnetic drivers use a thin diaphragm with embedded conductors suspended in a magnetic field. They typically offer low moving mass and fast transient response but require larger radiating area for low-frequency output (AES) [2].

Electrostatic Drivers

Electrostatic speakers use a thin charged diaphragm between perforated stator plates. They are typically prized for low coloration and fast response but require step-up transformers, high-voltage bias supplies, and careful placement, as documented in Elliott Sound Products' electrostatic articles (Elliott Sound Products, "Electrostatic Loudspeaker Design") [13].

Speaker Specifications Explained

Frequency Response

Frequency response describes how evenly a speaker reproduces different frequencies. Manufacturers typically publish the response with a tolerance band (e.g., ±3 dB), per AES measurement-practice recommendations (AES standards index) [2].

Sensitivity

Sensitivity is typically specified in dB SPL at 1 m for a defined input (commonly 2.83 V into 8 Ω, equivalent to 1 W into 8 Ω), per manufacturer datasheets and AES practice [2][4].

Impedance

Loudspeaker nominal impedance is typically 4, 6, or 8 Ω, but the actual impedance varies with frequency. Lower nominal impedance generally demands more current from the amplifier (Elliott Sound Products, "Loudspeaker Impedance") [14].

Power Handling

Power-handling figures are typically published as continuous (RMS or AES) and peak/program ratings; they describe what the speaker can absorb without thermal or mechanical damage and are not a direct indicator of loudness, per AES2 power-test guidance (AES standards index) [2].

Room Acoustics and Speaker Interaction

Speakers do not operate in isolation; the room's acoustic behavior strongly affects what reaches the listener. Sound on Sound's studio-acoustics articles cover the main mechanisms (Sound on Sound, "Studio Acoustics") [15]:

• Reflections: Sound bouncing off walls, ceiling, floor, and furniture
• Standing waves (room modes): Resonances that emphasize or cancel particular frequencies
• Absorption: Materials that reduce reflections and control reverberation
• Diffusion: Surfaces that scatter reflections to reduce flutter echo

Choosing the Right Speakers

Consider these factors when selecting speakers:

• Application: Near-field monitoring, live sound, or home listening
• Room size: Larger rooms generally need more output capability
• Amplification: Match speaker impedance and power requirements
• Budget: Balance performance needs with available resources
• Personal preference: Some listeners prefer warmer voicing, others a more neutral target

Maintenance and Care

Proper speaker care helps preserve performance and longevity:

• Avoid clipping the amplifier; sustained clipped signals can damage tweeters in particular (Elliott Sound Products, "Amplifier Clipping") [16]
• Keep grilles and cones free of dust
• Check connections periodically
• Store in stable temperature and humidity conditions
• Handle drivers carefully during any maintenance

The Future of Speaker Technology

Speaker design continues to evolve along several lines documented in current AES papers and manufacturer white papers [2][1]:

• Digital signal processing: Active correction of driver and room response
• New diaphragm materials: Beryllium tweeters and exotic composites
• Smart and networked speakers: Integrated DSP, wireless connectivity, and room-correction tools
• Beamforming arrays: Steered directivity using driver arrays

Conclusion

Understanding how speakers work helps you make better purchasing decisions, optimize your setup, and appreciate the engineering behind great sound. From the electromagnetic principles that move driver cones to the acoustic behavior of enclosures, every component plays a role in turning electrical signals into the music and sound that fill our rooms.

Whether you are setting up a home studio, building a live system, or simply curious about the technology, this background should make manufacturer specs and reviewer measurements easier to read.

Sources & Citations

1. Genelec, "Learning Center — loudspeaker and active-crossover technical articles," genelec.com/learning-center
2. Audio Engineering Society, "AES Standards" (loudspeaker measurement and power-test practice), aes.org/publications/standards
3. Sound on Sound, "Q. How do I choose the right monitor speakers?" soundonsound.com
4. Genelec, "Studio Monitors" product and datasheet pages, genelec.com/studio-monitors
5. Klipsch, "Professional Speakers" product and technical pages, klipsch.com/products/professional
6. Dynaudio, "Dynaudio Academy" technical articles on driver and crossover design, dynaudio.com/dynaudio-academy
7. Elliott Sound Products, "Ribbon Loudspeakers," sound-au.com/articles/ribbons.htm
8. Elliott Sound Products, "The Quest for the Perfect Loudspeaker / Speaker Design Notes," sound-au.com/articles/quest-for-perfect-speaker.htm
9. Elliott Sound Products, "Active vs Passive Crossovers," sound-au.com/articles/active-vs-passive.htm
10. Elliott Sound Products, "Crossover Types and Slopes," sound-au.com/articles/xover-types.htm
11. Elliott Sound Products, "Transmission Line Loudspeakers," sound-au.com/articles/transmission.htm
12. Genelec, "The Ones — Coaxial Three-Way Point-Source Monitors," genelec.com/the-ones
13. Elliott Sound Products, "Electrostatic Loudspeaker Design," sound-au.com/articles/esl-design.htm
14. Elliott Sound Products, "Loudspeaker Impedance," sound-au.com/articles/impedance.htm
15. Sound on Sound, "Studio Acoustics" article series, soundonsound.com/sound-advice/studio-acoustics
16. Elliott Sound Products, "Amplifier Clipping and Speaker Damage," sound-au.com/articles/clipping.htm
