How to Wire a Home Studio: Signal Chain From Mic to Monitor

Your microphone captures the sound. Your speakers play it back. Everything in between — the signal chain — determines whether you hear pristine audio or a muddy, hum-laden mess. Most home studio problems aren't caused by bad equipment. They're caused by bad connections: the wrong cables, the wrong inputs, mismatched signal levels, or a power setup that invites 60-cycle hum into every recording.

This guide walks through the signal chain that 90% of home studios actually need — microphone, audio interface, computer, monitor speakers — and shows you how to wire each link cleanly and safely. We focus on the choices that matter: balanced cabling, proper gain staging, where to place a mixer if you need one, and how to deal with hum and ground loops the right way (which is not by defeating equipment safety grounds).

What You'll Need

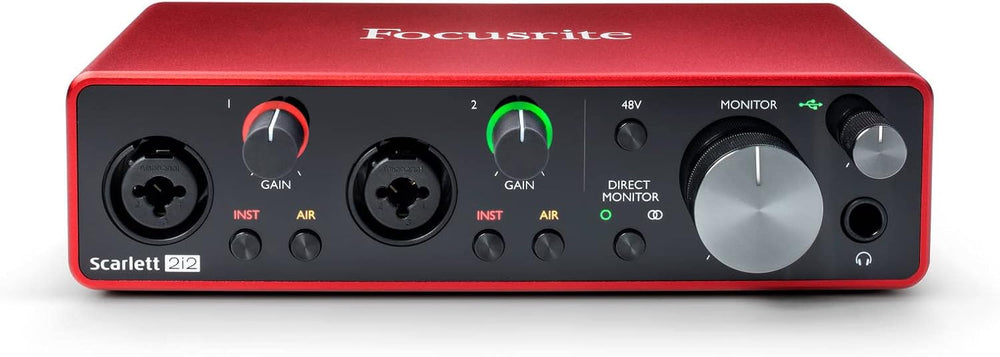

• An audio interface with quality preamps and balanced outputs. The Focusrite Scarlett 2i2 (3rd Gen) is the default starter pick for two-input home studios; MusicTech's review of the 3rd Gen Scarlett line found the 2i2 delivered "incredible detail and clarity" with "incredibly low latency" at an entry-level price (MusicTech Scarlett 3rd Gen review). View on Amazon →
• Powered (active) studio monitors with balanced inputs. The PreSonus Eris E4.5 accepts both XLR and TRS; MusicTech's Eris series review described the 4.5 as having "some of the finest bass definition" in the line with "remarkably crisp" imaging that "punch[es] way above their price point" (MusicTech Eris series review). View on Amazon →
• An optional small-format mixer if you need more inputs or hands-on faders. The Soundcraft EPM 8 is a long-running compact mixer; per Soundcraft's own product documentation, the GB30 mic preamps offer 55 dB of gain range with +22 dB headroom through the console (Soundcraft EPM8 product page). View on Amazon →
• A multi-output headphone amp if more than one person needs to monitor. The Mackie HM-4 drives four headphone pairs from one stereo feed, per Mackie's published HM-4 specifications (Mackie HM-4 product page). View on Amazon →
• Balanced XLR mic cables (one per microphone) and balanced TRS or XLR cables (one per monitor) — never use TS instrument cables for monitor runs.
• A single high-quality power strip rated for the wattage of all the gear you'll plug into it.

The Signal Chain at a Glance

Microphone → Audio Interface → Computer (DAW) → Audio Interface → Monitor Speakers

Everything else — mixers, outboard processors, headphone amps, monitor controllers — bolts onto this skeleton. Get the basic chain right first, then expand only where you have a real reason to.

Signal Levels in Your Chain

Your audio changes form several times between the capsule and the cone. Knowing which level lives at which connection is the single biggest predictor of whether your wiring will work the first time:

• Microphone level — very weak; needs preamp gain.
• Line level — the standard analog signal between most pro gear (+4 dBu) and consumer gear (-10 dBV).
• Digital signal — what travels over USB/Thunderbolt between the interface and the computer.
• Speaker level — high-power amplified signal that drives passive speaker drivers. Active monitors handle this internally; you only see it on power-amp/passive-speaker rigs.

Plugging the wrong level into the wrong jack is the cause of the majority of "no signal" or "horrible distortion" complaints we see in beginner setups. Mic into a line input: nothing audible. Line out into a mic input: instant clipping.

Step-by-Step: Wiring the Basic Chain

Step 1: Plan Power First

Before you plug in a single cable, decide where the gear will live and where it will get power. The single most commonly recommended rule for clean signal is this: plug every piece of audio gear into the same power strip on the same wall outlet. Sharing a circuit eliminates most ground-loop conditions before they have a chance to start, because all your gear sees the same ground reference — this is consistent with the engineering analysis in Jensen's published ground-loop reference (Jensen Transformers: What is a ground loop?).

Confirm your gear's combined wattage doesn't exceed the strip's rating (typically 1,800 W on a standard 15 A North American circuit). If it does, you need a different circuit, not a daisy chain of strips.

Step 2: Position the Equipment

• Place the audio interface within easy reach of both the computer and the microphone.
• Position monitor speakers in an equilateral triangle with your listening position — left monitor, right monitor, and your head should each be roughly the same distance apart.
• Route audio cables away from power cables. Where they must cross, cross at 90 degrees rather than running parallel.

Step 3: Connect the Microphone to the Interface

1. Confirm phantom power (+48V) is OFF on the interface.
2. Plug an XLR cable into the microphone's output and into the interface's mic/instrument input (input 1).
3. If the microphone is a condenser, enable +48V phantom power now. If the microphone is a passive ribbon, do not apply phantom power (Shure: Ribbon mics & phantom power). If the microphone is dynamic, phantom is harmless but unnecessary — Sound on Sound's Sound Advice column on SM57/SM58 phantom sensitivity confirms typical dynamic mics are unaffected (Sound on Sound: Are SM57s and SM58s sensitive to phantom power?).
4. Set input gain to minimum.

Step 4: Connect the Interface to the Computer

1. Install the manufacturer's drivers before connecting the interface (especially on Windows).
2. Plug in the USB or Thunderbolt cable from the interface to the computer.
3. Open your DAW and select the interface as both your input and output device.
4. Set the buffer size: smaller (64–128 samples) for tracking, larger (256–512+) for mixing.

Step 5: Connect the Monitors

1. Turn the monitors' volume controls all the way down.
2. Connect the interface's left output to the left monitor and the right output to the right monitor using balanced cables — XLR or TRS, never TS.
3. Power the monitors on, then gradually raise their volume.

Why balanced matters: a balanced cable carries two copies of the audio signal (one inverted) plus a separate ground. Any noise picked up along the run hits both conductors equally and is cancelled at the receiver via common-mode rejection. Unbalanced TS cables have no such trick — they pick up hum, RF, and computer fan noise like an antenna, especially on runs longer than about a meter. The principle and a detailed engineering explanation appear in Bill Whitlock's AES paper on grounding and balanced interfaces (Whitlock & Fox, AES: "Ground Loops — The Rest of the Story").

Step 6: Test the Chain

1. Create a new audio track in your DAW and set its input to the interface's input 1.
2. Arm the track for recording.
3. Speak or play into the microphone while watching the input meter.
4. Adjust interface gain so loudest peaks land in the −18 to −12 dBFS region with no red clip indicators — Sound on Sound's gain-staging guide commonly recommends working in this headroom range for 24-bit recording (Sound on Sound: Gain Staging In Your DAW Software).
5. Play back to confirm the signal makes it all the way to your monitors.

Adding a Mixer

Most home studios don't need a mixer. A two-input interface and a DAW will handle solo vocal, podcast, and most singer-songwriter work without one. You actually need a mixer when:

• You're recording multiple musicians at once and need more inputs than your interface has.
• You're running a multi-host podcast or live stream and want physical fader control.
• You want zero-latency monitoring with a custom blend that's easier to ride than a software cue mix.

The wiring pattern: microphones into the mixer's XLR channel inputs, then the mixer's main outs (or sub outs, or direct outs) into the interface's line inputs via balanced cables. Set channel gain at the mixer, leave interface input gain low, and reference the interface meters to confirm you're not overdriving its inputs — this matches the gain-staging-from-source-forward approach commonly recommended in Sound on Sound's DAW gain-staging guide (Sound on Sound: Gain Staging).

Headphone Monitoring

For a single listener, the interface's built-in headphone output is usually fine. For a band session, podcast crew, or anyone tracking with a separate engineer, a dedicated headphone amp is worth the small extra cost — it lets each person set their own volume and avoids the hum-prone daisy-chain of headphone splitters. The Mackie HM-4's four-output one-stereo-input topology is documented on the Mackie product page (Mackie HM-4).

Troubleshooting: Hum, Buzz, and Ground Loops

Hum is the most common signal-chain problem and the one that drives the most dangerous bad advice on the internet. Work the problem methodically — do not reach for a cheater plug or otherwise defeat the AC safety ground. Ground loops are addressed via balanced signal isolation and shared-circuit power, never by lifting the equipment safety ground (Jensen: Understanding, Finding & Eliminating Ground Loops).

Step A: Identify the Source by Isolation

Unplug everything from the interface except the powered monitors. Is the hum still there? If yes, the loop is between the interface, the monitors, and the computer. If no, plug each microphone, mixer, or outboard device back in one at a time until the hum returns — that last device is in your loop.

Step B: Swap Cables

Try a known-good balanced cable on the suspect link. A single bad shield in a long run can turn an otherwise clean rig into a hum machine.

Step C: Use Balanced Connections Wherever Possible

Replace any unbalanced TS cables on monitor or line-level runs with balanced XLR or TRS cables. This single change resolves a meaningful share of "mystery hum" issues in home studios — the engineering basis is the common-mode rejection of differential balanced inputs (Whitlock & Fox, AES paper).

Step D: Get Everything on the Same Circuit

Move all audio gear — interface, monitors, computer, mixer, outboard — onto a single power strip on a single wall outlet. Different outlets in the same room can be on different circuits with subtly different ground potentials, which is exactly what creates ground loops (Jensen: What is a ground loop?).

Step E: Insert an Isolation Transformer Where Needed

If a specific link in the chain still hums after the steps above — commonly a turntable, a guitar amp DI feed, or a long run from a separate piece of outboard — insert a purpose-built audio isolation transformer on that link. Galvanic isolation breaks the ground loop without breaking the equipment safety ground. Established options used in pro and project studios include:

• Jensen Iso-Max line-level isolation transformers (jensentransformers.com). Jensen's published application notes and white papers (authored over many years by their late founder Bill Whitlock) are the most cited engineering references on the topic.
• Ebtech Hum X in-line AC ground-loop isolator (ebtechaudio.com). Sits between a single piece of gear's IEC plug and the wall, breaks the audio-frequency ground loop while maintaining the AC safety ground for fault current.
• Radial Engineering isolation and DI products (radialeng.com) for higher-end studio applications, including their JDI passive DI box with a Jensen transformer inside.

What NOT to Do

Do not use a 3-prong-to-2-prong adapter ("cheater plug") to silence hum. Do not snip the ground pin off a power cable. Do not flip a "ground lift" switch on an outlet. Defeating the equipment safety ground exposes you to electrocution if any AC fault makes its way to a metal chassis — an exposed mic stand, a guitar string, or a rack rail can become live. It is also a code violation in most North American jurisdictions and will likely void your equipment insurance. The correct solution is balanced signal isolation (transformer or properly wired balanced interface), not lifting the AC safety ground (Jensen seminar PDF).

The "ground lift" switches you see on DI boxes and some outboard gear are different and safe — they lift the audio signal ground (pin 1 of an XLR), not the AC mains safety ground. Those are fine to use.

Common Wiring Mistakes

Wrong input type. Mic into line input: inaudible. Line out into mic input: instant clipping. Match levels to inputs.

Unbalanced cables on balanced connections. A TS cable in a TRS jack technically passes audio but sacrifices noise rejection — you'll hear the hum even if the cable looks fine.

Phantom power applied to a passive ribbon mic. See the warning above and Shure's service article (Shure: Ribbon mics & phantom power). Always disable +48V before touching ribbon connections.

Sloppy gain staging. Cranked-up software gain compensating for low interface gain just amplifies the noise floor. Set gain at the source — the preamp — and leave the DAW fader near unity, per Sound on Sound's gain-staging guidance (Sound on Sound: Gain Staging In Your DAW Software).

When to Consult a Licensed Electrician

If you have walked through every step above — same circuit, balanced cables, isolation transformer where needed — and a hum or shock condition persists, the problem is in your building's wiring, not your audio rig. Symptoms that warrant calling a licensed electrician immediately:

• Tingle or shock when touching a metal chassis, mic shell, or guitar string.
• Hum that changes pitch or volume when other appliances on the building turn on/off.
• Multiple outlets in the room that test as ungrounded with a $10 plug-in outlet tester.
• Any visible damage to a wall outlet, scorch marks, or a warm faceplate.

House wiring is licensed work for a reason. Defeating safety grounds to chase hum has caused fatalities in audio environments; an hour of an electrician's time is the right answer.

Sources & Citations

1. MusicTech — "Focusrite Scarlett 3rd Gen review" (Focusrite Scarlett 2i2 3rd Gen): musictech.com/reviews/studio-recording-gear/focusrite-scarlett-3rd-gen/
2. MusicTech — "PreSonus Eris Series Review" (PreSonus Eris E4.5): musictech.com/reviews/presonus-eris-series-review/
3. Soundcraft — EPM8 product specifications (Soundcraft EPM 8 mixer, GB30 preamp gain/headroom): soundcraft.com/en-US/products/epm8
4. Mackie — HM-4 product page (4-channel headphone amp specs): mackie.com/en/products/mixers/HM-Series/HM-4.html
5. Sound on Sound — "Gain Staging In Your DAW Software" (recording level / headroom guidance): soundonsound.com/techniques/gain-staging-your-daw-software
6. Sound on Sound — "Q. Are SM57s and SM58s sensitive to phantom power?" (dynamic mics + phantom): soundonsound.com/sound-advice/q-are-sm57s-and-sm58s-sensitive-phantom-power
7. Shure — "Ribbon mics & phantom power" service article (ribbon-mic damage warning): service.shure.com/s/article/ribbon-mics-phantom-power
8. Jensen Transformers — "Understanding, Finding & Eliminating Ground Loops" (Bill Whitlock seminar, ground-loop theory and safe mitigation): jensen-transformers.com (PDF)
9. Whitlock & Fox, AES — "Ground Loops: The Rest of the Story" (balanced interface / common-mode rejection engineering reference): jensen-transformers.com (AES PDF)
10. Jensen Transformers — "What is a ground loop?" (shared-circuit grounding rationale): jensen-transformers.com/what-is-a-ground-loop/
11. Ebtech — Hum X product page (in-line AC isolator that preserves safety ground): ebtechaudio.com
12. Radial Engineering — isolation and DI product line: radialeng.com

For specific findings linked inline above, see each citation. See our full Editorial Methodology for how we select and verify sources.
