Blackmagic ATEM Mini Extreme Bundle — Editorial Review & Use Cases

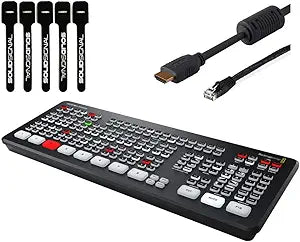

The Blackmagic Design ATEM Mini Extreme Bundle (BMD-SWATEMMINICEXT-BUNDLE) is the top-tier variant of Blackmagic's ATEM Mini live production switcher line — combining 8 HDMI inputs, dual streaming engines, multiview output, on-air talkback, dual-record to USB drives, and 6 chroma keyers in a single tabletop production unit. Per Blackmagic's official ATEM Mini family product page, the Mini Extreme is positioned for multi-camera live streaming, hybrid event production, multi-source webinar / corporate AV deployments, and education / classroom recording workflows.
What the ATEM Mini Extreme Specifically Wins
- 8 HDMI inputs — covers most multi-camera + multi-source setups (4 cameras + 2 computer feeds + 2 video playback) without external scalers or signal aggregation
- Dual streaming engines — stream simultaneously to two destinations (YouTube + Twitch, or primary + backup CDN, etc.) without separate hardware
- Multiview output — preview all sources + program output on a single HDMI display for operator monitoring
- 6 chroma keyers — overlay multiple green-screen / luma-key sources simultaneously for complex composite scenes
- Dual USB recording — record program out to two USB SSDs concurrently for redundancy (primary + backup)
- Talkback over 3.5mm headphone — coordinate with camera operators during multi-camera live productions
- No proprietary licensing or software subscriptions — Blackmagic's ATEM Software Control is free; the hardware works standalone
Where the ATEM Mini Extreme Specifically Fits
- Multi-camera live event production — 4-camera concerts, conferences, sporting events, religious services, esports streams
- Corporate AV deployments with multiple presenter cameras + slide / video sources in board rooms or training facilities
- Higher-education lecture capture where 4+ camera angles + screen capture + media playback need switching
- Twitch / YouTube live productions with multi-camera setups, picture-in-picture compositing, and live overlay graphics
- Podcast / talk-show studios recording 2-4 hosts on separate cameras with multi-view production switching
- Houses of worship running multi-cam services with stage cameras + speaker close-ups + congregation wide shots
Honest Limits Buyers Should Know
- HDMI inputs only — no SDI native. The Mini Extreme is HDMI-only. Pro broadcast environments using SDI cameras (Blackmagic URSA, Sony PXW, Panasonic AK series) need SDI-to-HDMI converters or step up to the ATEM SDI-class switchers (ATEM SDI Extreme ISO, ATEM Constellation 8K) at significantly higher price tiers
- 1080p maximum — no 4K production switching. The ATEM Mini Extreme caps at 1080p60. For 4K live production, step up to the ATEM Mini Pro ISO 4K or ATEM Constellation 4K
- Limited audio mixing (12 channels via HDMI embedded + 2 analog). Pro audio productions with 12+ microphones need dedicated audio mixers (Allen & Heath SQ-5, Yamaha QL series) feeding into the ATEM via dedicated audio routes
- No timeline editing on-device. The Mini Extreme is a live switcher — for non-live recording-then-edit workflows, capture USB recordings and edit in DaVinci Resolve / Premiere Pro / Final Cut after the live event
- Steep learning curve for full feature exploitation. Mastering chroma keys + multiview + dual-stream + talkback workflows requires substantial operator training. First-time live-production operators may find the Mini (4 input, non-Extreme) more approachable
Where Buyers Should Look Elsewhere
- 2-camera entry-level streaming → Blackmagic ATEM Mini (base, 4 inputs at lower price)
- SDI broadcast workflows → ATEM SDI Pro ISO, ATEM Television Studio Pro 4K, ATEM Constellation 4K/8K
- 4K live production → ATEM Mini Pro ISO 4K, ATEM Constellation 4K, Roland V-160HD
- Software-only switching → vMix, Wirecast, OBS Studio (free + extensive plugin ecosystem) — software switching trades hardware reliability for lower cost + more flexibility
- NDI-priority workflows → NewTek TriCaster, Roland V-160HD with NDI option, or NDI software switchers
Sources & Citations
- Blackmagic Design, "ATEM Mini Extreme product page," blackmagicdesign.com (accessed 2026-05-18)
- Newsshooter, "Blackmagic ATEM Mini family coverage," newsshooter.com (accessed 2026-05-18)
- ProVideo Coalition, "Live-production switcher coverage," provideocoalition.com (accessed 2026-05-18)
Last verified: 2026-05-18
